产品介绍

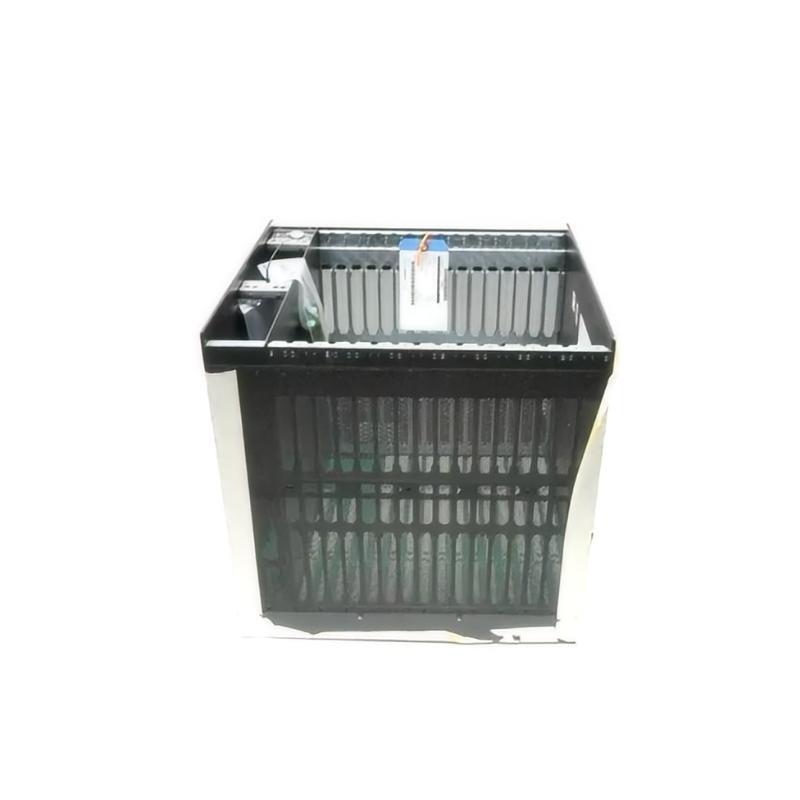

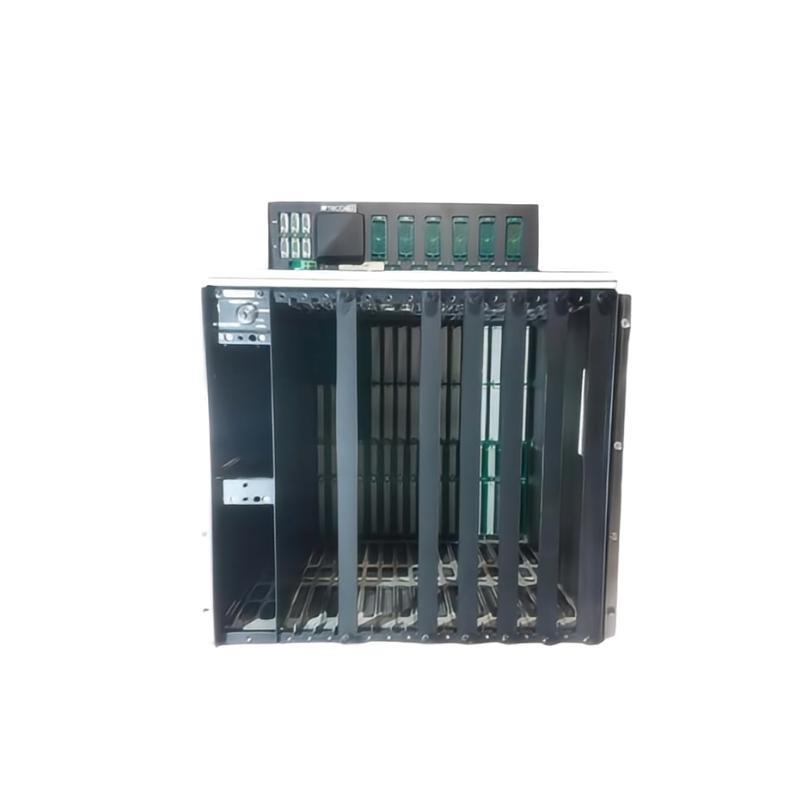

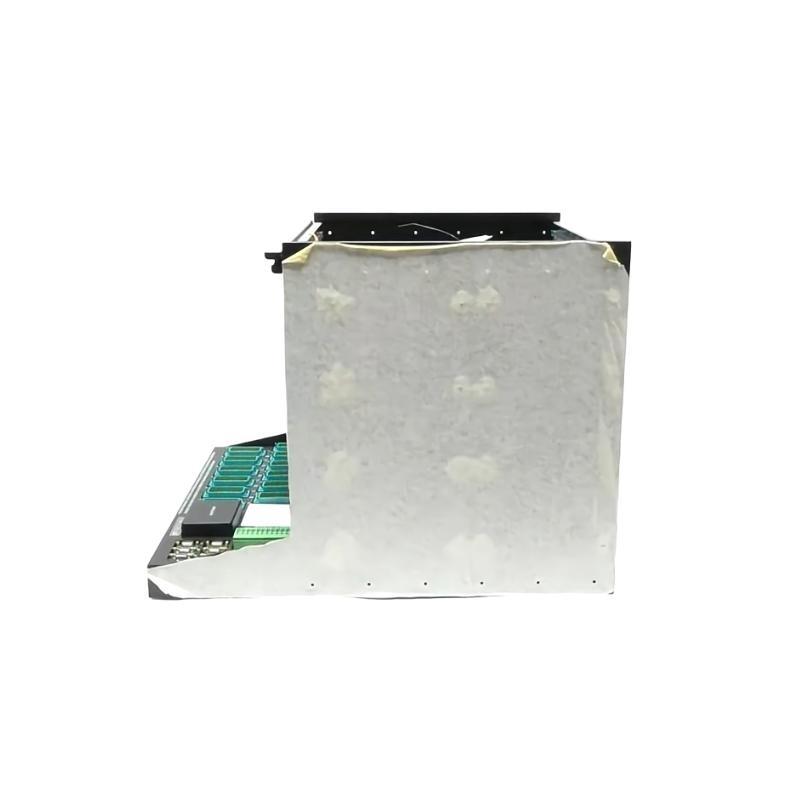

The Triconex 8110 High-Density Main Chassis serves as a central component in Triconex’s safety instrumented systems (SIS). Designed to accommodate a substantial number / I/O modules, this chassis is ideal for complex industrial applications requiring high reliability and scalability. Its robust construction and modular design ensure seamless integration into various safety-critical environments.
产品规格
| Parameter | Specification |
|---|---|
| Product 型号 | Triconex 8110 |
| 零件号 | 3000602-100 |
| Type | High-Density Main Chassis |
| Dimensions (H × W × D) | 483 x 578 x 451 mm |
| 重量 | 24.5 kg |
| Material | Black zinc-plated, welded cold-rolled steel |
| Slot Capacity | 支持s multiple I/O modules |
| Power Requirements | External 24 V DC power supply |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mounted or panel-mounted |
| Compliance | IEC 61508 SIL 3 Compatible |
Applications
-
Process Safety Systems: Integral in chemical, oil & gas, and petrochemical industries for monitoring and controlling critical processes.
-
Power Generation: Utilized in both conventional and nuclear power plants to ensure operational safety.
-
Emergency Shutdown Systems: Facilitates rapid response mechanisms in industrial setups to prevent accidents.
-
Fire and Gas Detection: Central to systems designed to detect and respond to fire and gas leaks.
-
High Integrity Pressure Protection Systems (HIPPS): Ensures pressure levels remain within safe limits in pipelines and vessels.
-
Turbomachinery Control: Manages the operation / turbines, compressors, and related equipment in various industries.
Product Advantages
-
High-Density Configuration: Accommodates a large number / I/O modules, allowing for extensive system expansion without additional chassis.
-
Robust Construction: Built with durable materials to withstand harsh industrial environments.
-
Modular Design: Facilitates easy installation, maintenance, and scalability.
-
Redundant Power Supplies: 支持s dual power inputs to enhance system reliability.
-
Hot-Swappable Modules: Enables replacement / modules without system downtime, ensuring continuous operation.
-
Compliance with Safety Standards: Meets IEC 61508 SIL 3 requirements, making it suitable for safety-critical applications.
-
Versatile Mounting Options: Can be installed in various configurations to suit different industrial setups.
-
Efficient Thermal Management: Designed to dissipate heat effectively, maintaining optimal operating temperatures.
-
Comprehensive Diagnostics: Provides detailed system diagnostics for proactive maintenance.
-
Wide Compatibility: Compatible with a range / Triconex modules, ensuring flexibility in system design.
常见问题 (FAQ)
-
What is the primary function / the Triconex 8110 chassis?
It serves as the main housing for Triconex I/O modules, facilitating the integration / safety and control systems. -
How many I/O modules can the 8110 chassis accommodate?
The exact number depends on the specific configuration and module types used. -
Is the chassis compatible with redundant power supplies?
Yes, it supports dual power inputs to enhance system reliability. -
Can modules be replaced without shutting down the system?
Yes, the chassis supports hot-swappable modules, allowing for maintenance without system downtime. -
What materials are used in the construction / the chassis?
It is constructed from black zinc-plated, welded cold-rolled steel for durability. -
What are the mounting options for the 8110 chassis?
It can be rack-mounted or panel-mounted, depending on the installation requirements. -
Does the chassis comply with safety standards?
Yes, it is compatible with IEC 61508 SIL 3 standards, suitable for safety-critical applications. -
What is the operating temperature range / the chassis?
It operates effectively between -20°C and +70°C. -
Is the chassis suitable for use in hazardous environments?
Its robust construction and compliance with safety standards make it suitable for various industrial environments. -
What types / systems commonly use the 8110 chassis?
It is widely used in process safety systems, power generation, emergency shutdown systems, and more.
Related 型号s from the Same Series or Similar Use
| 型号 Number | 描述 | Slot Capacity | Dimensions (H × W × D) | 重量 |
|---|---|---|---|---|
| Triconex 8100 | Standard Main Chassis | Varies | 22.75 in × 19 in × 17.75 in | ~54 lbs |
| Triconex 8111 | High-Density Expansion Chassis | 30 slots | 23 in × 18 in × 18 in | ~55 lbs |
| Triconex 8112 | Remote Expansion Chassis | Varies | 23 in × 18 in × 18 in | ~55 lbs |
| Triconex 8120X | Enhanced Main Chassis | Varies | 22.75 in × 19 in × 17.75 in | ~54 lbs |
| Triconex 8130 | Compact Main Chassis | Varies | 22.75 in × 19 in × 17.75 in | ~54 lbs |
| Triconex 8140 | High-Capacity Main Chassis | Varies | 22.75 in × 19 in × 17.75 in | ~54 lbs |
Popular 型号s from Triconex 品牌
| 型号 Number | 描述 | Type | Typical Application |
|---|---|---|---|
| Triconex 3008 | Main Processor Module | Processor Module | Core processing 件 |
| Triconex 3101 | Digital Input Module | I/O Module | Input signal acquisition |
| Triconex 3351 | Analog Input Module | I/O Module | Analog signal processing |
| Triconex 3501 | Digital Output Module | I/O Module | Output signal control |
| Triconex 3604E | Communication Module | Communication | Network interfacing |
| Triconex 9662-610 | Field Termination Module | Termination Module | Signal termination and routing |
