产品介绍

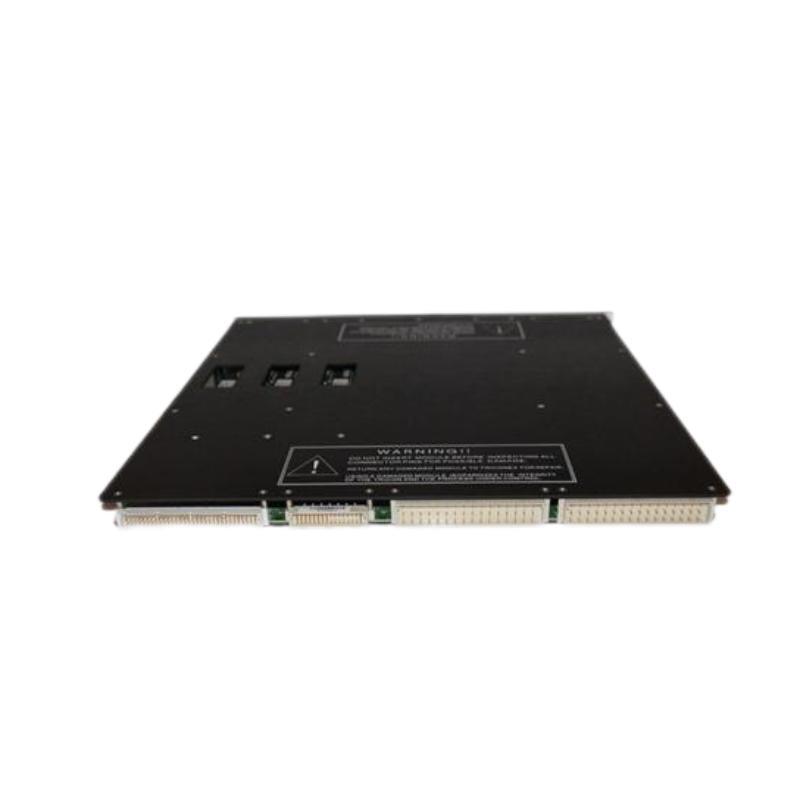

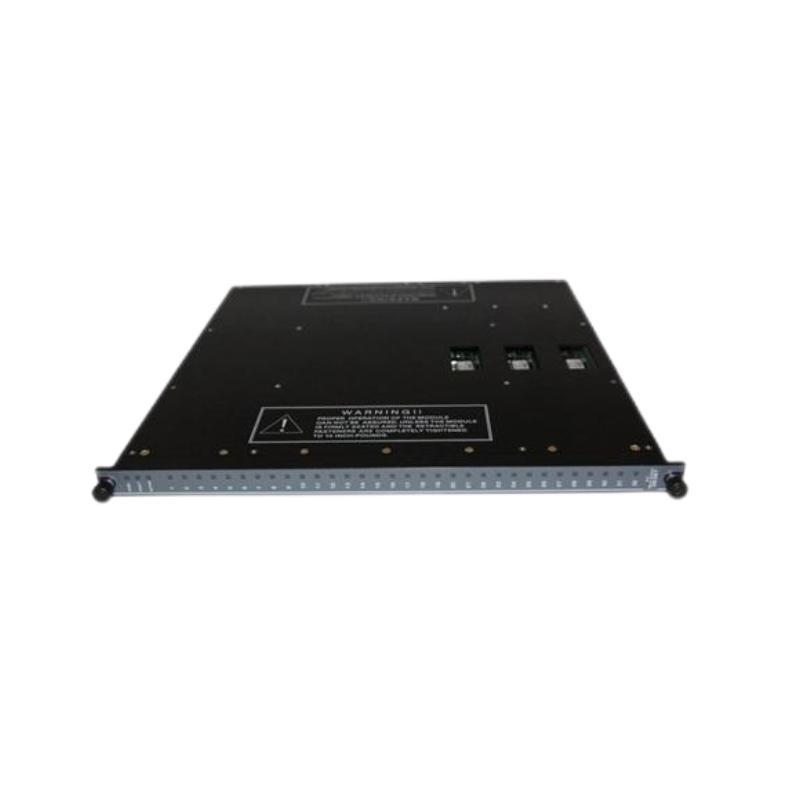

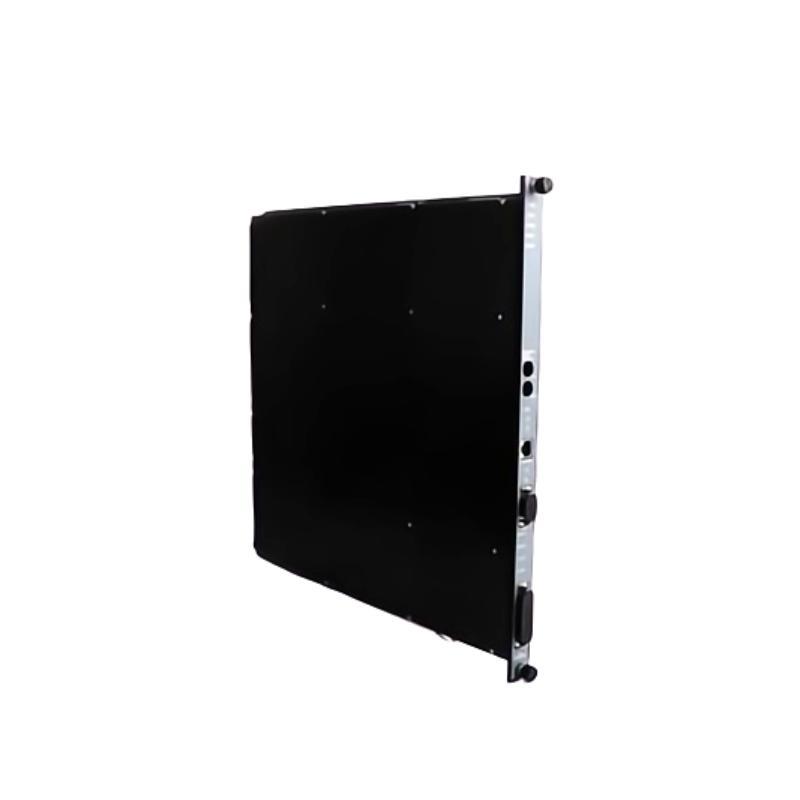

The Triconex 3636A Relay Output Module is a safety-critical component designed for use within the Tricon™ fault-tolerant safety and control system. Developed by Triconex, a trusted brand under Schneider Electric, this module serves as a high-integrity output interface in a wide array / process industries, particularly where reliability, safety compliance, and deterministic response are non-negotiable.
The 3636A is a 32-channel relay output module, capable / switching field devices with electrical isolation and mechanical robustness. It provides normally open (NO) dry contacts and is suitable for controlling actuators, solenoids, alarms, and other final elements in Safety Instrumented Systems (SIS). This module is certified for use in SIL 3 applications according to IEC 61508 and is frequently used in emergency shutdown (ESD), fire and gas (F&G), and turbine protection systems.
Its modular design ensures hot-replaceability, field diagnostics, and seamless integration with Tricon system architecture.
产品规格
| Parameter | Details |
|---|---|
| 型号 | Triconex 3636A |
| Product Type | Relay Output Module |
| Channels | 32 isolated relay output channels |
| Relay Type | Form A (SPST-NO) dry contact relays |
| Rated Load (per channel) | 2 A @ 30 VDC / 2 A @ 250 VAC resistive |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Switching Time | < 10 ms (typical) |
| Status LEDs | Channel-specific output status indicators |
| Diagnostic Features | Built-in self-test, loopback diagnostics |
| Redundancy 支持 | Yes (Triple Modular Redundancy compatible) |
| Hot-Swap Capability | Yes |
| Power Consumption | Approx. 6.5 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Shock / Vibration | IEC 60068 compliant |
| Mounting | Plug-in to standard Tricon backplane |
| Dimensions (L × W × H) | 490 x 453 x 68 mm |
| 重量 | 2.5 kg |
| Certifications | SIL 3 (IEC 61508), CE, CSA, ATEX Zone 2 |
Product Applications
The 3636A Relay Output Module is a fundamental element in various mission-critical control and safety systems. Its applications span across:
-
Oil & Gas Processing Plants: ESD valve actuation, motor shutdown, gas detectors.
-
Chemical & Petrochemical Facilities: SIS control loops, relief system triggering, alarm interface.
-
Power Generation 单位s: Turbine protection, auxiliary systems interlocking, fan cut/fs.
-
Pharmaceutical Industry: Batch processing safety and equipment interlock systems.
-
Marine and Offshore Platforms: Ballast control systems, fire suppression actuation.
-
Mining and Metals: Emergency stop systems and conveyor safety logic output.
Each / these applications demands high-reliability outputs under variable and /ten harsh operating conditions—an area where the 3636A excels.
Product Advantages
-
Safety Integrity Level 3 Certified: Ideal for use in high-risk safety applications in accordance with global standards.
-
Field-Proven Reliability: Designed to operate in challenging environments with high uptime requirements.
-
Hot-Swap Ready: 支持s online replacement without system downtime, reducing operational interruptions.
-
Triple Modular Redundancy (TMR): Seamlessly integrates into TMR architecture, ensuring fault tolerance.
-
Per-Channel Isolation: Reduces fault propagation and enhances safety diagnostics.
-
Mechanical Relay Output: Provides safe, galvanically isolated switching for AC and DC loads.
-
Fast Response Time: Sub-10 ms switching enables real-time safety action and event responses.
-
Diagnostic LEDs: Clear, per-channel indication simplifies maintenance and fault isolation.
-
Broad Compatibility: Integrates smoothly into existing Tricon systems and third-party SCADA/DCS interfaces.
-
Global Certification: Approved for hazardous environments, including explosive atmospheres and /fshore use.
常见问题 (FAQ)
-
What type / outputs does the 3636A module provide?
The 3636A /fers 32 Form A (normally open) dry contact mechanical relay outputs. -
Can this module be hot-swapped during operation?
Yes, it supports hot replacement, allowing field technicians to swap the module without shutting down the system. -
What is the maximum current each output can handle?
Each output can handle up to 2 Amps at 30 VDC or 250 VAC resistive. -
Is this module suitable for SIL 3 applications?
Yes, the Triconex 3636A is fully certified for SIL 3 systems under IEC 61508. -
Can this module be used in hazardous areas?
Yes, it is ATEX Zone 2 certified and CSA-approved for use in hazardous environments. -
How do I monitor the status / each output?
Each channel has a corresponding status LED for real-time indication / its ON/OFF state. -
Does the module provide any diagnostic features?
Yes, it has built-in loopback diagnostics and self-test functions for continuous health monitoring. -
How is the module mounted?
It is plug-in type, mounted directly onto the Tricon system backplane. -
What kind / loads can it switch?
It is ideal for resistive loads, such as indicators, solenoids, and alarms, in both AC and DC configurations. -
What is the operating temperature range?
The 3636A operates reliably between -20°C and +60°C.
Recommended Same-Series or Related 型号s
| 型号 | 描述 | Output Type | Channels | SIL Rating | 重量 (kg) |
|---|---|---|---|---|---|
| Triconex 3625 | Digital Output Module | Solid-状态 | 32 | SIL 3 | 1.3 |
| Triconex 3664 | Analog Output Module | 4-20mA / 0-10V | 8 | SIL 2/3 | 1.5 |
| Triconex 3700A | Main Processor Module | N/A | N/A | SIL 3 | 1.6 |
| Triconex 3511 | Power Supply Module | N/A | N/A | SIL 3 | 1.8 |
| Triconex 3504E | Main Chassis (Backplane) | N/A | 8 Slots | N/A | 2.5 |
| Triconex 3623 | Digital Input Module | 32 DI | Discrete | SIL 3 | 1.3 |
Popular 型号s from Triconex (Same 品牌)
| 型号 | 描述 | Function | Channels / Specs | SIL Rating | 重量 (kg) |
|---|---|---|---|---|---|
| Triconex 3008 | Main Controller | CPU/Logic | Triple redundant CPU | SIL 3 | 2.2 |
| Triconex 3721 | Analog Input Module | AI (4-20mA) | 16 Channels | SIL 3 | 1.4 |
| Triconex 3624 | Digital Output Module | DO (Solid-状态) | 32 Channels | SIL 3 | 1.2 |
| Triconex 3805E | Ethernet Communication Module | Network Comm | Dual port | SIL 3 | 1.1 |
| Triconex 8111 | Universal Analog Input Module | 4-20mA, RTD, Thermocouple | 16 Channels | SIL 3 | 1.6 |
| Triconex 4200 | Application Programming Station (APS) | Engineering Workstation | PC-based | N/A | — |
