产品介绍

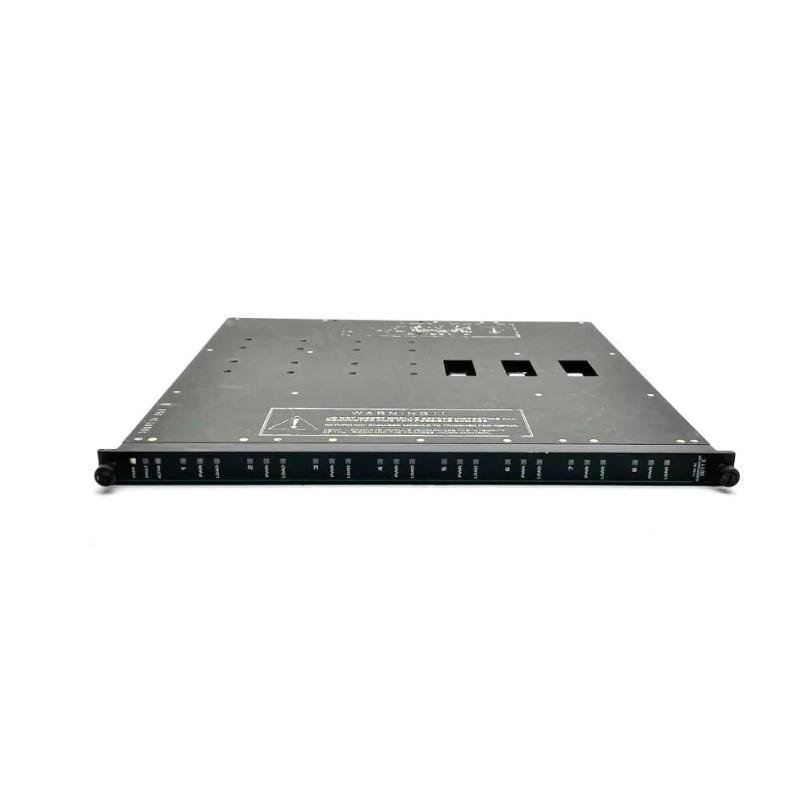

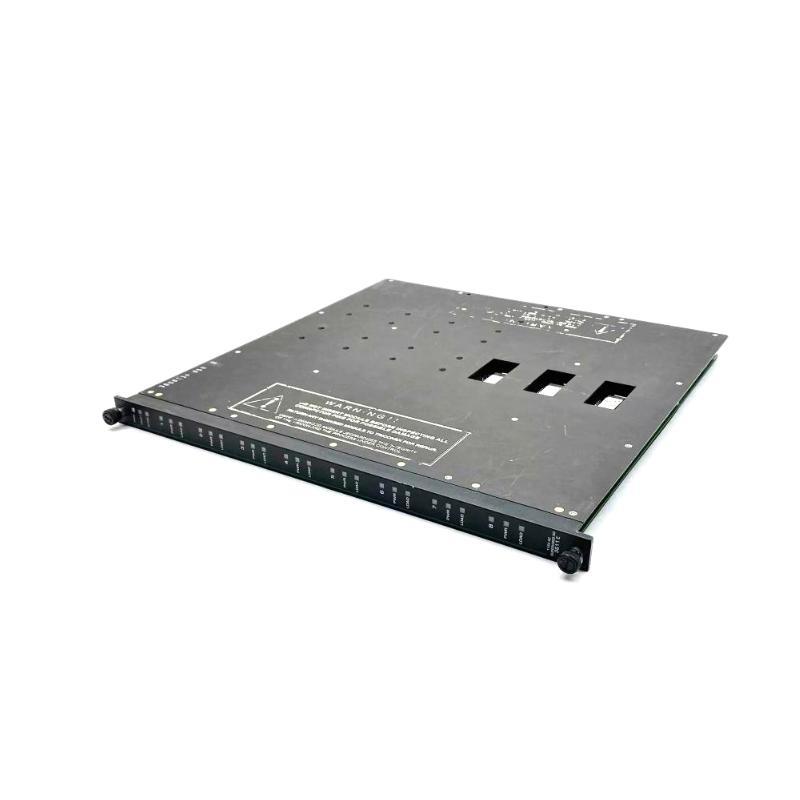

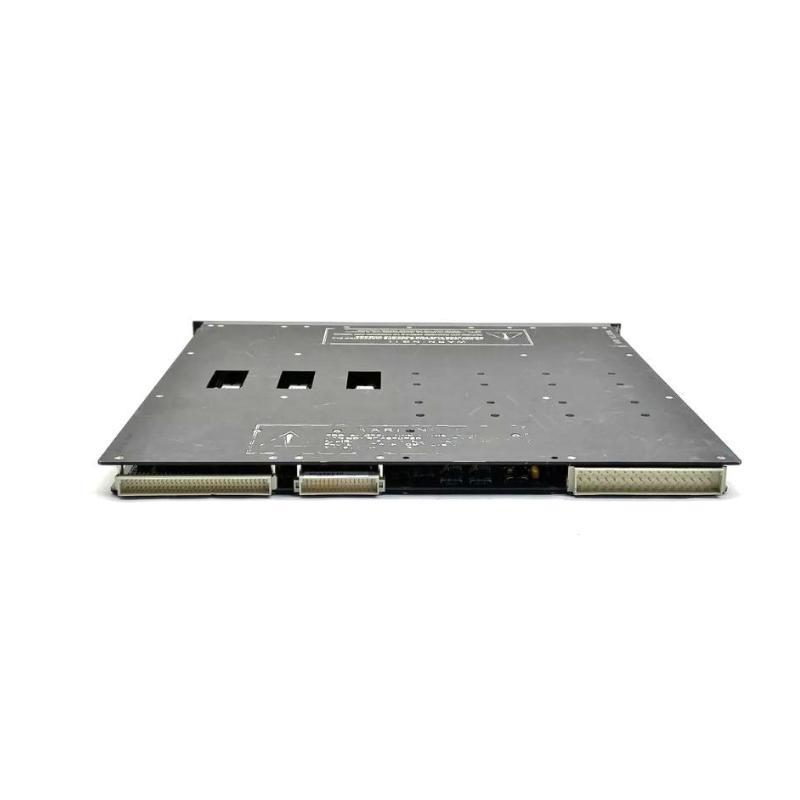

The Triconex 3611E is an 8-channel supervised digital output module designed for use within Triconex Safety Instrumented Systems (SIS). Operating at a nominal voltage / 115 VAC, this module is engineered to deliver reliable digital outputs in safety-critical applications. Its Triple Modular Redundancy (TMR) architecture ensures fault tolerance and continuous operation, even in the event / individual component failures.
Each / the 8 outputs is commoned, providing a shared return path that simplifies wiring. The module incorporates optical isolation, surge protection, and short circuit protection for each output, making it suitable for deployment in demanding industrial environments where safety and operational continuity are paramount.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Triconex 3611E Digital Output Module |
| 零件号 | 3611E |
| 制造商 | Triconex (a brand / Schneider Electric) |
| System Compatibility | Triconex Safety Instrumented Systems (SIS) |
| Number / Output Channels | 8 (commoned) |
| Output Type | Supervised Digital Output |
| Nominal Output Voltage | 115 VAC |
| Voltage Range | 90–155 VAC |
| Frequency Range | 47–63 Hz |
| Output Current per Channel | 2 A (maximum) |
| Total Output Current | 10 A (maximum) |
| Maximum Switching Power | 2,000 VA (resistive) |
| Minimum Required Load | 50 mA |
| Surge Current per Channel | 10 A per AC cycle |
| On-状态 Voltage Drop | < 2 V (typical) |
| Chassis Leakage | 1 mA max. @ 60 Hz |
| Load Leakage | 4 mA max. |
| Fuses (on Field Termination) | 1 per output (2.5 A fast-acting) |
| Point Isolation | 1,500 VDC (minimum) |
| Diagnostic Indicators | POINT, PWR, LOAD, PASS, FAULT, ACTIVE |
| Color Code | Deep green |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Dimensions (W × H × D) | 114.3 ×127 × 107.95 mm |
| 重量 | 1.5 kg |
| Mounting Type | Rack-mounted within Triconex chassis |
| Certifications | CE, UL |
| Country / Origin | USA |
Product Applications
The Triconex 3611E Digital Output Module is suitable for a variety / safety-critical applications across multiple industries:
-
Emergency Shutdown Systems (ESD): Facilitates safe shutdown procedures in response to hazardous conditions.
-
Fire and Gas Detection Systems: Controls alarms and suppression systems upon detection / fire or gas leaks.
-
Turbine Control Systems: Manages turbine operations, ensuring safe start-up, operation, and shutdown sequences.
-
Process Control Systems: Provides reliable output control in chemical, petrochemical, and oil & gas processing facilities.
-
Machine Safety Systems: Ensures safe operation / machinery by controlling actuators and interlocks in manufacturing environments.
Product Advantages
-
High Reliability: TMR architecture enhances system reliability by allowing continuous operation despite individual component failures.
-
Simplified Wiring: Commoned outputs reduce wiring complexity, facilitating easier installation and maintenance.
-
Robust Protection: Built-in optical isolation, surge protection, and short circuit protection safeguard both the module and connected field devices.
-
Wide Voltage Range: Operates effectively within a broad voltage range (90–155 VAC), accommodating various power supply conditions.
-
Industrial Durability: Designed to withstand harsh industrial environments with a wide operating temperature range and robust construction.
-
Ease / Integration: Seamlessly integrates into existing Triconex SIS architectures, facilitating upgrades and expansions.
常见问题 (FAQ)
-
What is the primary function / the Triconex 3611E module?
The 3611E provides 8 supervised digital outputs for controlling field devices in safety-critical applications. -
What does Triple Modular Redundancy (TMR) mean in this context?
TMR refers to the use / three independent processing 件s that perform the same operations simultaneously, enhancing fault tolerance. -
Can the 3611E handle DC voltage outputs?
No, the 3611E is designed specifically for 115 VAC outputs. -
What types / protection are included in the 3611E module?
Each output channel includes optical isolation, surge protection, and short circuit protection to prevent damage from electrical faults. -
Is the 3611E suitable for use in hazardous environments?
Yes, it is designed for industrial applications and complies with relevant safety certifications. -
How are the output channels configured?
The module features 8 commoned output channels, simplifying wiring and enhancing safety. -
What is the maximum current per output channel?
Each channel can handle up to 2 A, with a total maximum output current / 10 A. -
What are the physical dimensions / the 3611E module?
The module measures 114.3 ×127 × 107.95 mm. -
What is the weight / the 3611E module?
The module weighs 1.5 kg. -
Does the 3611E support diagnostic feedback from the field devices?
Yes, the module includes diagnostic indicators such as POINT, PWR, LOAD, PASS, FAULT, and ACTIVE for monitoring output status and module health.
Related 型号s in the Same Series
| 型号 | 描述 | Output Voltage | Channels | Notes |
|---|---|---|---|---|
| 3601E | Digital Output Module, 115 VAC, Non-commoned | 115 VAC | 16 | Opto-isolated outputs |
| 3603E | Digital Output Module, 120 VDC, Non-commoned | 120 VDC | 16 | Enhanced version / 3603B |
| 3604E | Digital Output Module, 24 VDC, Non-commoned | 24 VDC | 16 | TMR architecture |
| 3607E | Digital Output Module, 48 VDC, Non-commoned | 48 VDC | 16 | TMR architecture |
| 3623T | Digital Output Module, 120 VDC, Commoned, Supervised | 120 VDC | 16 | Supervised outputs |
| 3625 | Digital Output Module, 24 VDC, Commoned, Supervised | 24 VDC | 32 | High-density supervised outputs |
Popular 型号s from Triconex
| 型号 | Function | System | SIL Level | Application |
|---|---|---|---|---|
| 3501E | Digital Input Module, 115 VAC/VDC, Non-commoned | Tricon | SIL 3 | High-integrity digital input applications |
| 3700A | Analog Input Module, 0–5 VDC, Differential | Tricon | SIL 3 | Precise analog signal acquisition |
| 3805E | Analog Output Module, 4–20 mA Current Loop | Tricon | SIL 3 | Analog control in safety systems |
| 3636R | Relay Output Module, Non-triplicated, Normally Open | Tricon | SIL 3 | Relay-based output control |
| 3664 | Digital Output Module, 24 VDC, Commoned Dual | Tricon | SIL 3 | Dual redundant digital outputs |
| 3674 | Digital Output Module, 24 VDC, Commoned Dual | Tricon | SIL 3 | Dual redundant digital outputs |
