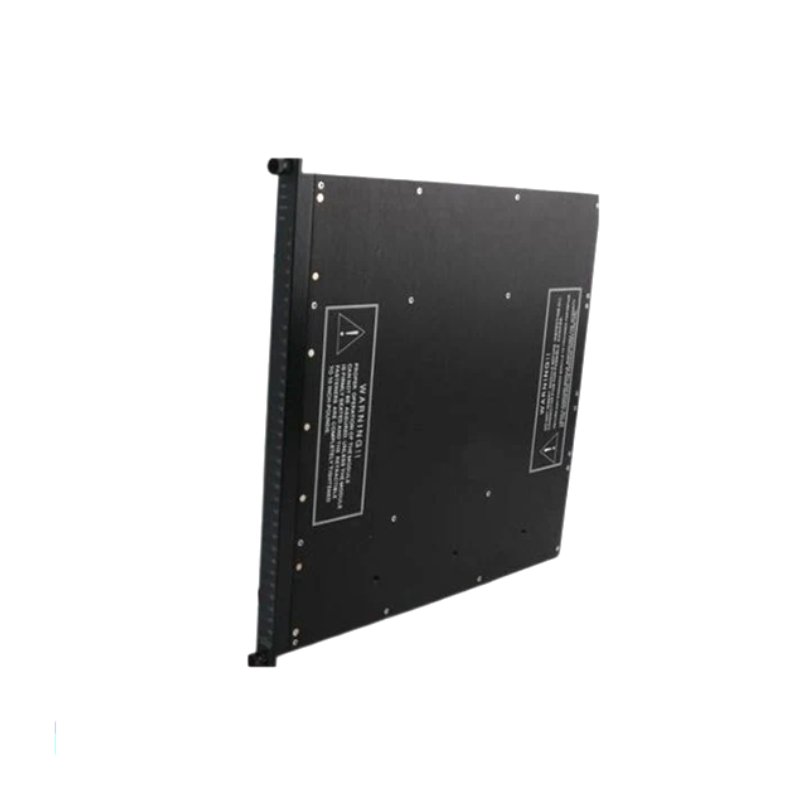

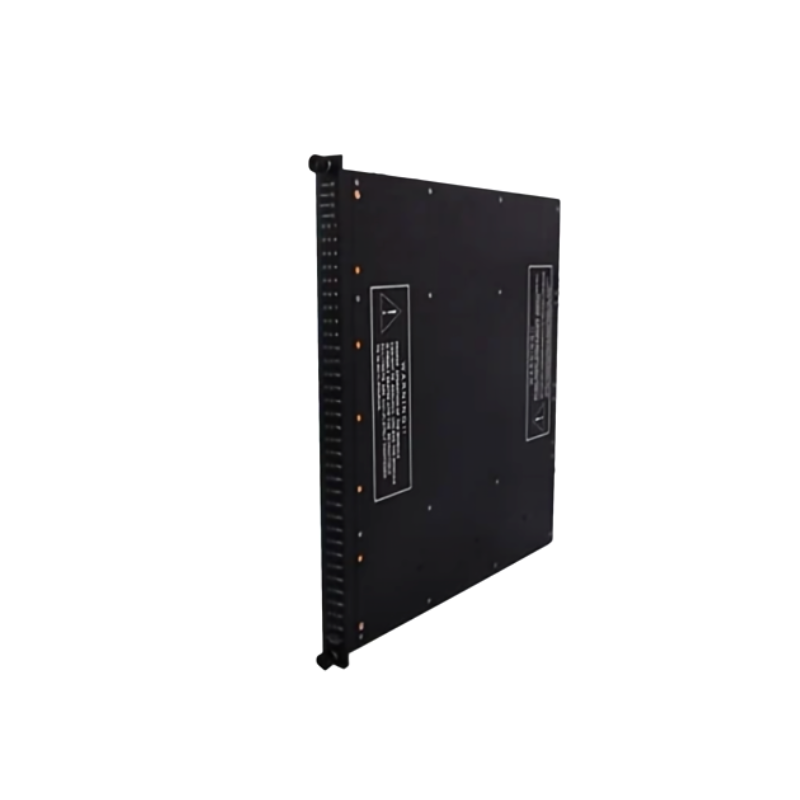

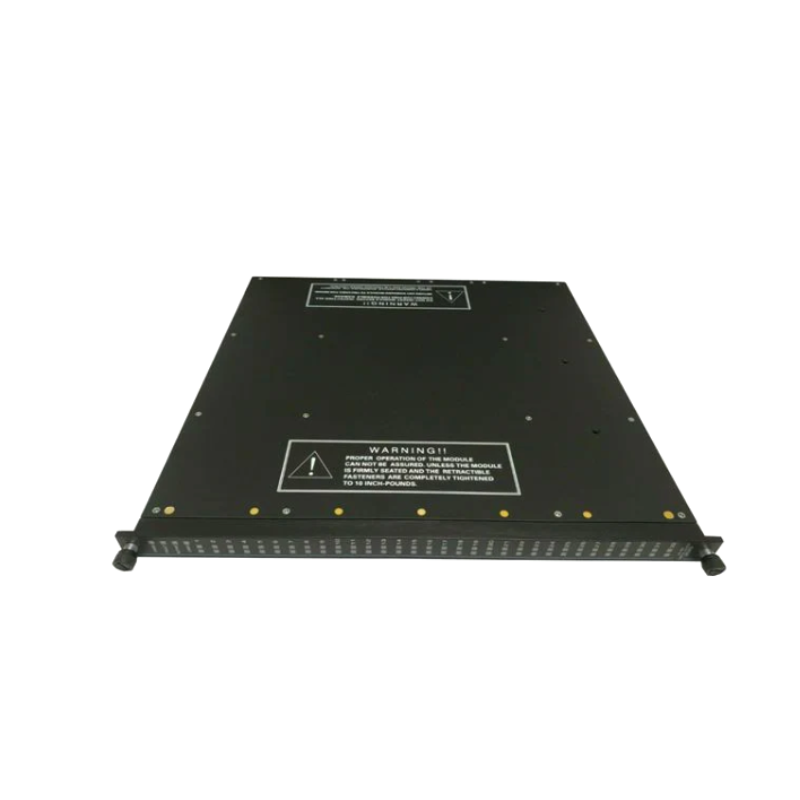

Triconex 3603B Digital Output Module

产品介绍

The Triconex 3603B is a high-integrity 16-channel digital output module designed for use within Triconex Safety Instrumented Systems (SIS). Operating at a nominal voltage / 120 VDC, this module is engineered to deliver reliable digital outputs in safety-critical applications. Its Triple Modular Redundancy (TMR) architecture ensures fault tolerance and continuous operation, even in the event / individual component failures.

Each / the 16 outputs is non-commoned, providing isolated channels that enhance system reliability and prevent fault propagation. The module incorporates surge and short circuit protection for each output, making it suitable for deployment in demanding industrial environments where safety and operational continuity are paramount.

Technical Specifications

Product Applications

The Triconex 3603B Digital Output Module is suitable for a variety / safety-critical applications across multiple industries:

• Emergency Shutdown Systems (ESD): Facilitates safe shutdown procedures in response to hazardous conditions.

• Fire and Gas Detection Systems: Controls alarms and suppression systems upon detection / fire or gas leaks.

• Turbine Control Systems: Manages turbine operations, ensuring safe start-up, operation, and shutdown sequences.

• Process Control Systems: Provides reliable output control in chemical, petrochemical, and oil & gas processing facilities.

• Machine Safety Systems: Ensures safe operation / machinery by controlling actuators and interlocks in manufacturing environments.

Product Advantages

• High Reliability: TMR architecture enhances system reliability by allowing continuous operation despite individual component failures.

• Isolated Outputs: Non-commoned channels prevent fault propagation, enhancing overall system safety.

• Robust Protection: Built-in surge and short circuit protection safeguard both the module and connected field devices.

• Wide Voltage Range: Operates effectively within a broad voltage range (90–150 VDC), accommodating various power supply conditions.

• Industrial Durability: Designed to withstand harsh industrial environments with a wide operating temperature range and robust construction.

• Ease / Integration: Seamlessly integrates into existing Triconex SIS architectures, facilitating upgrades and expansions.

常见问题 (FAQ)

1. How many field devices can be connected to the Triconex 3603B module?
   The 3603B module supports 16 independent digital output channels, each capable / directly driving a discrete field device such as a solenoid valve, relay coil, or indicator light.

2. Can each output channel on the 3603B be independently controlled?
   Yes, all 16 output channels are individually isolated and independently addressable, allowing for precise control / each connected device.

3. What types / loads are compatible with the 3603B’s outputs?
   The module is designed to handle inductive and resistive DC loads, including solenoids, contactors, and small DC motors, provided they fall within the voltage and current rating limits.

4. Is external protection required for the outputs?
   No, each output is already equipped with internal short circuit and surge protection, eliminating the need for external fuses or suppressors in most installations.

5. Does the 3603B support diagnostic feedback from the field devices?
   While it provides protection and isolation, the 3603B does not include feedback monitoring. For applications requiring supervision or diagnostics, Triconex /fers supervised output modules like the 3625.

6. What’s the typical reaction time from logic command to output switching?
   The module is optimized for fast response times, typically in the range / a few milliseconds, suitable for critical safety interlock functions.

7. Is this module hot-swappable?
   No, due to safety considerations in SIS environments, the 3603B must be installed or replaced during system shutdown with proper isolation and grounding procedures.

8. What wiring practices should be observed when connecting loads to the 3603B?
   Use shielded cables for noise imm件y, ensure proper grounding, and avoid mixing high-voltage or AC lines in the same conduit as DC control wiring.

9. What maintenance is required for the 3603B?
   The module is solid-state and generally maintenance-free. However, periodic inspection / terminal connections and verification / output operation during scheduled system testing is recommended.

10. Can the 3603B operate in redundant configurations?
    Yes, the module is designed for use in TMR-based redundant systems, supporting high-availability applications where any one channel or leg can fail without affecting overall system function.
