产品介绍

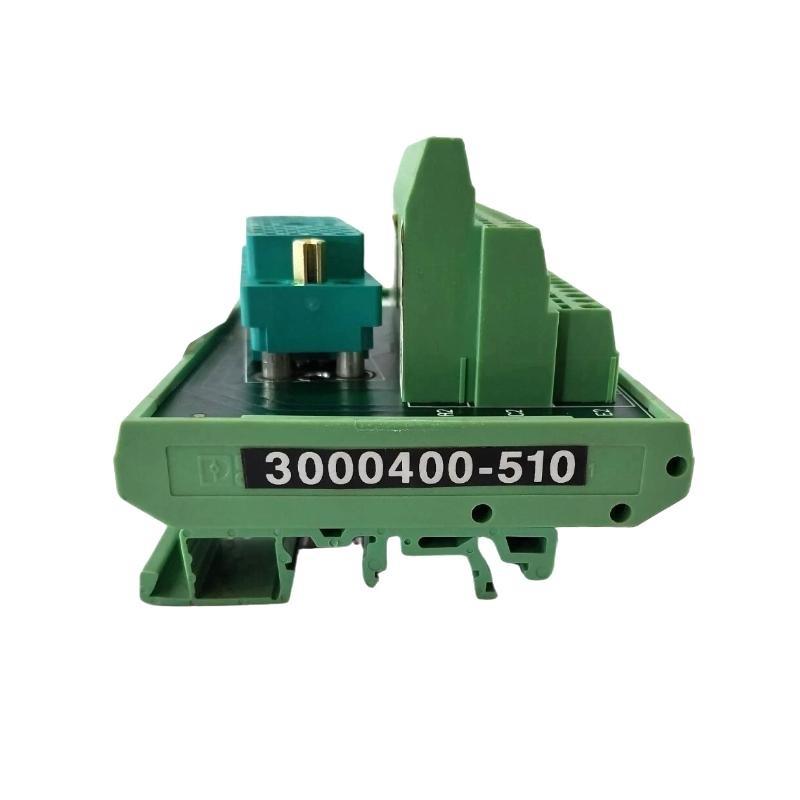

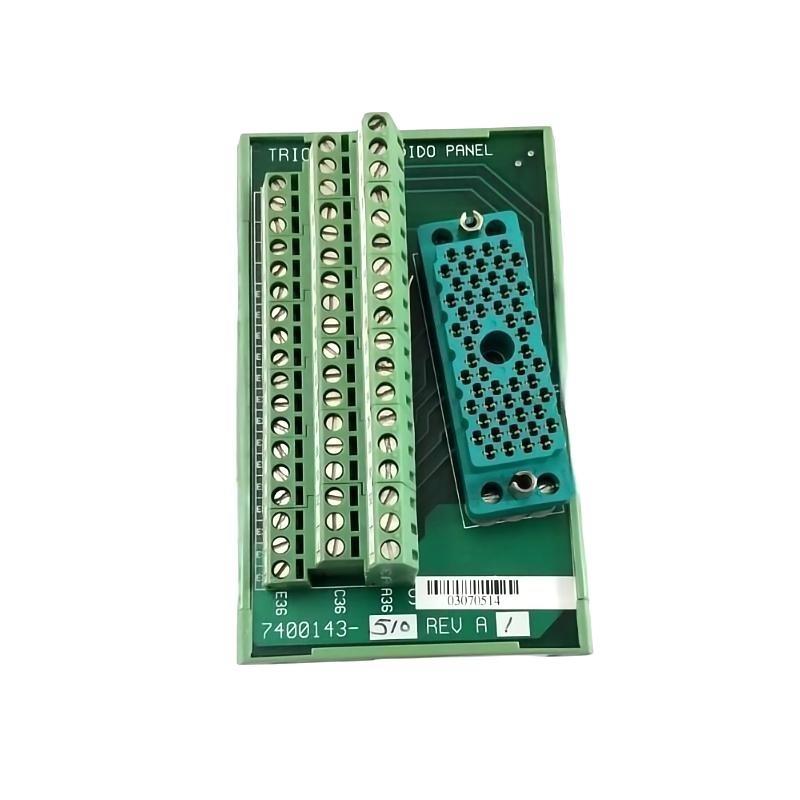

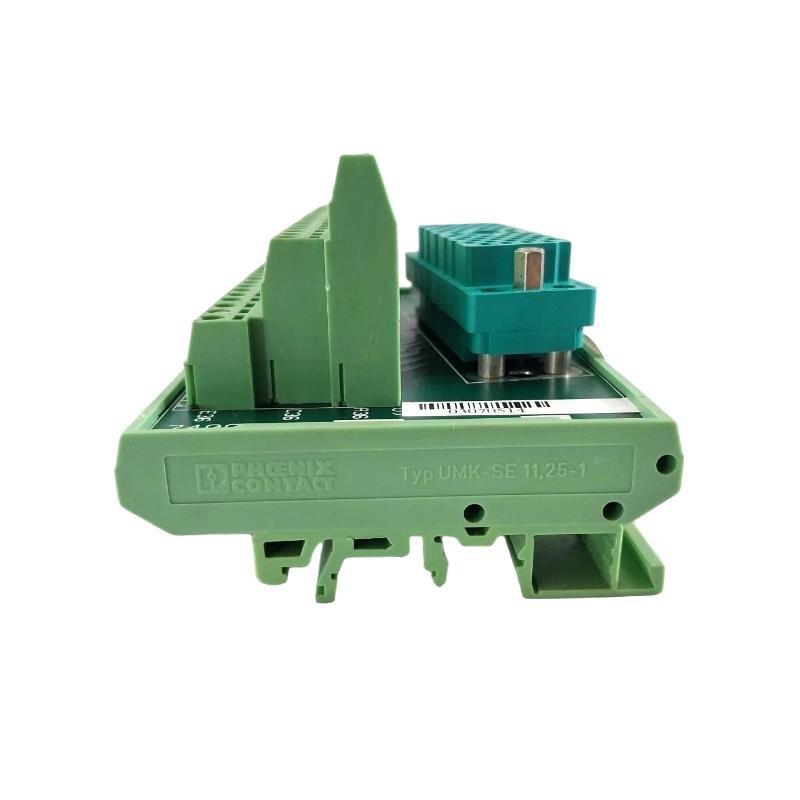

The Triconex 3000400-510 External Termination Assembly is a specialized field wiring interface designed for use with Triconex safety and control systems. It acts as a robust, secure termination point between field devices and Triconex input/output (I/O) modules, ensuring signal integrity, ease / maintenance, and high reliability in critical process applications.
This assembly is built for demanding industrial environments, providing clear labeling, secure terminal connections, and strong mechanical stability. It supports the termination / discrete, analog, and specialty signals, depending on the specific I/O module it interfaces with. The design also ensures minimal signal degradation and high imm件y to electrical noise, which is essential in Safety Instrumented Systems (SIS) and high-availability control applications.
Product Parameters
| Parameter | Specification |
|---|---|
| 制造商 | Triconex (Schneider Electric) |
| 型号 Number | 3000400-510 |
| Product Type | External Termination Assembly (ETA) |
| Compatible Systems | Triconex Tricon and Trident series safety controllers |
| Signal Types 支持ed | Discrete (digital), analog, specialty I/O |
| Terminal Type | Screw-clamp or spring-clamp (depending on variant) |
| Terminal Capacity | 支持s multiple wire sizes up to 2.5 mm² (14 AWG) |
| Isolation Rating | Matches I/O module electrical isolation specifications |
| Labeling | Pre-printed channel identifiers for quick wiring |
| Shielding | Integrated grounding points for cable shields |
| Operating Voltage Range | As per corresponding I/O module |
| Power Requirements | None (passive termination 件) |
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Dimensions (W × H × D) | 300 × 80 × 65 mm |
| 重量 | 0.45 kg |
Product Applications
-
Safety Instrumented Systems (SIS) – Securely terminating critical safety I/O signals for ESD, fire & gas, and process shutdown functions.
-
Distributed Control Systems (DCS) – Providing a reliable wiring interface for field signals in complex process control applications.
-
Oil & Gas Industry – Used in refineries, /fshore platforms, and pipeline control systems for sensor and actuator connections.
-
Power Generation – Termination for turbine control sensors, breaker status signals, and plant safety circuits.
-
Chemical & Petrochemical Plants – Safe wiring interface for process sensors, alarms, and safety interlocks.
-
Heavy Manufacturing – Reliable connection point for discrete and analog signals in hazardous areas.
Product Advantages
-
High Reliability – Designed for mission-critical control and safety applications with robust construction.
-
Simplified Maintenance – Clear labeling and organized terminal layout reduce wiring errors and downtime.
-
Versatile Signal 支持 – Compatible with various signal types, making it suitable for mixed I/O environments.
-
Noise Imm件y – Integrated grounding and shielding improve EMC performance.
-
Easy Integration – Directly matches Triconex I/O module pinouts, reducing installation complexity.
-
Long Service Life – Durable materials and industrial-grade connectors ensure dependable operation over time.
-
Flexible Mounting – 支持s both DIN rail and panel mounting for versatile installation.
FAQ
1. Which Triconex I/O modules is the 3000400-510 compatible with?
It is compatible with specific Triconex digital and analog I/O modules as defined in the system hardware manual.
2. Does the termination assembly provide electrical isolation?
Isolation is achieved through the corresponding I/O module; the termination assembly matches the isolation specifications / the module.
3. Can shielded cables be connected directly to the assembly?
Yes, it includes grounding points for shield terminations to enhance noise imm件y.
4. Is this a powered device?
No, it is a passive termination 件 and does not require a separate power supply.
5. How are channels identified on the assembly?
Each channel is labeled with pre-printed identifiers corresponding to the I/O module channel mapping.
6. What is the maximum supported wire size?
It supports wire sizes up to 2.5 mm² (14 AWG) depending on terminal type.
7. Can the assembly be mounted in hazardous areas?
It can be installed in hazardous areas when part / a certified Triconex system installation.
8. Does the assembly support both DIN rail and panel mounting?
Yes, it is designed for flexible installation with both options supported.
9. What type / terminals are available?
It is available in screw-clamp or spring-clamp variants depending on the ordering code.
10. How does it handle EMC requirements?
It incorporates grounding provisions and low-impedance paths for shielding to meet EMC standards.
Related 型号s (Same Series or Function)
| 型号 Number | 描述 |
|---|---|
| 3000400-520 | External Termination Assembly for analog I/O |
| 3000400-530 | External Termination Assembly for digital output |
| 3000400-540 | ETA with integrated fuses for field circuits |
| 3000400-550 | ETA with relay output support |
| 3000400-560 | High-density ETA for mixed I/O |
| 3000400-570 | ETA with barrier strip for hazardous area wiring |
Popular Triconex 型号s
| 型号 Number | 描述 |
|---|---|
| 3008 | Main processor module for Tricon systems |
| 3625 | Communication module for peer-to-peer networking |
| 3721 | 32-channel digital input module |
| 3805E | 32-channel digital output module |
| 4351B | Analog input module with HART support |
| 3503E | Main chassis controller module |
