产品介绍

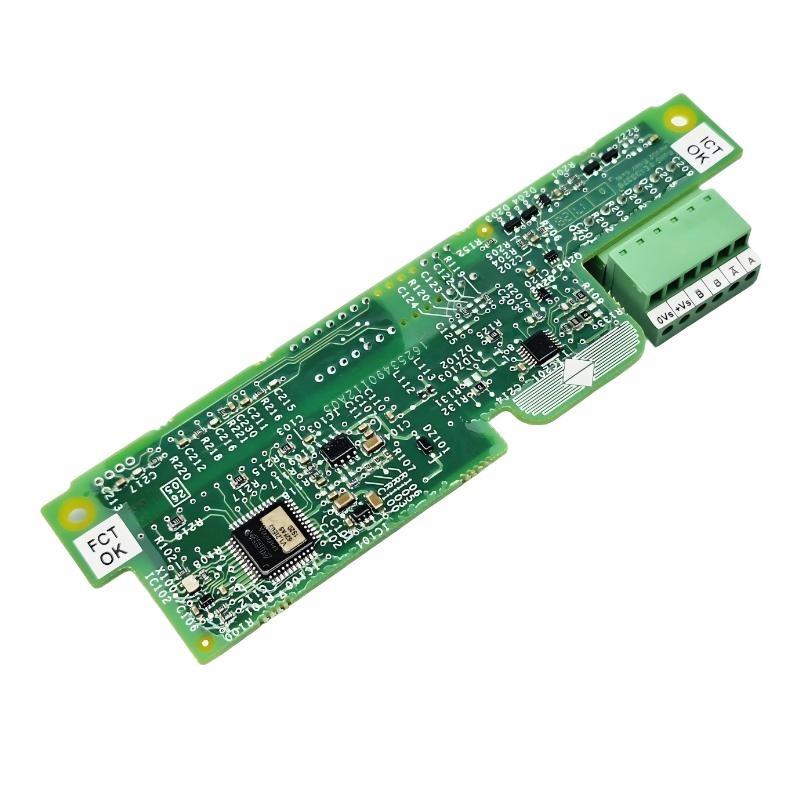

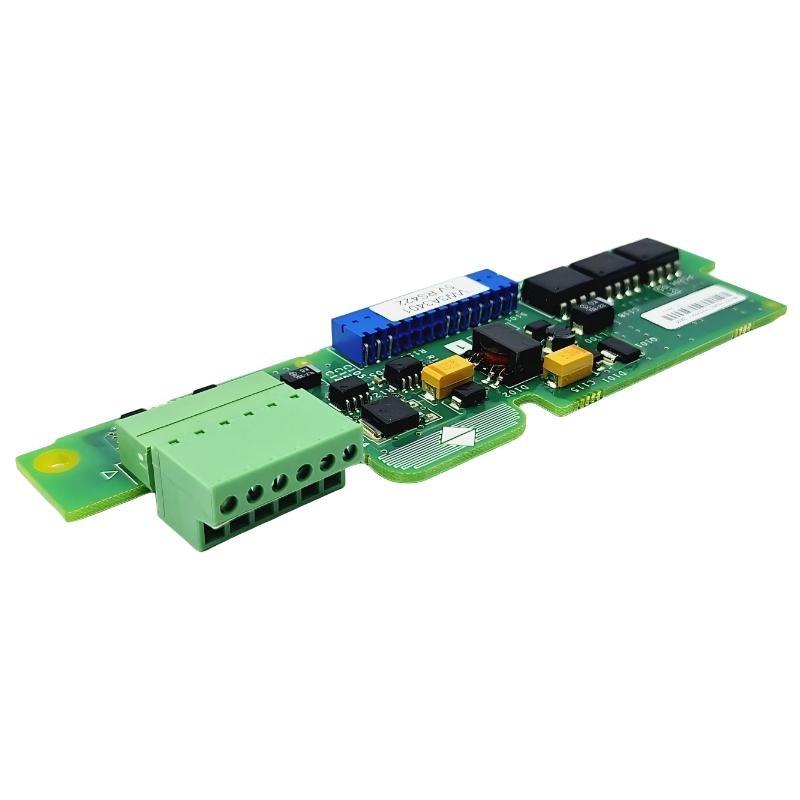

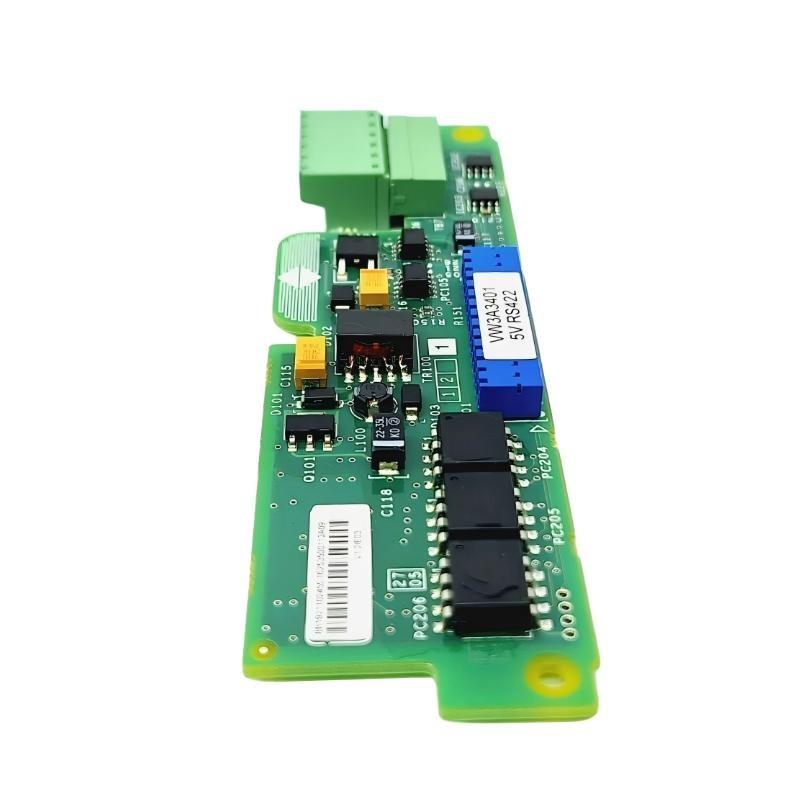

The Schneider Electric VW3A3401 Encoder Interface Card is an embedded interface module designed for Altivar variable speed drives and other automation systems. It provides a reliable connection for incremental encoders, converting encoder signals into differential signals for accurate position and speed feedback.
Equipped with RS422 communication protocol and solid-state differential outputs, this card ensures high-speed signal processing and is compatible with standard industrial automation networks. Its built-in protections and compact design make it suitable for reliable operation in industrial environments.
产品规格
| Parameter | 描述 |
|---|---|
| Product Type | Encoder Interface Card |
| 品牌 | Schneider Electric |
| 型号 Number | VW3A3401 |
| Rated Supply Voltage [Us] | 5 V DC (limit 5…5.5 V) |
| Supply Current | 0.2 A |
| Protection Type | Short-circuit and overload protection |
| Maximum Cable Distance Between Devices | 50 m |
| Maximum Operating Frequency | 300 kHz |
| Solid-状态 Output Type | Differential |
| Communication Port Protocol | RS422 |
| Drive Compatibility | Altivar variable speed drives |
| Typical Use | Encoder signal interface and feedback |
| Installation Method | Embedded card within drive |
| Environmental Suitability | Industrial automation environments |
| Dimensions | 90 × 60 × 15 mm |
| 重量 | 0.2 kg |
Applications
• Encoder signal interfacing for Altivar drives
• High-speed position and speed feedback in machinery
• Differential output for signal stability
• Industrial automation and motor control systems
• Reliable operation in short-distance encoder networks
• Integration with PLCs and drive control systems
Advantages
• Differential solid-state outputs for accurate signal transmission
• 支持s RS422 protocol for industrial communication
• Short-circuit and overload protection for safe operation
• Compact and lightweight design for embedded installation
• 支持s high-speed operation up to 300 kHz
• Simplifies encoder integration with drives
• Reliable for industrial automation environments
