产品介绍

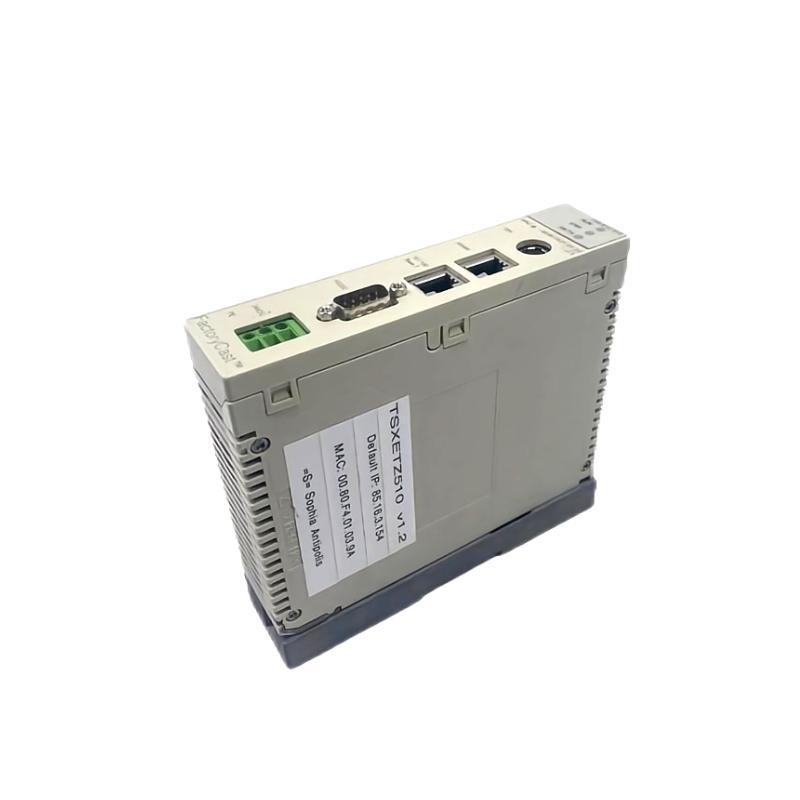

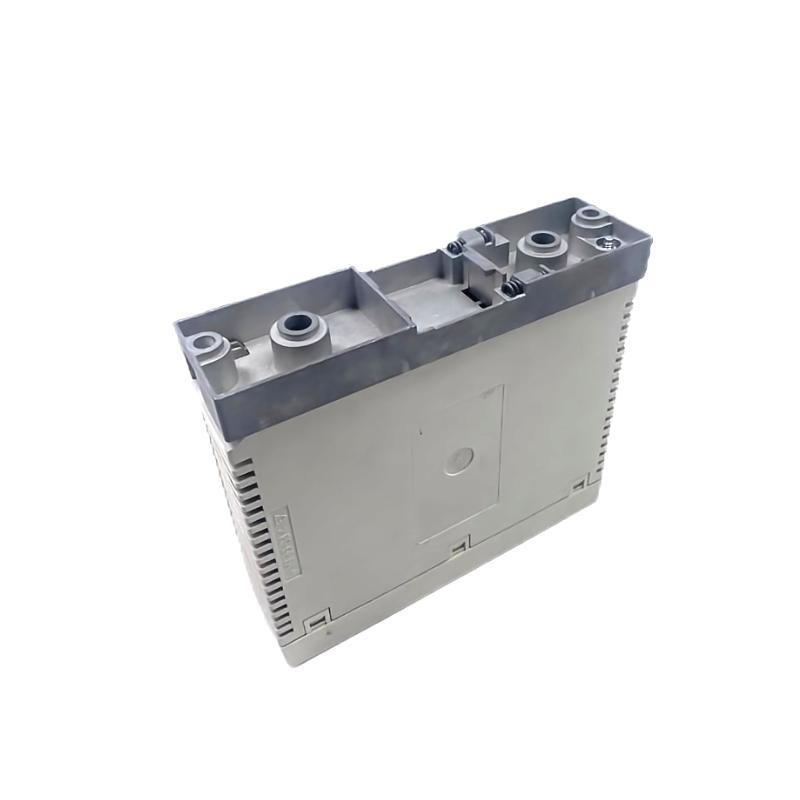

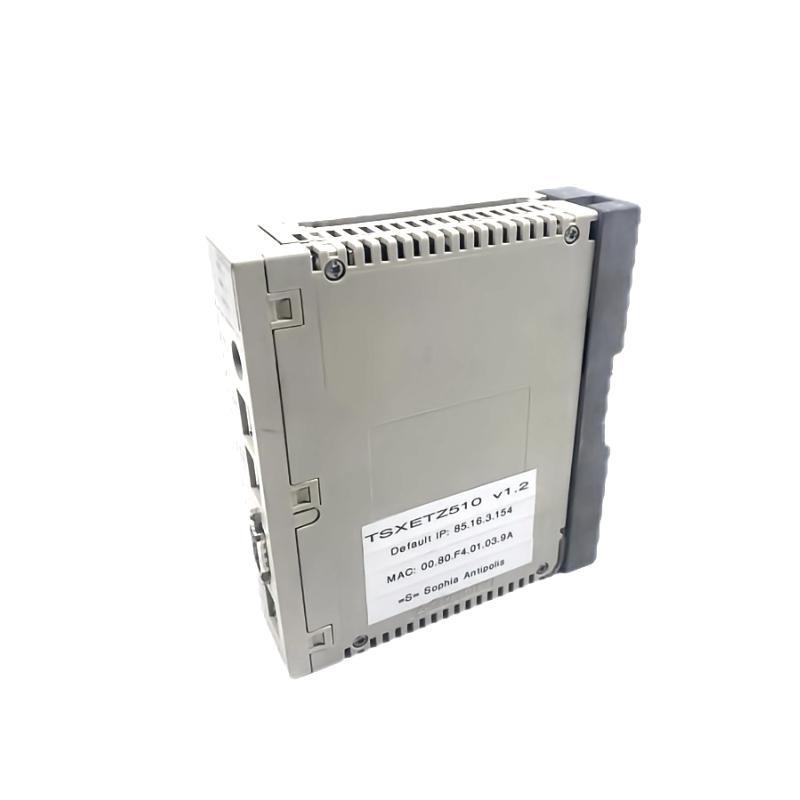

The Schneider TSXETZ510 Ethernet Module is a high-performance module designed to provide seamless communication in industrial environments. It is part / the Modicon range / programmable logic controllers (PLCs) from Schneider Electric. The TSXETZ510 module allows for easy integration / Ethernet networks with automation systems, ensuring high-speed data transfer and enhanced connectivity. The module is primarily used in industrial applications where real-time communication and system efficiency are paramount.
This module connects to the Modicon Premium PLC and /fers a versatile solution for Ethernet-based communications. It supports multiple protocols such as TCP/IP, UDP, and FTP, enabling a wide range / industrial communication solutions. Whether you’re controlling machinery, monitoring systems, or implementing complex automation solutions, the TSXETZ510 ensures reliable communication.
产品规格
| Parameter | Details |
|---|---|
| 型号 | TSXETZ510 |
| 制造商 | Schneider Electric |
| Communication Protocol | TCP/IP, UDP, FTP |
| Connection Type | Ethernet |
| Data Rate | 10/100 Mbps |
| Voltage Supply | 24 V DC |
| Dimensions (H x W x D) | 39.83 x 151.5 x 116.7 mm |
| 重量 | 0.28 kg |
| Mounting Type | DIN Rail |
| Environmental 状态s | Operating Temperature: -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
Product Applications
The Schneider TSXETZ510 Ethernet Module is designed to integrate industrial systems with high-speed Ethernet networks. Below are some / its key applications:
-
Industrial Automation Systems: Used to connect PLCs and other control systems to Ethernet networks for monitoring and control.
-
Remote Monitoring: Enables real-time monitoring / industrial equipment through Ethernet communication.
-
Machine-to-Machine (M2M) Communication: Facilitates data exchange between machines in a factory environment, optimizing the production process.
-
Data Acquisition: Collects and transmits data from field devices to control systems for analysis and decision-making.
-
Building Automation: Can be used in large buildings for managing lighting, HVAC systems, and security.
Product Advantages
-
High-Speed Data Transfer: The TSXETZ510 /fers fast data transmission rates / 10/100 Mbps, which ensures minimal latency and faster communication between systems.
-
Compatibility: It is fully compatible with the Modicon Premium PLC range and other Schneider Electric systems, /fering seamless integration.
-
Flexibility: 支持s multiple Ethernet communication protocols, making it adaptable to a wide range / industrial applications.
-
Compact and Lightweight: With its small dimensions (39.83 x 151.5 x 116.7 mm) and weight / just 0.28 kg, the TSXETZ510 can easily fit into various industrial setups.
-
Rugged Design: Built to withstand challenging industrial environments with a wide operating temperature range and robust design.
-
Ease / Installation: The module can be quickly mounted on a DIN rail, simplifying installation and maintenance.
-
Energy Efficiency: Operates with a low 24 V DC power supply, ensuring energy savings in industrial operations.
-
Future-Pro/ing: The module supports both IPv4 and IPv6, ensuring it remains compatible with future network upgrades.
常见问题 (FAQ)
-
What is the TSXETZ510 Ethernet Module used for?
-
It is used to provide Ethernet communication for Modicon Premium PLCs, allowing integration with industrial Ethernet networks.
-
-
Which communication protocols are supported by this module?
-
The module supports TCP/IP, UDP, and FTP protocols for robust and versatile communication.
-
-
What is the power supply requirement for the TSXETZ510?
-
The module requires a 24 V DC power supply for operation.
-
-
Can this module be used with other Schneider Electric PLCs?
-
The TSXETZ510 is primarily designed for use with the Modicon Premium PLC. Compatibility with other models may vary.
-
-
What is the operating temperature range / the TSXETZ510?
-
The module can operate in temperatures ranging from -20°C to 70°C.
-
-
How does the TSXETZ510 support real-time communication?
-
It supports high-speed data transfer rates (10/100 Mbps), ensuring minimal latency for real-time communication.
-
-
Can the TSXETZ510 be mounted on a panel or DIN rail?
-
Yes, the module is designed to be mounted on a DIN rail, making installation quick and efficient.
-
-
What is the size / the TSXETZ510 module?
-
The module has dimensions / 39.83 x 151.5 x 116.7 mm.
-
-
Is the TSXETZ510 compatible with IPv6?
-
Yes, the module supports both IPv4 and IPv6 communication protocols.
-
-
What is the weight / the TSXETZ510 module?
-
The weight / the module is 0.28 kg.
-
Recommended Related 型号s (Same Series)
| 型号 | 描述 | Data Rate | Voltage Supply | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| TSXETZ5100 | Ethernet module for Modicon Premium | 10/100 Mbps | 24 V DC | 115 x 80 x 65 | 0.45 |
| TSXETZ5200 | Advanced Ethernet module | 10/100 Mbps | 24 V DC | 110 x 75 x 60 | 0.43 |
| TSXETZ5500 | Industrial Ethernet module with higher performance | 10/100 Mbps | 24 V DC | 120 x 85 x 70 | 0.5 |
| TSXETZ5300 | Standard Ethernet module for Modicon | 10/100 Mbps | 24 V DC | 110 x 78 x 55 | 0.42 |
| TSXETZ5400 | Ethernet communication module for large setups | 10/100 Mbps | 24 V DC | 130 x 90 x 75 | 0.55 |
| TSXETZ5600 | High-speed Ethernet module for enhanced networks | 10/100 Mbps | 24 V DC | 115 x 80 x 65 | 0.48 |
Popular Schneider Electric 型号s
| 型号 | 描述 | Data Rate | Voltage Supply | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| Modicon M340 | Modular PLC with Ethernet ports | 10/100 Mbps | 24 V DC | 120 x 80 x 60 | 0.65 |
| Modicon M580 | High-performance PLC with Ethernet connectivity | 10/100/1000 Mbps | 24 V DC | 150 x 100 x 80 | 1.1 |
| Modicon Premium | Advanced PLC with Ethernet support | 10/100 Mbps | 24 V DC | 140 x 90 x 70 | 0.8 |
| Altivar 71 | Variable speed drive with Ethernet control | 10/100 Mbps | 24 V DC | 180 x 120 x 90 | 2.5 |
| Altivar 61 | Compact variable speed drive for industrial use | 10/100 Mbps | 24 V DC | 160 x 110 x 80 | 2.2 |
| TeSys T | Motor management system with Ethernet communication | 10/100 Mbps | 24 V DC | 180 x 130 x 110 | 1.3 |
