产品介绍

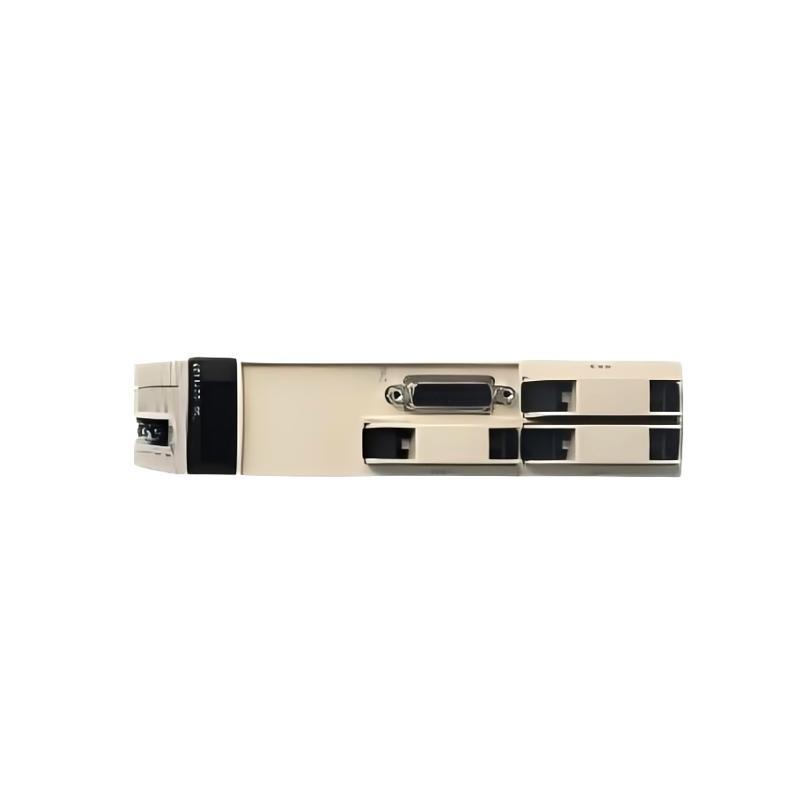

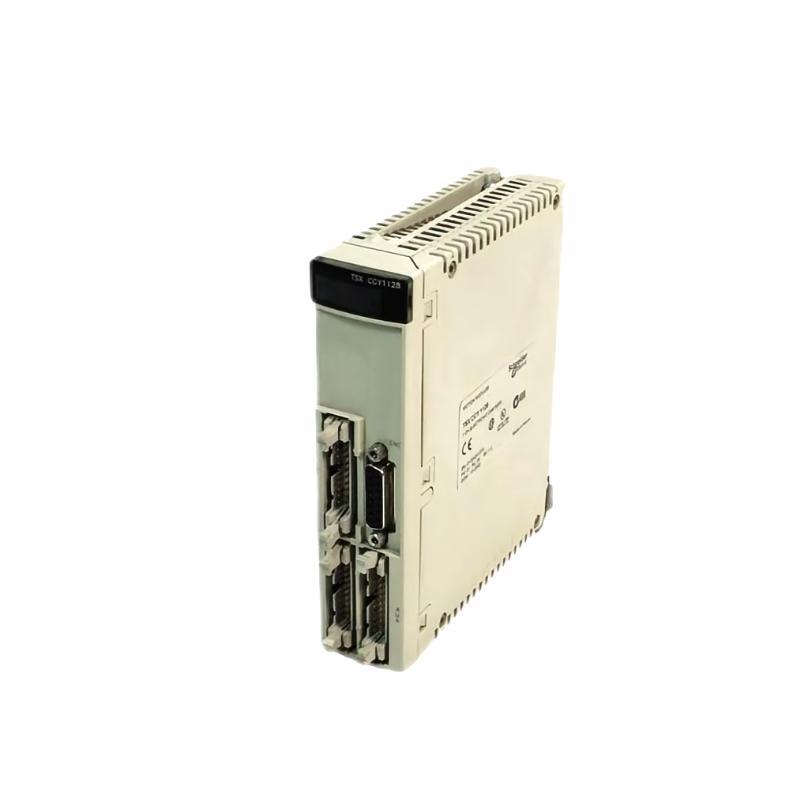

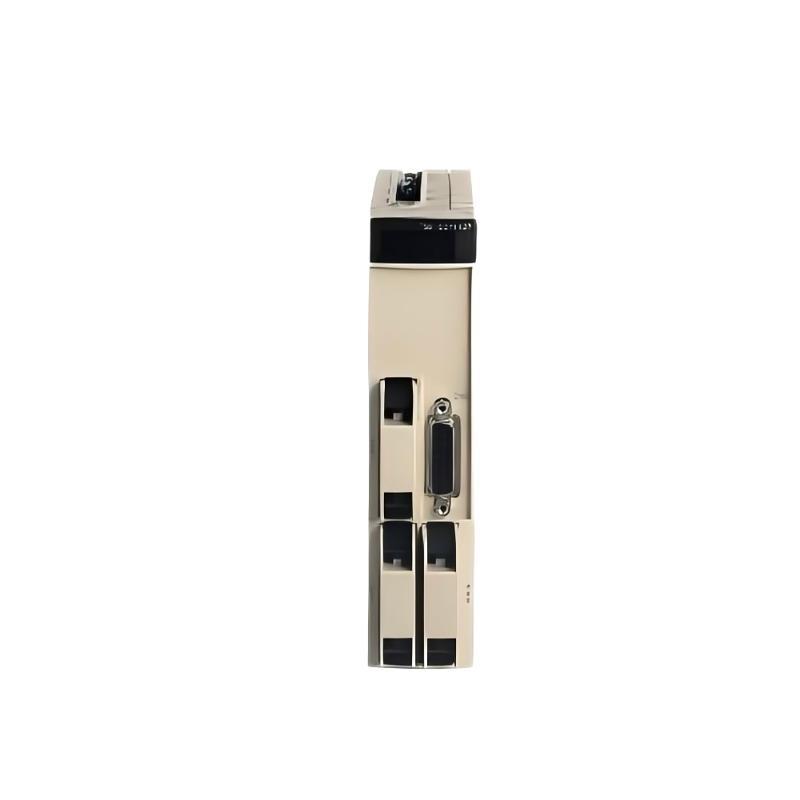

The Schneider Electric TSXCCY1128 is an advanced electronic cam module designed for the Modicon Premium automation platform. It facilitates precise control / mechanical movements by managing up to 128 cams over a single axis. This module is ideal for applications requiring high-speed synchronization between mechanical components, such as packaging machines, conveyors, and automated assembly lines.
With its capability to interface with both incremental and absolute encoders, the TSXCCY1128 ensures accurate position detection and control. Its modular design allows seamless integration into existing systems, enhancing operational efficiency and flexibility.
产品规格
| Parameter | Details |
|---|---|
| 型号 | TSXCCY1128 |
| Product Type | Electronic Cam Module |
| Number / Cams | 128 |
| Number / Tracks | 32 (24 physical outputs, 8 logic outputs) |
| I/O Modularity | 1 axis |
| Input Compatibility | Incremental encoders (RS422/485, Totem Pole), Absolute encoders (SSI, Parallel) |
| Clock Frequency | 200 kHz (SSI absolute encoder) |
| Incremental Encoder Frequency | x1: 500 kHz, x4: 250 kHz |
| Output Voltage | 24 V DC |
| Nominal Output Current | 0.5 A |
| Output Voltage Limits | 19…30 V |
| Output Compatibility | Positive logic DC inputs (resistance ≤ 15 kΩ) |
| Power Dissipation | 7 W |
| Current Consumption | 660 mA at 5 V DC, 15 mA at 24 V DC |
| Operating Temperature | 0…60 °C |
| Storage Temperature | -25…70 °C |
| Humidity | 10…95% (operation), 5…95% (storage), non-condensing |
| Dimensions (W x H x D) | 95 x 180 x 260 mm |
| 重量 | 0.48 kg |
| Mounting | DIN Rail |
| Protection Rating | IP20 |
| Certifications | CE, RoHS |
Applications
The TSXCCY1128 is utilized in various industrial applications requiring precise motion control and synchronization:
-
Packaging Machines: Coordinating movements / different machine parts for efficient packaging processes.
-
Conveyor Systems: Managing the timing / items on conveyors to ensure proper spacing and sequencing.
-
Automated Assembly Lines: Synchronizing robotic arms and other machinery for accurate assembly operations.
-
Printing Machines: Controlling the timing / print heads and paper feed mechanisms.
-
Textile Machinery: Managing complex movements in weaving and knitting machines.
-
Material Handling Equipment: Coordinating lifts, shuttles, and sorters in warehouses and distribution centers.
Advantages
-
High Precision Control: Manages up to 128 cams with high-speed synchronization, ensuring precise mechanical movements.
-
Versatile Encoder Compatibility: 支持s both incremental and absolute encoders, providing flexibility in system design.
-
Independent Processing: Processes cam programs independently / the PLC scan, reducing system load and improving response times.
-
Robust Design: Built to withstand industrial environments with a wide operating temperature range and high imm件y to electrical noise.
-
Easy Integration: Modular design allows for seamless integration into existing Modicon Premium systems.
-
Comprehensive Diagnostics: Equipped with LED indicators for quick status monitoring and fault detection.
常见问题 (FAQ)
-
Q: What is the primary function / the TSXCCY1128 module?
A: It serves as an electronic cam controller, managing up to 128 cams over a single axis to synchronize mechanical movements in automation systems. -
Q: Which types / encoders are compatible with the TSXCCY1128?
A: It supports incremental encoders (RS422/485, Totem Pole) and absolute encoders (SSI, Parallel via ABE7CPA11 adaptor). -
Q: Can the TSXCCY1128 operate independently / the PLC scan?
A: Yes, it processes cam programs independently, allowing for faster response times and reduced PLC load. -
Q: What is the maximum switching frequency for the outputs?
A: The switching frequency is less than 0.6/LI² for inductive loads. -
Q: How many physical and logic outputs does the module have?
A: It has 24 physical outputs and 8 logic outputs, totaling 32 tracks. -
Q: What protections are integrated into the TSXCCY1128?
A: It includes output overload protection (current limiter, thermal circuit breaker), short-circuit protection, overvoltage protection (Zener diode), and reverse polarity protection. -
Q: Is the TSXCCY1128 suitable for high-speed applications?
A: Yes, with encoder input frequencies up to 500 kHz (x1) and 250 kHz (x4), it’s ideal for high-speed synchronization tasks. -
Q: What is the power consumption / the module?
A: It consumes 660 mA at 5 V DC and 15 mA at 24 V DC, with a power dissipation / 7 W. -
Q: Can the module be used in environments with high humidity?
A: Yes, it operates in environments with 95% relative humidity (non-condensing). -
Q: Can cam pr/iles be imported/exported across different systems?
A: Yes, cam pr/iles can be saved and transferred via the programming s/tware, allowing reuse across machines and easier commissioning.
