产品介绍

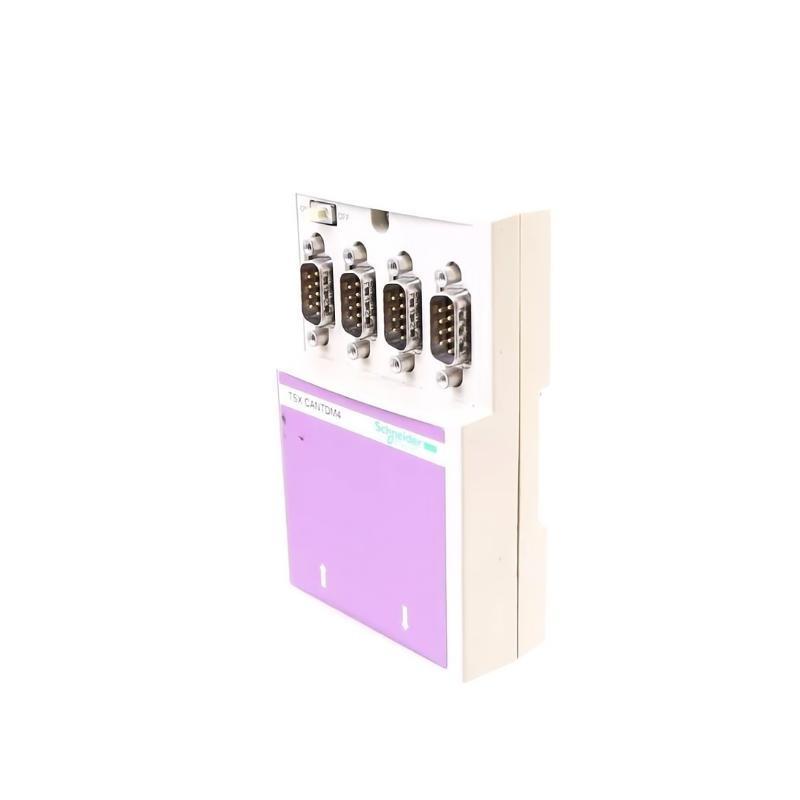

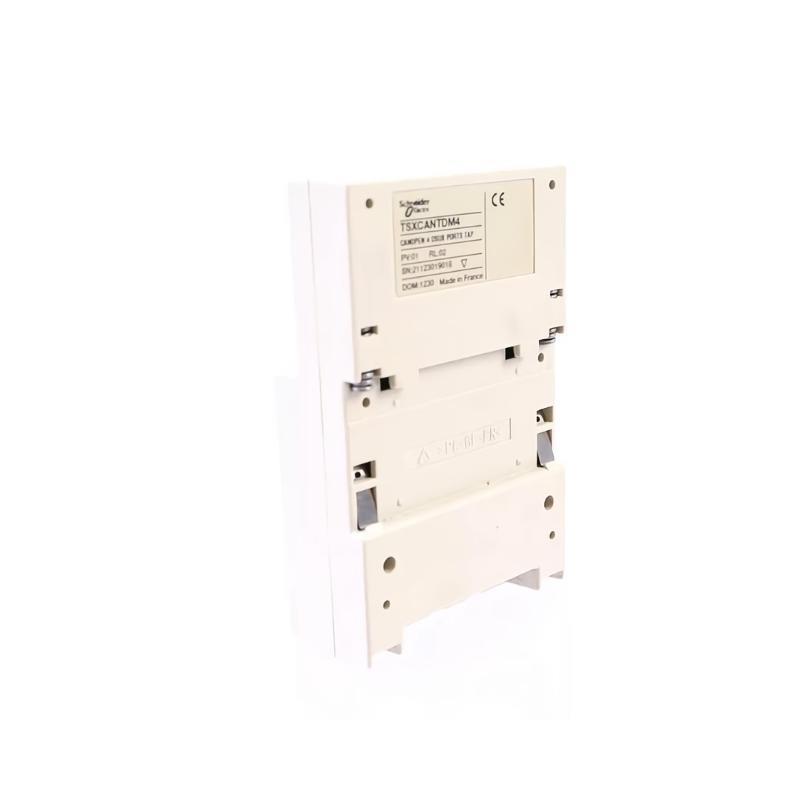

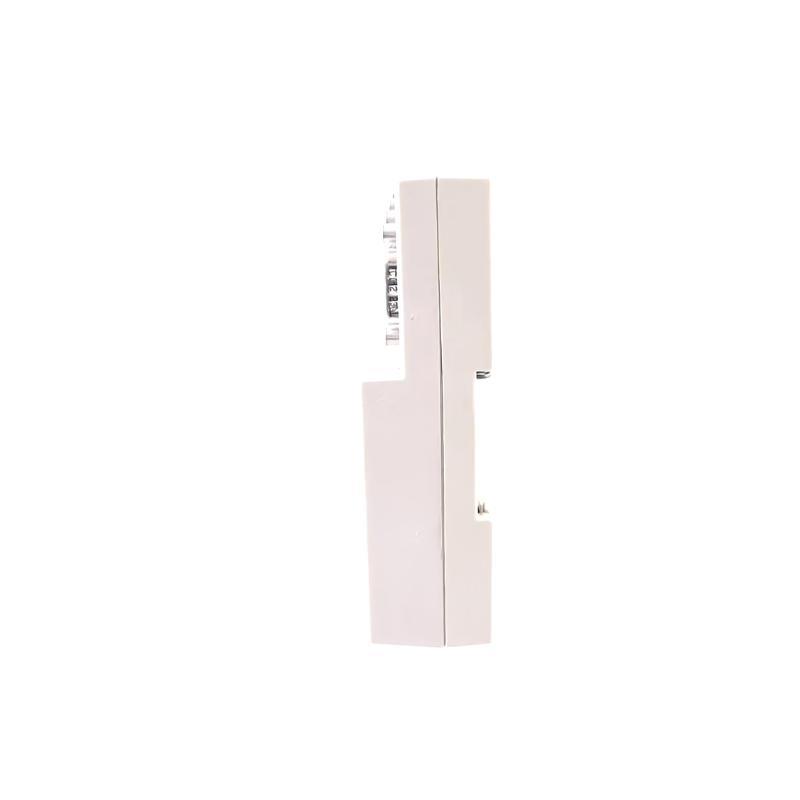

The Schneider TSXCANTDM4 is a CANopen line terminator tap junction box, specifically engineered for use with the Modicon TSX series PLCs and compatible devices within industrial networks. It provides a convenient and reliable means / connecting and terminating nodes on a CANopen bus, ensuring high data integrity and minimizing signal reflection issues commonly encountered in long-distance or high-speed communication networks.
The TSXCANTDM4 combines the functionality / a junction box and a line terminator in a compact, rugged enclosure. It enables multiple devices to be tapped into the CANopen network without signal degradation, while the integrated termination resistor ensures proper electrical performance at the end / the communication line. Its industrial-grade design and DIN rail mountability make it a practical and essential component in any CANopen network infrastructure.
产品规格
| Parameter | Details |
|---|---|
| 型号 | TSXCANTDM4 |
| Product Type | CANopen Line Terminator Tap Junction Box |
| Communication Protocol | CANopen |
| Termination Resistor | Integrated 120 Ohm |
| Connector Type | Screw terminal block (3-point per node) |
| Number / Taps | 4 Taps + Line Termination |
| Mounting Type | DIN Rail (35 mm) |
| Operating Voltage | 5 V DC typical (from CANopen bus) |
| Material | Industrial-grade thermoplastic housing |
| Protection Rating | IP20 |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Shock Resistance | 15 g (11 ms) per IEC 60068-2-27 |
| Vibration Resistance | 2 g (10–500 Hz) per IEC 60068-2-6 |
| Dimensions (W x H x D) | 65 x 85 x 135 mm |
| 重量 | 0.196 kg |
| Compliance | CE, RoHS, CANopen DS301 compliant |
Applications
The TSXCANTDM4 is widely implemented in industrial automation and process control systems where CANopen communication networks are in use. Its primary applications include:
-
CANopen Network Termination: Provides correct electrical termination for signal integrity.
-
Device Integration: Facilitates clean and organized connection / multiple nodes on a CANopen bus.
-
Modicon TSX PLC Networks: Specifically optimized for use with TSX series controllers.
-
Machine Control Panels: Enables centralized and secure wiring / fieldbus networks.
-
Industrial Robotics: Efficient node tapping for sensors, actuators, and control devices.
-
Factory Automation Systems: Used in discrete manufacturing, packaging lines, and automotive control.
Advantages
-
All-in-One Functionality: Combines line termination and multi-point tapping into one device.
-
Signal Integrity: Integrated 120-ohm resistor ensures signal reliability and reduces reflection.
-
Ease / Installation: DIN rail mountable for fast integration into control cabinets.
-
Network Scalability: 支持s structured expansion / CANopen devices.
-
Durable Design: Built with industrial-grade materials to withstand harsh environments.
-
Plug-and-Play Ready: No external power supply required; powered via CANopen bus.
-
Maintenance Friendly: Modular setup makes node inspection, replacement, or wiring simple and organized.
-
Standard Compliance: Fully compatible with CANopen DS301 standards and 施耐德s.
FAQ (常见问题)
-
Q: What does the TSXCANTDM4 do in a CANopen network?
A: It serves as a junction box for tapping multiple nodes and includes a line terminator to maintain signal quality. -
Q: Is the termination resistor built-in or external?
A: The TSXCANTDM4 comes with a built-in 120-ohm termination resistor. -
Q: Can this be used with non-Schneider CANopen devices?
A: Yes, it complies with CANopen standards and is compatible with any device using the DS301 protocol. -
Q: How many devices can I connect to it?
A: It supports 4 taps for device connections in addition to its line termination function. -
Q: Does it need an external power source?
A: No, it draws power from the CANopen network bus. -
Q: Is it suitable for high-vibration environments?
A: Yes, it complies with IEC 60068-2-6 vibration standards. -
Q: Where should I install it on the network?
A: It should be placed at the end / a CANopen line to provide correct termination. -
Q: Is it compatible with TSX Micro and Premium series PLCs?
A: Yes, it is fully compatible with both the TSX Micro and Premium series. -
Q: What tools are needed for installation?
A: Only a screwdriver is required for the screw terminals; mounting to DIN rail is tool-free. -
Q: What certifications does it carry?
A: The 件 is CE and RoHS compliant and conforms to CANopen DS301 specifications.
Related or Same Series 型号s
| 型号 | 描述 | Function | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| TSXCANTDM4 | 4-point CANopen junction box with line terminator | Tap and termination | 105×75×40 | 0.18 |
| TSXCANRMF | CANopen Repeater Module | Signal repeating and amplification | 95×70×35 | 0.16 |
| TSXCANKCDF90 | CANopen Tap for TSX Nano/Micro series | Device tap connector | 90×60×25 | 0.12 |
| TSXCANCBL2 | CANopen Cable – 2 meters | Communication cable | 2000 mm length | 0.10 |
| TSXCANKCDF180 | CANopen Tap with DB9 connectors | Node tap with plug connector | 90×65×30 | 0.14 |
| TSXCANBRK2 | CANopen Breakout Box for TSX systems | Fieldbus node connection | 100×75×45 | 0.17 |
Popular Schneider Electric 型号s
| 型号 | Product Type | Application | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| TM241CE40T | Modicon M241 Logic Controller | Machine automation | 150×90×70 | 0.42 |
| ATV630D22N4 | Altivar Process Drive – 22kW | Industrial motor control | 260×180×230 | 5.8 |
| NSX250F | Compact Circuit Breaker 250A | Electrical distribution | 161×140×86 | 2.3 |
| LXM26DU15M3X | Lexium 26 Servo Drive | Motion control systems | 150×80×200 | 1.9 |
| XB7NA31 | Control Pushbutton with LED Indicator | Human interface signaling | 29×29×45 | 0.06 |
| RM22TG20 | 3-Phase Voltage Monitoring Relay | Motor and equipment protection | 90×35×65 | 0.18 |
