Product Overview

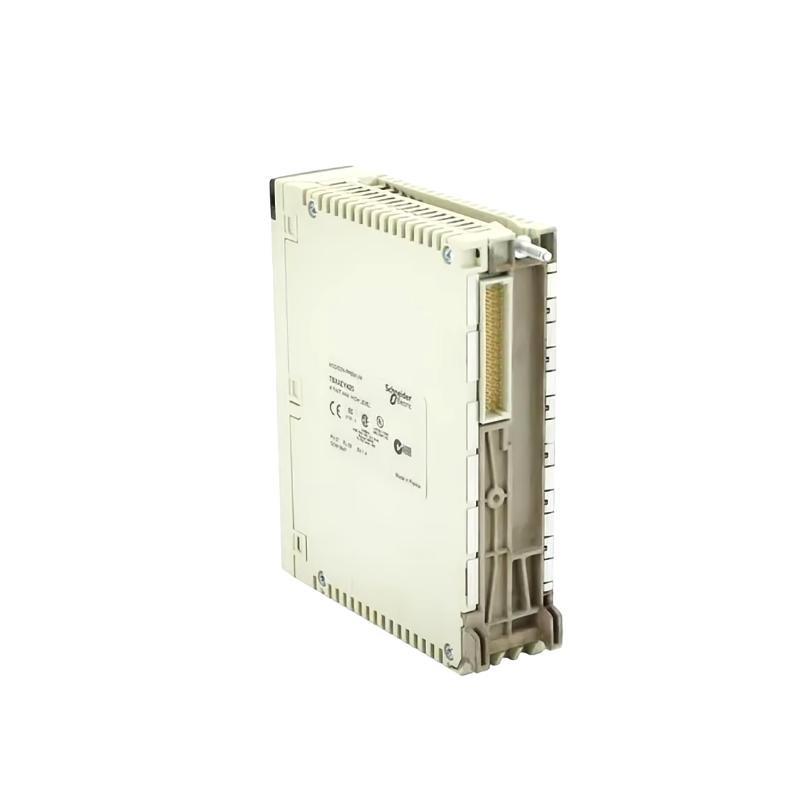

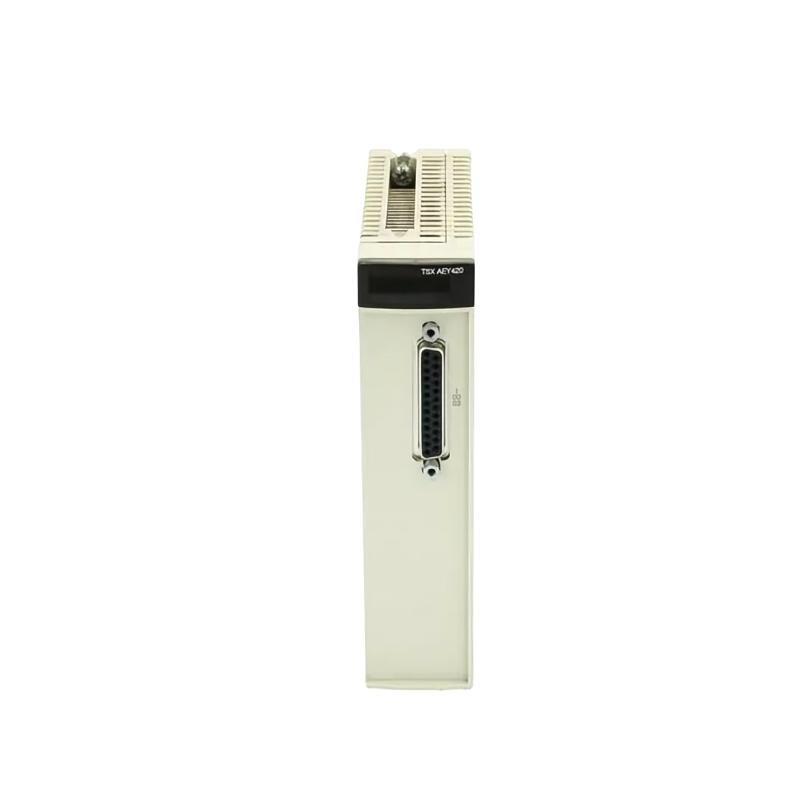

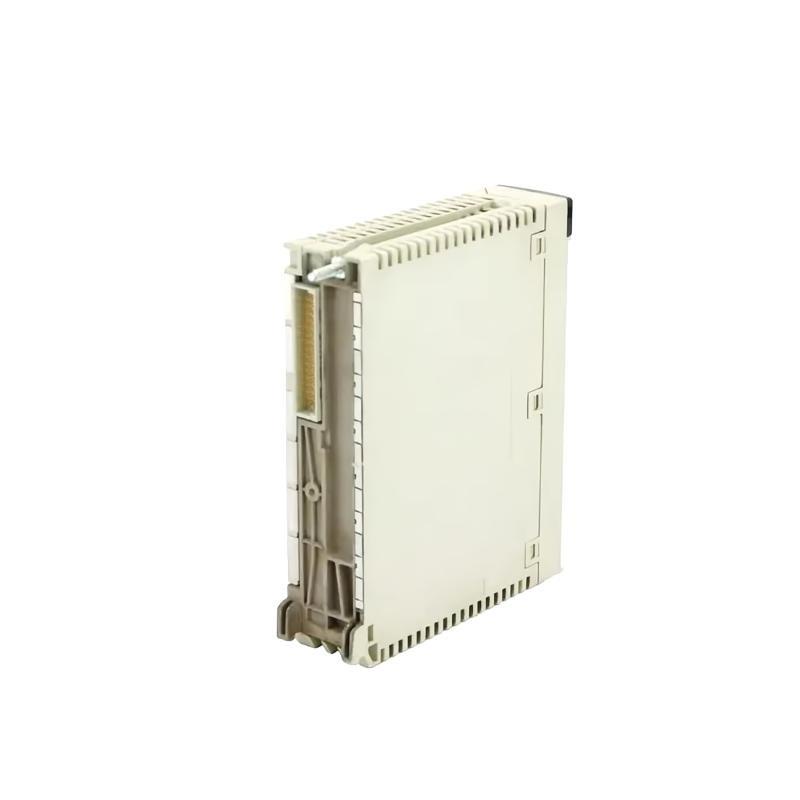

The Schneider TSXAEY420 is a high-performance analog input module designed for the Modicon Premium automation platform. Featuring four high-level, fast analog input channels with 16-bit resolution, it ensures precise and rapid signal acquisition. This module is suitable for applications requiring accurate measurement / analog signals such as temperature, pressure, flow, and level, providing exceptional data quality and control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Analog Input Module |
| Series | Modicon Premium |
| 型号 Number | TSXAEY420 |
| Number / Channels | 4 |
| Input Signal Types | Voltage: ±10 V, 0–10 V, 0–5 V, 1–5 V; Current: 0–20 mA, 4–20 mA |
| Resolution | 16-bit |
| Conversion Type | Analog-to-Digital (A/D) |
| Nominal Read Cycle Time | 1 ms |
| Measurement Error | 0.1% to 0.4% / full scale, depending on input type |
| Isolation | 1000 Vrms between channels and bus; 1000 Vrms between channels and ground |
| Input Overvoltage Protection | -15 to 15 V at state 0; -30 to 30 V at state 1 (250 Ohm) |
| Overcurrent Protection | -30 to 30 mA at state 1 (250 kOhm) |
| Power Supply | 5 VDC from system backplane |
| Current Consumption | 500 mA at 5 VDC |
| Mounting | Modular installation in Modicon Premium chassis |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Relative Humidity | 10% to 95% for operation; 5% to 95% for storage |
| Operating Altitude | 0 to 2000 m |
| Dimensions (H x W x D) | 55 x 180 x 260 mm |
| 重量 | 0.3 kg |
| Electrical Connection | 25-pin SUB-D connector |
| Certifications | CE, BV, LR, ABS, RINA, RMRS, GL, DNV |
| Protection Degree | IP20 |
| Pollution Degree | 2 |
Applications
The TSXAEY420 module is versatile and suitable for a wide range / industrial applications, including:
-
Process Control Systems: Accurate measurement and monitoring / analog signals in industries such as chemical, oil & gas, and pharmaceuticals.
-
Manufacturing Automation: Integration into automated systems for precise control / machinery and processes.
-
Water and Wastewater Treatment: Monitoring and controlling treatment processes to ensure compliance with environmental standards.
-
Energy Management: Measurement / parameters like temperature and pressure in power generation and distribution systems.
-
HVAC Systems: Monitoring and controlling environmental conditions in commercial and industrial buildings.
Advantages
-
High Precision: 16-bit resolution ensures accurate signal conversion for reliable data acquisition.
-
Fast Response Time: Nominal read cycle time / 1 ms allows for rapid signal processing.
-
Robust Isolation: 1000 Vrms isolation between channels and bus, and between channels and ground, enhances system safety.
-
Versatility: 支持s a wide range / voltage and current input signals, accommodating various sensor types.
-
Compact Design: Standard module format allows for easy integration into existing Modicon Premium PLC systems.
-
Compliance: Meets international standards for safety and environmental compliance, including CE and marine certifications.
常见问题 (FAQs)
-
What types / signals can the TSXAEY420 module process?
-
It can process high-level analog signals, specifically various voltage ranges (±10 V, 0–10 V, 0–5 V, 1–5 V) and current ranges (0–20 mA, 4–20 mA).
-
-
How many input channels does the module have?
-
The module features four independent analog input channels.
-
-
What is the resolution / the analog-to-digital conversion?
-
It /fers a 16-bit resolution for precise signal conversion.
-
-
Is the TSXAEY420 compatible with other PLC series?
-
It is specifically designed for the Modicon Premium series and may not be compatible with other PLC series.
-
-
What are the power requirements for the module?
-
It requires a 5 VDC power supply from the system backplane, consuming 500 mA.
-
-
Can the module operate in extreme temperatures?
-
Yes, it operates within a temperature range / 0°C to 60°C and can be stored between -25°C and 70°C.
-
-
What is the weight / the TSXAEY420 module?
-
The module weighs 0.3 kg.
-
-
Does the module comply with international standards?
-
Yes, it is CE certified and holds various marine certifications, including BV, LR, ABS, RINA, RMRS, GL, and DNV.
-
-
Is it possible to perform hot swapping with the TSXAEY420?
-
No, the module is not designed for hot swapping. Power must be turned /f before installation or removal to avoid potential damage or data corruption.
-
-
Is this module suitable for hazardous or outdoor environments?
-
While the TSXAEY420 meets IP20 protection standards and operates in industrial temperature ranges, it is not designed for direct use in hazardous zones or outdoor environments without appropriate protective enclosures.
-
Related 型号s in the Same Series
| 型号 Number | 描述 |
|---|---|
| TSXAEY1600 | 16-channel analog input module for Modicon Premium |
| TSXAEY800 | 8-channel analog input module with 16-bit resolution |
| TSXAEY414 | 4-channel analog input module with enhanced diagnostics |
| TSXAEY810 | 8-channel analog input module supporting additional signal types |
| TSXAEY1614 | 16-channel analog input module with extended temperature range |
| TSXAEY420C | 4-channel analog input module with improved response time |
Popular Schneider Electric Modules
| 型号 Number | 描述 |
|---|---|
| BMXAMI0810 | 8-channel analog input module for Modicon M340 series |
| BMXAMI0410 | 4-channel analog input module for Modicon M340 series |
| TM5SAI2H | 2-channel analog input module for Modicon TM5 series |
| BMXART0814 | 8-channel RTD analog input module for temperature measurement |
| TM3AI8 | Compact 8-channel analog input module |
| BMXNOE0110 | Ethernet communication module for remote I/O and networking |
