产品介绍

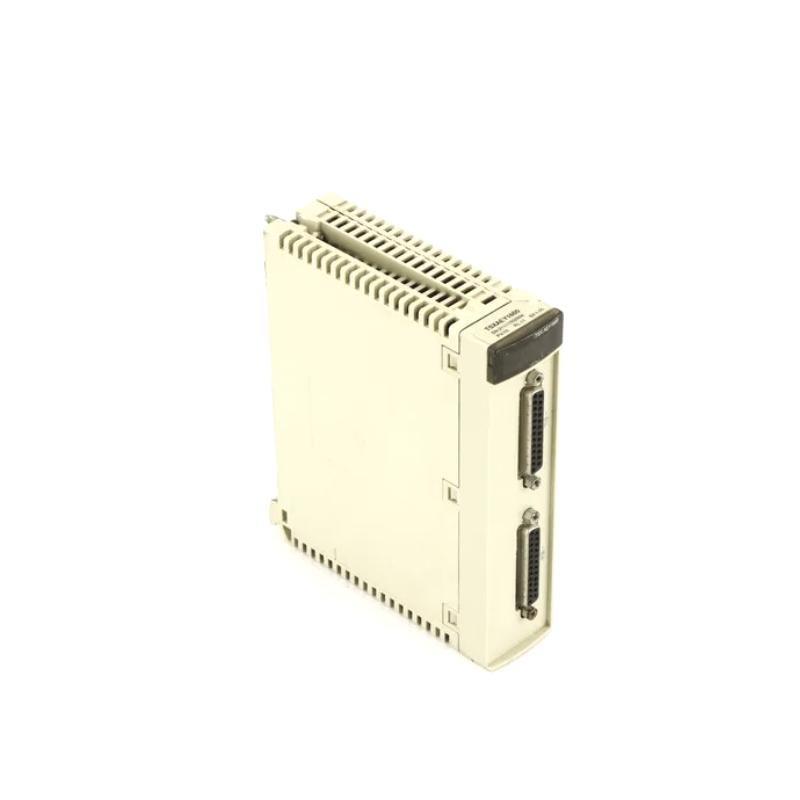

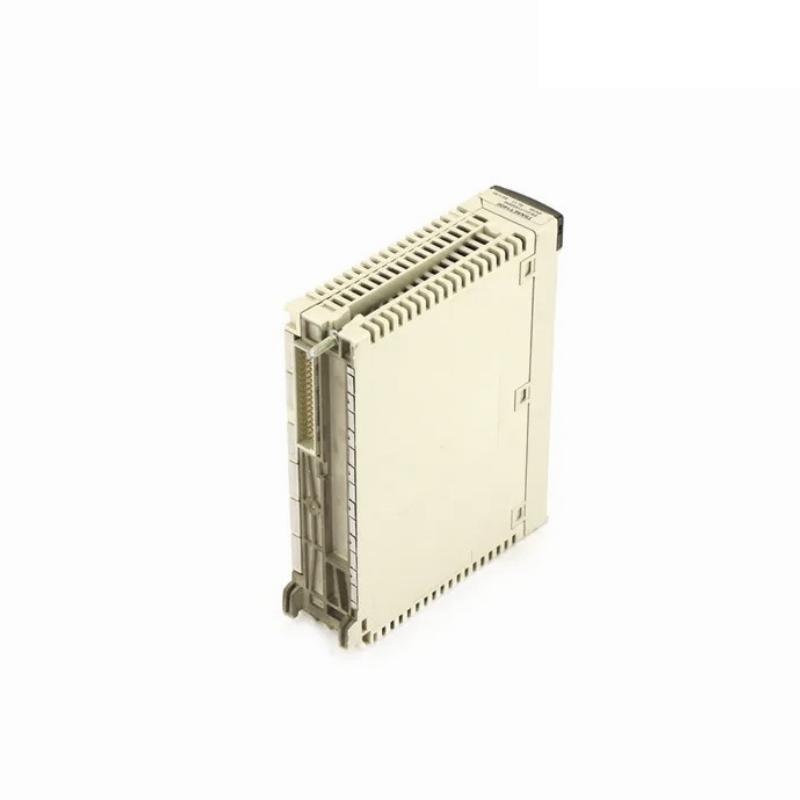

The Schneider TSXAEY1600 is a dedicated analog input module designed for the Modicon TSX Micro automation platform. It allows for the precise acquisition and processing / analog signals, supporting various industrial sensor inputs such as temperature, pressure, flow, and level sensors. This module is vital in systems requiring accurate real-time monitoring and control / physical parameters.
Manufactured by Schneider Electric, the TSXAEY1600 features 8 analog inputs that can be configured to measure voltage, current, or temperature through different sensor types. It is designed to integrate seamlessly with TSX Micro controllers, providing enhanced system flexibility and expanded control capabilities. The module supports multiple input ranges and signal types, making it a versatile choice for diverse applications.
Though primarily aimed at legacy TSX Micro systems, the TSXAEY1600 remains widely used for retr/it projects and existing plant operations due to its reliable performance and easy integration.
Technical Specifications
| Parameter | Details |
|---|---|
| 型号 Number | TSXAEY1600 |
| Module Type | Analog Input Module |
| Number / Channels | 8 |
| Input Signal Types | Voltage, Current, RTD, Thermocouples |
| Voltage Input Range | ±10 V |
| Current Input Range | 0-20 mA, 4-20 mA |
| Temperature Inputs | 支持s various thermocouples and RTDs |
| Resolution | 12-bit ADC |
| Input Impedance | >1 MΩ for voltage inputs |
| Sampling Rate | 15 ms per channel |
| Communication Protocol | UNI-TELWAY (RS-485) |
| Power Supply | Powered via backplane (5 VDC typical) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 55 x 180 x 260 mm |
| 重量 | 0.34 kg |
| Certifications | CE, UL, CSA, GOST |
Applications
The TSXAEY1600 Analog Input Module is widely employed across a broad range / industrial and commercial automation sectors, including:
-
Process Control: Monitoring temperature, pressure, and flow rates in chemical, petrochemical, and food industries.
-
Building Automation: Measuring HVAC parameters like temperature and humidity for energy-efficient climate control.
-
Water Treatment Plants: Tracking sensor data such as water levels, turbidity, and chemical dosing.
-
Manufacturing: Data acquisition from various analog sensors embedded in assembly lines or machinery.
-
Energy Management: Monitoring voltage and current inputs from power distribution or generation equipment.
-
OEM Equipment: Used in custom machinery where precise analog data acquisition is critical.
Advantages
-
Multi-Signal Compatibility: 支持s voltage, current, thermocouples, and RTDs, allowing flexible sensor connections.
-
High Accuracy: 12-bit resolution ensures precise measurement / analog signals.
-
Seamless Integration: Designed to work natively with Schneider’s TSX Micro PLCs using UNI-TELWAY communication.
-
Compact Size: Small footprint suitable for dense control panels.
-
Reliable Operation: Wide operating temperature and robust construction suited for harsh industrial environments.
-
Easy Configuration: Configurable input ranges for varied sensor types simplify setup.
-
Legacy 支持: Ideal for maintaining and expanding existing TSX Micro automation systems.
常见问题 (FAQ)
-
What types / analog signals can the TSXAEY1600 accept?
It supports voltage (±10 V), current (0-20 mA, 4-20 mA), and temperature sensors such as RTDs and thermocouples. -
How many input channels does this module have?
It includes 8 independent analog input channels. -
What is the resolution / the analog-to-digital converter?
The module features a 12-bit ADC for accurate signal conversion. -
Is the module hot-swappable?
No, the TSXAEY1600 is not designed for hot-swapping and should be powered down before installation or removal. -
What communication protocol does it use?
The module communicates over the UNI-TELWAY protocol via RS-485. -
Can it measure temperature directly from thermocouples?
Yes, it supports multiple thermocouple types and RTDs for direct temperature measurement. -
What is the operating temperature range?
It operates reliably between 0°C and 60°C. -
Does it require an external power supply?
No, it is powered via the backplane from the main controller’s power supply. -
Is this module still available for purchase?
It is considered a legacy product but may still be available through distributors and aftermarket suppliers. -
Can this module be used with newer Schneider controllers?
It is specifically designed for TSX Micro systems and may not be compatible with newer Modicon ranges like M221 or M241.
Related 型号s (Same Series or Function)
| 型号 Number | 描述 |
|---|---|
| TSXAEY1601 | Analog input module with 8 channels and isolated inputs |
| TSXAEY1602 | Module supporting 4-20 mA inputs with higher resolution |
| TSXAEY1603 | Analog output module for TSX Micro systems |
| TSXAEY1604 | Temperature input module dedicated to RTDs and thermocouples |
| TSXAEY1610 | Analog input module with integrated signal conditioning |
| TSXAEY1620 | High-precision voltage input module |
Popular Schneider 型号s (Same 品牌)
| 型号 Number | 描述 |
|---|---|
| TM221C24T | Modicon M221 controller, 24 I/O transistor outputs |
| TM241CE40T | Modicon M241 controller with Ethernet and CANopen |
| BMXP342020 | Modicon M340 CPU module with high processing power |
| TSXPSY2600 | Power supply for TSX Micro controllers |
| TM251MESE | Modicon M251 controller with advanced networking options |
| BMXAMO0500 | Analog input module for Modicon M340 series |
