产品介绍

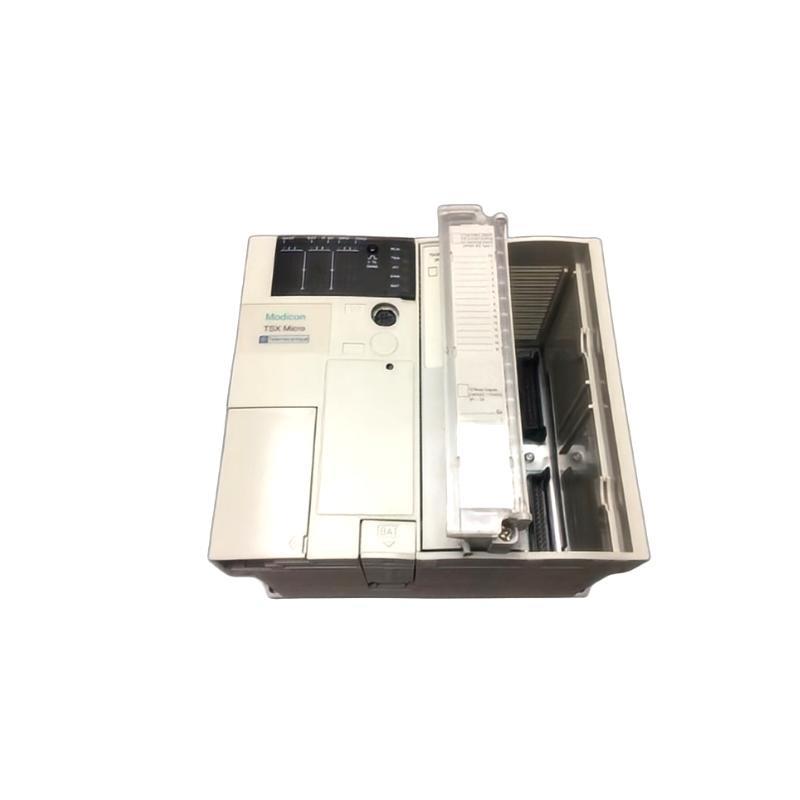

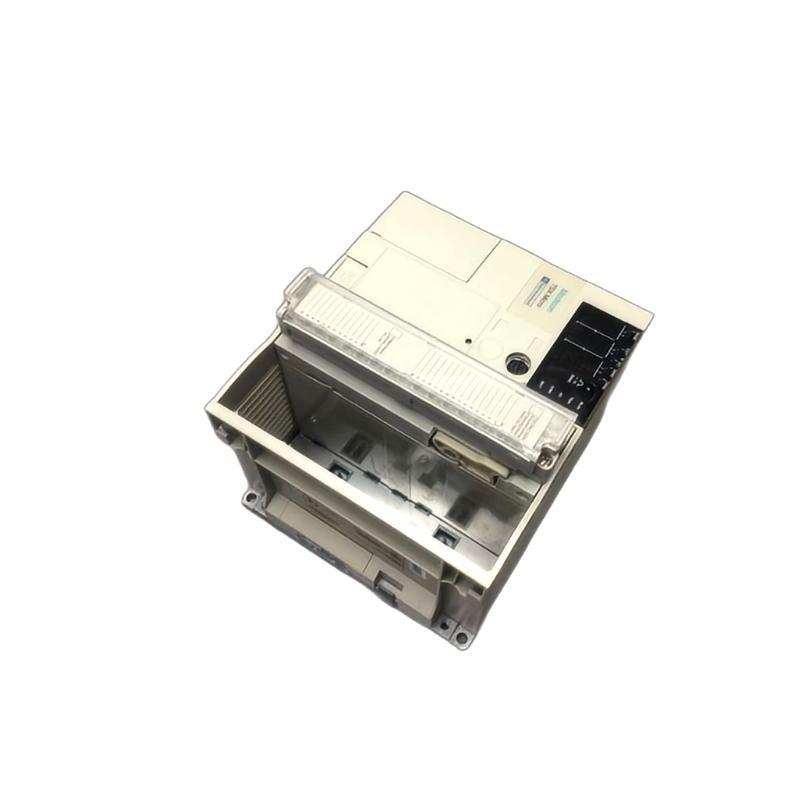

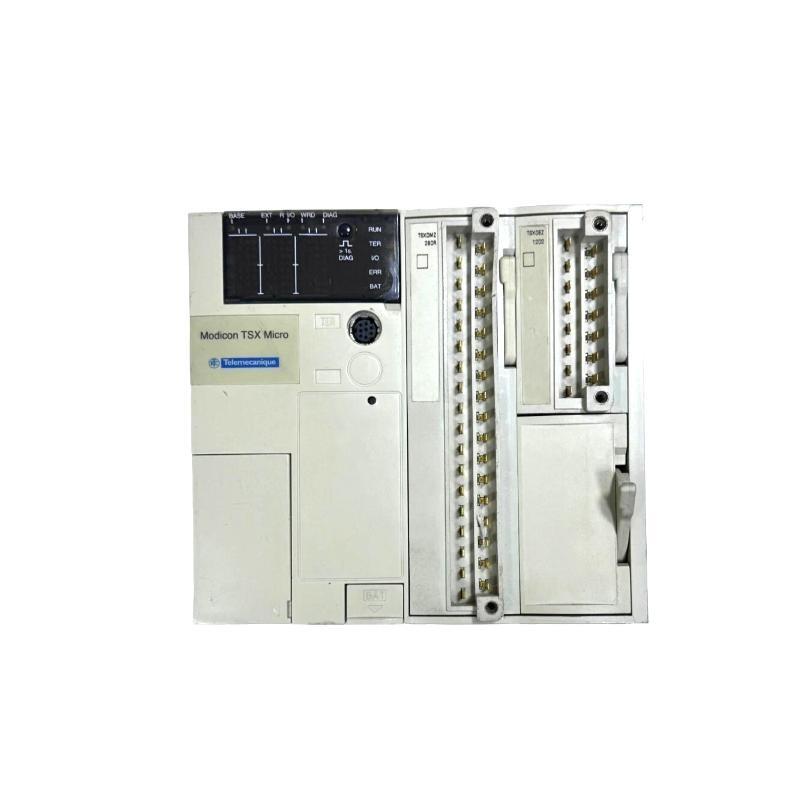

The Schneider TSX3710028DR1 is a programmable logic controller (PLC) from the renowned Modicon TSX Micro series. This compact modular base controller is designed for applications where space is limited but reliability and performance cannot be compromised. The TSX3710028DR1 integrates 16 digital inputs and 12 relay outputs into a single base 件, eliminating the need for additional expansion modules in small systems.
Engineered by Schneider Electric, a global leader in automation and energy management, the TSX3710028DR1 supports 24V DC input and utilizes relay output channels, making it highly suitable for controlling electromechanical devices. This model supports UNI-TELWAY communication protocol, /fering a stable and well-supported network connection for legacy industrial systems.
Though the product has reached end-/-life status and is no longer in active production, it remains widely used in legacy systems and can still be sourced from industrial parts suppliers for maintenance and refurbishment / existing installations.
Technical Specifications
| Parameter | Details |
|---|---|
| Product 型号 | TSX3710028DR1 |
| Series | Modicon TSX Micro |
| Type | Modular Base Controller |
| Power Supply | 24 VDC |
| Digital Inputs | 16 channels |
| Digital Outputs | 12 relay outputs |
| Output Type | Relay |
| Maximum Output Current | 0.5 A per channel |
| Communication Protocol | UNI-TELWAY (RS-485) |
| Programming S/tware | PL7-07 or PL7 Micro |
| Mounting Type | DIN Rail |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Rating | IP20 |
| Dimensions (W x H x D) | 282.7 x 151 x 152 mm |
| 重量 | 1.91 kg |
| Certifications | CE, UL, CSA, GOST |
Applications
The TSX3710028DR1 is tailored for a wide range / automation and control applications in industrial and infrastructure sectors. Below are the typical areas / implementation:
-
Factory Automation: Assembly line control, robotic interface, machine start-stop logic.
-
Material Handling: Conveyor control, lift and hoist management.
-
Building Automation: Lighting control, access systems, HVAC interfaces.
-
Water Treatment Plants: Pump control, filtration monitoring, valve automation.
-
OEM Machinery: Integration into custom machinery with limited space requirements.
-
Process Monitoring: Ideal for systems requiring limited but reliable discrete I/O processing.
Product Advantages
-
Integrated Functionality: Combines inputs, outputs, and CPU into one compact 件.
-
Space Efficiency: Designed to minimize installation footprint.
-
Legacy System Compatibility: 支持s older industrial communication protocols.
-
Robust Construction: Reliable performance even in demanding environments.
-
Low Maintenance Requirements: Simple architecture reduces points / failure.
-
Ease / Configuration: 支持s user-friendly PL7 s/tware for programming and diagnostics.
常见问题 (FAQ)
-
Is the TSX3710028DR1 still supported by Schneider Electric?
Documentation and limited third-party support are still available. -
Can this 件 be integrated into a new automation project?
Not recommended. -
Which programming s/tware is compatible?
The TSX3710028DR1 can be programmed using Schneider’s PL7-07 or PL7 Micro s/tware. -
How is it mounted in an electrical cabinet?
It is DIN rail mountable, making installation simple in standard industrial enclosures. -
Can the input/output count be expanded?
This specific 件 does not support I/O expansion, though other models in the TSX Micro series do. -
Is it compatible with Ethernet communication?
No, it uses UNI-TELWAY over RS-485, a serial protocol. -
What type / outputs does it use?
It uses mechanical relay outputs, ideal for switching loads like motors or solenoids. -
What is the maximum switching current?
Each output channel can switch up to 0.5 A. -
Is there a replacement or alternative product?
Schneider recommends migrating to the Modicon M221 or M241 series for current automation requirements. -
What industries use this product most commonly?
It is /ten found in older manufacturing facilities, OEM equipment, and utility management systems.
Related 型号s (Same Series or Function)
| 型号 Number | 描述 |
|---|---|
| TSX3710128DR1 | 24V DC input, 12 relay outputs, similar configuration |
| TSX3710128DT1 | 24V DC input, 12 transistor outputs |
| TSX3705028DR1 | Smaller controller with reduced I/O count |
| TSX3721001 | TSX Micro 3721 with extended programming options |
| TSX3721101 | DC variant / the TSX3721 with additional features |
| TSX3710164DTK1 | High-density version with 16 inputs and 48 outputs |
Popular Schneider 型号s (Same 品牌, Widely Used)
| 型号 Number | 描述 |
|---|---|
| TM221C24T | Modicon M221 logic controller with 24 I/O, transistor out |
| TM241CE40T | M241 PLC with Ethernet and CANopen, 40 I/O |
| BMEP582040 | Modicon M580 high-performance CPU |
| BMXP342020 | Mid-range CPU from the M340 series |
| TSXPSY2600 | Power supply module for TSX PLCs, 100-240V AC input |
| TM251MESE | Modicon M251 logic controller, dual Ethernet ports |
