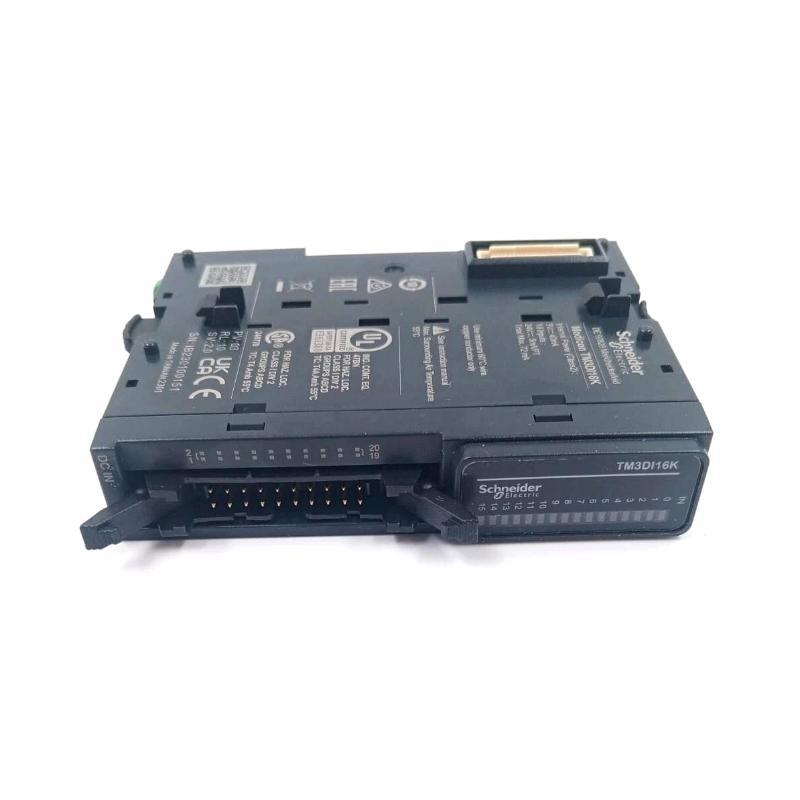

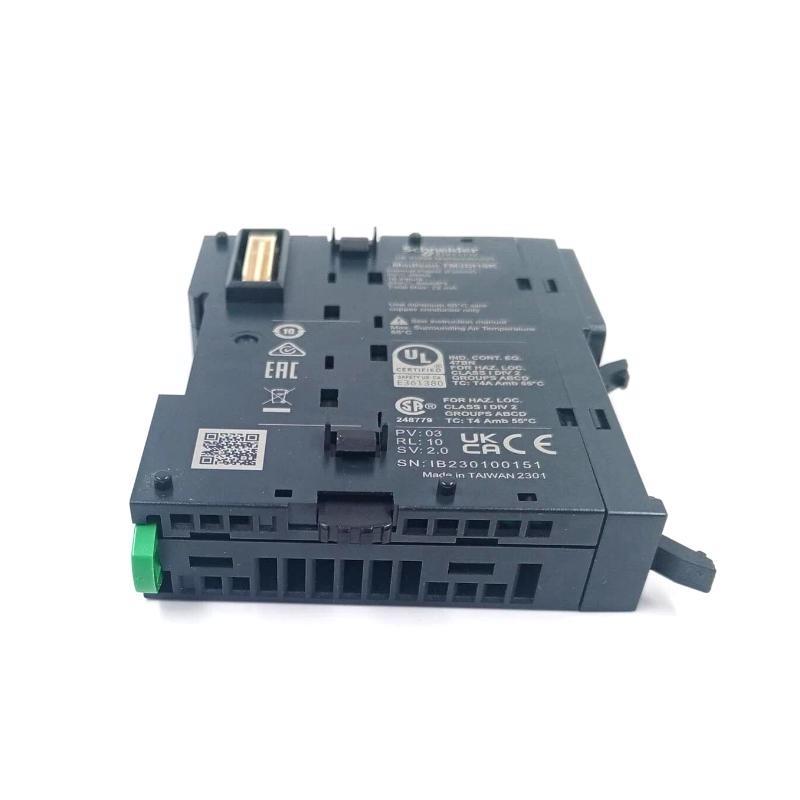

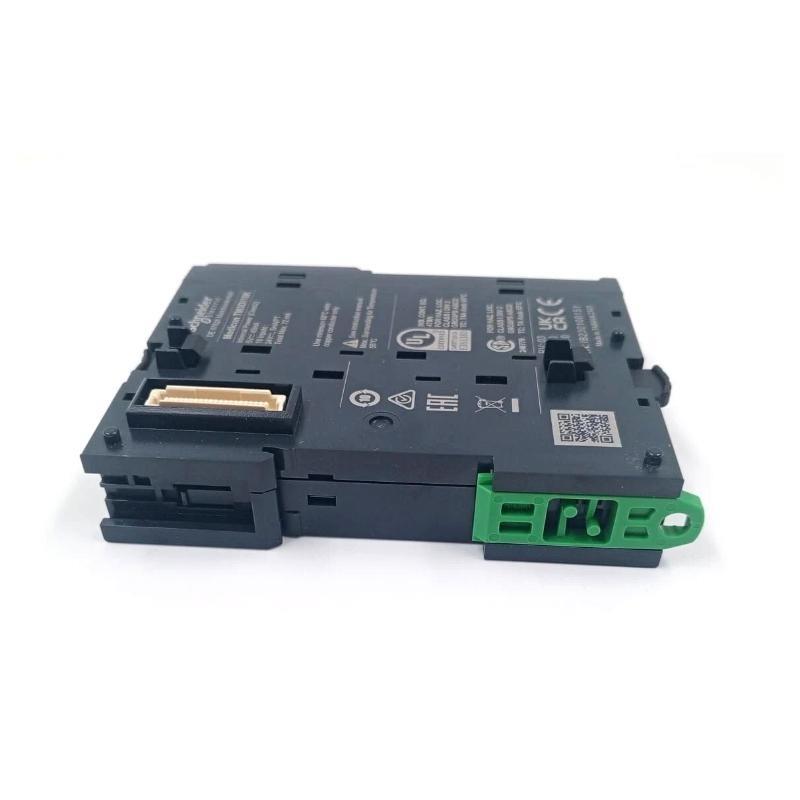

Schneider TM3DI16K Modicon TM3 Discrete Input Module
The Schneider TM3DI16K is a high-performance discrete input module designed for use with Modicon TM3 expansion systems. It provides 16 digital inputs, enabling accurate signal acquisition from field devices. This module is ideal for compact and scalable automation applications, enhancing system flexibility.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Discrete Input Module |
| Number / Inputs | 16 (Sink or Source type) |
| Input Voltage | 24 V DC |
| Input Current | 3 mA |
| Input Type | Sink or Source |
| Response Time | 3 ms |
| Isolation Voltage | 500 V (between channels and logic) |
| Power Consumption | 30 mA at 24 V DC |
| Mounting Type | DIN rail |
| Connection Type | Removable screw terminal block |
| Dimensions (W x H x D) | 90 x 81.3 x 33.5 mm |
| 重量 | 0.1 kg |
| Operating Temperature | -10°C to +55°C |
| Protection Index | IP20 |
Applications
-
Industrial automation systems
-
Packaging machinery
-
Conveyor control
-
Water treatment plants
-
Building management systems
-
Material handling equipment
Product Advantages
-
Compact design saves space in control panels
-
Fast response time ensures reliable signal acquisition
-
Flexible wiring options with removable terminal blocks
-
Easy integration with Modicon M221, M241, and M251 PLCs
-
DIN rail mountable for quick and secure installation
-
Low power consumption supports energy-efficient systems
FAQ – 常见问题
Q1: How many digital inputs does the TM3DI16K module support?
A1: It supports 16 digital inputs.
Q2: What is the rated input voltage / this module?
A2: The rated input voltage is 24 V DC.
Q3: Can this module be used with both source and sink wiring?
A3: Yes, it supports both sink and source input types.
Q4: What PLCs are compatible with TM3DI16K?
A4: It is compatible with Modicon M221, M241, and M251 PLCs.
Q5: Does this module support hot-swapping?
A5: No, the TM3DI16K does not support hot-swapping.
Q6: Is there electrical isolation between input channels and logic?
A6: Yes, it /fers 500 V isolation.
Q7: What is the input current per channel?
A7: Each input channel typically draws 3 mA.
Q8: Can the terminal block be removed for wiring?
A8: Yes, it uses a removable screw terminal block.
Q9: What is the mounting type?
A9: It is designed for DIN rail mounting.
Q10: What is the weight / the TM3DI16K?
A10: The module weighs approximately 0.1 kg.
Related or Similar 型号s
| 型号 | 描述 | Inputs | Voltage | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| TM3DI8 | 8-channel digital input module | 8 | 24 VDC | 90 x 84.6 x 27.4 | 0.09 kg |
| TM3DI8G | 8 input module (2-wire sensors) | 8 | 24 VDC | 90 x 84.6 x 27.4 | 0.1 kg |
| TM3DQ16K | 16-channel digital output module | 16 | 24 VDC | 90 x 84.6 x 27.4 | 0.1 kg |
| TM3DQ8 | 8-channel digital output module | 8 | 24 VDC | 90 x 84.6 x 27.4 | 0.09 kg |
| TM3DI16TG | 16 input (2-wire sensor) module | 16 | 24 VDC | 90 x 84.6 x 27.4 | 0.1 kg |
| TM3TI4 | 4-channel thermocouple module | 4 | – | 90 x 84.6 x 27.4 | 0.11 kg |
Popular Schneider 型号s
| 型号 | 描述 | Type | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| TM241CE24T | Modicon M241 Logic Controller | Controller | 150 x 95 x 70 | 0.45 kg |
| TM221C24T | Modicon M221 Logic Controller | Controller | 135 x 90 x 70 | 0.4 kg |
| BMXDDI3202K | 32-channel digital input module | Discrete Input Module | 125 x 100 x 45 | 0.25 kg |
| BMXDAO1605 | 16-channel digital output module | Discrete Output Module | 125 x 100 x 45 | 0.3 kg |
| BMEP582040 | Modicon M580 Processor Module | Processor | 275 x 100 x 60 | 0.5 kg |
| TSXPSY2600 | Power supply for Modicon Premium PLCs | Power Supply | 130 x 125 x 80 | 0.7 kg |
