产品介绍

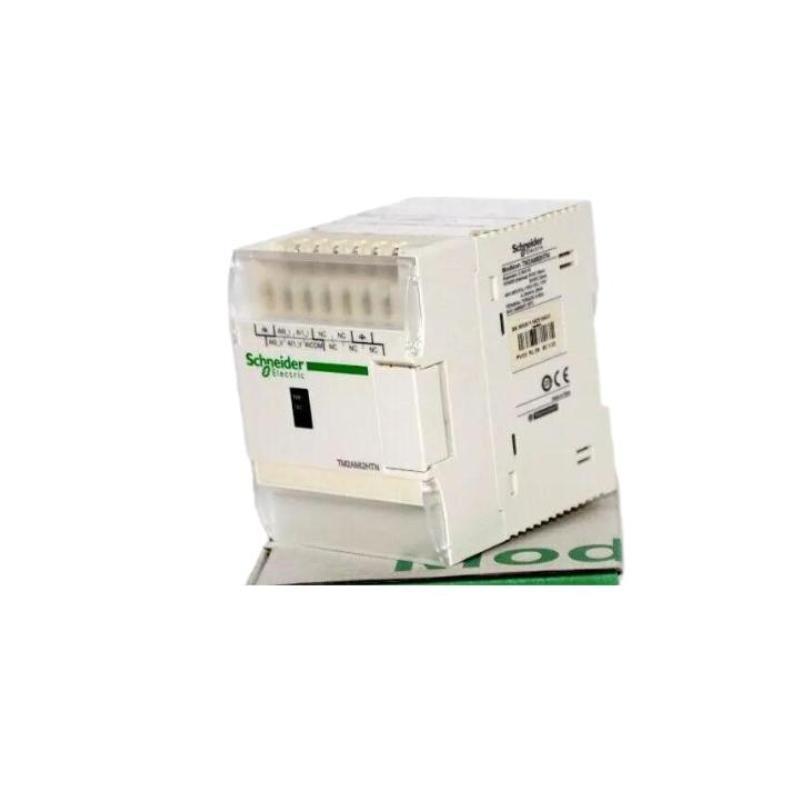

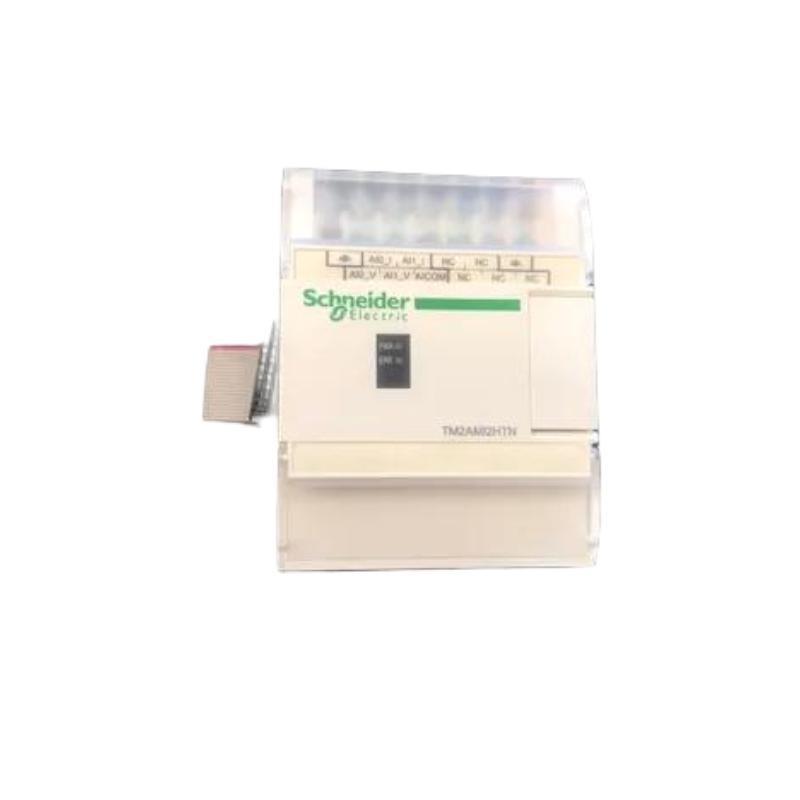

The Schneider TM2AMI2HTN is a high-performance analog input module designed for industrial automation and control systems. Part / Schneider Electric’s TM2 series, this module allows the seamless integration / analog input signals into programmable logic controllers (PLCs) or distributed control systems (DCS). Its compact design and advanced features make it ideal for applications in environments where space is limited yet high-precision signal processing is required.
This module is designed to handle 2 analog inputs, /fering a high level / accuracy and reliability for a wide range / industrial applications. It supports a variety / input types, including voltage and current signals, ensuring compatibility with numerous field devices such as sensors, transmitters, and other analog equipment. The TM2AMI2HTN module is widely used in systems requiring precise measurements, making it a critical component in process control, manufacturing, energy management, and more.
With a compact size / 23.5 x 70 x 90 mm and a weight / only 0.085 kg, the Schneider TM2AMI2HTN module is designed to fit in tight spaces while maintaining robust performance, allowing easy integration into control panels, machinery, and automation systems.
Product Parameters
Below are the specifications for the Schneider TM2AMI2HTN analog input module:
| Parameter | Specification |
|---|---|
| 型号 Number | TM2AMI2HTN |
| Dimensions | 23.5 x 70 x 90 mm |
| 重量 | 0.085 kg |
| Input Type | Analog (Voltage/Current) |
| Input Channels | 2 Channels |
| Input Voltage Range | 0-10 VDC |
| Input Current Range | 4-20 mA |
| Accuracy | ±0.1% / full scale |
| Sampling Rate | 250 ms per channel |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting Type | DIN Rail |
| Power Consumption | 30 mA |
Product Application
The Schneider TM2AMI2HTN analog input module is utilized in a variety / industrial automation and control systems where high-precision analog signal processing is required. Below are the key applications for this module:
-
Process Control Systems: The module is widely used in process control systems to monitor analog signals from sensors and other field devices, allowing for accurate control and measurement in industries such as chemicals, pharmaceuticals, and food processing.
-
Manufacturing Automation: It is deployed in manufacturing plants to collect and transmit analog data from equipment like temperature sensors, pressure transmitters, and flow meters, facilitating precise control and automation.
-
Energy Management: The TM2AMI2HTN is ideal for use in energy systems, where it helps to monitor parameters like voltage, current, and temperature to ensure efficient energy use and grid stability.
-
Building Automation: In HVAC systems, lighting control, and security systems, this module allows integration / analog sensors for temperature, humidity, and other environmental parameters.
-
Water and Wastewater Treatment: The module helps monitor critical parameters such as pH levels, turbidity, and pressure, ensuring optimal performance and safety in water treatment plants.
-
Renewable Energy Systems: In wind and solar power installations, the module is used to monitor variables such as output voltage, current, and environmental conditions to enhance system performance and reliability.
Product Advantages
-
High Accuracy: The TM2AMI2HTN module provides ±0.1% accuracy, ensuring precise measurement and control / analog signals, which is essential in critical applications.
-
Compact Design: With its 23.5 x 70 x 90 mm size, the module is small and lightweight (0.085 kg), making it easy to integrate into space-constrained systems and control panels.
-
Flexible Input Range: It supports both voltage (0-10 VDC) and current (4-20 mA) input ranges, making it compatible with a variety / field devices and systems.
-
Reliable Performance: With a sampling rate / 250 ms per channel, the module ensures real-time, reliable data acquisition, providing accurate and timely information for control and monitoring.
-
Wide Operating Temperature Range: The module can operate in a broad temperature range / -20°C to 60°C, making it suitable for both indoor and outdoor industrial environments.
-
Easy Installation: Designed for DIN rail mounting, the module is easy to install and integrate into existing control panels, reducing setup time and effort.
-
Low Power Consumption: The module consumes only 30 mA, making it an energy-efficient solution for long-term operation.
-
High Reliability: Designed for industrial applications, the TM2AMI2HTN module is built to withstand harsh operating conditions, /fering high reliability and durability.
-
Cost-Effective: Offering high performance at a competitive price, this module provides an affordable solution for industrial analog signal processing needs.
-
Versatile Applications: With its flexibility in input types and compatibility with various systems, the module can be used in diverse applications across different industries, /fering scalability and adaptability.
FAQ
-
Q: What is the size / the Schneider TM2AMI2HTN analog input module?
A: The module has dimensions / 23.5 x 70 x 90 mm. -
Q: How much does the Schneider TM2AMI2HTN module weigh?
A: The module weighs 0.085 kg. -
Q: How many input channels does the Schneider TM2AMI2HTN module support?
A: The module supports 2 input channels. -
Q: What input ranges does the Schneider TM2AMI2HTN module support?
A: It supports 0-10 VDC (voltage) and 4-20 mA (current) input ranges. -
Q: What is the accuracy / the Schneider TM2AMI2HTN module?
A: The module /fers an accuracy / ±0.1% / the full scale. -
Q: What is the sampling rate / the Schneider TM2AMI2HTN module?
A: The module has a sampling rate / 250 ms per channel. -
Q: What is the operating temperature range / the Schneider TM2AMI2HTN module?
A: The module operates within a temperature range / -20°C to 60°C. -
Q: What is the power consumption / the Schneider TM2AMI2HTN module?
A: The module consumes 30 mA / power. -
Q: How is the Schneider TM2AMI2HTN module mounted?
A: The module is designed for DIN rail mounting, making installation quick and easy. -
Q: What are the main applications / the Schneider TM2AMI2HTN module?
A: The module is ideal for use in process control systems, manufacturing automation, energy management, building automation, water treatment, and renewable energy systems.
Recommended Related 型号s
Here are 6 related models from the Schneider TM2 series that may suit your needs:
| 型号 | 描述 |
|---|---|
| TM2AMI2LT | A 2-channel analog input module for low-voltage systems. |
| TM2AMI4HTN | A 4-channel analog input module with voltage and current input types. |
| TM2AMI2HTR | A 2-channel analog input module with a wide voltage range. |
| TM2AIO4 | An analog input/output module for both input and output signal processing. |
| TM2AO2HTN | A 2-channel analog output module for controlling analog devices. |
| TM2DIO8 | A digital input/output module for interfacing with digital field devices. |
Popular Schneider 型号s
Here are 6 popular Schneider models used in industrial automation:
| 型号 Number | Type | Input Voltage | Output Type | 重量 | Dimensions (L x W x H) |
|---|---|---|---|---|---|
| TM221M16RG | Programmable Controller | 24 V DC | Digital I/O | 0.5 kg | 100 x 70 x 35 mm |
| TM258LD42DT | Programmable Controller | 24 V DC | Digital I/O | 0.8 kg | 130 x 90 x 50 mm |
| TM258LF42DR | Programmable Controller | 24 V DC | Digital I/O | 0.9 kg | 140 x 100 x 55 mm |
| TM221M16R | Programmable Controller | 24 V DC | Digital I/O | 0.6 kg | 105 x 75 x 40 mm |
| TM258LD42 | Programmable Controller | 24 V DC | Digital I/O | 0.7 kg | 120 x 85 x 45 mm |
| TM258LF42 | Programmable Controller | 24 V DC | Digital I/O | 0.8 kg | 130 x 90 x 50 mm |
