产品介绍

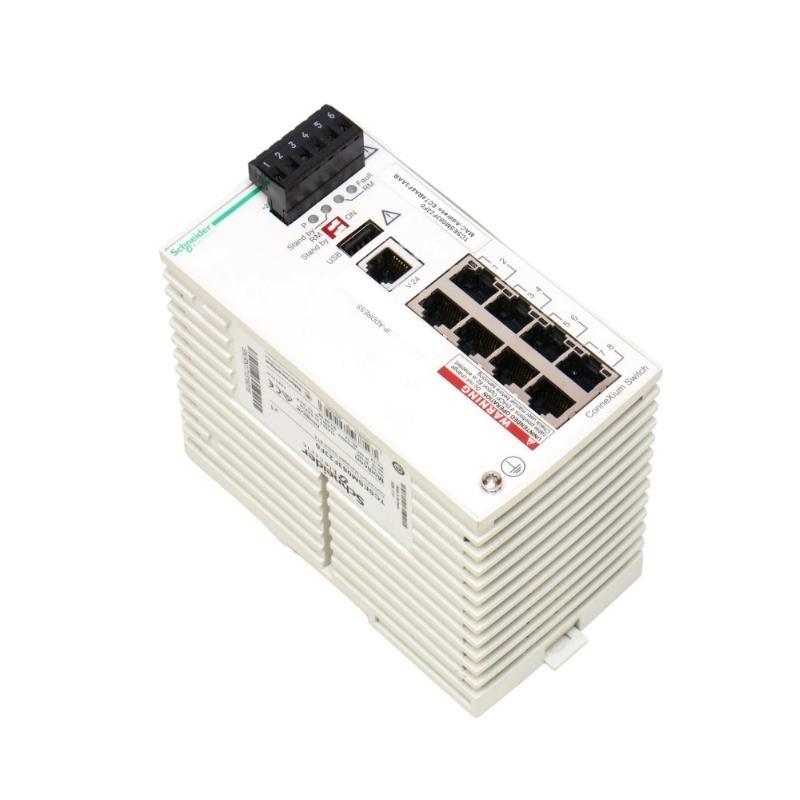

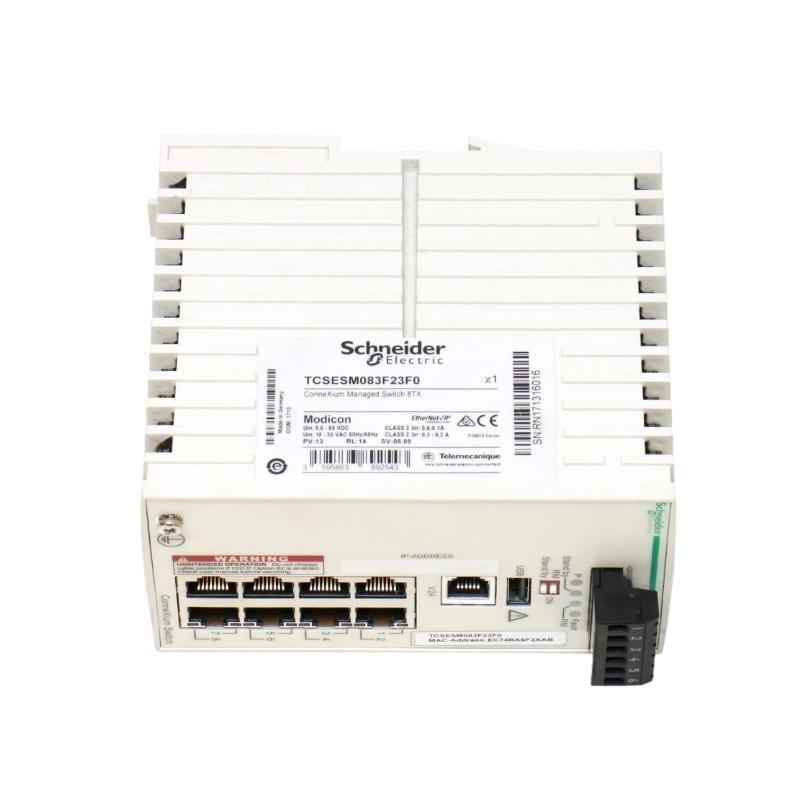

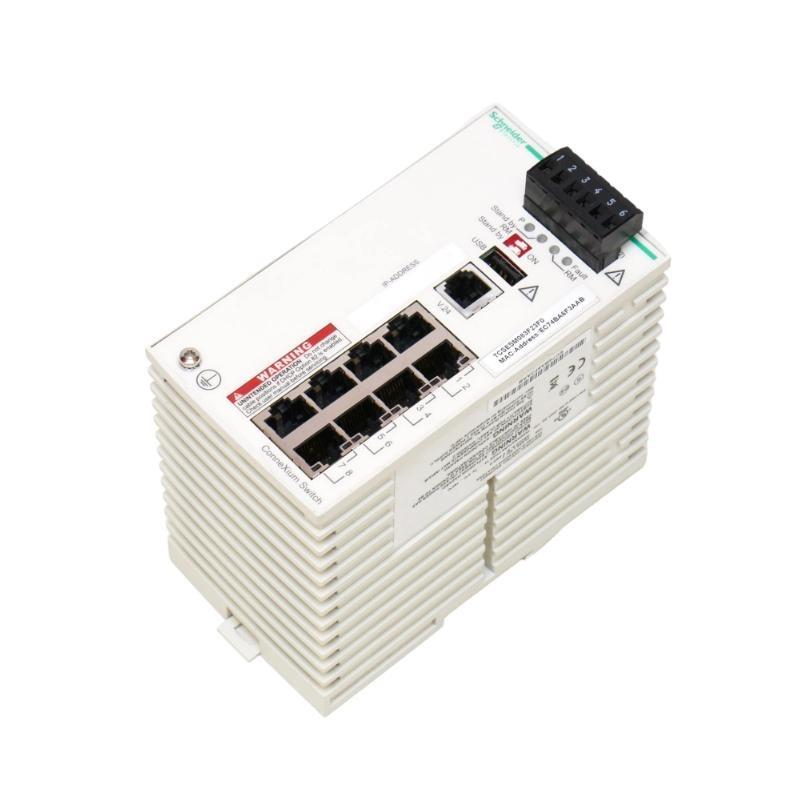

The Schneider Electric TCSESM083F23F0 is a high-performance ConneXium Managed Ethernet Switch, designed to meet the rigorous demands / industrial automation environments. Engineered for robust performance and seamless communication, it ensures secure and reliable data exchange across factory networks and process control systems.
This managed switch features 8 Fast Ethernet ports (10/100Base-TX) with RJ45 connectors, providing flexibility and expandability in complex automation architectures. With advanced management functions, such as VLAN, QoS, SNMP, and redundancy protocols (RSTP, MSTP, and more), the switch facilitates real-time monitoring and resilient network performance.
Its rugged housing and compliance with industrial standards make it suitable for harsh industrial conditions, supporting long lifecycle deployments in critical infrastructure, manufacturing, and energy sectors.
Technical Specifications
| Parameter | Details |
|---|---|
| Product 型号 | TCSESM083F23F0 |
| Product Type | ConneXium Managed Switch |
| Number / Ports | 8 Ports |
| Port Type | RJ45, 10/100Base-TX |
| Switch Type | Managed |
| Management Protocols | SNMP v1/v2/v3, Telnet, HTTP, HTTPS, CLI, SSH |
| Redundancy Protocols | RSTP, MSTP, Ring redundancy |
| Power Supply | Redundant 24 VDC (18–32 V) |
| Power Consumption | < 7 W |
| MTBF (Mean Time Between Failures) | > 500,000 hours |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Shock/Vibration Resistance | IEC 60068-2-6 / IEC 60068-2-27 |
| Housing Material | Metal (IP20-rated enclosure) |
| Mounting | DIN Rail |
| Dimensions (W x H x D) | 74 x 131 x 111 mm |
| 重量 | 0.41 kg |
| Certifications | CE, UL508, cUL, CSA, RoHS |
Applications
The TCSESM083F23F0 is tailored for a variety / demanding industrial sectors where reliable and deterministic communication is essential:
-
Factory Automation Systems – Facilitates real-time Ethernet communications among PLCs, HMIs, and SCADA systems.
-
Process Control Networks – 支持s critical infrastructure in oil & gas, water treatment, and energy facilities.
-
Transportation and Logistics – Used in intelligent transportation systems for traffic and signaling control.
-
Smart Manufacturing (Industry 4.0) – Enables scalable and secure data networks for smart devices and sensors.
-
Power and Utilities – Connects automation equipment in substations and power distribution 件s.
-
Marine and Offshore Applications – Complies with vibration and shock requirements for maritime environments.
Advantages
-
Industrial-Grade Reliability: Built with robust materials and rated for harsh industrial settings.
-
Flexible Network Design: Offers VLAN, QoS, port mirroring, and redundancy protocols for custom architectures.
-
Security and Management: Advanced access control, SSH, HTTPS, and SNMP v3 provide secure and manageable networks.
-
Compact Form Factor: Space-saving design ideal for crowded control panels and cabinets.
-
Easy Integration: Compatible with Schneider’s EcoStruxure architecture and third-party systems.
-
Redundant Power Inputs: Minimizes downtime and improves overall system reliability.
常见问题 (FAQ)
1. What is the main function / the TCSESM083F23F0 ConneXium switch?
It provides managed Ethernet communication for industrial control systems, supporting real-time data transfer and secure network management.
2. Can this switch be used in high-vibration environments?
Yes, it complies with IEC vibration and shock standards, making it suitable for transportation and industrial machinery environments.
3. Does it support ring redundancy?
Yes, it supports multiple redundancy protocols, including ring topology for fault-tolerant networks.
4. What is the input voltage range for this switch?
It operates on 24 VDC nominal, with a range / 18 to 32 VDC.
5. Is this switch compatible with Schneider Electric’s EcoStruxure system?
Absolutely, it integrates seamlessly with EcoStruxure architecture for centralized monitoring and control.
6. Can I configure the switch remotely?
Yes, via web interface (HTTP/HTTPS), Telnet, SSH, SNMP, or CLI.
7. Is the switch fanless?
Yes, it has a fanless design for silent and maintenance-free operation.
8. What kind / mounting options are available?
It is designed for DIN rail mounting, common in industrial control panels.
9. What certifications does this switch carry?
It is CE, UL508, cUL, CSA, and RoHS certified.
10. Does this model support IPv6?
Yes, it supports both IPv4 and IPv6 for future-pro/ing networks.
Related 型号s in the Same Series
| 型号 | 描述 | Number / Ports | Port Type | Managed |
|---|---|---|---|---|
| TCSESM163F23F0 | ConneXium Managed Switch | 16 | RJ45 10/100Base-TX | Yes |
| TCSESM083F1CS0 | ConneXium Compact Managed Switch | 8 | RJ45 10/100Base-TX | Yes |
| TCSESM163F2CS0 | High Port Managed Industrial Switch | 16 | RJ45 10/100Base-TX | Yes |
| TCSESM103F23F0 | Managed Switch with Fiber Uplink | 10 | 8 RJ45 + 2 Fiber SFP | Yes |
| TCSESM083F2CU0 | Industrial Managed Switch with USB Configuration | 8 | RJ45 10/100Base-TX | Yes |
| TCSESM123F23F0 | Managed Switch with Extended Temp Range | 12 | RJ45 10/100Base-TX | Yes |
Popular 型号s from Schneider Electric
| 型号 | Product Type | 描述 | Use Case |
|---|---|---|---|
| BMXP342020 | Modicon M340 PLC CPU | Mid-range controller for machine automation | General industrial control |
| TSXPSY2600M | Power Supply Module | 24 VDC power supply for automation systems | PLC systems |
| ATV630D75N4 | Altivar Process Drive | Variable speed drive for fluid and HVAC applications | Motor control systems |
| HMISTU855 | HMI Touchscreen Panel | 5.7” color touchscreen for operator interfaces | HMI/SCADA integration |
| BMXDDO1602 | Digital Output Module | 16-channel transistor output module | PLC output expansion |
| TSXP572634M | Modicon Premium PLC | Advanced programmable logic controller | High-speed automation |
