产品介绍

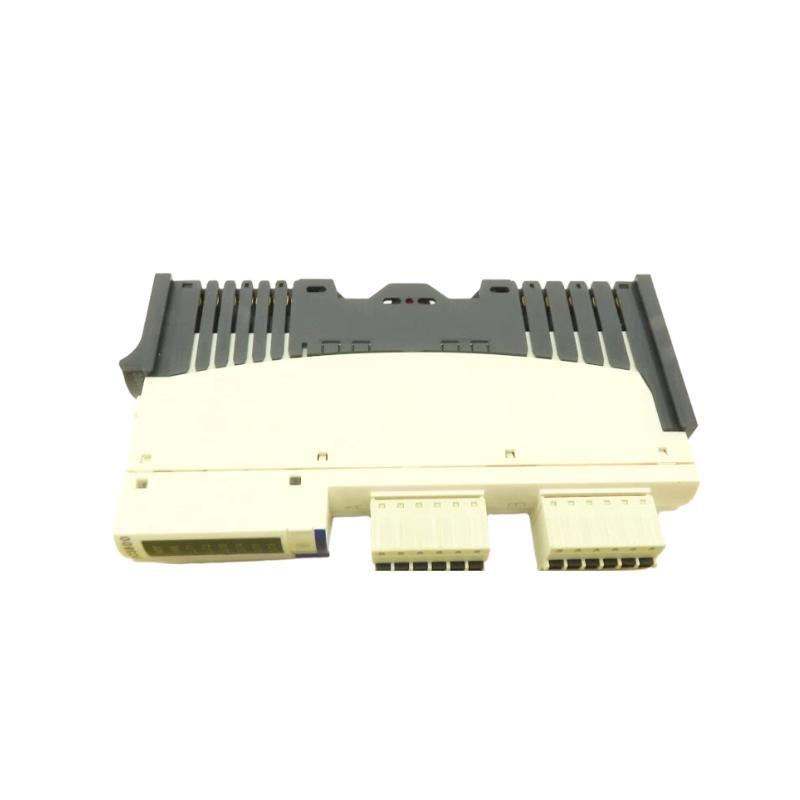

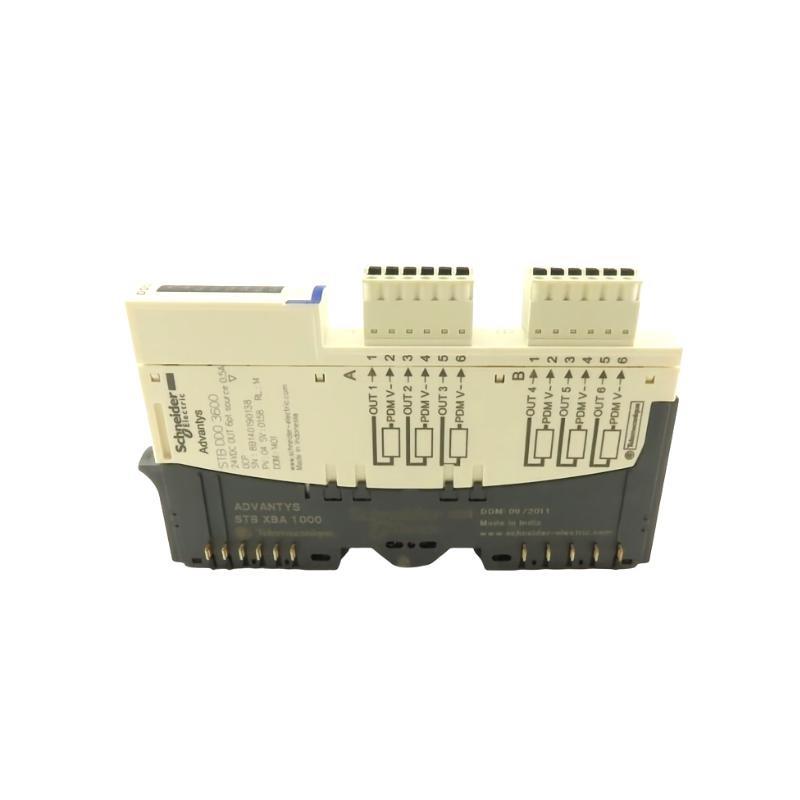

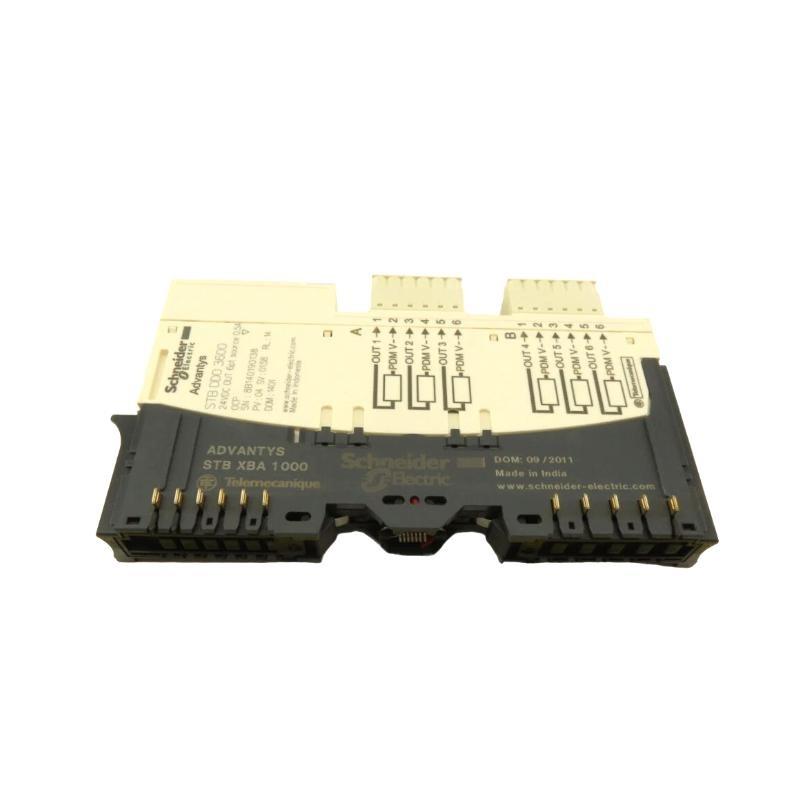

The Schneider Electric STBDDO3600 is a Standard Digital Output Module designed for the Modicon STB (Smart Terminal Block) distributed I/O system. It provides discrete output control within distributed automation architectures and is widely used in industrial environments where space-saving, modular, and fieldbus-connected I/O systems are required.
The STBDDO3600 features 16 output channels, each capable / switching 24V DC signals. These outputs are sink-type (negative logic), meaning the module provides current to the load. It is compact, DIN-rail mountable, and designed for easy integration into Modbus, Pr/ibus, EtherNet/IP, or CANopen-based distributed control systems via STB network adapters.
This module is ideal for controlling actuators, valves, indicators, solenoids, and other on//f devices in automated systems. With its rugged design, excellent diagnostics, and seamless integration, the STBDDO3600 plays a crucial role in improving system flexibility, reliability, and maintainability.
产品规格
| Parameter | Details |
|---|---|
| 型号 | STBDDO3600 |
| Series | Modicon STB Distributed I/O |
| Type | Digital Output Module |
| Output Type | Discrete (Digital) |
| Number / Outputs | 16 |
| Logic Type | Sink (Negative Logic) |
| Voltage Range | 19.2 – 30V DC |
| Nominal Output Voltage | 24V DC |
| Output Current | 0.5 A per channel, 8 A total max per module |
| Isolation | Channel-to-bus: 500 V AC |
| Diagnostics | Open load, short circuit detection, module fault LED |
| Mounting | DIN Rail |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 13.9 x 70 x 128.3 mm |
| 重量 | 0.114 kg |
| Status LEDs | Individual channel indication + fault indication |
| Certifications | CE, UL, CSA, RoHS |
| Bus Interface | Requires STB NIP/Network Interface or base module |
Product Applications
The STBDDO3600 module is used extensively in distributed automation systems across multiple industries. Its key applications include:
-
Factory Automation
Control / actuators, motors, signal lamps, solenoids, and interlocks. -
Material Handling Systems
Actuating conveyors, diverters, robotic arms, and loading systems. -
Food and Beverage Industry
Driving packaging equipment, automated capping machines, and bottling lines. -
Building Automation
Controlling HVAC valves, lighting systems, and door actuators. -
Process Control Systems
Interfacing with on//f devices in water treatment, chemical, and oil & gas sectors. -
Renewable Energy Plants
Managing switching operations in solar tracking systems and turbine control.
Product Advantages
-
Modular Design
Easily fits into distributed I/O architectures with plug-and-play simplicity. -
Space Saving
Compact footprint ideal for control cabinets and remote panels. -
Fieldbus Compatibility
Works with various STB adapters (Modbus, CANopen, Pr/ibus, etc.). -
Reliable Switching
Capable / handling industrial-grade loads with quick and reliable response. -
Diagnostic Feedback
Real-time fault indicators simplify maintenance and troubleshooting. -
Scalable Integration
Part / a larger, highly scalable automation platform for custom needs. -
Industrial Grade Protection
Fully insulated, rugged construction for harsh environments. -
Global Compliance
Certified for use in international industrial applications.
常见问题 (FAQ)
-
What does the STBDDO3600 module do?
It provides 16 discrete digital output channels for controlling 24V DC devices. -
Is this module sink or source type?
It is a sink (negative logic) output module. -
Can it be used with Modbus or Pr/ibus systems?
Yes, when paired with an appropriate STB network interface module. -
What kind / devices can it control?
Valves, lamps, solenoids, contactors, relays, and other on//f field devices. -
Is each channel protected against short circuits?
Yes, and the module provides diagnostics via LED indicators. -
What is the max output current per channel?
0.5 A per channel, with a total module current / 8 A max. -
Can this module be hot-swapped?
Yes, as part / the STB system, it supports hot swapping under certain conditions. -
Does it require an external power supply?
Yes, field devices powered through external 24V DC power supply. -
Where should it be mounted?
On a DIN rail, within an STB I/O system assembly. -
Is the module firmware upgradeable?
No, it’s a hardware I/O module with fixed logic.
Related 型号s from the Same Series
| 型号 | 描述 | Type | Channels | Logic Type |
|---|---|---|---|---|
| STBDDI3230 | Digital Input Module | Digital Input | 16 | Source (Positive) |
| STBDDO3410 | Digital Output Module with Source Logic | Digital Output | 16 | Source (Positive) |
| STBDDI3420 | Digital Input Module | Digital Input | 16 | Sink (Negative) |
| STBACI1230 | AC Digital Input Module | AC Input | 8 | – |
| STBACO1220 | AC Digital Output Module | AC Output | 8 | – |
| STBDAI1235 | Analog Input Module (Current) | Analog Input | 4 | 4–20 mA |
Popular 型号s from Schneider Electric (Same 品牌)
| 型号 | 描述 | Type | Features |
|---|---|---|---|
| BMXP342020 | Modicon M340 CPU Module | PLC CPU | Ethernet, USB, 2 MB program memory |
| TSXPSY2600 | Modicon Power Supply | Power Supply | 24VDC, 10 A |
| ATV320U07M2B | Altivar 320 Variable Speed Drive | VFD Drive | 0.75 kW, single-phase, IP20 |
| HMIGTO5310 | HMI Touchscreen Panel | Operator Interface | 10.4″ TFT, Ethernet, USB, SD card slot |
| BMEP582040 | Modicon M580 CPU | PLC CPU | 4MB, Redundant, Cyber-secure |
| LXM32AU45M2 | Lexium 32 Servo Drive | Motion Control | 4.5kW, integrated safety, CANopen |
