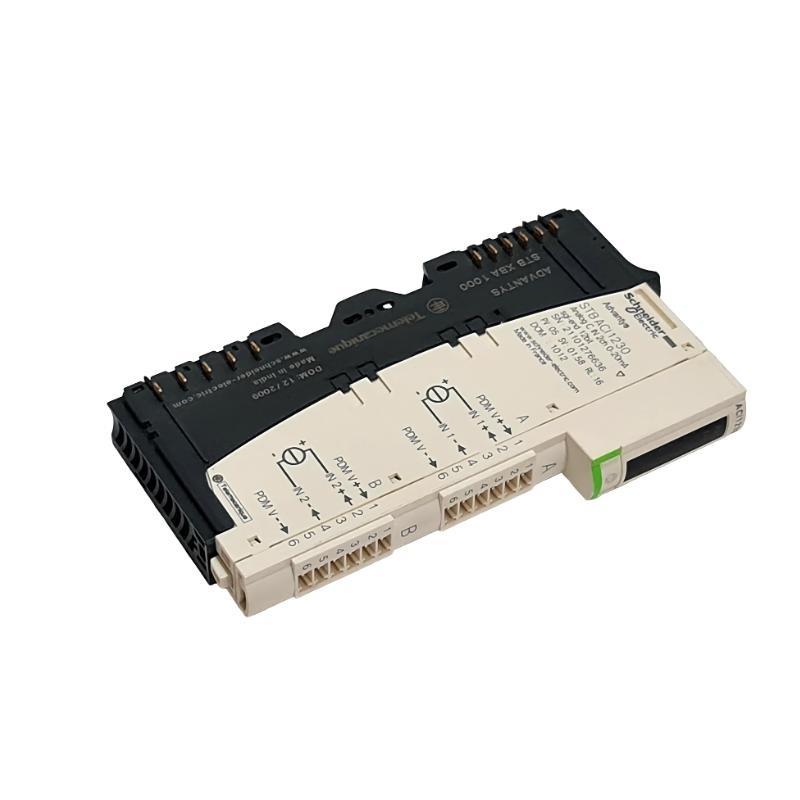

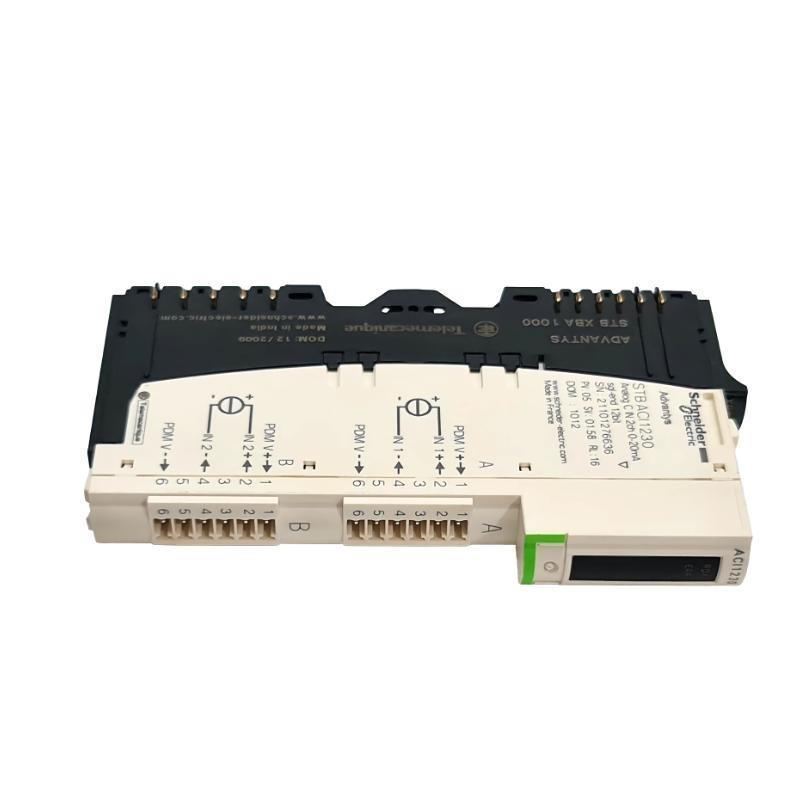

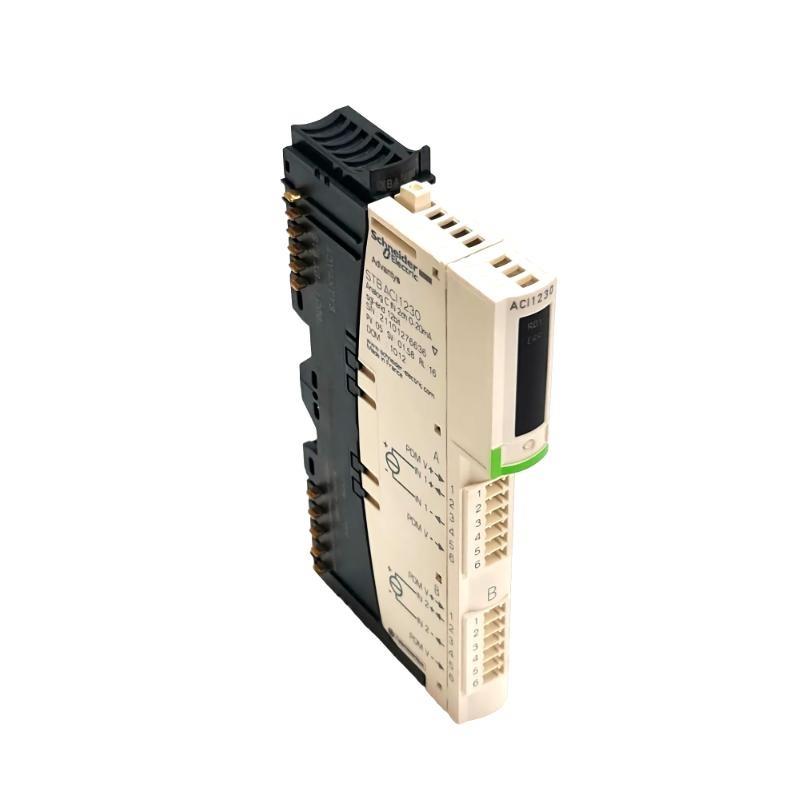

The Schneider Electric STBACI1230 is a Standard Analog Input Module from the Advantys STB distributed I/O system, designed for modular automation solutions in industrial control systems. It supports multiple current input channels (typically 4–20 mA), enabling precise analog signal acquisition from various field instruments.
This module is tailored for use in decentralized architectures, integrating seamlessly with host controllers via networked island configurations. Its compact form, reliable performance, and flexible mounting make it ideal for OEM applications, infrastructure systems, and process industries where analog signal integrity and efficiency are paramount.
As part / the STB series, the STBACI1230 enhances scalability, diagnostics, and signal accuracy, ensuring that it meets the requirements / both modern and legacy automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| 制造商 | Schneider Electric |
| Product Series | Advantys STB |
| 型号 Number | STBACI1230 |
| Module Type | Analog Input Module |
| Input Signal Type | Current (4–20 mA) |
| Number / Input Channels | 2 channels |
| Input Resolution | 12-bit |
| Conversion Time | ≤5 ms per channel |
| Accuracy | ±0.5% Full Scale |
| Input Impedance | Typically 250 Ω |
| Galvanic Isolation | 500 V RMS (Channel-to-Bus) |
| LED Indicators | Channel diagnostics and module status |
| Mounting Type | DIN Rail 35 mm (EN 50022) |
| Power Consumption | Approx. 0.9 W |
| Operating Voltage | Supplied via island bus (5 VDC nominal) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95%, non-condensing |
| Approvals & Certifications | CE, UL, CSA, RoHS |
| Dimensions (H × W × D) | 70 x 18.4 x 128.3 mm |
| 重量 | 0.116 kg |
Applications
The STBACI1230 is built for applications where compact analog data collection is needed in distributed or modular I/O systems:
-
Industrial Process Control – Captures analog data from sensors like pressure transmitters, flowmeters, and tank level indicators.
-
Energy Management Systems – Interfaces with analog transducers for current and power monitoring in substations.
-
Food & Beverage Automation – Acquires signals from temperature or conductivity sensors in CIP or blending systems.
-
Water & Wastewater Treatment – Monitors signals from pH, turbidity, or chlorine analyzers.
-
Factory Automation – Collects signals from linear positioners or analog joysticks in packaging or assembly lines.
-
OEM Skid-Mounted Systems – Used in machinery where size constraints and flexibility are essential.
Product Advantages
-
Compact 2-Channel Design: Perfect for small installations where space and channel count are limited.
-
Fast Installation: DIN rail mounting and modular configuration save time during system commissioning.
-
Integrated Diagnostics: Channel-level LED indicators assist in identifying input faults immediately.
-
Standardized Signal 支持: Compatible with the most widely used 4–20 mA current loops.
-
Electrical Isolation: Protects controllers from transient signals and noise via galvanic isolation.
-
Seamless Network Integration: Works smoothly within the STB island system using network interface modules.
常见问题 (FAQ)
-
Q: How many analog inputs does the STBACI1230 module provide?
A: It provides 2 independent analog input channels, both designed for 4–20 mA current loops. -
Q: Is the module hot-swappable during system operation?
A: Yes, the STBACI1230 can be hot-swapped when the network interface supports that functionality, allowing for quick maintenance. -
Q: What should be the minimum wire gauge for wiring the analog inputs?
A: 18–22 AWG shielded twisted-pair cable is recommended for minimal signal interference and durability. -
Q: Can this module be used for voltage input measurements?
A: No, it only supports current-type analog signals (4–20 mA). Voltage inputs would require a different module. -
Q: Does this model provide any form / channel-level diagnostics?
A: Yes, built-in LEDs display channel activity and fault conditions such as open loops or wiring errors. -
Q: What happens if an input drops below 4 mA?
A: The module flags a fault condition to the host controller indicating an underrange or loop fault. -
Q: Are the analog channels isolated from each other?
A: Channels share a common ground but are isolated from the island bus to protect the overall system. -
Q: Can this module be combined with digital I/O in the same STB island?
A: Absolutely. The STB system supports mixed I/O module configurations including analog, digital, and special-purpose 件s. -
Q: Is it possible to scale the input values to engineering 件s?
A: Yes, but scaling must be done within the PLC or SCADA system using the raw input data from the module. -
Q: Does it require a separate power supply for analog input loops?
A: Yes, the 4–20 mA transmitters connected to this module typically require an external 24 VDC loop power supply.
