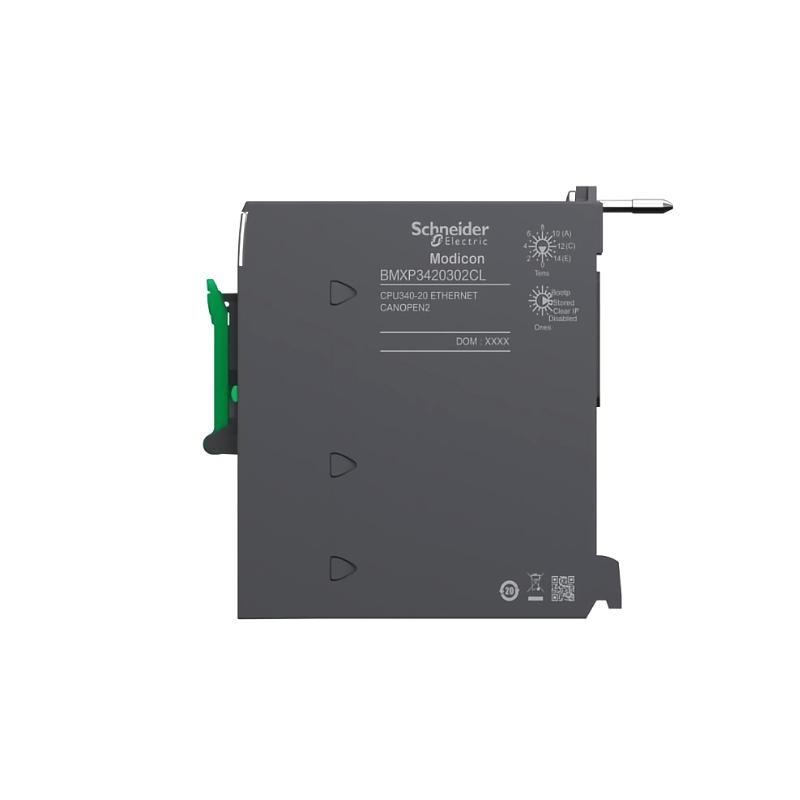

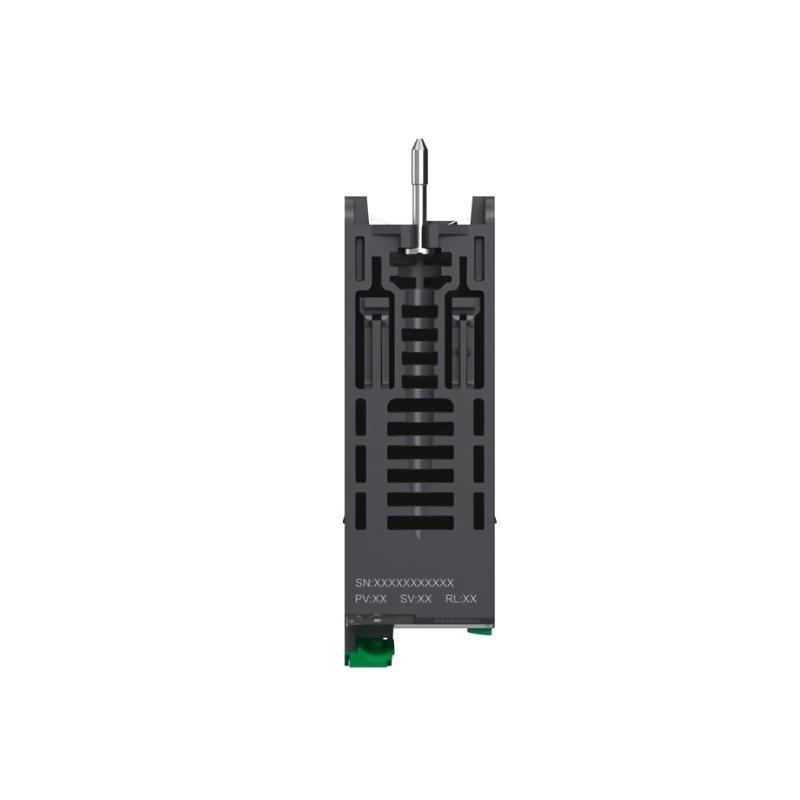

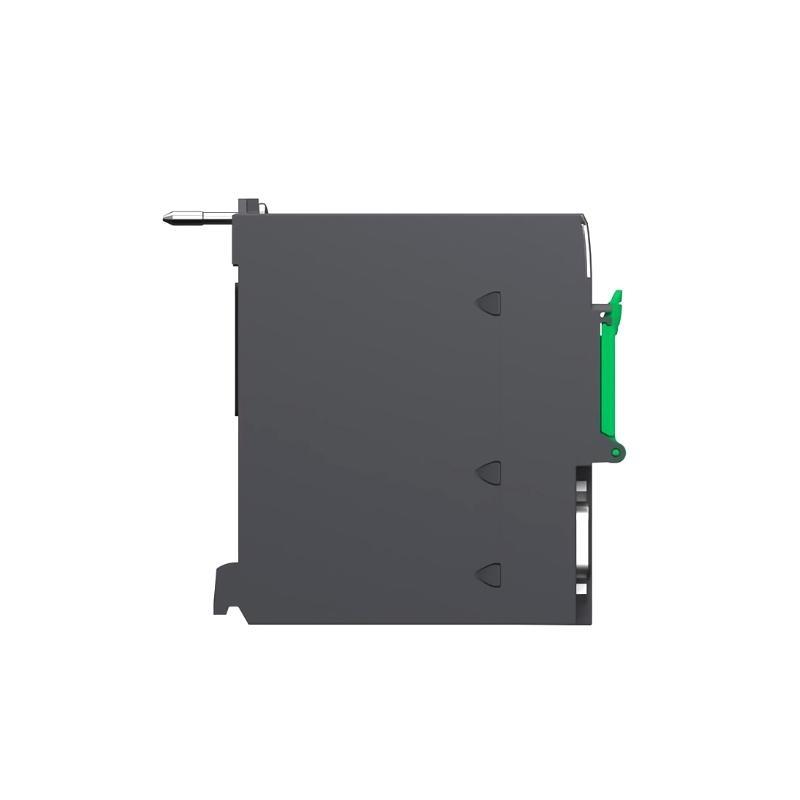

The Schneider Electric BMXP3420302CL is a powerful and versatile processor module from the Modicon M340 series. Designed to deliver high performance in medium-sized automation systems, this module integrates easily with Schneider’s Modicon X80 I/O architecture and provides strong communication capabilities, robust processing power, and enhanced memory support.
With embedded Ethernet and Modbus ports, onboard flash memory, and CoPro support, the BMXP3420302CL /fers deterministic processing, real-time data management, and flexible configuration options. It is ideal for industries seeking scalable and future-ready PLC solutions for machine automation, infrastructure, and process control systems.
This processor is fully compatible with 单位y Pro / EcoStruxure Control Expert programming s/tware, /fering rich diagnostics and control capabilities within a compact form factor. It’s a preferred choice for engineers who demand seamless integration, excellent reliability, and minimal downtime.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | BMXP3420302CL |
| Product Family | Modicon M340 |
| Processor Type | CPU with Co-Processor |
| Cycle Time | 2.5 ms per 1K instructions |
| Program Execution | Event-driven and periodic |
| Programming S/tware | 单位y Pro / EcoStruxure Control Expert |
| User Memory | 4 MB (Application Program) |
| Data Memory | 1 MB |
| Flash Memory | Yes, internal + optional SD memory card |
| Communication Ports | 1 x Ethernet (RJ45), 1 x Modbus (RS485), 1 x USB |
| Protocol 支持 | Modbus TCP/IP, Modbus Serial, TCP/IP, FTP, SNMP |
| Clock / Calendar | Real-Time Clock with Battery Backup |
| Hot Swap | No |
| Backplane Compatibility | X80 Series Modules |
| Power Supply | Supplied from rack backplane (5 VDC) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5%–95% non-condensing |
| Shock / Vibration Resistance | IEC 60068-2-6, IEC 60068-2-27 compliant |
| Mounting Type | DIN Rail 35 mm |
| Status Indicators | CPU Status, Ethernet Link, Communication Activity |
| Dimensions (W x H x D) | 104 x 100 x 33 mm |
| 重量 | 0.215 kg |
| Certifications | CE, UL, CSA, ATEX, RoHS |
Product Applications
The BMXP3420302CL is highly suitable for a wide range / industrial automation and control scenarios. Key application domains include:
-
Machine Automation – Motion control, packaging lines, textile and printing machines.
-
Process Automation – Ideal for continuous processes in oil & gas, chemical, food & beverage sectors.
-
Infrastructure Projects – Water treatment, HVAC systems, and building management systems.
-
Material Handling Systems – Warehouse automation, conveyors, and robotic systems.
-
Energy Management – Substation monitoring and smart grid communication interfaces.
-
Batch and Recipe Control – Applications requiring deterministic task scheduling and memory allocation.
Product Advantages
-
High-Speed Execution: Fast logic processing ensures real-time responsiveness for critical tasks.
-
Modular Flexibility: Compatible with a wide range / X80 I/O and communication modules.
-
Multi-Protocol 支持: Built-in ports support Ethernet, Modbus, FTP, and SNMP communication.
-
Robust Memory Architecture: 支持s extensive application and data storage with SD card extension.
-
Advanced Diagnostics: Status LEDs and 单位y Pro integration allow precise fault tracking and real-time monitoring.
-
Compact Design: DIN-rail mountable with minimal cabinet footprint, ideal for space-constrained installations.
-
Global Compliance: Meets stringent industrial certifications for operation in demanding environments.
-
Easy Integration: Seamlessly integrates with EcoStruxure architecture for enterprise-wide control and monitoring.
-
Long Lifecycle: Designed for long-term support with excellent durability in harsh conditions.
-
Future Ready: 支持s firmware upgrades and scalable expansion through Schneider’s M340 ecosystem.
常见问题 (FAQ)
-
What s/tware is used to program the BMXP3420302CL module?
It is programmed using 单位y Pro or EcoStruxure Control Expert. -
Does this processor support Ethernet and Modbus communication?
Yes, it has built-in Ethernet and RS485 Modbus ports. -
Can I expand memory with this processor?
Yes, you can use an SD memory card to expand data storage. -
How many I/O modules can be added?
Up to 11 X80 I/O modules can be supported in a standard rack. -
Is this module hot-swappable?
No, hot swapping is not supported for this model. -
Does it include a real-time clock?
Yes, it includes a battery-backed real-time clock. -
What is the maximum application memory?
The processor provides 4 MB / application memory. -
Can it be used in high-vibration environments?
Yes, it complies with IEC 60068-2-6 and 2-27 for shock and vibration. -
What is the communication speed on Ethernet?
It supports 10/100 Mbps full-duplex Ethernet communication. -
Is it compatible with M580 I/O?
No, this processor is specifically designed for M340 systems using X80 modules.
