产品介绍

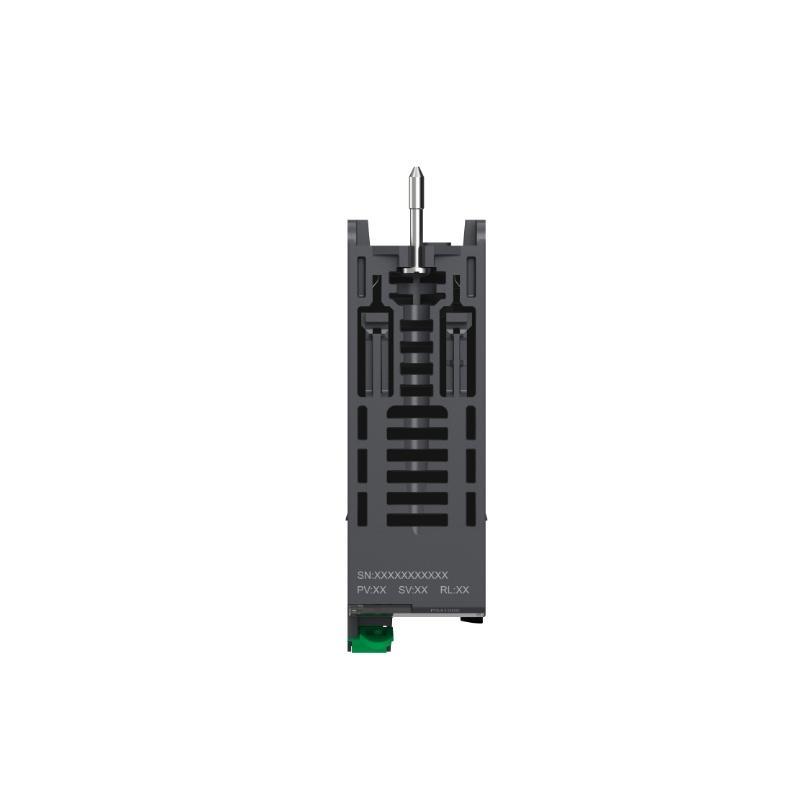

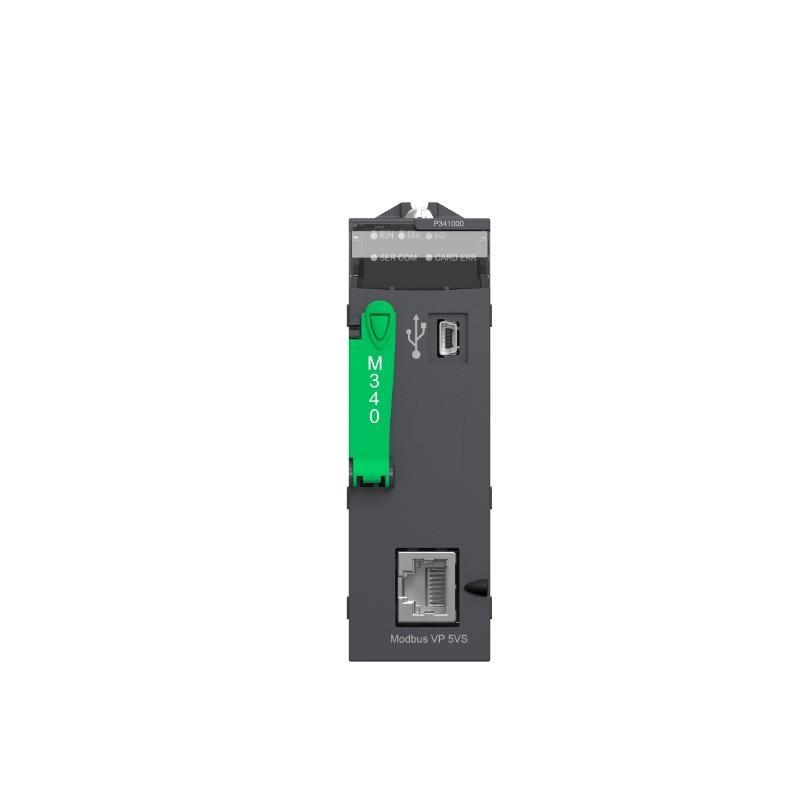

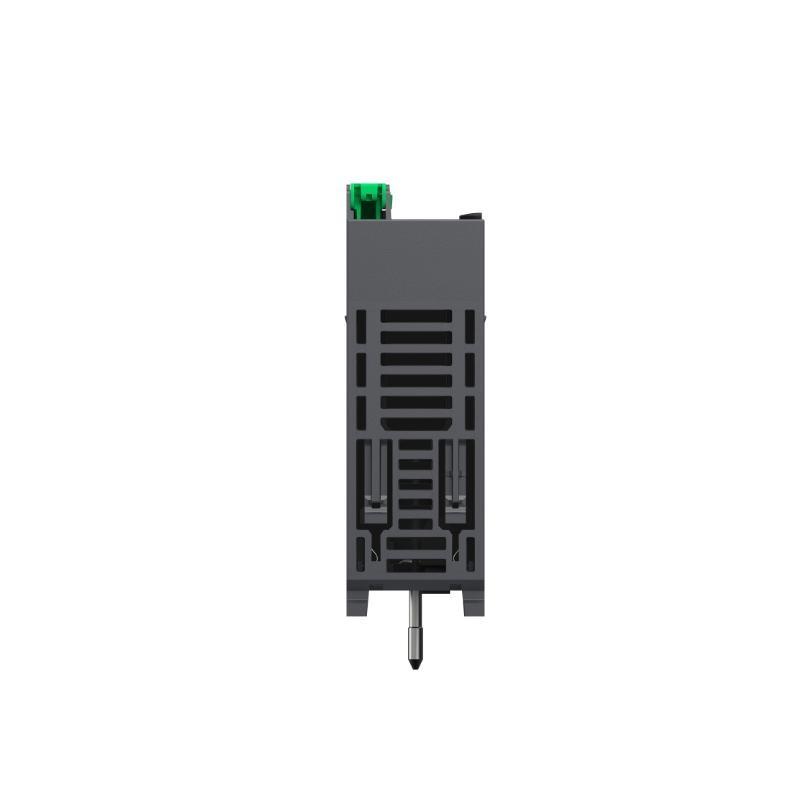

The Schneider BMXP341000 is a high-performance processor 件 designed for the Modicon M340 programmable logic controller (PLC) series. Serving as the central processing 件, this processor provides robust and reliable control capabilities for a broad range / industrial automation applications. With an advanced architecture, it supports complex logic processing, fast data handling, and seamless communication with I/O modules and other network components.
The BMXP341000 processor is engineered for demanding environments, combining processing speed with strong diagnostics and memory capabilities. Its modular design allows for easy integration into existing M340 systems, facilitating flexible system expansion and upgrade paths. The processor supports multiple communication protocols and /fers enhanced security features to protect industrial processes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Processor Module |
| 零件号 | BMXP341000 |
| Processor Type | Modicon M340 CPU |
| CPU Speed | 200 MHz |
| Memory (RAM) | 8 MB |
| Program Memory | 2 MB flash |
| Communication Interfaces | Ethernet (10/100 Mbps), Serial Link, USB |
| 支持ed Protocols | Modbus TCP/IP, Modbus RTU, Ethernet/IP, Pr/ibus (via modules) |
| Input Voltage Range | 24 V DC |
| Power Consumption | Approx. 7 W |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (HxWxD) | 409 x 130 x 394 mm |
| 重量 | 0.2 kg |
| Mounting | DIN rail or panel mounting within M340 chassis |
| Certifications | CE, UL, CSA, RoHS, EAC |
Applications
The BMXP341000 processor module is widely used in various industrial automation scenarios, where precise control, real-time processing, and system reliability are crucial:
-
Manufacturing Automation: Controls complex production lines, packaging machinery, and assembly systems.
-
Process Control: Suitable for chemical, pharmaceutical, and food processing plants requiring precise process management.
-
Infrastructure Automation: Used in water treatment, wastewater management, and energy distribution networks.
-
Material Handling: Powers conveyor systems, robotic controls, and automated storage/retrieval systems.
-
Building Management: Integrates with HVAC, lighting, and security systems for intelligent building controls.
-
Transportation Systems: Manages railway signaling, traffic lights, and automated tolling systems.
-
Oil & Gas: Provides reliable control in drilling, refining, and pipeline monitoring applications.
Advantages
-
High Processing Speed: 200 MHz CPU ensures fast execution / control programs and data processing.
-
Large Memory Capacity: 8 MB RAM and 2 MB flash memory provide ample space for complex applications.
-
Multiple Communication Options: 支持s Ethernet, serial link, and USB interfaces for flexible connectivity.
-
Robust Diagnostics: Built-in diagnostics facilitate troubleshooting and enhance system uptime.
-
Modular and Scalable: Easily integrates into existing M340 systems, supporting flexible expansion.
-
Enhanced Security Features: Protects against unauthorized access and ensures process integrity.
-
Wide Operating Temperature Range: Suitable for use in harsh industrial environments.
-
Energy Efficient: Low power consumption relative to its performance capabilities.
-
Reliable and Durable: Designed to meet industrial standards for vibration, shock, and environmental resistance.
-
支持ed by Schneider Electric Ecosystem: Compatible with a wide range / Schneider automation products and s/tware tools.
常见问题 (FAQ)
-
Q: What is the primary role / the BMXP341000 in an automation system?
A: It acts as the central processor controlling logic execution, communications, and data handling in the Modicon M340 PLC system. -
Q: What communication protocols does the BMXP341000 support?
A: It supports Ethernet/IP, Modbus TCP/IP, Modbus RTU, and can interface with Pr/ibus via additional modules. -
Q: Can the BMXP341000 processor be used in harsh industrial environments?
A: Yes, it operates reliably within 0°C to +60°C and withstands vibration and shock conditions typical / industrial settings. -
Q: How much memory is available for program storage?
A: The processor includes 2 MB / flash memory for program storage and 8 MB RAM for runtime operations. -
Q: What are the power requirements for this processor?
A: It operates on a 24 V DC supply with a typical power consumption / about 7 watts. -
Q: Is the BMXP341000 compatible with other Modicon M340 modules?
A: Yes, it is fully compatible and designed to work seamlessly with the M340 I/O and communication modules. -
Q: Does the processor support hot swapping?
A: No, it is recommended to power down the system before installing or removing the processor. -
Q: What are the physical dimensions and weight / the processor?
A: Dimensions are 409 x 130 x 394 mm and it weighs 0.2 kg. -
Q: What certifications does the BMXP341000 hold?
A: It holds CE, UL, CSA, RoHS, and EAC certifications ensuring compliance with international standards. -
Q: What s/tware tools are recommended for programming the BMXP341000?
A: Schneider Electric’s 单位y Pro s/tware is the recommended environment for programming and configuring the M340 system.
Related or Similar Modules (Same Series/Function)
| 型号 Number | 描述 | Type |
|---|---|---|
| BMXP342020 | Modicon M340 CPU, 400 MHz | Processor Module |
| BMXP343040 | Modicon M340 CPU, 600 MHz | High-speed Processor |
| BMXP341010 | M340 CPU with extended memory | Processor Module |
| BMXNOC0401 | Ethernet Communication Module | Network Module |
| BMXDDA0400 | Analog Input Module | I/O Module |
| BMXDDO1602 | Digital Output Module | I/O Module |
Popular Schneider Electric Modules (Same 品牌)
| 型号 Number | 描述 | Type |
|---|---|---|
| BMXCPU31110 | Modicon M340 CPU | Processor Module |
| BMXAMO0410 | Analog Output Module | Analog Output |
| BMXDDI3202K | Digital Input Module | Digital Input |
| BMXDRA1605 | Relay Output Module | Digital Output |
| BMXCPS2010 | Power Supply Module | Power Supply |
| BMXART0414 | Analog Input Module | Analog Input |
