产品介绍

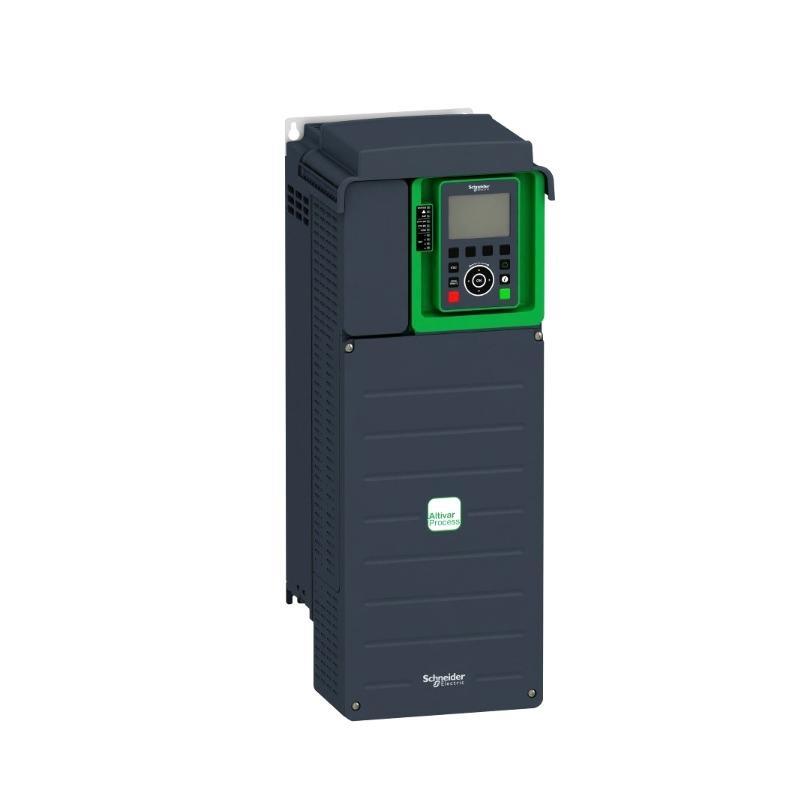

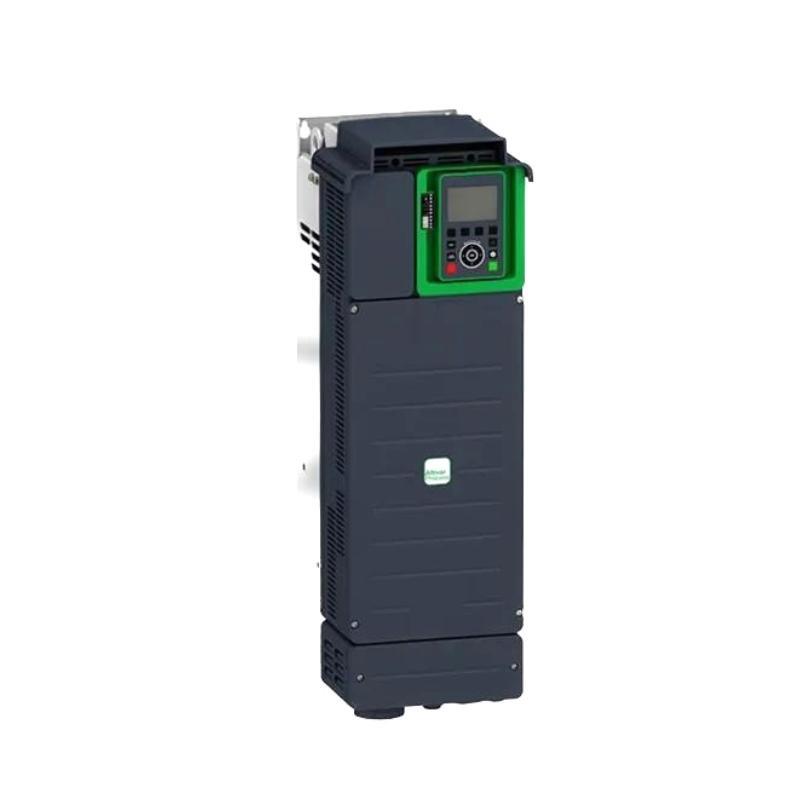

The Schneider Electric ATV930C13N4 is a high-performance variable speed drive (VSD) designed for demanding industrial applications. It is part / the Altivar Process ATV900 series, which is known for its robust performance, energy efficiency, and smart connectivity features. Engineered to control asynchronous and permanent magnet motors, this model provides precise motor control in complex environments. It /fers a wide range / communication options and is tailored to meet the requirements / heavy-duty sectors such as oil & gas, water & wastewater, mining, and general industrial machinery.
Whether it’s regulating a pump, fan, or conveyor system, the ATV930C13N4 ensures operational excellence, reducing downtime, and increasing productivity.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 Number | ATV930C13N4 |
| Series | Altivar Process ATV900 |
| Rated Motor Power | 132 kW (at 400 V) |
| Voltage Class | 380 to 480 V AC, 3-phase |
| Frequency | 50/60 Hz |
| Output Frequency Range | 0.1 to 599 Hz |
| Overload Capacity | 150% for 60 seconds every 10 minutes |
| Control Type | Sensorless vector control, flux vector control with encoder, V/F control |
| Integrated Communication Ports | Ethernet (Modbus TCP), CANopen, Modbus RTU |
| I/O Configuration | 6 digital inputs, 3 analog inputs, 3 relay outputs, 2 analog outputs |
| Display Interface | Graphic keypad with customizable HMI |
| Cooling Method | Air-cooled |
| Enclosure Rating | IP21 (Standard) |
| Compliance Standards | CE, UL, CSA, RoHS |
| Operating Temperature | -15°C to +50°C (without derating) |
| Mounting Type | Wall-mounted or cabinet-mounted |
| Dimensions (H x W x D) | 320 x 1205 x 393 mm |
| 重量 | 104 kg |
Applications
The Schneider ATV930C13N4 is suitable for a broad range / industrial and infrastructure applications, particularly where precise motor speed control and system integration are essential:
-
Pumps and Compressors
Maintains flow and pressure with dynamic motor control and energy-saving performance. -
Fans and HVAC Systems
Improves energy efficiency in ventilation and air circulation systems. -
Conveyors and Material Handling
Ensures smooth acceleration/deceleration and minimizes mechanical stress. -
Water and Wastewater Treatment
Integrates easily with SCADA systems and supports operational continuity. -
Heavy-duty Machinery in Mining and Oil & Gas
Designed to withstand harsh environments with enhanced thermal protection and diagnostics.
Advantages
-
High Performance Motor Control
支持s both asynchronous and synchronous motor types with advanced vector control algorithms. -
Energy Efficiency
Designed to reduce energy consumption with eco-mode, automatic motor adaptation, and energy dashboards. -
Robust Design
Operates in challenging environments thanks to conformal coating, wide temperature tolerance, and durable construction. -
Connectivity and Integration
Built-in Ethernet, Modbus, CANopen, and other protocol support make integration seamless with modern industrial networks. -
Diagnostic and Predictive Maintenance
Embedded functions for early detection / system faults reduce downtime and maintenance costs. -
Modular and Scalable
Flexible design with replaceable modules (e.g., fans, control boards) facilitates easy maintenance and upgrades.
常见问题 (FAQ)
-
What is the maximum motor power the ATV930C13N4 can handle?
It supports motors up to 132 kW at 400V. -
Is the drive compatible with permanent magnet motors?
Yes, it supports both asynchronous and permanent magnet motors. -
Can this drive be used in outdoor environments?
It requires enclosure protection (IP54 or cabinet) for outdoor use, as its standard rating is IP21. -
What communication protocols are supported?
Ethernet, Modbus TCP, Modbus RTU, and CANopen are supported out / the box. -
Does it come with a display panel?

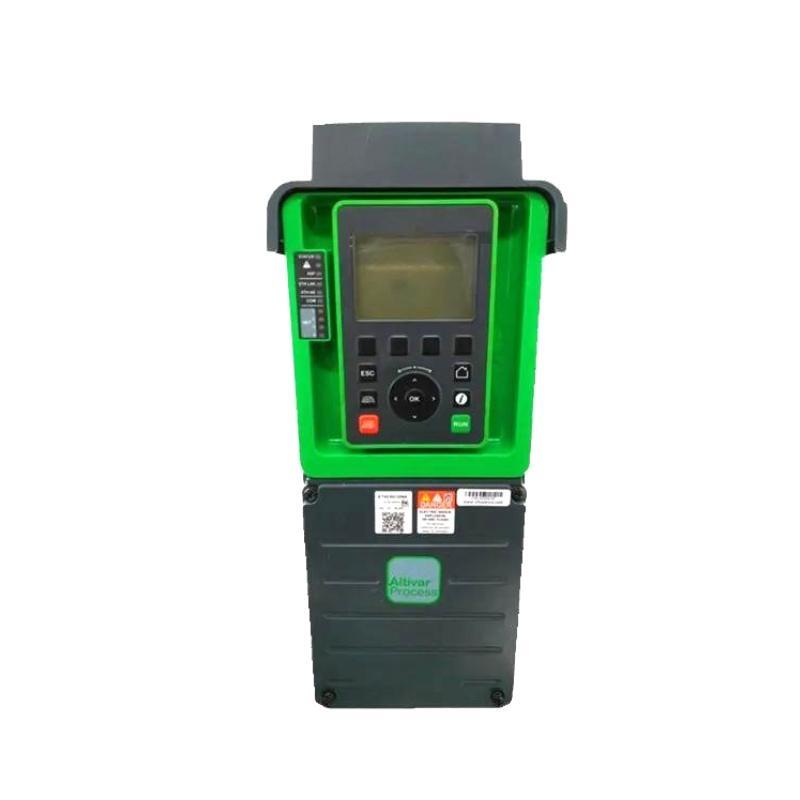

Yes, it includes a detachable graphical keypad with customizable interface. -
Can it handle heavy-duty applications?
Absolutely. It has a 150% overload capacity for 60 seconds, making it ideal for heavy-duty operations. -
How does it help reduce energy consumption?
Features like energy monitoring, variable torque mode, and automatic motor tuning help optimize energy use. -
What are the maintenance features?
Predictive maintenance alerts, event logging, and modular design reduce unplanned downtime. -
Can I monitor and control it remotely?
Yes, remote access is possible via Ethernet and integrated web server tools. -
Is this product certified for global use?
Yes, it is compliant with CE, UL, CSA, and RoHS standards.
Related 型号s from the Same Series (ATV900 Series)
| 型号 | Power Rating | Voltage | Enclosure Type | Control Type |
|---|---|---|---|---|
| ATV930C11N4 | 110 kW | 380–480 V, 3-phase | IP21 | Vector & V/F Control |
| ATV930D18N4 | 180 kW | 380–480 V, 3-phase | IP21 | Vector & V/F Control |
| ATV930C16N4 | 160 kW | 380–480 V, 3-phase | IP21 | Vector & Sensorless Flux Control |
| ATV950C13N4 | 132 kW | 380–480 V, 3-phase | IP55 | Enhanced Networked Version |
| ATV930C22N4 | 220 kW | 380–480 V, 3-phase | IP21 | Vector Control, High Load |
| ATV930C08N4 | 75 kW | 380–480 V, 3-phase | IP21 | Standard VSD with Energy Savings |
Popular 型号s from Schneider Electric
| 型号 | Product Type | Power Rating | Key Application | Enclosure Rating |
|---|---|---|---|---|
| ATV630D55N4 | Variable Speed Drive | 55 kW | Water/Wastewater | IP21 |
| TM241CE40T | Logic Controller (PLC) | N/A | Machine Control | IP20 |
| NSX100F | Molded Case Circuit Breaker | 100 A | Power Distribution | IP40 (with housing) |
| EVlink Wallbox | EV Charging Station | 7.4 kW | Electric Vehicle Charging | IP54 |
| BMXP342020 | Modicon X80 Processor | N/A | Industrial Automation Controller | IP20 |
| HMIST6400 | HMI Touchscreen Terminal | N/A | Operator Interface | IP66 (front panel) |
