产品介绍

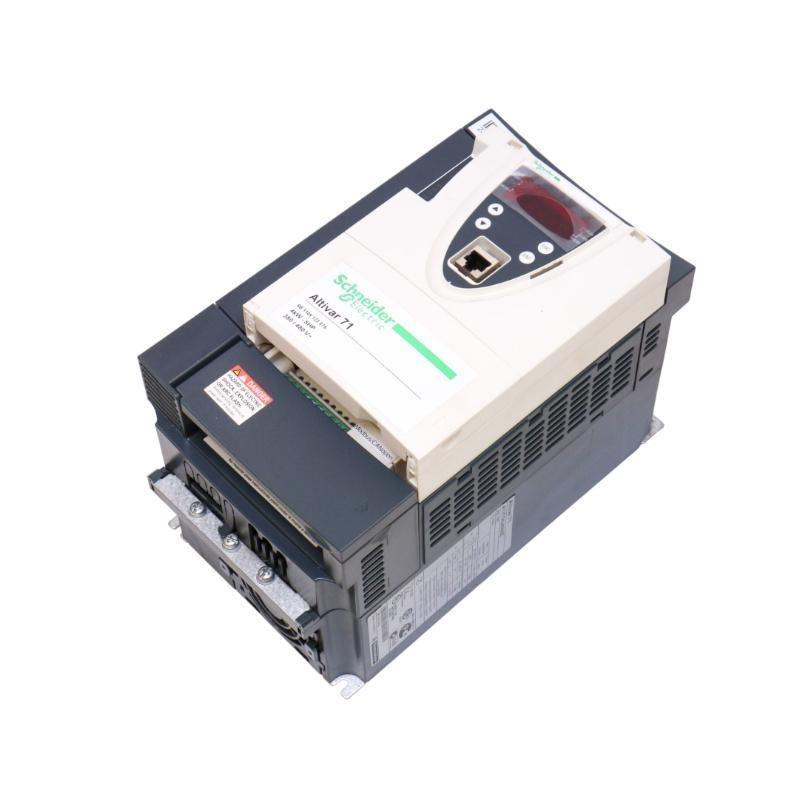

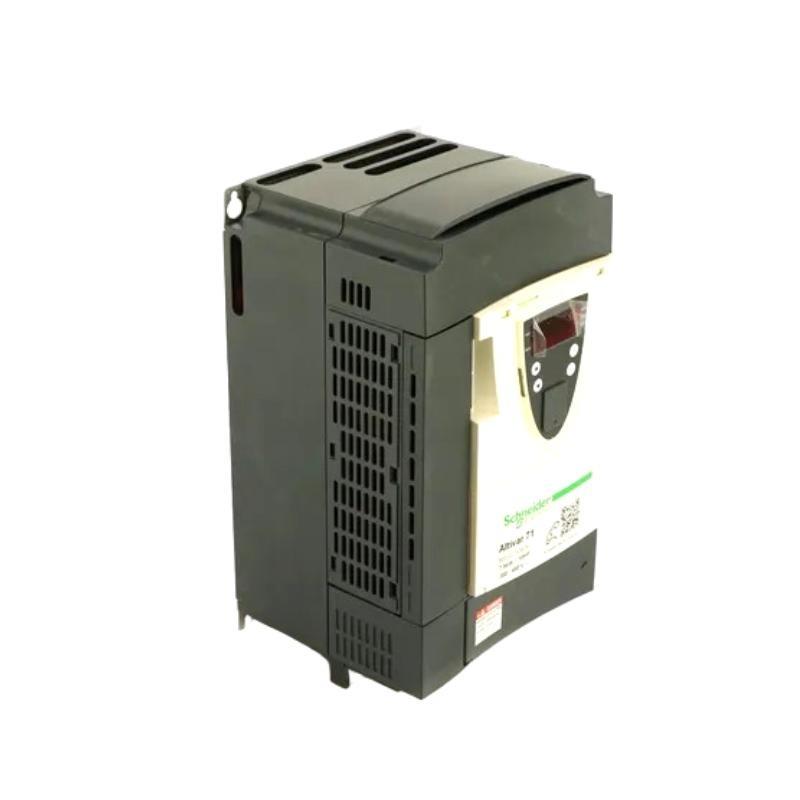

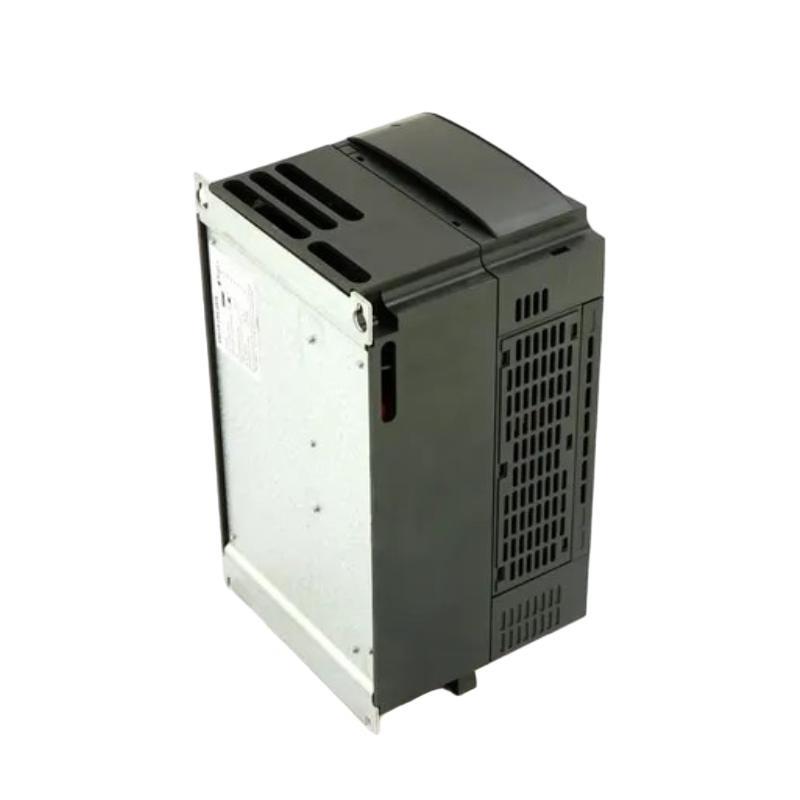

The Schneider Electric ATV71HU75Y is a high-performance Variable Speed Drive (VSD) engineered for demanding industrial motor control applications. It belongs to the widely respected Altivar 71 series, a premium line / drives designed for complex, high-power variable torque and constant torque tasks.
The ATV71HU75Y is rated at 7.5 kW (10 HP) and is designed for 200–240V three-phase input, making it an excellent choice for low-voltage industrial environments. It supports multiple control modes—including sensorless vector control, flux vector control with feedback, and voltage/frequency (V/F) ratio control—providing exceptional performance across a wide range / motor types and applications.
Equipped with integrated communication protocols (Modbus and CANopen), Safe Torque Off (STO) safety function, and optional expandability for Ethernet/IP, Pr/ibus, and DeviceNet, the ATV71HU75Y combines advanced functionality with rugged durability and energy efficiency.
产品规格
| Parameter | Details |
|---|---|
| 型号 | ATV71HU75Y |
| 品牌 | Schneider Electric |
| Series | Altivar 71 |
| Motor Power Rating | 7.5 kW (10 HP) |
| Input Voltage | 200–240 V AC, three-phase |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0 to supply voltage |
| Output Frequency | 0.1 to 599 Hz |
| Rated Output Current | 31 A |
| Control Modes | V/F, Sensorless Vector Control, Flux Vector with Feedback |
| Compatible Motors | Asynchronous and synchronous |
| Communication Protocols | Integrated Modbus, CANopen |
| Optional Communication | Ethernet/IP, Pr/ibus DP, DeviceNet (via expansion cards) |
| Digital Inputs | 7 programmable |
| Analog Inputs | 3 (one for PT100) |
| Analog Outputs | 2 |
| Relay Outputs | 2 |
| Integrated Safety | Safe Torque Off (STO) |
| Cooling Method | Forced air cooling |
| Enclosure Rating | IP20 (standard), IP21 with option kit |
| Mounting Options | Wall or panel mount |
| Operating Temperature | -10°C to +50°C (no derating) |
| Certifications | CE, UL, CSA, RoHS, IEC 61800-5-1 |
| Dimensions (H × W × D) | 420 x 236 x 240 mm |
| 重量 | 30 kg |
Product Applications
The ATV71HU75Y is built for precision control and high adaptability, making it ideal for:
-
Cranes and Hoists
Delivers smooth start/stop and torque management for heavy lifting systems. -
Packaging Machinery
支持s high-speed and dynamic control required in automated packaging lines. -
HVAC Systems
Built-in PID regulator enables optimized energy usage in ventilation, cooling, and heating systems. -
Mixers and Agitators
Offers torque accuracy and speed consistency for mixing applications in food and chemical industries. -
Conveyor Systems
Smooth ramp-up/ramp-down control improves mechanical life and throughput in material handling. -
Textile Equipment
Provides synchronized control in weaving, dyeing, and spinning operations.
Product Advantages
-
Advanced Motor Control
支持s synchronous and asynchronous motors with advanced control algorithms for improved accuracy and stability. -
Robust Design for Harsh Environments
Reliable performance in a wide range / temperatures and dusty or humid industrial conditions. -
Modular Communication Flexibility
Allows fieldbus and Ethernet expansion, integrating seamlessly into various automation architectures. -
Integrated Safety Functions
The built-in STO function meets SIL3 requirements, enhancing operator and equipment safety. -
Energy Efficiency Optimization
Features motor flux optimization, low standby losses, and PID regulation to minimize energy waste. -
Easy Setup and Maintenance
With SoMove configuration s/tware, troubleshooting and parameter tuning are intuitive and fast. -
Adaptable I/O Configuration
Digital and analog inputs/outputs are fully programmable to match diverse control schemes.
常见问题 (FAQ)
-
What power rating is the ATV71HU75Y designed for?
This drive is rated for 7.5 kW (10 HP) applications. -
What is the supported input voltage?
The drive operates on 200–240V three-phase AC power. -
Does it support safety functions?
Yes, it includes Safe Torque Off (STO) for enhanced protection. -
Is the drive compatible with synchronous motors?
Absolutely, it supports both synchronous and asynchronous motors. -
What control methods are available?
V/F control, sensorless vector control, and vector control with feedback. -
Can this drive be connected to Ethernet/IP networks?
Yes, using optional communication cards, Ethernet/IP and others are supported. -
Is this drive suitable for HVAC applications?
Yes, especially with its integrated PID control and energy-saving features. -
What s/tware is used for configuration?
Schneider’s SoMove s/tware allows easy parameter setting and monitoring. -
What is the enclosure rating?
Standard is IP20, but can be upgraded to IP21 with accessories. -
How much does the ATV71HU75Y weigh?
The 件 weighs 30 kg.
Related 型号s from Altivar 71 Series
| 型号 | 描述 |
|---|---|
| ATV71HU55Y | 5.5 kW, 200–240V, smaller version for lighter loads |
| ATV71HD11Y | 11 kW, 200–240V, for medium-duty industrial applications |
| ATV71HU40Y | 4.0 kW drive, compact design with full functionality |
| ATV71HD18Y | 18.5 kW, robust and suited for heavy-duty tasks |
| ATV71HU22Y | 2.2 kW, ideal for light machine tools and conveyors |
| ATV71HD30Y | 30 kW, large drive for high-torque demanding equipment |
Popular Schneider Electric Variable Speed Drives
| 型号 | 描述 |
|---|---|
| ATV320U22N4C | Altivar 320, 2.2 kW, three-phase, compact performance |
| ATV630D30N4 | Altivar Process 630, 30 kW, optimized for process control |
| ATV212HU75N4 | Altivar 212, 7.5 kW, HVAC-focused energy-saving drive |
| ATV930U75N4 | Altivar 930, 7.5 kW, intelligent drive for critical loads |
| ATV12H075M2 | Altivar 12, 0.75 kW, compact for small equipment |
| ATV61HU55N4 | Altivar 61, 5.5 kW, focused on building automation |
