产品介绍

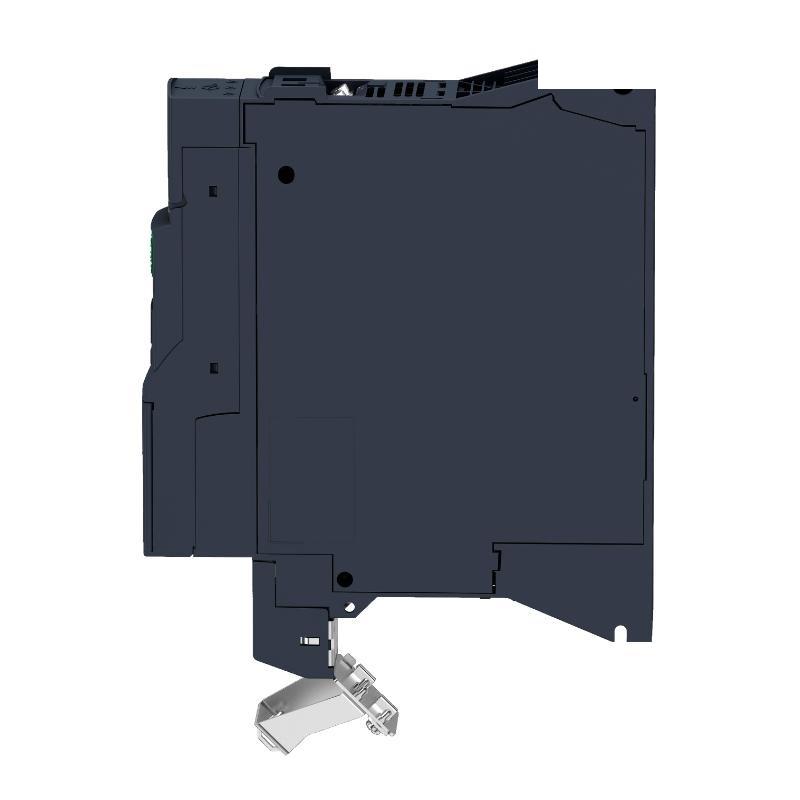

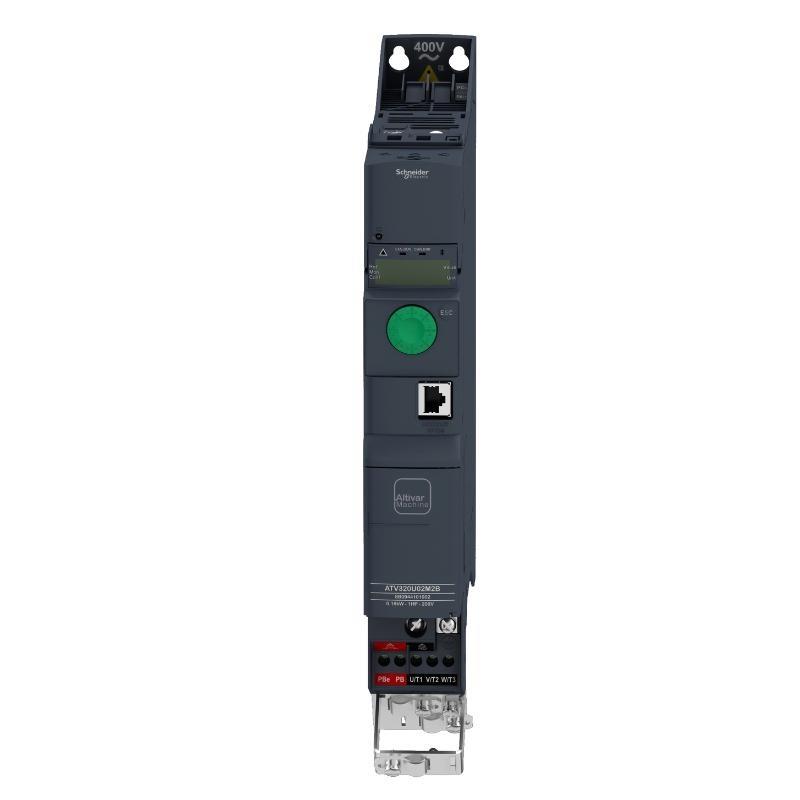

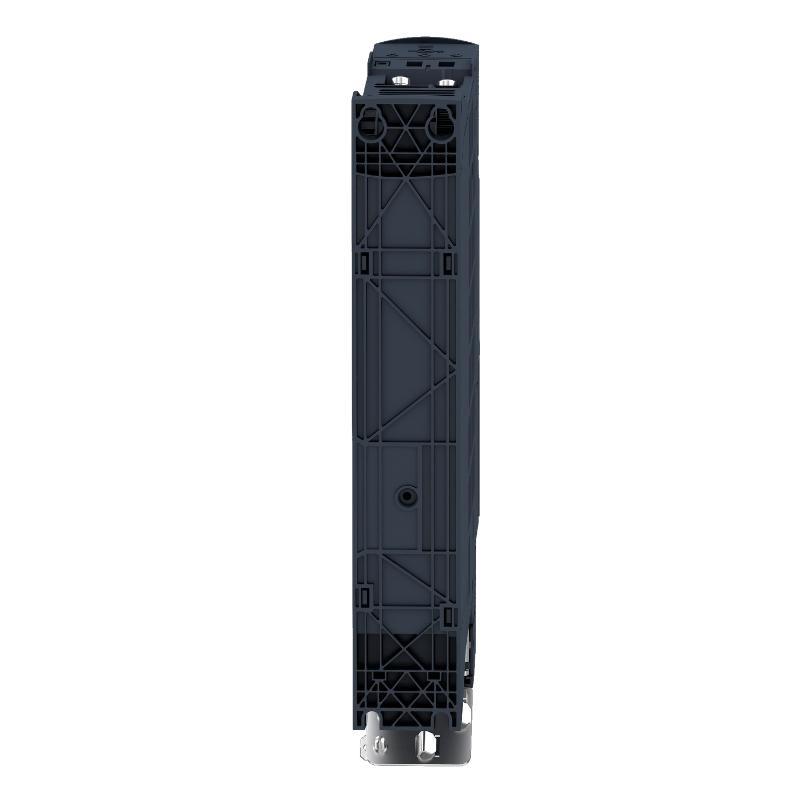

The Schneider ATV320U06N4B Variable Speed Drive is part / the Altivar Machine ATV320 series, designed for controlling 3-phase synchronous and asynchronous motors in a wide range / industrial automation applications. It delivers precise motor control, improved energy efficiency, and stable performance in both simple and advanced machine architectures.
This drive is widely used by OEMs due to its compact book-form design, flexible installation options, and strong environmental resistance. It integrates advanced motor control algorithms such as sensorless vector control, ensuring high torque accuracy even at very low speeds. Its robust construction and coated PCB design allow reliable operation in harsh industrial environments, including high-temperature conditions up to 60°C.
产品规格
| Parameter | Specification |
|---|---|
| 型号 | ATV320U06N4B |
| Series | Altivar Machine ATV320 |
| Product Type | Variable Speed Drive (VSD) |
| Motor Compatibility | 3-phase synchronous & asynchronous motors |
| Rated Power | 0.55 kW / 0.75 hp |
| Rated Voltage | 380V – 500V AC |
| Control Method | Sensorless vector control / V/F control |
| Frequency Range | Extended high-speed motor control range |
| Overload Capability | Industrial duty rated |
| Protection Class | IEC 60721-3-3 Class 3C3 coated PCB |
| Safety Functions | 5 integrated safety functions |
| Communication Options | Industrial fieldbus support (optional modules) |
| Cooling Method | Natural air cooling (no external cooling required up to 60°C) |
| Standards Compliance | IEC/EN 61800-5-1, IEC/EN 61800-3 |
| Certifications | CE, UL, CSA, EAC, RCM, NOM |
| Dimensions | 325 × 45 × 245 mm |
| 重量 | 2.5 kg |
Applications
• Packaging Machinery:
Provides precise motor speed control, ensuring accurate timing and synchronization in packaging lines.
• Material Handling Systems:
Used in conveyors, lifting systems, and automated logistics equipment for smooth motion control.
• Textile Machinery:
Maintains stable speed and torque control for weaving, spinning, and fabric processing machines.
• Mechanical Actuators:
Enables controlled movement in industrial actuators requiring high dynamic response.
• Hoisting and Lifting Equipment:
Ensures safe and stable motor operation in cranes, hoists, and lifting systems.
• General Industrial Automation:
Suitable for OEM machine builders requiring flexible and compact drive solutions.
Advantages
• High Performance Motor Control:
Delivers accurate torque and speed regulation, even at very low speeds using sensorless vector control.
• Compact Book Form Design:
Slim structure allows easy installation inside tight automation cabinets.
• Harsh Environment Capability:
Coated PCB design ensures reliable operation in dusty, humid, and high-temperature environments.
• Energy Efficiency:
Optimized control algorithms reduce energy consumption in motor-driven systems.
• Integrated Safety Functions:
Includes 5 built-in safety functions to support machine safety compliance without additional hardware.
• Flexible Application 支持:
Suitable for both simple and complex machine architectures across multiple industries.
• Reduced Cooling Requirements:
Operates up to 60°C without additional cooling systems, reducing system complexity.
