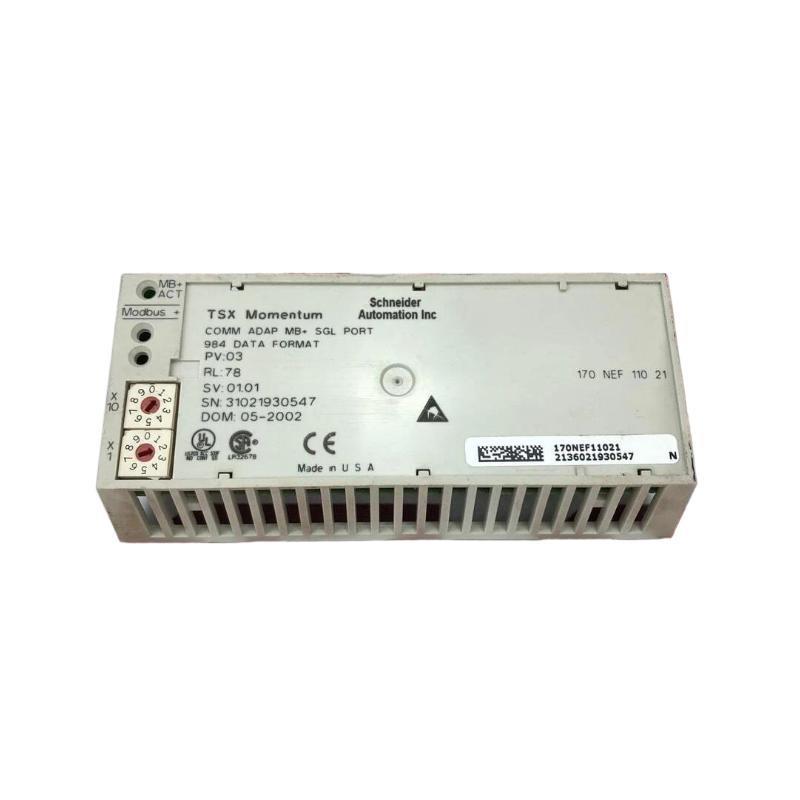

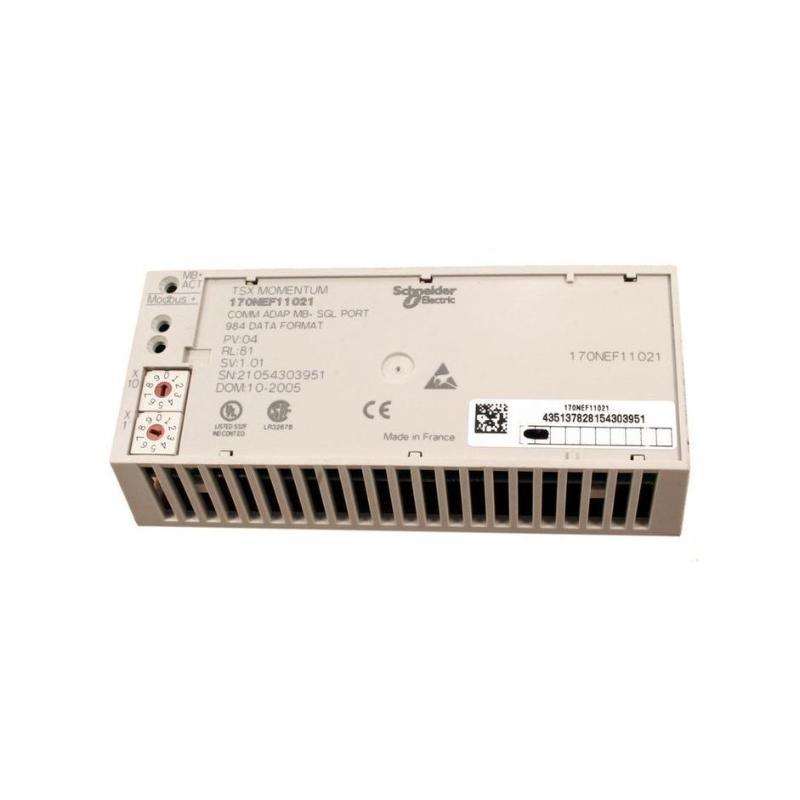

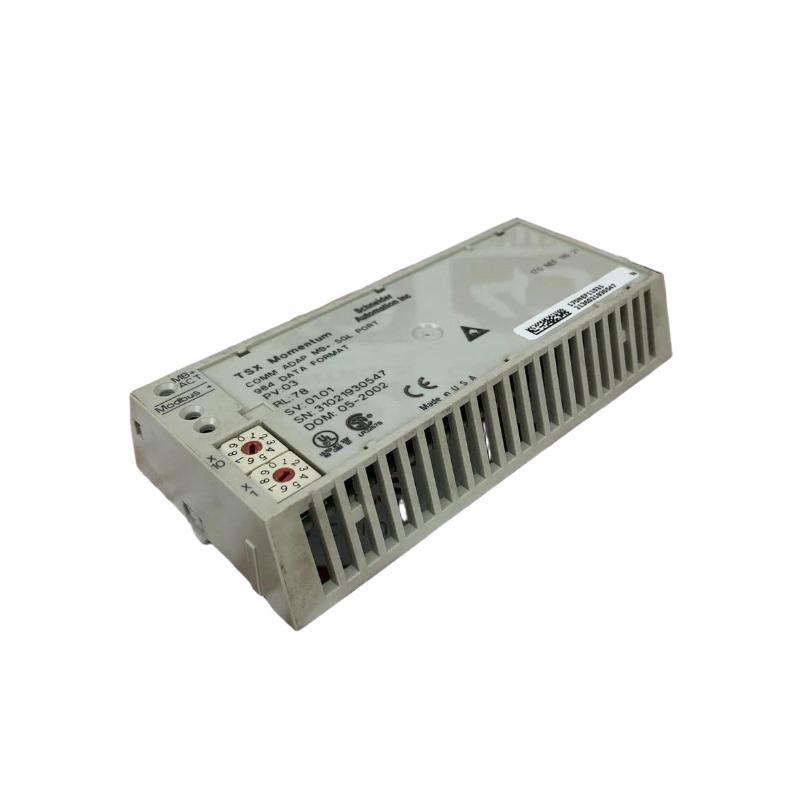

Schneider 170NEF11021 Modbus Plus Communication Adapter

产品介绍

The Schneider 170NEF11021 Modbus Plus Communication Adapter is a vital device for integrating Modbus Plus networks with Schneider Electric’s automation and control systems. This communication adapter allows seamless data exchange between industrial control systems and devices operating on the Modbus Plus protocol, /fering a bridge for communication between different devices and systems, such as programmable logic controllers (PLCs), human-machine interfaces (HMIs), sensors, and more.

The 170NEF11021 is designed to provide reliable and high-performance data transfer, ensuring real-time communication between devices, which is essential in industrial automation. It is built to handle complex networks while maintaining low latency, which is crucial for applications that demand high-speed data transfer and continuous operation.

This adapter is ideal for use in various industrial environments, where a reliable and scalable communication solution is required. Whether used in manufacturing, process control, or energy management systems, the Schneider 170NEF11021 Communication Adapter ensures that all devices connected to a Modbus Plus network can communicate effectively, optimizing system performance and reliability.

Technical Specifications

Product Applications

The Schneider 170NEF11021 Modbus Plus Communication Adapter is widely used in a variety / industrial applications to enhance the communication between control devices. Some / its key applications include:

1. Industrial Automation Systems: It serves as a communication bridge between Modbus Plus-enabled devices and other control systems, facilitating real-time data exchange and system monitoring.

2. Manufacturing Plants: In manufacturing environments, the 170NEF11021 enables the integration / machinery, sensors, and control systems, ensuring smooth production processes.

3. Energy Management Systems: The adapter is used in energy monitoring and control systems, connecting devices that measure power consumption and optimizing energy efficiency.

4. Process Control: The device enables effective communication between sensors, actuators, and control systems, ensuring optimal control and monitoring in industries like chemicals, oil, and gas.

5. Building Management Systems (BMS): In building automation, the adapter helps connect HVAC, lighting, and security systems, enabling centralized control and real-time monitoring.

6. SCADA Systems: The 170NEF11021 can be integrated into SCADA systems, allowing remote monitoring and control / equipment and devices on the Modbus Plus network.

Advantages

1. Compact and Efficient Design: With its compact size / 58 x 180 x 259 mm, the 170NEF11021 is easy to install in space-constrained environments while still /fering robust communication capabilities.

2. Flexible Connectivity: This adapter supports Modbus Plus communication protocol and RS485 connectivity, providing a flexible solution for diverse communication needs in industrial applications.

3. DIN Rail Mounting: Designed for DIN rail mounting, the device is easy to install and integrate into industrial control panels and systems.

4. Reliable Communication: The adapter ensures stable and real-time communication between devices, which is essential for industrial systems that require continuous monitoring and control.

5. Wide Temperature Range: Operating in a temperature range from -20°C to +60°C, the 170NEF11021 can withstand harsh environmental conditions commonly found in industrial environments.

6. Low Power Consumption: Consuming only 4W / power, the 170NEF11021 is energy-efficient, contributing to the overall sustainability / industrial operations.

7. Robust Protection: With an IP20 protection rating, the device is protected against dust and small foreign objects, ensuring reliable performance in typical industrial conditions.

8. Ease / Integration: The 170NEF11021 can be easily integrated into existing Modbus Plus networks, ensuring quick setup and minimal disruption to ongoing operations.

9. High Compatibility: Compatible with various Schneider Electric devices, including Modicon PLCs, the adapter ensures seamless integration into Schneider-based automation systems.

10. Safety and Compliance: The device is CE and UL certified, ensuring that it meets international safety and quality standards, making it suitable for global use.

FAQs (常见问题)

1. What is the size / the Schneider 170NEF11021 Communication Adapter?

   • The 170NEF11021 has dimensions / 58 x 180 x 259 mm, making it compact and suitable for installation in industrial control panels.

2. What is the weight / the Schneider 170NEF11021?

   • The adapter weighs 0.193 kg, making it lightweight and easy to handle during installation.

3. What communication protocol does the 170NEF11021 support?

   • The 170NEF11021 supports the Modbus Plus communication protocol, which is commonly used in industrial automation systems.

4. What type / mounting is supported by the 170NEF11021?

   • The 170NEF11021 is designed for DIN rail mounting, making it easy to install in control panels and industrial settings.

5. What is the operating voltage / the 170NEF11021?

   • The adapter operates at 24V DC, which is a standard voltage used in most industrial automation devices.

6. What is the temperature range for the Schneider 170NEF11021?

   • The adapter operates in a temperature range from -20°C to +60°C, making it suitable for a wide range / industrial environments.

7. What protection rating does the 170NEF11021 have?

   • The 170NEF11021 has an IP20 protection rating, providing protection against dust and small foreign objects.

8. What power consumption does the 170NEF11021 have?

   • The 170NEF11021 consumes only 4W / power, contributing to its energy efficiency in industrial applications.

9. Can the 170NEF11021 be used with other Schneider Electric devices?

   • Yes, the adapter is compatible with various Schneider Electric devices, including Modicon PLCs, ensuring seamless communication in Schneider-based systems.

10. What industries benefit from using the 170NEF11021?

    • The 170NEF11021 is widely used in industrial automation, manufacturing, process control, energy management, building management, and SCADA systems.
