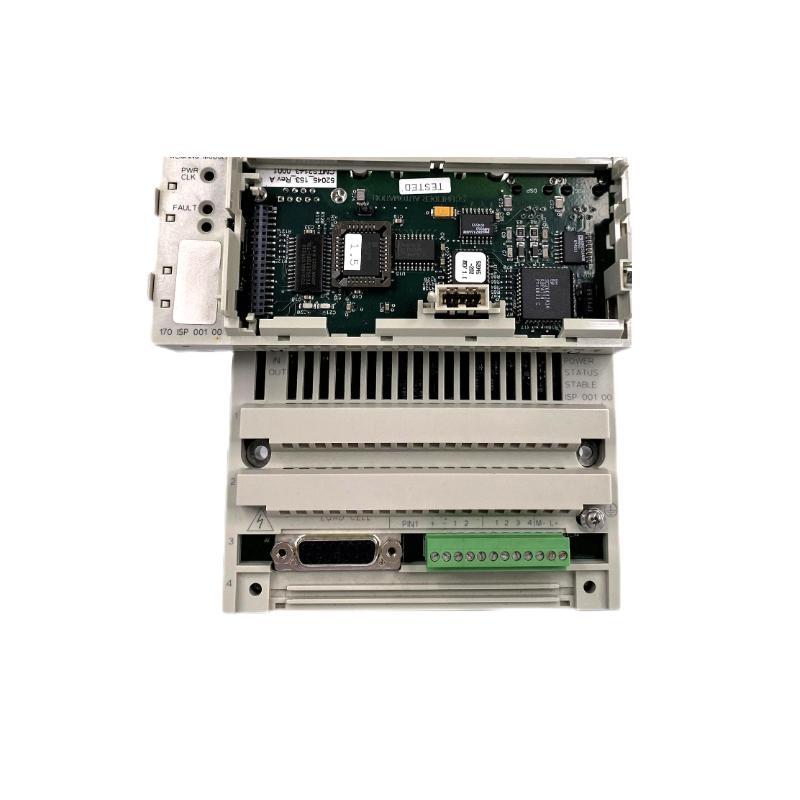

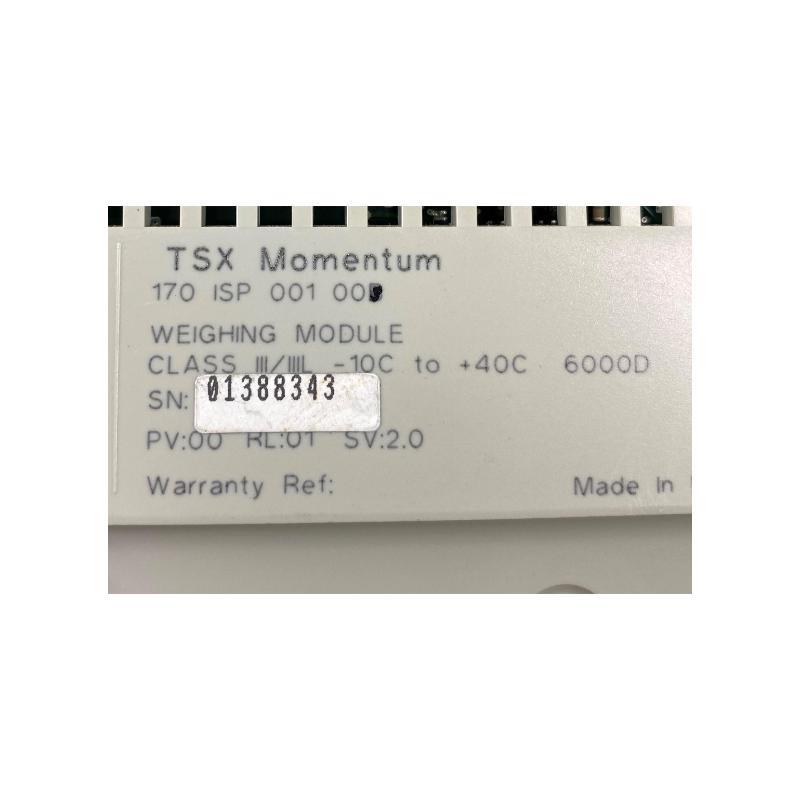

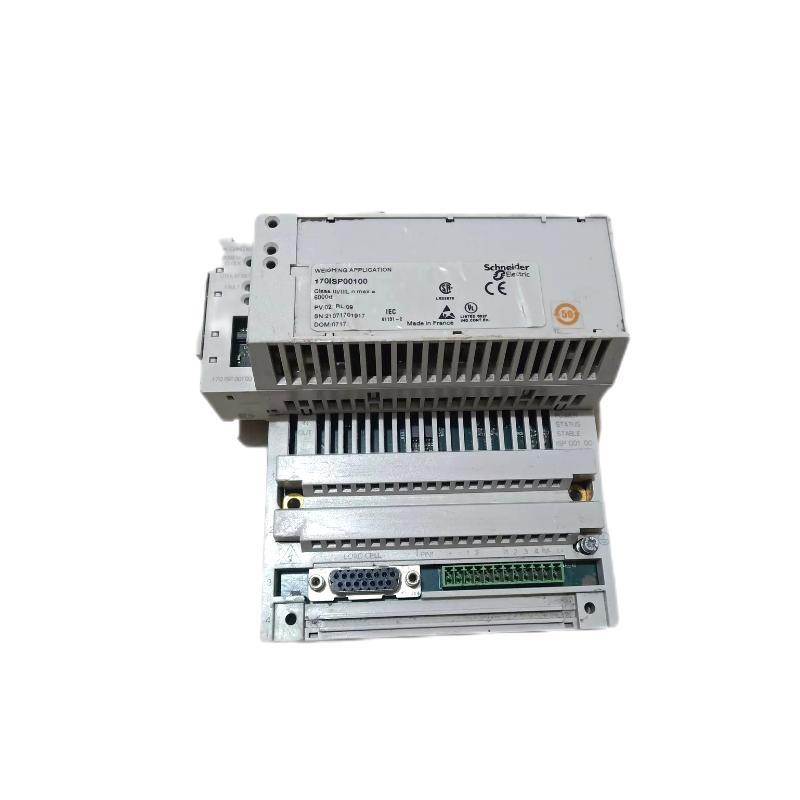

Schneider 170ISP00100 Momentum Weighing Module

产品介绍

The Schneider Electric 170ISP00100 Momentum Weighing Module is a specialized I/O module designed for use within the Modicon Momentum automation platform. This weighing module is purpose-built for industrial applications where accurate and reliable weight measurement is critical. It allows seamless integration / load cells directly into a Momentum I/O architecture, eliminating the need for external transmitters or controllers. The 170ISP00100 provides high-precision digital weight signal processing, ensuring consistent performance across a variety / industrial environments.

Engineered for durability, the module handles the analog signal conditioning, filtering, and conversion necessary for precise weight calculations. Its compact design allows it to snap directly onto Momentum I/O bases, making it suitable for distributed control systems requiring decentralized weighing functionality. Industries such as food & beverage, logistics, pharmaceuticals, and manufacturing benefit greatly from its capabilities.

产品规格

Product Applications

The 170ISP00100 Momentum Weighing Module is widely used across multiple sectors that require accurate weight measurement and integration with control systems. Key application areas include:

1. Food and Beverage Manufacturing
   Used in batching, mixing, and filling operations where accurate measurement / ingredients is essential for product consistency.

2. Logistics and Packaging
   Ensures proper filling and packaging by integrating weight checks into conveyor lines and automated packaging systems.

3. Pharmaceutical Production
   Maintains high precision for small-scale dosing and formulation in highly regulated environments.

4. Chemical and Petrochemical Plants
   Measures raw material inputs and outputs during production and blending processes, improving process control.

5. Agricultural Automation
   Weighs grain, feed, or fertilizer in automated systems to optimize usage and reduce waste.

6. Recycling and Waste Management
   Provides weight-based sorting and tracking / materials for operational efficiency and compliance.

Product Advantages

1. High Accuracy and Precision
   24-bit analog-to-digital conversion ensures highly accurate weighing in critical applications.

2. Compact Modular Design
   Mounts directly onto the Momentum I/O base, saving panel space and simplifying wiring.

3. Direct Load Cell Integration
   Eliminates the need for separate weighing transmitters or signal converters, reducing hardware costs and complexity.

4. Fast Response Time
   With an update rate as fast as 10 ms, it supports dynamic weighing and fast control loops.

5. Digital Filtering Options
   Reduces the effects / environmental noise, ensuring stable and reliable measurements.

6. Rugged Industrial Build
   Designed to withstand harsh operating conditions including temperature extremes, vibration, and humidity.

7. Flexible Configuration
   支持s both 4-wire and 6-wire load cells, adaptable to a wide variety / sensor types.

8. Diagnostic LEDs
   Provides real-time status feedback, making maintenance and troubleshooting straightforward.

9. Global Compliance
   Certified for use in various markets, easing integration in multinational facilities.

10. Part / a Scalable System
    Integrates smoothly with other Momentum modules to support complete automation solutions.

常见问题 (FAQ)

1. Can the 170ISP00100 work with both 4-wire and 6-wire load cells?
   Yes, it supports both types, /fering greater flexibility in system design.

2. Does this module require an external power supply for the load cell?
   No, it supplies 5V excitation power directly to the connected load cell.

3. What kind / resolution does it /fer?
   It uses a 24-bit A/D converter, providing excellent measurement precision.

4. How is the weighing data updated?
   The module has a configurable update rate, with a typical refresh every 10 ms.

5. Is s/tware configuration required?
   Yes, for advanced settings, configuration s/tware from Schneider (like Concept or 单位y) is recommended.

6. Can I use it in high-vibration areas?
   Yes, it is rated for industrial vibration and is suitable for such environments.

7. Is it hot-swappable?
   No, replacing or installing the module should only be done with power /f.

8. What kind / diagnostics does it provide?
   Status LEDs indicate operational and fault states, aiding rapid troubleshooting.

9. Does it require shielding for load cell wiring?
   Shielded cables are recommended to reduce electrical noise, especially in noisy environments.

10. Is it compatible with all Momentum bases?
    Yes, it is designed to snap directly onto standard Momentum I/O bases.
