产品介绍

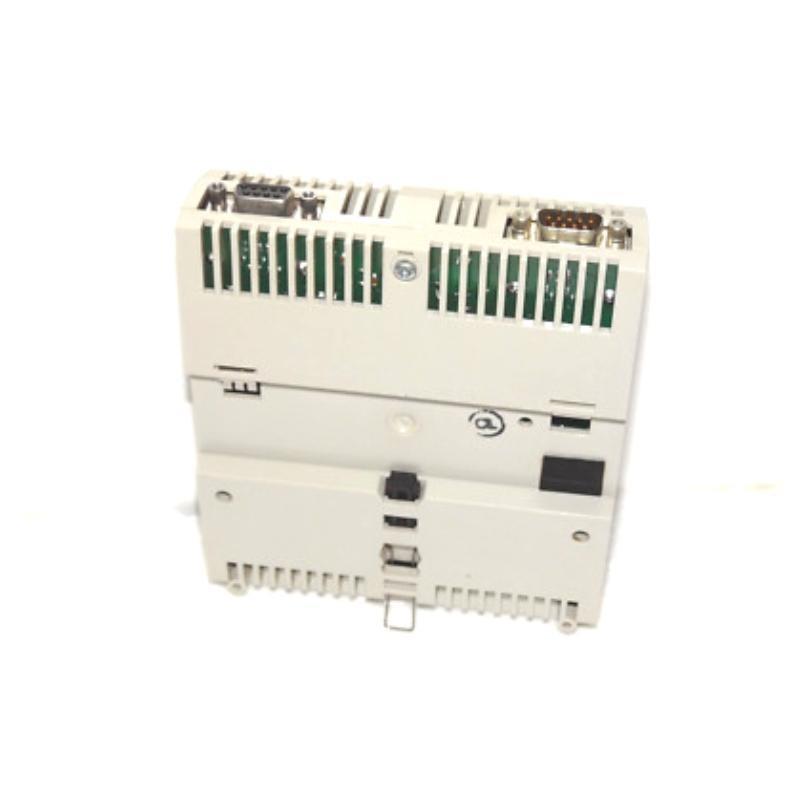

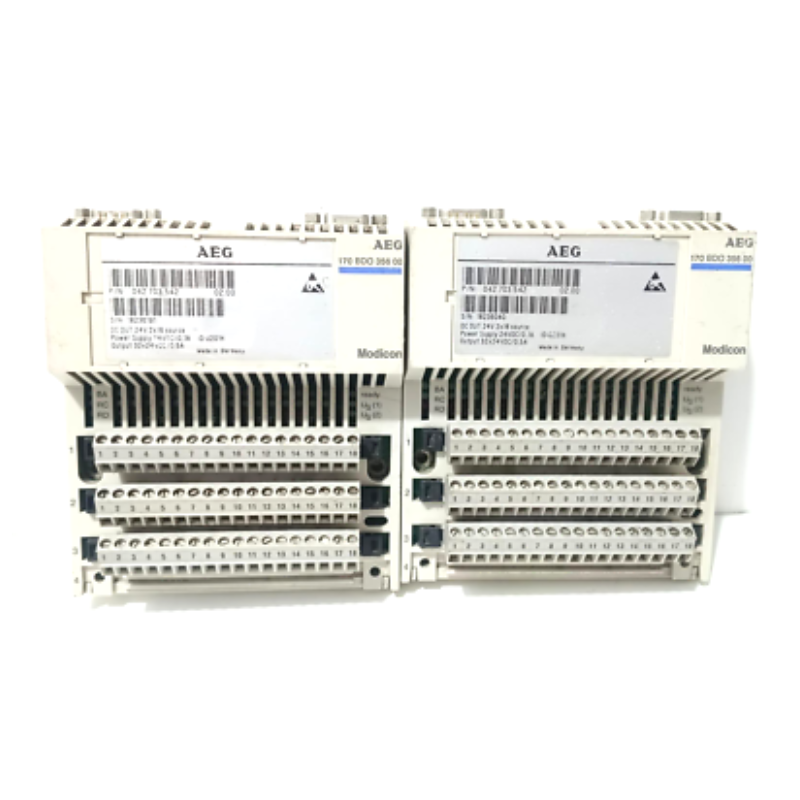

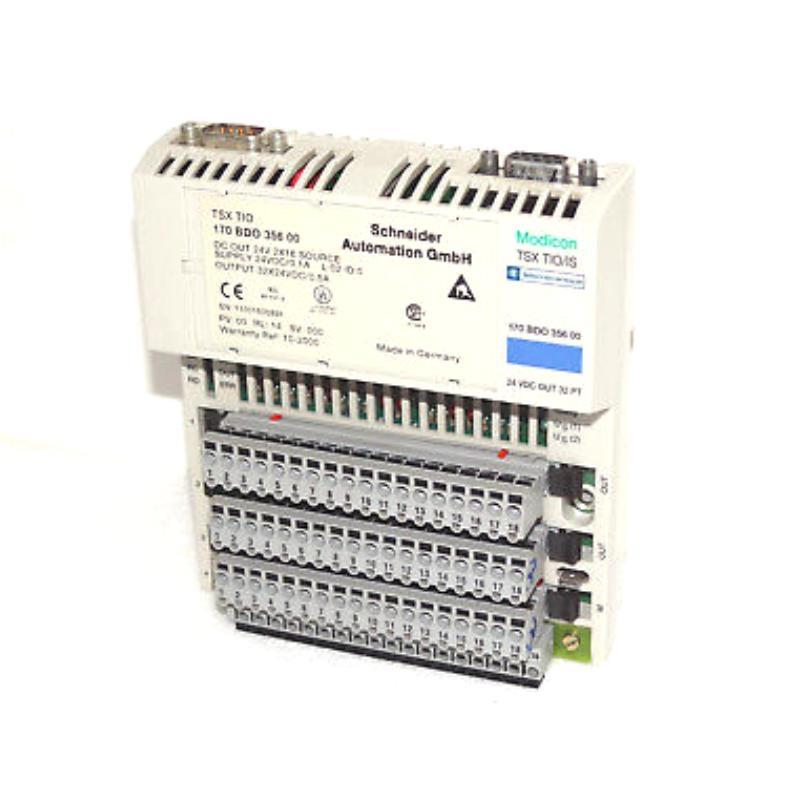

The Schneider 170BDO35600 is a high-performance industrial relay module designed for automation and control applications. It is part / Schneider Electric’s renowned line / relay solutions, known for reliability, durability, and precision in demanding environments. This module is widely used in machinery, HVAC systems, and power distribution setups, /fering seamless integration with various control systems.
Product Parameters
| Parameter | Value |
|---|---|
| 型号 Number | 170BDO35600 |
| Type | Industrial Relay Module |
| 联系我们 Configuration | DPDT (Double Pole Double Throw) |
| Rated Voltage | 24V DC / 120V AC |
| Current Rating | 10A @ 250V AC / 10A @ 30V DC |
| Switching Power | 3,000 VA |
| Electrical Life | 100,000 cycles |
| Mechanical Life | 10,000,000 cycles |
| Coil Power | 1.2W |
| Insulation Resistance | 100MΩ (min) |
| Dielectric Strength | 2,500V AC (1 min) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Dimensions | 90 x 70 x 60mm |
| 重量 | 0.5 kg |
| Certifications | CE, UL, RoHS |
Applications
The 170BDO35600 is suitable for a wide range / industrial and commercial applications, including:
-
Industrial Automation: Control circuits in PLCs, motor starters, and conveyor systems.
-
HVAC Systems: Switching and control / compressors, fans, and heaters.
-
Power Distribution: Load switching in electrical panels and circuit protection.
-
Machinery: Integration into CNC machines, packaging equipment, and robotics.
-
Lighting Control: High-power lighting systems and stage equipment.
Product Advantages
-
High Reliability: Engineered for long-term performance with minimal maintenance.
-
Robust Construction: Durable materials ensure resistance to shock, vibration, and harsh environments.
-
Wide Compatibility: Works seamlessly with Schneider’s automation systems and third-party devices.
-
Energy Efficient: Low coil power consumption reduces operational costs.
-
Easy Installation: Compact design and standardized mounting for quick setup.
-
Safety Compliance: Meets international safety and environmental standards (CE, UL, RoHS).
常见问题 (FAQ)
-
What is the maximum switching current / the 170BDO35600?
The relay can handle up to 10A at 250V AC or 30V DC. -
Is this relay suitable for high-vibration environments?
Yes, its robust design ensures stable operation even in high-vibration settings. -
Can I use this relay for both AC and DC applications?
Yes, it supports both AC and DC voltage switching. -
What is the expected lifespan / this relay?
It has an electrical life / 100,000 cycles and a mechanical life / 10 million cycles. -
Does it come with surge protection?
No, external surge protection may be required for high-voltage applications. -
What are the mounting options for this relay?
It can be mounted on DIN rails or panel-mounted using standard fixtures. -
Is the 170BDO35600 RoHS compliant?
Yes, it complies with RoHS environmental standards. -
Can this relay be used in outdoor installations?
Only if housed in a protective enclosure, as it is not waterpro/. -
What is the coil voltage range?
The standard version operates at 24V DC or 120V AC, but other variants may exist. -
How long is the warranty period?
The standard warranty is 1 years.
Recommended Related 型号s
6 Similar/Related 型号s in the Series
| 型号 Number | 描述 | Key Differences |
|---|---|---|
| 170BDO35601 | Higher current variant (15A) | Increased load capacity |
| 170BDO35602 | Latching relay version | Maintains state without power |
| 170BDO35610 | Slimmer pr/ile (25mm width) | Space-saving design |
| 170BDO35620 | 12V DC coil version | Low-voltage control compatibility |
| 170BDO35630 | High-temperature variant | Operates up to 85°C |
| 170BDO35640 | Solid-state relay alternative | No moving parts, longer lifespan |
6 Popular Schneider Electric 型号s
| 型号 Number | Product Type | Key Feature |
|---|---|---|
| LC1D09 | 联系我们or | 9A rating, compact design |
| RXM4AB2BD | Miniature relay | 8A, 2CO, LED status indicator |
| GV2ME14 | Motor circuit breaker | Thermal-magnetic protection |
| Zelio RRF1 | Smart relay | Programmable logic capabilities |
| TeSys D Green | Energy-efficient contactor | Eco-friendly, low power loss |
| Harmony XB4 | Push button switch | Rugged, IP65 protection |
