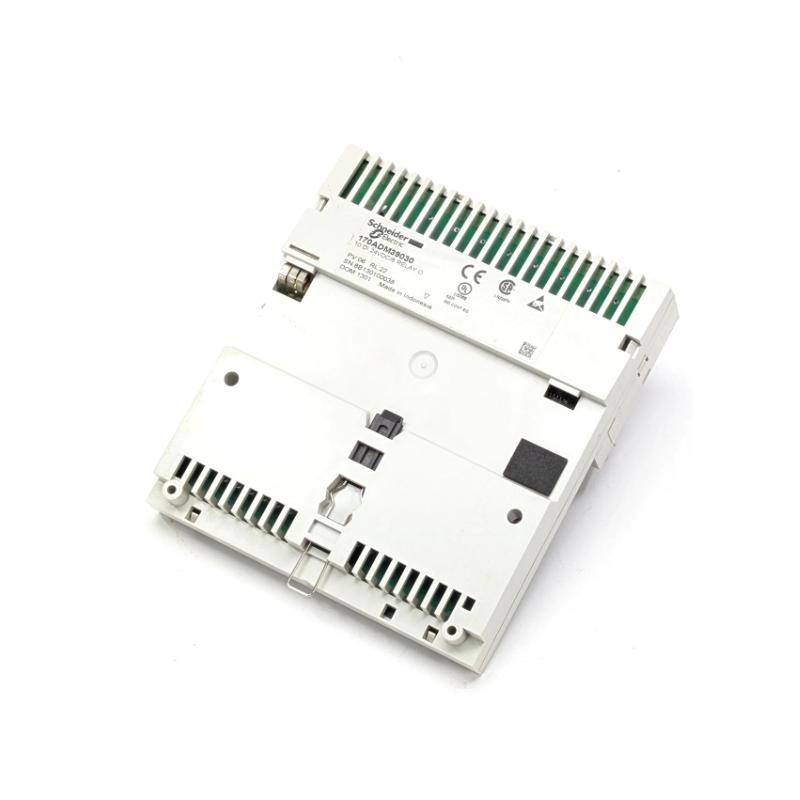

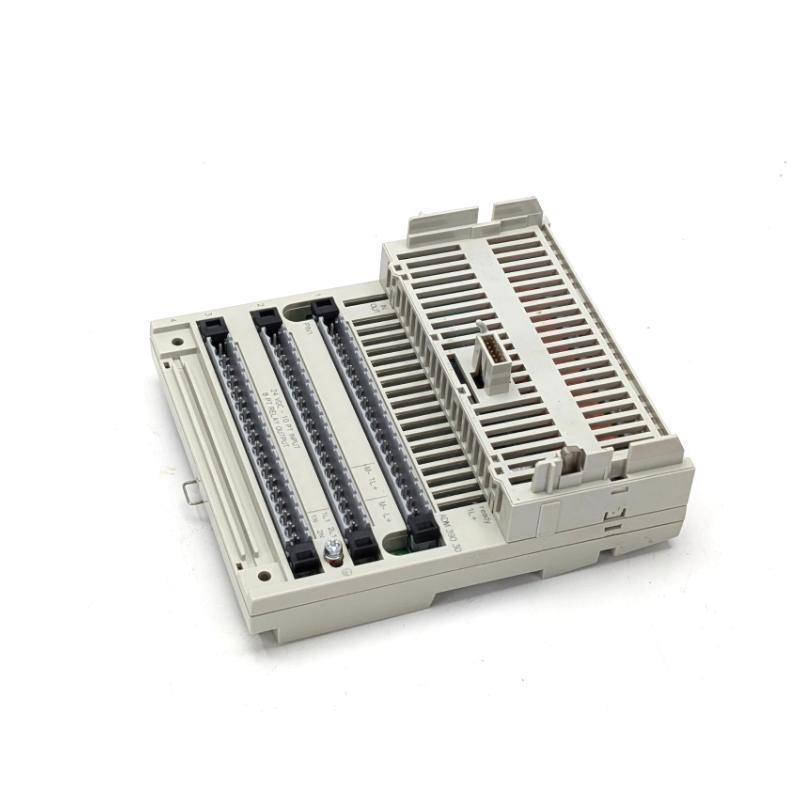

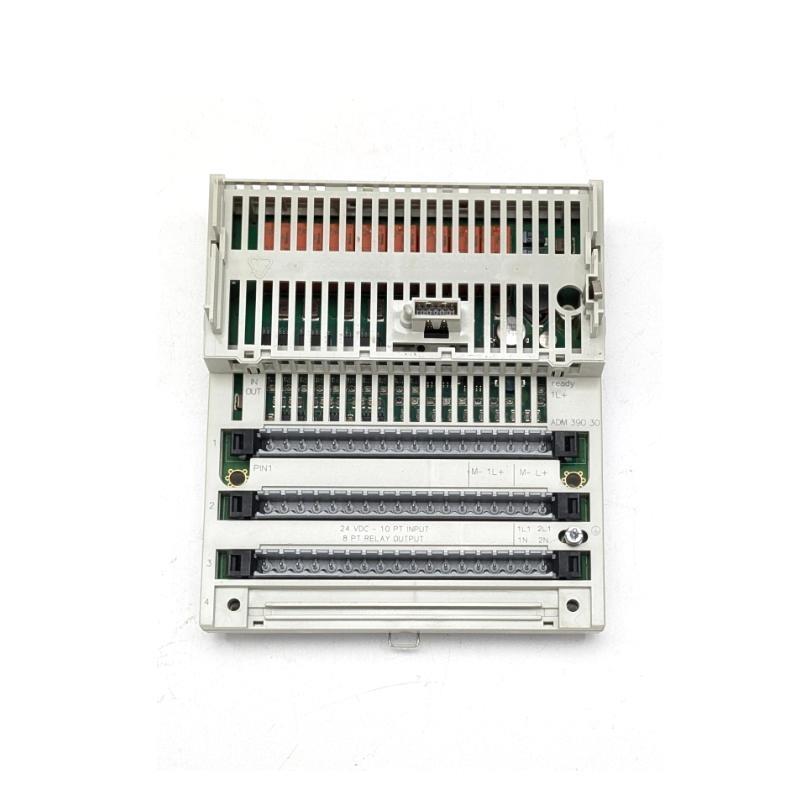

The Schneider Electric 170ADM39030 is a discrete I/O module designed for use within the Modicon Momentum PLC platform. This module /fers a combination / digital inputs and outputs, tailored to meet industrial automation requirements where compactness, modularity, and reliability are crucial. It is particularly favored in distributed control systems and remote I/O applications across multiple industries.
The 170ADM39030 is part / the Modicon Momentum family, which supports Ethernet, Modbus, and other communication protocols. This module provides 8 discrete inputs and 8 discrete outputs, enabling two-way interaction with field devices such as sensors, contactors, solenoids, and alarms. Its plug-and-play functionality allows for easy integration and maintenance in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| 制造商 | Schneider Electric |
| Product Line | Modicon Momentum |
| Product Type | Discrete I/O Module |
| 型号 Number | 170ADM39030 |
| I/O Type | Mixed (8 inputs + 8 outputs) |
| Input Type | Discrete (sink/source compatible) |
| Input Voltage Range | 24 VDC (nominal), 18 to 30 VDC |
| Output Type | Discrete (transistor – sinking) |
| Output Voltage Range | 24 VDC |
| Output Current per Channel | 0.5 A |
| Output Current Total Module | 4 A |
| Response Time (Input) | ≤ 1 ms |
| Response Time (Output) | ≤ 1 ms |
| Input Signal 状态 “1” | >11 V |
| Input Signal 状态 “0” | <5 V |
| Isolation Between Channels | None (common per group / 8) |
| Field Wiring Connector | Removable terminal block |
| Indicators | LED per channel |
| Power Dissipation | Approx. 5 W |
| Module Mounting | On Momentum base (with CPU or communication adapter) |
| Dimensions (H x W x D) | 47.5 × 125 × 141.5 mm |
| 重量 | 0.26 kg |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA, ATEX (Zone 2), GOST |
Applications
The 170ADM39030 is suitable for a wide range / industrial control and automation systems that demand reliable discrete I/O performance in compact modules:
-
Factory Automation: Controls digital devices like actuators, alarms, contactors, and indicators.
-
Water and Wastewater Management: Interfaces with level switches, flow sensors, and control valves.
-
Material Handling Systems: Operates conveyors, photo eyes, and diverter gates.
-
Building Automation: Interfaces with lighting, access control, and HVAC control panels.
-
Oil & Gas Skids: Enables compact control / I/O points in modular process 件s.
-
Renewable Energy: Integrates with inverter controllers and status feedback systems.
Its modular design allows flexible deployment in both central control panels and remote I/O drops.
Advantages
-
Compact and Modular
Ideal for space-constrained panels and modular system designs, reducing control cabinet footprint. -
Integrated Mixed I/O
Combines 8 digital inputs and 8 digital outputs, reducing module count and simplifying wiring. -
Quick Integration
Easily snaps into Momentum bases and communicates via adapters without complex configuration. -
LED Diagnostics
Each I/O point features an LED indicator for easy status monitoring and troubleshooting. -
Low Power Consumption
Optimized for energy-efficient operation in 24 VDC systems. -
Field-Replaceable Terminals
The removable terminal block allows fast wiring and simplified module swap-out. -
Industrial Certifications
Suitable for global applications with CE, UL, CSA, and ATEX approvals. -
Fast Response Time
Ensures timely control and feedback for high-speed discrete automation tasks.
常见问题 (FAQ)
-
Q: What voltage does the 170ADM39030 module operate on?
A: It operates at 24 VDC nominal, with a range / 18 to 30 VDC. -
Q: How many I/O points does this module have?
A: It has 8 digital inputs and 8 digital outputs. -
Q: What type / output does this module provide?
A: The outputs are discrete transistor outputs with sinking configuration. -
Q: Can the module be hot-swapped?
A: No, power should be removed before replacing the module for safety. -
Q: Is this module compatible with Modicon Momentum CPUs?
A: Yes, it is fully compatible with Momentum bases and CPU modules. -
Q: What’s the max current supported per output?
A: Each output channel supports up to 0.5 A. -
Q: Does the module /fer per-channel isolation?
A: No, the module shares common ground per group / 8 points. -
Q: Can this module be used in hazardous areas?
A: Yes, it is certified for ATEX Zone 2 environments. -
Q: What is the signal threshold for recognizing a digital “1” input?
A: An input signal above 11 VDC is recognized as a logical “1”. -
Q: How is field wiring connected?
A: Via a removable terminal block designed for easy access and maintenance.
Related 型号s (Same Series or Functionally Similar)
| 型号 | 描述 | I/O Type | I/O Count | Voltage |
|---|---|---|---|---|
| 170ADM35010 | Discrete I/O Module, 8DI/8DO | Mixed | 8 in / 8 out | 115 VAC |
| 170AAI52000 | Analog Input Module, 4 channels | Analog Input | 4 | 0–10 V / 4–20 mA |
| 170AAO35000 | Analog Output Module, 2 channels | Analog Output | 2 | 0–10 V |
| 170ADI35000 | Discrete Input Module, 16 channels | Digital Input | 16 | 24 VDC |
| 170DNT11002 | Momentum Communication Adapter, DeviceNet | Comm Adapter | – | – |
| 170ENT11001 | Momentum Ethernet Communication Adapter | Comm Adapter | – | – |
