产品介绍

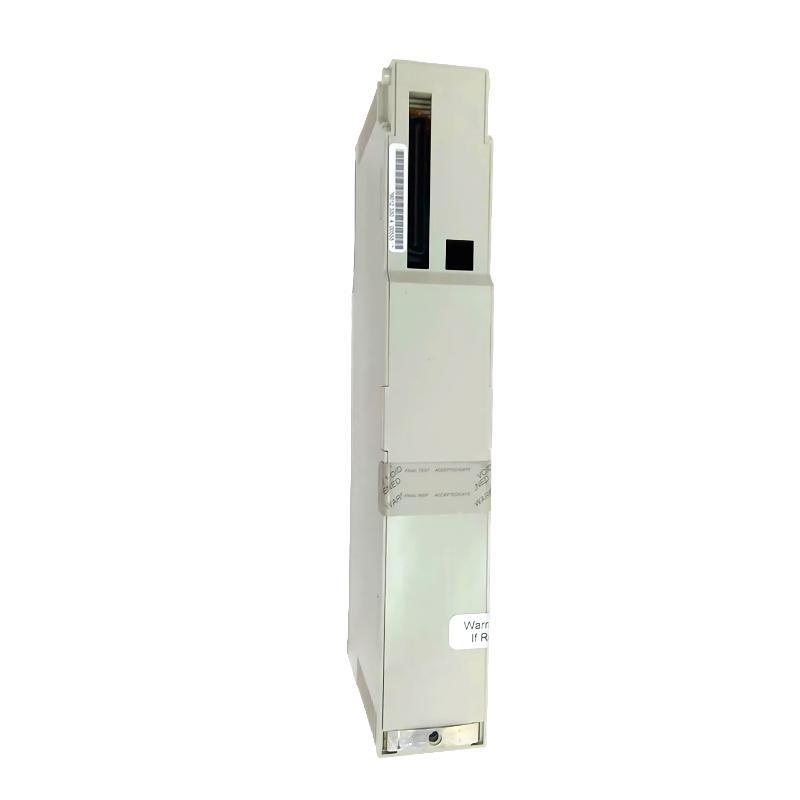

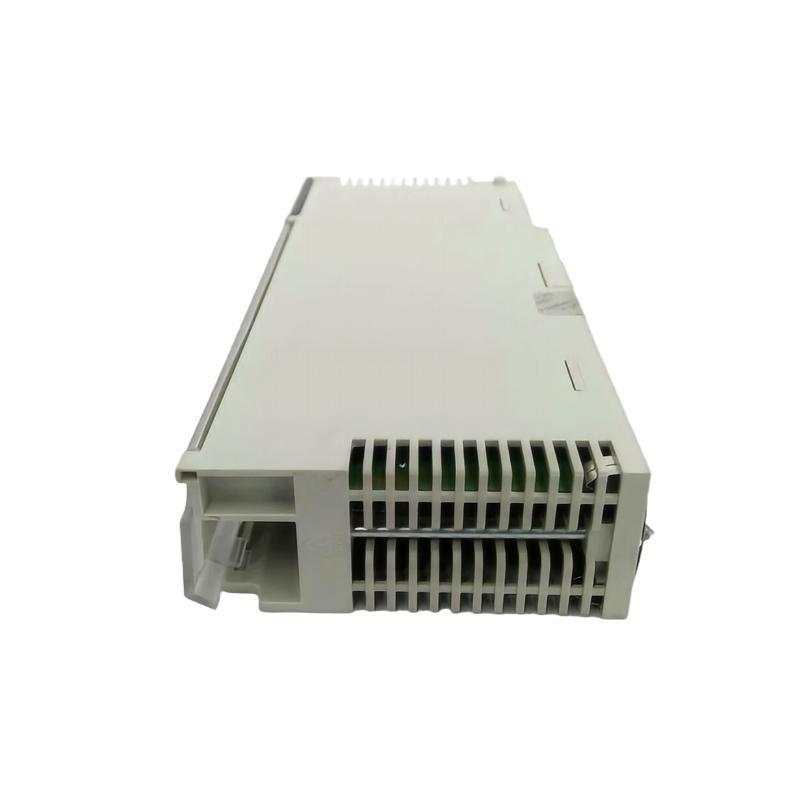

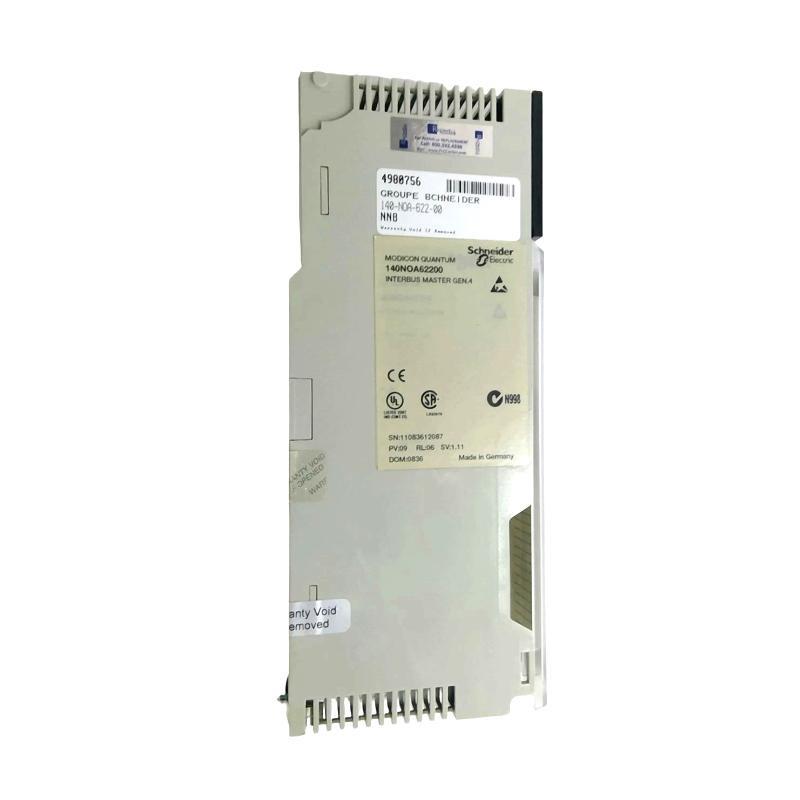

The Schneider Electric 140NOA62200C is a robust Interbus Master Communication Module designed for the Modicon Quantum programmable automation platform. It serves as the master controller in Interbus networks, enabling seamless communication between a Quantum PLC and multiple distributed I/O devices and field equipment that support the Interbus protocol.
The module is optimized for high-speed, deterministic data transmission in complex industrial environments. With enhanced diagnostic capabilities, flexible network topologies, and support for hot swapping, it provides outstanding operational continuity and ease / integration. It helps reduce wiring complexity, improve system scalability, and enhance real-time control in automation systems.
The 140NOA62200C supports up to 512 remote Interbus slave devices, making it ideal for large-scale distributed systems in industries such as automotive, chemical, power generation, food processing, and material handling.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | 140NOA62200C |
| Product Type | Interbus Master Module |
| 制造商 | Schneider Electric |
| Platform | Modicon Quantum PLC Series |
| Protocol | Interbus Serial Fieldbus |
| Communication Speed | 500 kbps |
| Max Slaves 支持ed | Up to 512 |
| Transmission Medium | Shielded twisted pair (RS-485 based) |
| Network Topology | Line, Tree, or Star |
| Hot Swap 支持 | Yes |
| Diagnostics | Advanced diagnostic LEDs for network and module status |
| Power Consumption | < 5 W |
| LED Indicators | Yes – module and channel status |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | Rack-mounted (Quantum backplane) |
| Configuration S/tware | 单位y Pro, EcoStruxure Control Expert |
| Dimensions (W × H × D) | 103.9 × 40.3 × 250 mm |
| 重量 | 0.9 kg |
| Certifications | CE, UL, CSA, ATEX |
Applications
The 140NOA62200C module is used wherever high-reliability, high-speed communication between a Quantum PLC and distributed field devices is required. Common applications include:
-
Automotive Assembly Plants
Controls distributed I/O systems, robots, and conveyor mechanisms in production lines. -
Chemical Processing Facilities
Links field instruments such as pressure sensors and flow meters to central PLCs for closed-loop control. -
Material Handling Systems
Integrates devices such as scanners, sorters, and diverters into logistics and warehouse automation systems. -
Power Generation Plants
Facilitates supervisory control / power transformers, valves, and relays through distributed I/O networks. -
Food and Beverage Processing
Connects temperature sensors, pumps, and control valves to main control 件s, enhancing food safety and traceability. -
Pharmaceutical and Cleanroom Environments
Enables deterministic control and monitoring in GMP-regulated environments.
Product Advantages
-
High Device Capacity
支持s up to 512 slave devices per network, suitable for large-scale installations. -
Flexible Topology 支持
Allows line, tree, or star configurations, adapting to various plant layouts. -
Hot-Swappable Module
Maintenance or replacement can be performed without interrupting system operation. -
Integrated Diagnostic Features
Real-time fault detection, module status LEDs, and network health indicators reduce downtime. -
Reduced Wiring Complexity
Single-cable Interbus design simplifies field wiring, reducing installation costs and errors. -
Industrial-Grade Reliability
Certified for use in harsh industrial conditions, including ATEX-classified zones.
常见问题 (FAQ)
1. What is the main function / the 140NOA62200C module?
It acts as an Interbus master controller that manages communication between a Modicon Quantum PLC and Interbus slave devices.
2. Is this module compatible with 单位y Pro s/tware?
Yes, it can be configured using 单位y Pro and EcoStruxure Control Expert.
3. How many devices can it connect to?
It can support up to 512 Interbus slave devices within a single network.
4. Can it be used in safety-critical applications?
Yes, it is certified for industrial use and supports systems requiring high availability.
5. Is the module hot-swappable?
Yes, it supports hot-swapping, allowing safe replacement during system operation.
6. What kind / wiring does it require?
The module uses shielded twisted pair cabling based on the RS-485 physical layer for communication.
7. Does it provide diagnostic feedback?
Yes, it includes LEDs for module and network diagnostics, aiding in quick fault isolation.
8. Can it be integrated into an existing Interbus system?
Yes, it can serve as the master for existing Interbus slave devices, making upgrades easier.
9. What certifications does the module have?
It is UL, CSA, CE, and ATEX certified for industrial and hazardous environments.
10. What is the typical installation method?
The module is installed in a Modicon Quantum backplane rack and connected via the Quantum bus.
Related 型号s (Same Series or Communication Purpose)
| 型号 Number | 描述 |
|---|---|
| 140NOA61110C | Standard Interbus Master Module with basic diagnostics |
| 140NOA62201C | Interbus Master Module with extended diagnostics capabilities |
| 140NOM21200 | Modbus RTU/ASCII Master/Slave Module |
| 140NOC77101 | ControlNet Interface Module for Quantum PLCs |
| 140CRP93100 | RIO Drop Adapter Module |
| 140NOE77101 | Ethernet TCP/IP Communication Module for Quantum Systems |
Popular Schneider Electric 型号s (Same 品牌 – High Demand)
| 型号 Number | 描述 |
|---|---|
| 140CPU65160S | High-Performance CPU for Modicon Quantum |
| BMXCPS2010 | Power Supply Module for Modicon M340 |
| TM241CEC24T | Modicon M241 Compact Controller with Ethernet |
| HMISTU855 | 5.7” HMI Panel with USB and Ethernet ports |
| BMEH582040 | PAC CPU for Modicon M580 series |
| ATV630D55N4 | 55 kW Altivar Process Variable Speed Drive |
