Product Overview

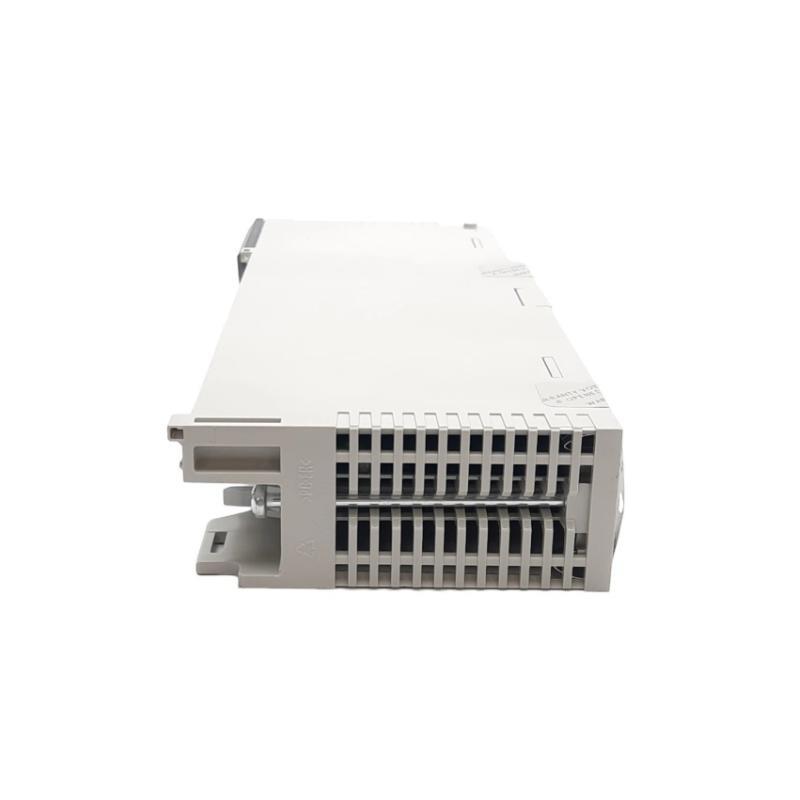

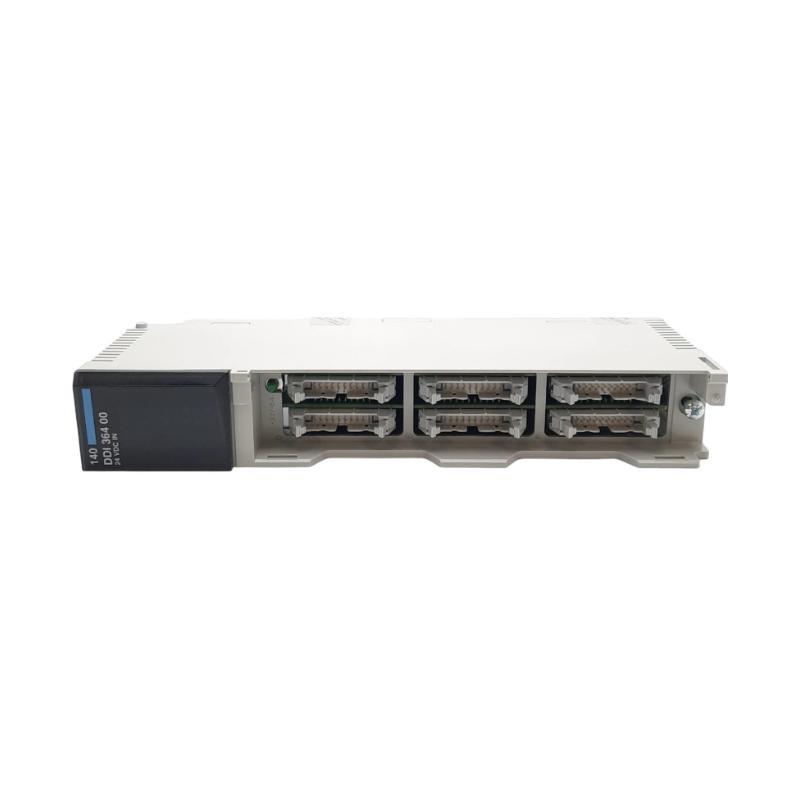

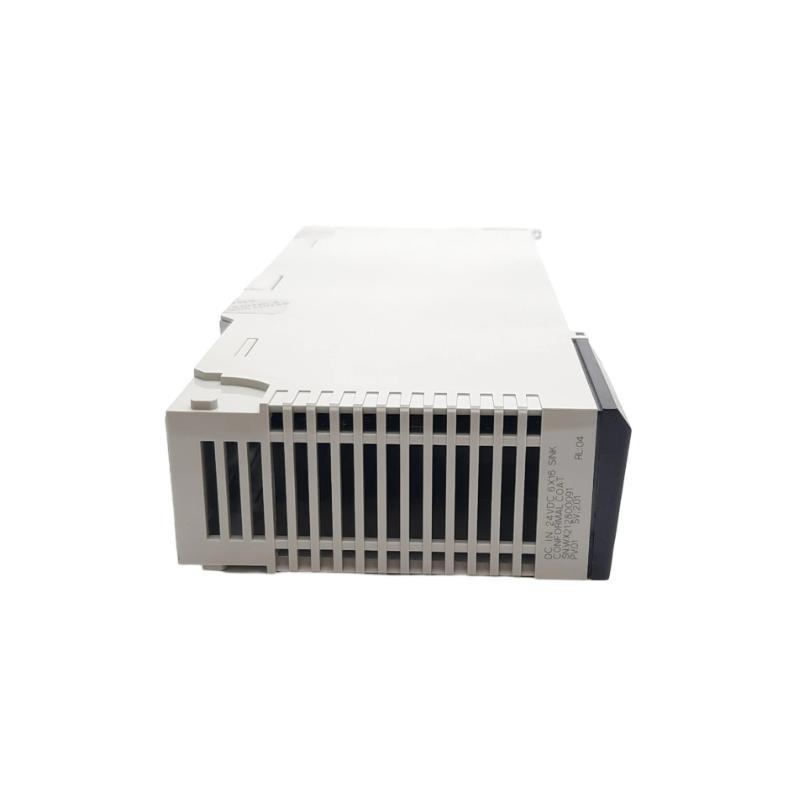

The Schneider 140DDI36400C is a high-performance discrete input module designed for use with Modicon Quantum automation systems. It provides reliable and fast detection / 32 discrete input signals, suitable for industrial control and automation environments.
Technical Specifications
| Parameter | Value |
|---|---|
| 制造商 | Schneider Electric |
| 型号 | 140DDI36400C |
| Product Type | Discrete Input Module |
| Number / Channels | 32 inputs |
| Input Voltage | 24 VDC |
| Input Type | Sink Source Compatible |
| Isolation Voltage | 500 V |
| Response Time | ≤ 1 ms |
| Power Dissipation | 4.5 W |
| Dimensions (W×D×H) | 103.9 × 40.3 × 250 mm |
| 重量 | 0.3 kg |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Mounting | Rack-mounted (Quantum series) |
Applications
-
Factory automation systems
-
Process control industries
-
Material handling and packaging lines
-
Infrastructure automation
-
Energy management systems
Advantages
-
Compact 32-channel design saves space
-
High-speed input response for critical applications
-
Compatibility with both sink and source wiring
-
Easy integration with Modicon Quantum PLC
-
Robust design ensures reliable operation in harsh environments
FAQ
Q1: What type / signals does the 140DDI36400C support?
A1: It supports 24 VDC discrete signals, both sink and source types.
Q2: How many inputs does this module have?
A2: It has 32 discrete input channels.
Q3: What is the isolation voltage / the inputs?
A3: The module /fers 500 V isolation between channels and bus.
Q4: Can it operate at high temperatures?
A4: Yes, it operates in temperatures from 0 to 60 °C.
Q5: What is its response time?
A5: The response time is less than or equal to 1 ms.
Q6: Is it compatible with all Quantum racks?
A6: Yes, it is designed to work with the Modicon Quantum series racks.
Q7: How much does it weigh?
A7: The module weighs approximately 0.3 kg.
Q8: Does it have LED status indicators?
A8: Yes, each channel has an LED indicator for status monitoring.
Q9: What industries use this module?
A9: It is used in manufacturing, energy, infrastructure, and process industries.
Q10: Is it hot-swappable?
A10: Yes, the module can be replaced without shutting down the entire system.
Recommended Related 型号s
| 型号 | Channels | Input Voltage | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| 140DDI35300 | 32 | 24 VDC | 103.9 × 40.3 × 250 | 0.3 kg |
| 140DDI84100 | 64 | 24 VDC | 103.9 × 40.3 × 250 | 0.35 kg |
| 140DDO35300 | 32 | 24 VDC Output | 103.9 × 40.3 × 250 | 0.3 kg |
| 140DDO84300 | 64 | 24 VDC Output | 103.9 × 40.3 × 250 | 0.35 kg |
| 140DDO36400 | 32 | 24 VDC Output | 103.9 × 40.3 × 250 | 0.3 kg |
| 140DAI54000 | 16 | Analog Input | 103.9 × 40.3 × 250 | 0.4 kg |
Popular Schneider 型号s
| 型号 | Type | Channels | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| 140CPU65160 | CPU Module | N/A | 266 × 71 × 298 | 1.8 kg |
| 140CPU65260 | CPU Module | N/A | 266 × 71 × 298 | 1.8 kg |
| 140NOE77101 | Ethernet Module | N/A | 103.9 × 40.3 × 250 | 0.4 kg |
| 140CRA31200 | Remote Adapter | N/A | 103.9 × 40.3 × 250 | 0.3 kg |
| 140DDI35300 | Discrete Input | 32 | 103.9 × 40.3 × 250 | 0.3 kg |
| 140DAI75300 | Analog Input | 32 | 103.9 × 40.3 × 250 | 0.4 kg |
