产品介绍

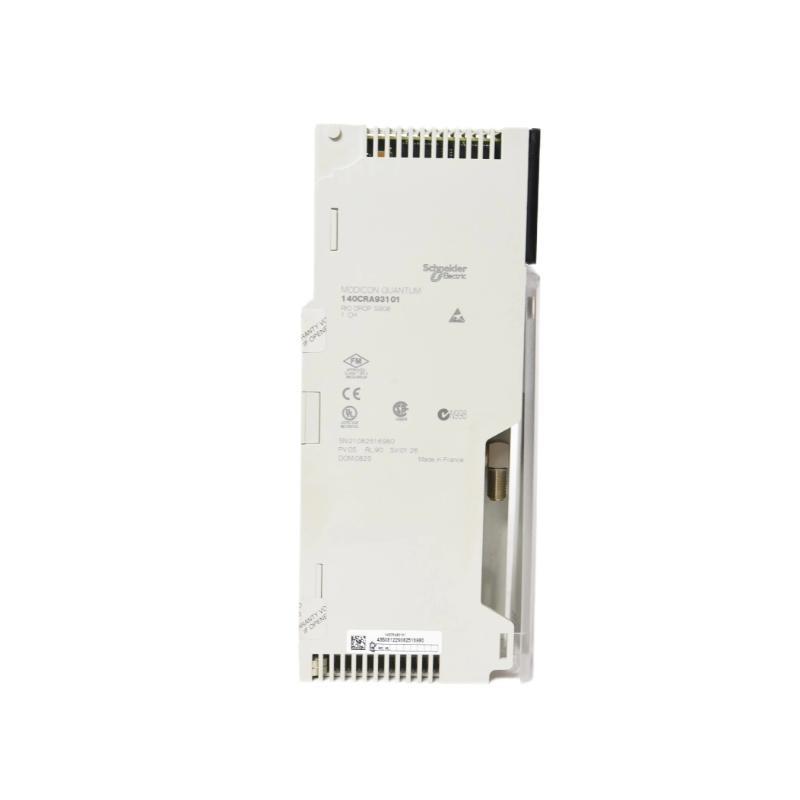

The Schneider 140CRA93101 RIO Drop Adaptor Module is a crucial component in Schneider’s Modicon automation systems. Designed to provide reliable communication between different parts / a distributed I/O system, the 140CRA93101 serves as an interface between the Modicon PLC and remote I/O 件s. It facilitates seamless data transmission, ensuring optimized operation and efficient control / industrial processes.
This module is integral to expanding the reach / control systems, enabling remote connection / I/O devices through a dedicated communication protocol. The compact yet robust design ensures reliability and durability in harsh industrial environments, making it a valuable addition to various automation setups.
产品规格
Below are the specifications for the Schneider 140CRA93101 RIO Drop Adaptor Module:
| Specification | Details |
|---|---|
| 型号 | 140CRA93101 |
| Type | RIO Drop Adaptor Module |
| Dimensions (W x H x D) | 46 x 162 x 312 mm |
| 重量 | 0.511 kg |
| Power Supply | 24 V DC |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Communication Interface | Modbus Plus, Modbus RTU, Remote I/O |
| Mounting Type | DIN Rail |
| LED Indicators | Yes (Power, Status, Communication) |
| Protection Class | IP20 (Ingress protection) |
Applications
The 140CRA93101 RIO Drop Adaptor Module is widely used in industrial automation environments where flexible, reliable communication between PLCs and remote I/O devices is required. Typical applications include:
-
Factory Automation: It is employed to connect remote I/O devices such as sensors, actuators, and other equipment to a centralized PLC for process control.
-
Building Automation: Used in systems like HVAC, lighting control, and access management where distributed control is necessary.
-
Energy Management: It helps in integrating energy monitoring devices, providing detailed data for analysis and control / power consumption.
-
Process Control: Often used in industries like chemical, pharmaceutical, and oil & gas for the remote management / operations.
Advantages
The Schneider 140CRA93101 RIO Drop Adaptor Module /fers several advantages:
-
Reliability: Designed for continuous operation in industrial environments, it ensures stable and uninterrupted communication between devices.
-
Flexibility: The module supports multiple communication protocols, allowing it to integrate seamlessly with various devices across different platforms.
-
Ease / Installation: It features a compact form factor and DIN rail mounting, making it easy to install and configure in existing systems.
-
Durability: With an operating temperature range / -20°C to +60°C and a protection class / IP20, it is built to withstand challenging industrial conditions.
-
Cost-Effective: By enabling the use / remote I/O modules, it reduces the need for additional I/O cards in the main PLC, leading to cost savings.
FAQ
-
What is the primary function / the Schneider 140CRA93101 RIO Drop Adaptor Module?
-
The module facilitates communication between a Modicon PLC and remote I/O devices, extending the range / the PLC system.
-
-
What communication protocols does the module support?
-
The 140CRA93101 supports Modbus Plus, Modbus RTU, and Remote I/O communication protocols.
-
-
Can the 140CRA93101 be used in hazardous environments?
-
The module is designed for use in industrial environments but is not rated for hazardous areas. It is essential to verify installation conditions before use.
-
-
How do I mount the 140CRA93101 module?
-
It can be mounted on a DIN rail, ensuring easy installation and secure positioning within your control cabinet.
-
-
What is the power requirement for the module?
-
The module requires a 24 V DC power supply.
-
-
What is the temperature range for operation?
-
The 140CRA93101 operates between -20°C and +60°C.
-
-
How many I/O devices can be connected through this module?
-
The module supports a wide range / I/O devices depending on the configuration / your system, but it is primarily used to interface with remote I/O blocks.
-
-
Does the module have built-in diagnostic features?
-
Yes, it includes LED indicators for power, status, and communication diagnostics.
-
-
Is the 140CRA93101 compatible with all Modicon PLCs?
-
Yes, it is compatible with most Modicon PLCs that support the required communication protocols.
-
-
What is the protection class / this module?
-
The module has an IP20 protection rating, which means it is protected against solid objects larger than 12 mm but is not water-resistant.
-
Related 型号s
Below are 6 related models to the Schneider 140CRA93101 RIO Drop Adaptor Module:
| 型号 | Type | Compatibility | Power Supply | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| 140CRA93102 | RIO Drop Adaptor Module | Modicon PLC | 24 V DC | 90 x 120 x 75 | 0.55 |
| 140CRA93103 | RIO Drop Adaptor Module | Modicon Quantum | 24 V DC | 90 x 120 x 75 | 0.53 |
| 140CRA93105 | RIO Drop Adaptor Module | Modicon M340 | 24 V DC | 90 x 120 x 75 | 0.52 |
| 140CRA93106 | Remote I/O Adaptor | Modicon Premium | 24 V DC | 85 x 120 x 70 | 0.50 |
| 140CRA93060 | RIO Communication Module | Modicon PLC | 24 V DC | 100 x 120 x 80 | 0.60 |
| 140CRA93110 | RIO I/O Module | Modicon PLC | 24 V DC | 95 x 125 x 78 | 0.58 |
Popular 型号s from Schneider
Here are 6 popular Schneider models:
| 型号 | Type | Power Supply | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| 140CPU67160 | Modicon M340 CPU Module | 24 V DC | 150 x 130 x 90 | 1.20 |
| 140ACR02100 | Modicon I/O Module | 24 V DC | 120 x 120 x 75 | 0.75 |
| 140DDI35300 | Modicon Digital Input Module | 24 V DC | 120 x 120 x 60 | 0.85 |
| 140DRA21100 | Modicon Digital Relay Module | 24 V DC | 130 x 120 x 80 | 1.00 |
| 140CPS21400 | Modicon Power Supply Module | 24 V DC | 150 x 120 x 90 | 1.50 |
| 140ATI03000 | Modicon Analog I/O Module | 24 V DC | 120 x 120 x 70 | 0.90 |
