Product Overview

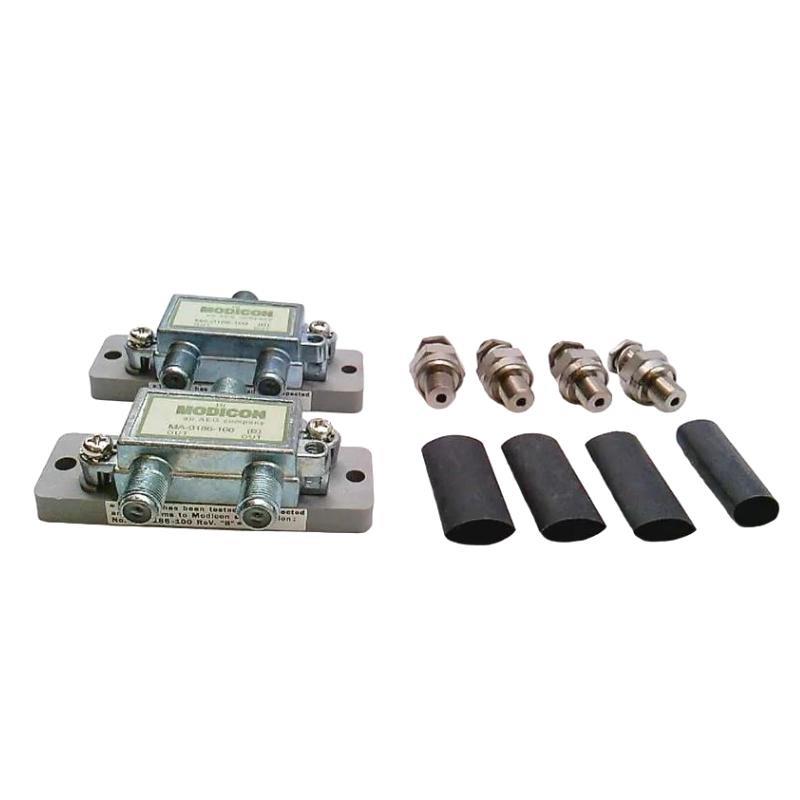

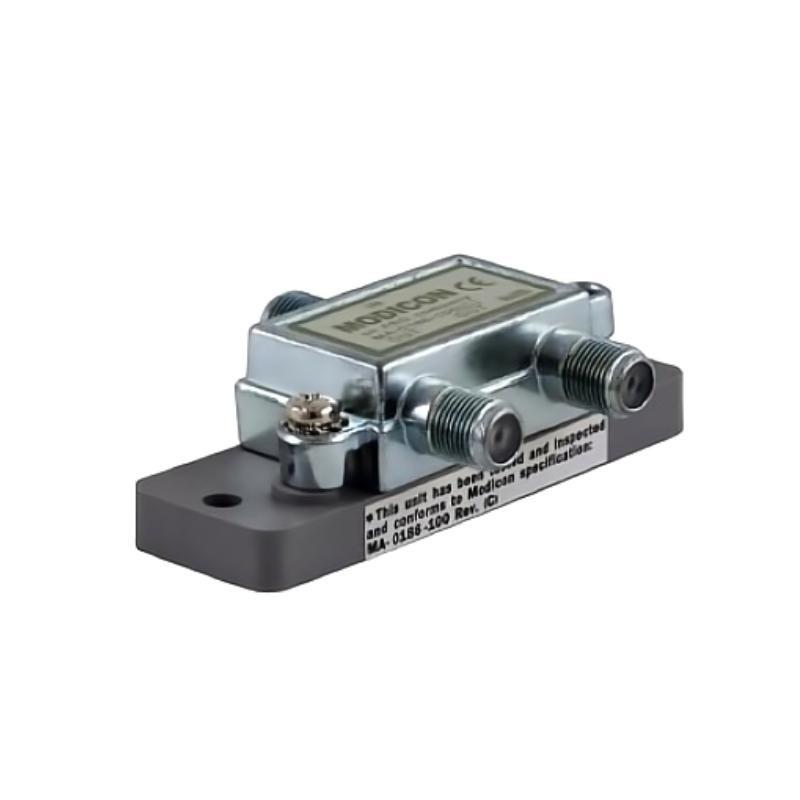

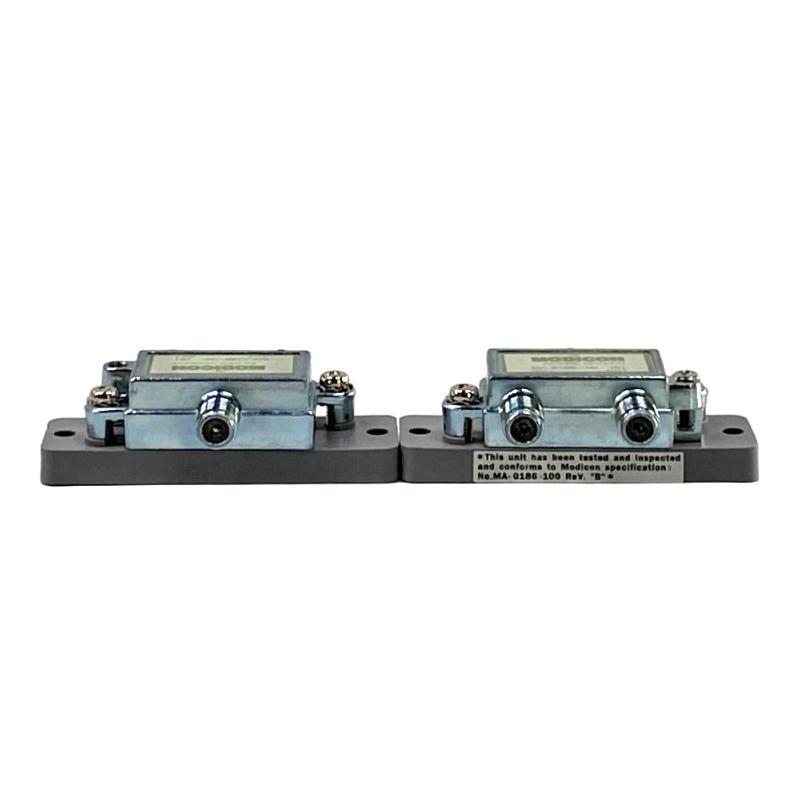

The Schneider 140CHS32000 Hot Standby Splitter Kit is a specialized accessory used to implement high-availability configurations in Modicon Quantum PLC systems. Specifically designed for coaxial cable-based redundancy, this splitter kit enables seamless communication and synchronization between an active Quantum CPU and its hot standby counterpart.
In a Hot Standby configuration, the system utilizes a pair / Quantum CPUs — one actively controlling the process, and the other maintaining an identical, synchronized state. Should a failure occur in the primary CPU, the backup CPU instantly takes over, ensuring zero interruption in the control process. The 140CHS32000 splitter kit facilitates this by allowing both CPUs to share the communication path over coaxial media — a robust and EMI-resistant connection option ideal for many industrial environments.
Designed with industrial durability and ease / integration in mind, the 140CHS32000 Hot Standby Splitter Kit is an essential part / any redundancy scheme where coaxial cabling is required or preferred. It supports reliable data transmission, quick switchover, and uninterrupted system operation — making it a trusted choice in sectors such as manufacturing, energy, transportation, and critical infrastructure.
产品规格
| Parameter | Value |
|---|---|
| 型号 | 140CHS32000 |
| Product Type | Hot Standby Splitter Kit |
| Communication Medium | Coaxial cable (75 Ohm) |
| 支持ed Redundancy Mode | CPU Hot Standby Redundancy |
| Application Platform | Schneider Modicon Quantum PLC |
| 支持ed CPU Versions | Quantum CPUs with Hot Standby support |
| Cable Type Compatibility | RG-59/U, RG-6/U, or equivalent industrial coaxial cable |
| Synchronization Transmission Rate | Up to 100 Mbps |
| Operating Voltage Range | N/A (Passive device) |
| Power Consumption | Passive (no power required) |
| Switchover Time | < 50 ms (system dependent) |
| Insertion Loss | < 1 dB |
| Return Loss | > 15 dB |
| Operating Temperature Range | 0 °C to +60 °C |
| Storage Temperature Range | -25 °C to +70 °C |
| Humidity (Non-condensing) | 5% to 95% RH |
| Mounting Method | DIN-rail or panel mounting |
| Certification | CE, UL, CSA certified |
| Housing Material | Industrial-grade metal housing |
| Dimensions (W × H × D) | 60 × 115 × 90 mm |
| 重量 | 0.408 kg |
| Mean Time Between Failures (MTBF) | > 500,000 hours |
Applications
The 140CHS32000 Hot Standby Splitter Kit is purpose-built for use in industrial automation systems that require high availability and fault tolerance, especially when using coaxial cabling for redundancy. Typical applications include:
-
Process Automation
For chemical, petrochemical, food & beverage, and life sciences plants requiring 24/7 operation. -
Oil & Gas Production
Onshore, /fshore, refining, and pipeline SCADA systems with critical uptime needs. -
Energy & Power Generation
Redundant PLC architecture in turbines, generators, and distribution substations. -
Water & Wastewater Treatment
Ensures no disruption to critical pumping stations and filtration processes. -
Transportation Networks
Mission-critical systems in airports, railway networks, and urban traffic control. -
Data Centers & Critical Infrastructure
For seamless control and automation with full CPU redundancy.
Product Advantages
-
Ensures Process Continuity
支持s Hot Standby CPU redundancy with coaxial communication to maintain uninterrupted control processes. -
Passive Design
No power supply required — contributes to reliability and eliminates additional wiring complexity. -
Industrial-grade Robustness
Metal housing and durable construction for harsh environments. -
Compact and Space-efficient
Designed for DIN-rail or panel mounting with a small footprint. -
Low Signal Loss
High-quality signal transmission with minimal insertion loss and excellent return loss. -
Flexible Coax Compatibility
Compatible with standard 75-ohm coaxial cables (e.g., RG-59, RG-6). -
Fast Switchover
Facilitates redundancy systems with switchover times typically under 50 ms. -
EMI-resilient Communication
Coaxial cabling provides superior resistance to electromagnetic interference — ideal for heavy industrial environments. -
Certified and Proven
CE, UL, CSA certified — meets international standards for reliability and performance. -
Low Maintenance
Passive, highly reliable design with long MTBF (> 500,000 hours) reduces service and maintenance costs.
常见问题 (FAQ)
-
What is the purpose / the 140CHS32000 Splitter Kit?
It enables coaxial cable-based communication between active and standby Quantum CPUs in Hot Standby configurations. -
Does the splitter require external power?
No, it is a passive device and does not consume power. -
What type / coaxial cables are supported?
Standard 75-ohm coaxial cables such as RG-59/U, RG-6/U, or equivalent. -
What is the typical switchover time?
Less than 50 milliseconds under normal operating conditions. -
Is the kit compatible with all Quantum CPUs?
It works with Quantum CPUs that support Hot Standby redundancy. -
Can it be used in outdoor environments?
It is designed for indoor industrial applications; for outdoor use, it must be housed in a suitable enclosure. -
What is the insertion loss?
Less than 1 dB, ensuring high-quality signal transmission. -
How is it mounted?
The splitter kit can be mounted on a DIN rail or directly onto a panel. -
What temperature range does it support?
Operating from 0 °C to +60 °C; storage from -25 °C to +70 °C. -
What is its expected service life?
With an MTBF exceeding 500,000 hours, it /fers many years / reliable operation.
Related 型号s from the Same Series or 分类
| 型号 | Product Type | Communication Medium | Dimensions (W×H×D) | 重量 |
|---|---|---|---|---|
| 140CHS21000 | Hot Standby Kit for Ethernet | Ethernet | 66×130×140 mm | 0.85 kg |
| 140CHS11000 | Hot Standby Kit | Coaxial | 66×130×140 mm | 0.85 kg |
| 140CPU65160 | Quantum CPU for Hot Standby | Ethernet / Coaxial | 66×130×140 mm | 1.2 kg |
| 140CPU65150 | Quantum CPU for Hot Standby | Ethernet / Coaxial | 66×130×140 mm | 1.2 kg |
| 140CRA31200 | Remote I/O Adapter | Ethernet | 66×130×140 mm | 1.1 kg |
| 140NOE77101 | Ethernet Module for Quantum Hot Standby | Ethernet | 66×130×140 mm | 0.95 kg |
Popular 型号s from Schneider Electric in Similar Categories
| 型号 | Product Type | Application Platform | Dimensions (W×H×D) | 重量 |
|---|---|---|---|---|
| BMXPRA0100 | Redundant Adapter | M340 / M580 PLC | 60×115×110 mm | 0.75 kg |
| BMXCRA31210 | Remote I/O Adapter | M340 PLC | 60×115×110 mm | 0.78 kg |
| BMEP58 0402 | M580 CPU with Hot Standby | M580 PLC | 75×130×140 mm | 1.3 kg |
| BMXCPS4002 | Redundant Power Supply Module | M340 / M580 PLC | 50×120×130 mm | 1.0 kg |
| BMXNOR0200H | Ethernet/IP & Modbus TCP Module | M340 / M580 PLC | 50×120×130 mm | 0.9 kg |
| TSXP574634M | Premium CPU with Redundancy | Premium PLC | 75×130×140 mm | 1.2 kg |
