产品介绍

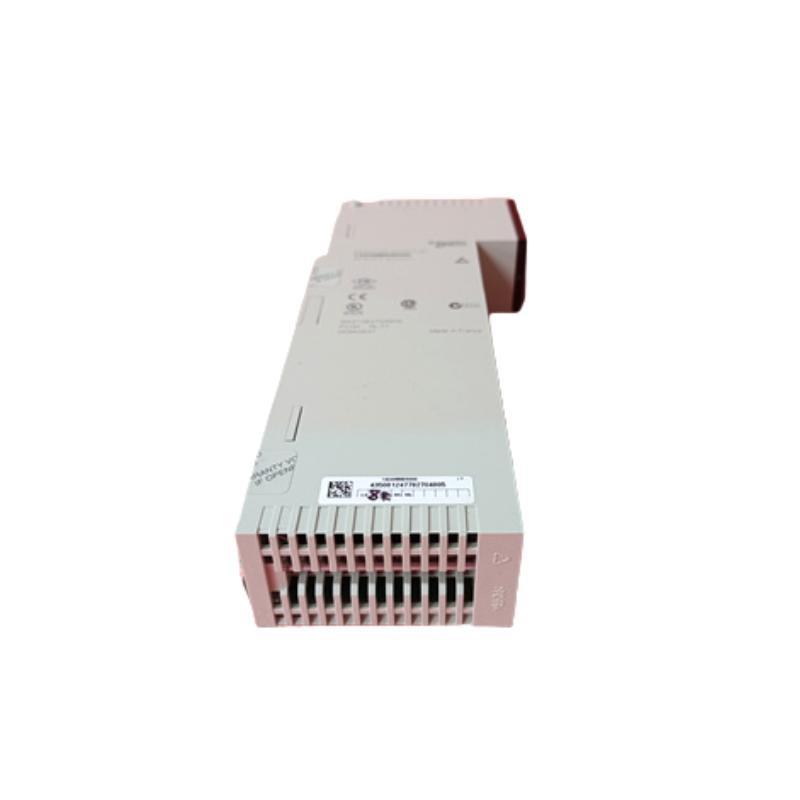

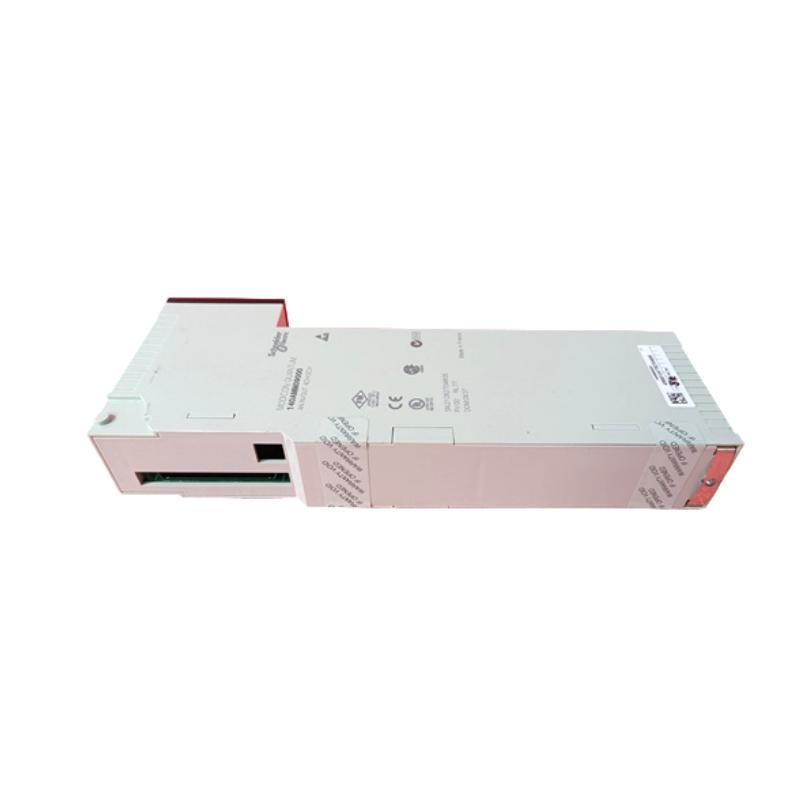

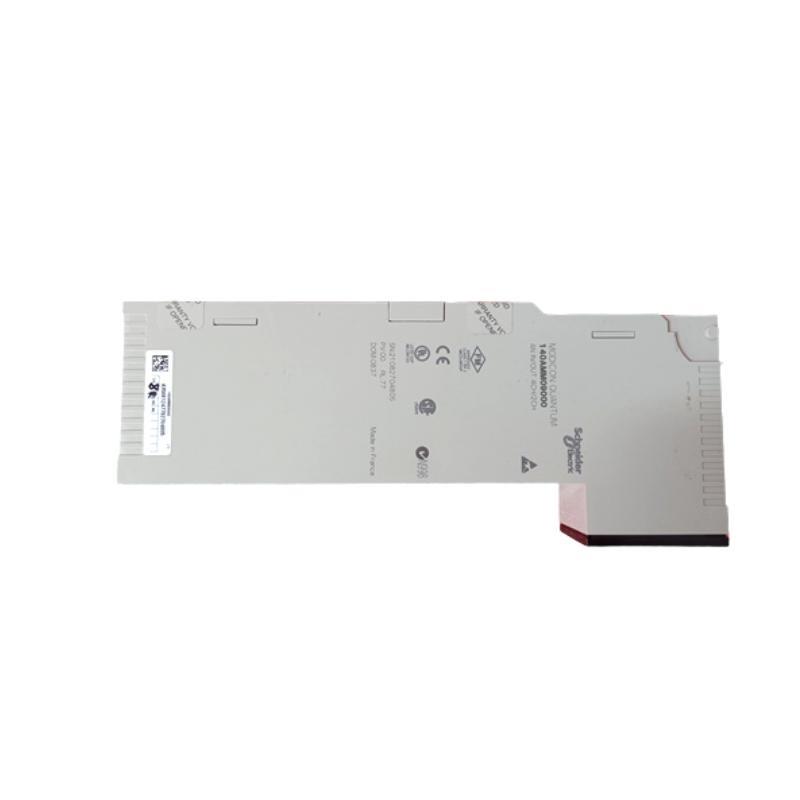

The Schneider Electric 140AMM09000C is a high-performance analog input/output module from the Modicon Quantum series, designed for demanding industrial automation environments. This module combines both input and output analog channels, making it ideal for space-constrained applications where versatility and high accuracy are required. Designed to interface directly with analog field devices, such as sensors, transmitters, actuators, and control valves, the 140AMM09000C ensures seamless data acquisition and control output with a high degree / precision and reliability.
This module supports a wide range / signal types and configurations, /fering engineers the flexibility to adapt to complex process control requirements. It is frequently used in industries such as oil and gas, water treatment, chemical manufacturing, and energy management systems.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 Number | 140AMM09000C |
| Series | Modicon Quantum |
| 制造商 | Schneider Electric |
| Module Type | Analog Mixed Module (Input/Output) |
| Number / Channels | 8 Analog Inputs, 4 Analog Outputs |
| Input Type | Voltage or Current (configurable) |
| Output Type | Voltage or Current (configurable) |
| Resolution | 16-bit |
| Isolation | Channel-to-bus and channel-to-channel isolation |
| Input Range | 0-10V, ±10V, 0-20mA, 4-20mA |
| Output Range | 0-10V, ±10V, 0-20mA, 4-20mA |
| Update Time | ≤ 2 ms per channel |
| Accuracy | ±0.1% full scale |
| Connector Type | Removable terminal block |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Power Consumption | Approx. 5.5 W |
| Dimensions (W × H × D) | 103.9 × 40.3 × 250 mm |
| 重量 | 0.3 kg |
| Mounting | Rack-mounted (Quantum backplane) |
| Certifications | CE, UL, CSA, ATEX, Marine compliant |
Product Applications
-
Industrial Process Control: Accurate analog signal processing for PID loops, temperature regulation, and pressure control.
-
Water and Wastewater Management: For interfacing flow meters, level transmitters, and pH sensors.
-
Energy Management Systems: Monitoring and controlling current, voltage, and power levels in distributed assets.
-
Oil and Gas Sector: Real-time analog input/output for remote well sites and compressor stations.
-
Manufacturing Automation: Integrating temperature sensors and control signals for heating, cooling, and motion control.
-
Chemical and Pharmaceutical Plants: High-precision control / dosing and batch processing systems.
Product Advantages
-
Mixed I/O Configuration: Integrates both analog input and output in a single module, reducing the need for multiple cards.
-
High Signal Accuracy: 16-bit resolution ensures precise signal acquisition and output.
-
Flexible Signal 支持: Accepts both voltage and current signals, allowing broad compatibility with field devices.
-
Robust Electrical Isolation: Enhances safety and minimizes signal interference across channels.
-
Easy Configuration: User-friendly interface via 单位y Pro or Concept s/tware platforms.
-
Time-Saving Maintenance: Features removable terminals and hot-swap capability on compatible Quantum racks.
-
Global Certifications: Fully certified for use in a wide range / industrial and marine environments.
-
Long Lifecycle 支持: Backed by Schneider’s commitment to long-term availability and support.
常见问题 (FAQ)
-
What does the 140AMM09000C module do?
It handles both analog input and output signals, making it ideal for process control and instrumentation. -
Can I configure each channel independently for voltage or current?
Yes, both input and output channels are configurable per channel via s/tware settings. -
Is the module hot-swappable?
Yes, when used in a properly configured Quantum rack system. -
Does it support 4-20mA analog sensors?
Yes, it supports standard 4-20mA and 0-20mA current input/output. -
What s/tware is used to configure this module?
You can use Schneider Electric’s 单位y Pro or EcoStruxure Control Expert. -
Is calibration required after installation?
Factory calibration is provided; however, periodic calibration is recommended in precision-critical applications. -
Can it be used in hazardous environments?
It meets ATEX and marine certifications, making it suitable for classified zones with proper installation. -
What type / backplane is needed for installation?
It is designed to be mounted in a Schneider Quantum series backplane. -
Is this module backward compatible with older Quantum systems?
Yes, it supports backward compatibility with most Quantum racks and CPUs. -
What is the lifespan / this module?
Typically exceeds 10 years under normal operating conditions, with appropriate environmental controls.
Related 型号s (Same Series or Functional 分类)
| 型号 | 描述 | Type | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| 140ACI03000 | 8-Channel Analog Current Input Module | Analog Input Module | 40×179×103 | 0.42 kg |
| 140ACO02000 | 2-Channel Analog Output Module | Analog Output Module | 40×179×103 | 0.40 kg |
| 140AMM05000 | Mixed Analog Module, 4 In / 2 Out | Analog Mixed I/O Module | 40×179×103 | 0.43 kg |
| 140AII33000 | 8-Channel Analog Voltage Input Module | Analog Input Module | 40×179×103 | 0.41 kg |
| 140DAI55300 | 32-Channel Digital Input Module | Digital Input Module | 40×179×103 | 0.39 kg |
| 140DDO35300 | 32-Channel Digital Output Module | Digital Output Module | 40×179×103 | 0.40 kg |
Popular Schneider Electric 型号s (Same 品牌)
| 型号 | 描述 | Type | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| BMXP342020 | Modicon M340 CPU, Ethernet, 512 KB RAM | PLC CPU | 62×150×100 | 0.55 kg |
| BMENOC0301 | Ethernet Communication Module | Communication Module | 62×150×100 | 0.50 kg |
| TSXP572634M | Premium PLC CPU Module | PLC CPU | 82×156×90 | 0.60 kg |
| BMXDAI1605 | 16-Channel Digital Input Module | Digital Input Module | 62×150×100 | 0.45 kg |
| BMXDDO1602 | 16-Channel Digital Output Module | Digital Output Module | 62×150×100 | 0.47 kg |
| BMXAMI0410 | 4-Channel Analog Input Module | Analog Input Module | 62×150×100 | 0.46 kg |
