产品介绍

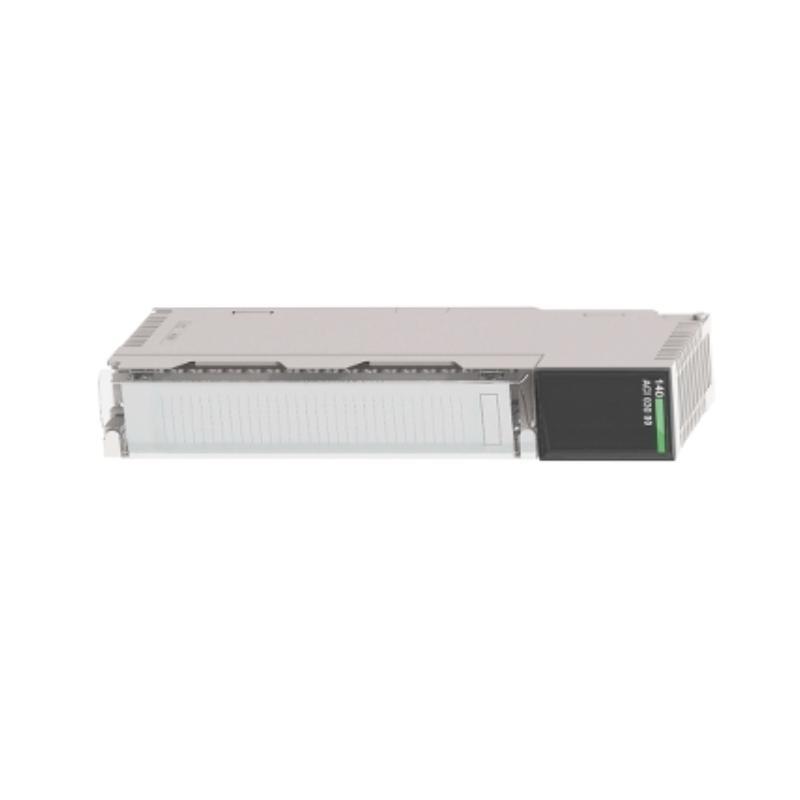

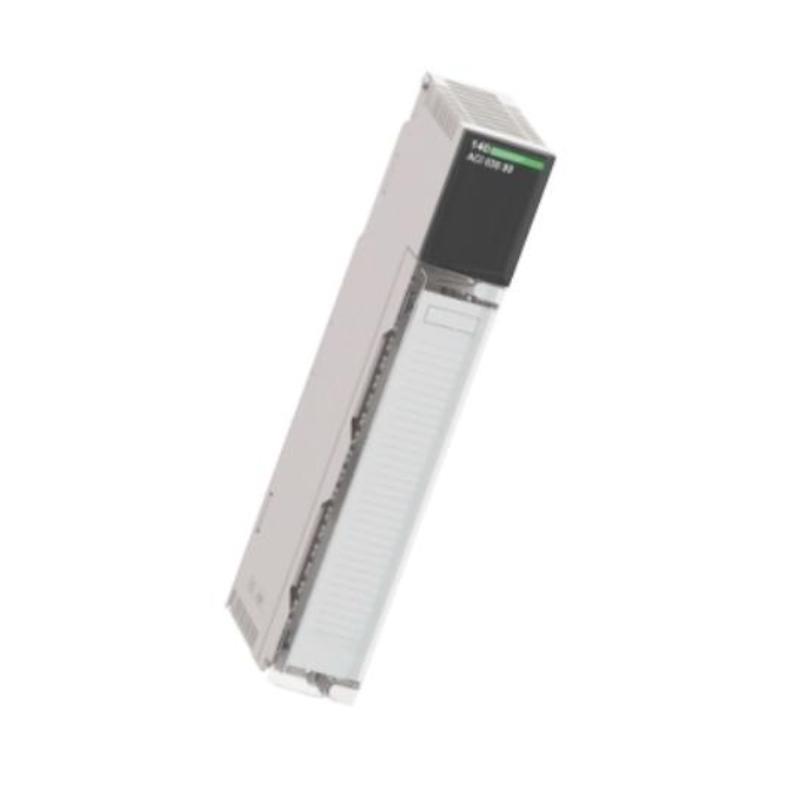

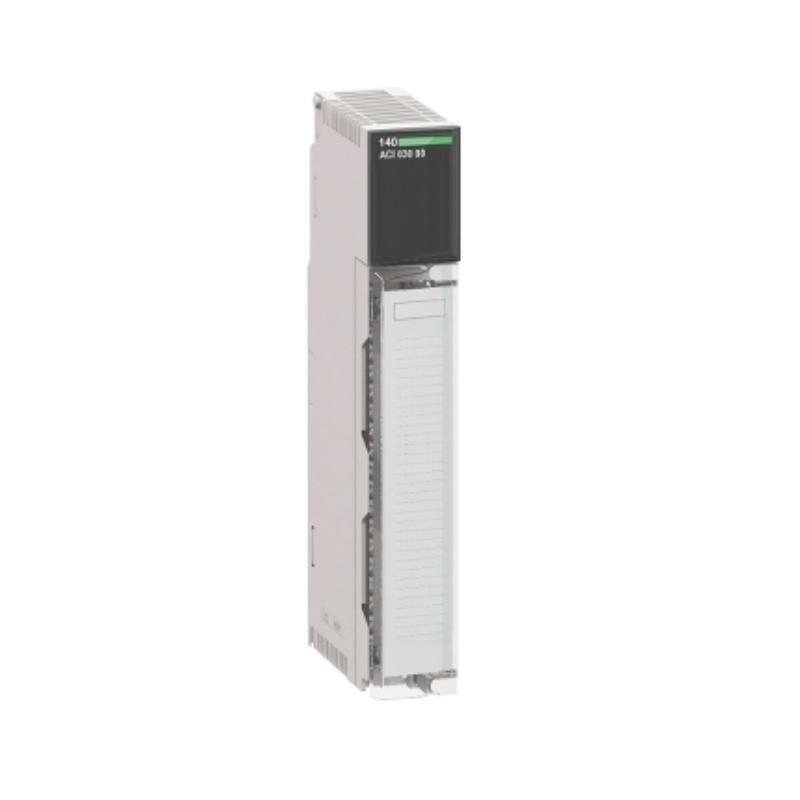

The Schneider 140AIO33000C is an Analog Input/Output module designed for use within the Modicon Quantum series programmable logic controllers (PLCs). Engineered with industrial-grade reliability and versatile analog signal support, this module serves as a key component in automation systems that require both input and output analog processing in a compact format. With robust diagnostic features and seamless integration into Quantum racks, the 140AIO33000C ensures accuracy, efficiency, and scalability for complex automation applications in sectors such as manufacturing, utilities, and process control.
Product Features
-
Combines analog input and output functionalities in a single module
-
支持s a wide range / analog signals including current and voltage
-
High-resolution input/output for precise control and monitoring
-
Isolated channels for improved signal integrity and safety
-
Easy configuration via 单位y Pro or EcoStruxure Control Expert
-
Integrated LED indicators for real-time diagnostics
-
Hot-swappable design minimizes system downtime
-
DIN rail or rack-mounted with Modicon Quantum architecture
产品规格
| Parameter | Details |
|---|---|
| 制造商 | Schneider Electric |
| Product Series | Modicon Quantum |
| 型号 Number | 140AIO33000C |
| Module Type | Analog I/O Module |
| Input Channels | 4 analog inputs |
| Output Channels | 2 analog outputs |
| Input Signal Type | 0–10 V, 4–20 mA |
| Output Signal Type | 0–10 V, 4–20 mA |
| Resolution | 12 bits (typical) |
| Isolation | Channel-to-bus isolation |
| Power Supply Requirement | 5 VDC, 350 mA (from backplane) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 50 x 165 x 310 mm |
| 重量 | 0.8 kg |
| Mounting Type | Rack-mounted (Quantum rack) |
| Programming S/tware | 单位y Pro / EcoStruxure Control Expert |
| Certifications | CE, UL, CSA, ATEX |
Applications
The Schneider 140AIO33000C module is ideally suited for the following applications:
-
Process Automation: Monitoring and controlling temperature, pressure, flow, and level in chemical, oil & gas, and pharmaceutical plants.
-
Manufacturing Systems: Controlling motor speed, feedback systems, and analog sensors in automated manufacturing environments.
-
Water Treatment Facilities: Monitoring water quality parameters such as pH, turbidity, and flow rate.
-
Energy Management: Reading analog signals from energy meters, transducers, and load centers.
-
HVAC Systems: Managing heating, cooling, and ventilation parameters based on analog sensor feedback.
-
Building Automation: Integration with temperature sensors, lighting controls, and environmental monitoring systems.
Advantages
-
Space Efficiency: Combines input and output functions in one module, reducing hardware complexity.
-
Flexibility: 支持s a wide range / analog signal types, making it suitable for various industrial needs.
-
Reliability: Industrial-grade design with high resistance to temperature and humidity changes.
-
Diagnostics: Integrated LED indicators and s/tware tools provide real-time system feedback.
-
Interoperability: Fully compatible with Modicon Quantum series, enhancing system scalability.
-
Easy Maintenance: Hot-swappable design allows replacement without shutting down the entire system.
-
Reduced Downtime: Simplified troubleshooting and configuration via Schneider’s EcoStruxure platform.
FAQs (常见问题)
-
Q: What type / signals does the 140AIO33000C support?
A: It supports both voltage (0–10 V) and current (4–20 mA) analog signals for input and output. -
Q: Can this module be used in safety-critical applications?
A: While reliable, it should be used alongside certified safety systems for critical applications. -
Q: Is the module hot-swappable?
A: Yes, it supports hot-swapping within a powered Quantum rack. -
Q: What s/tware is required for configuration?
A: It can be configured using Schneider’s 单位y Pro or EcoStruxure Control Expert. -
Q: How are the input/output channels isolated?
A: Channels are isolated from the backplane and each other to ensure signal integrity. -
Q: What is the maximum resolution / the analog signals?
A: The module /fers up to 12-bit resolution for both inputs and outputs. -
Q: Can it be used in outdoor environments?
A: It should be housed in a protective enclosure if used in outdoor or harsh environments. -
Q: What happens if one channel fails?
A: Fault diagnostics and LED indicators help isolate and identify the faulty channel quickly. -
Q: Does it support redundant systems?
A: Yes, it is compatible with Quantum systems that support redundancy configurations. -
Q: What industries commonly use this module?
A: It’s widely used in water treatment, power generation, manufacturing, and petrochemical sectors.
Related 型号s in the Same Series or Function
| 型号 | 描述 |
|---|---|
| 140AIO33010 | Analog I/O Module, extended range |
| 140ACI03000 | 8-Channel Analog Current Input Module |
| 140ACO13000 | 8-Channel Analog Current Output Module |
| 140AVI03000 | 8-Channel Analog Voltage Input Module |
| 140AVO02000 | 2-Channel Analog Voltage Output Module |
| 140AII33000 | 4-Channel Isolated Analog Input Module |
