产品介绍

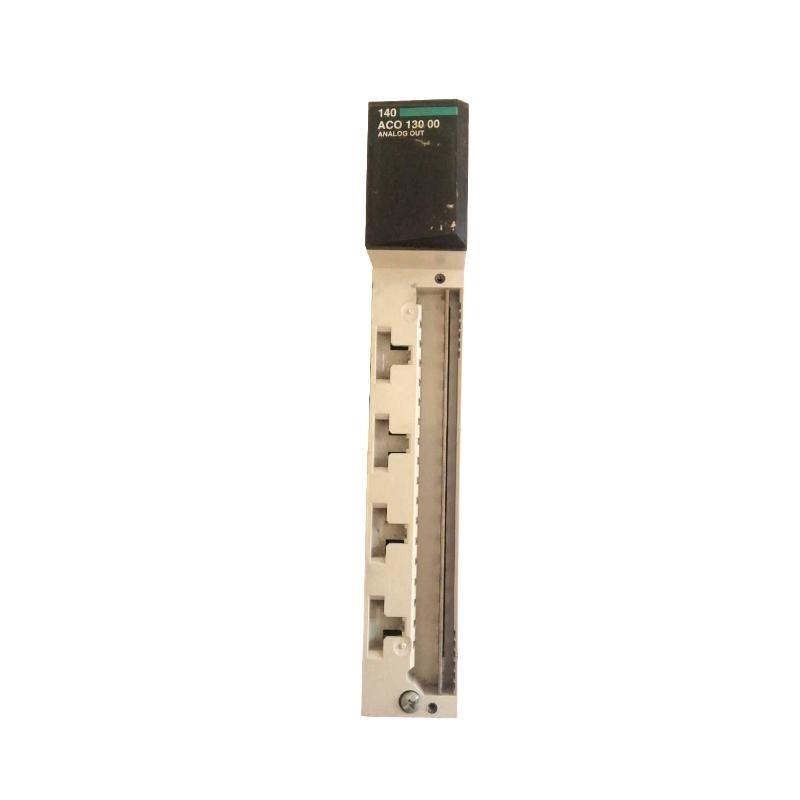

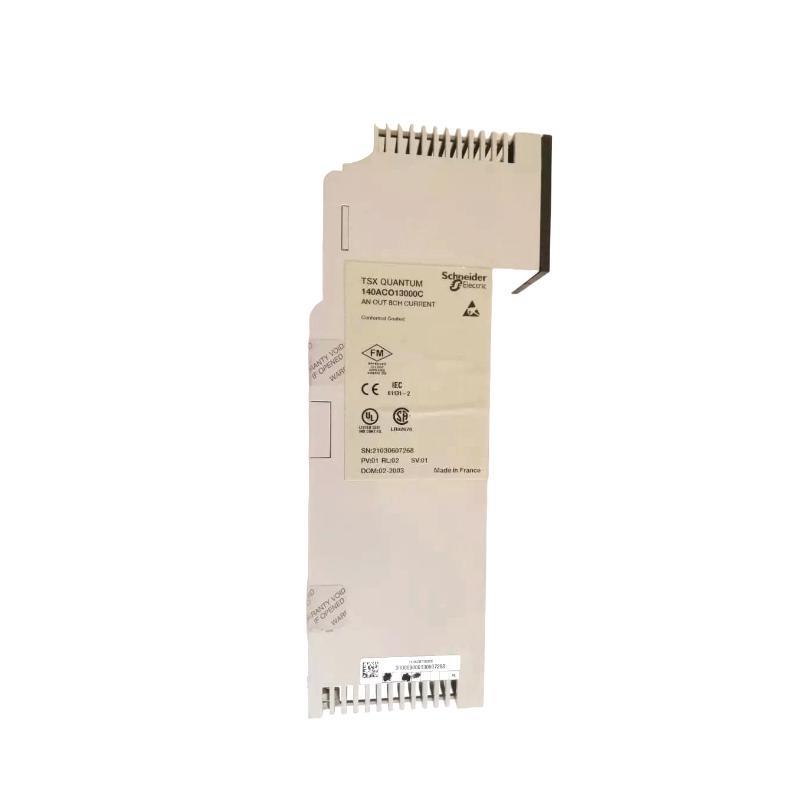

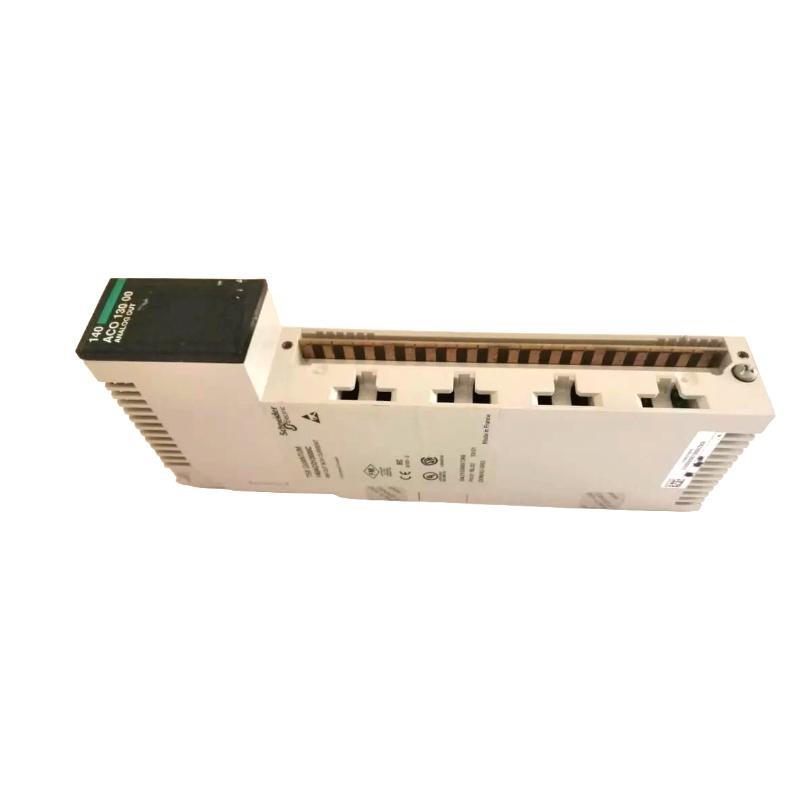

The Schneider 140ACO13000C is a high-performance Analog Output Module designed for use in the Modicon Quantum automation platform. It provides reliable and precise analog signal outputs used in industrial control systems for operating actuators, variable speed drives, valves, and other analog-driven devices.
This module is engineered to deliver current outputs with high-resolution digital-to-analog conversion. Its robust architecture, built-in diagnostics, and ease / configuration make it ideal for process control environments that demand accuracy, scalability, and long-term operational stability.
Whether it’s a water treatment plant or a petrochemical facility, the 140ACO13000C integrates seamlessly into Schneider Electric’s Quantum PLC ecosystem, /fering smooth communication and real-time control.
产品规格
| Parameter | Details |
|---|---|
| 型号 Number | 140ACO13000C |
| Product Type | Analog Output Module |
| Series | Modicon Quantum |
| 制造商 | Schneider Electric |
| Output Channels | 8 |
| Output Type | Analog Current |
| Output Range | 0–20 mA, 4–20 mA (configurable per channel) |
| Resolution | 12 bits |
| Output Accuracy | ±0.1% / full scale |
| Channel Isolation | 2500 V RMS (between channels and bus) |
| Power Dissipation | 3.5 W (typical) |
| Diagnostic Features | Open wire detection, module status LEDs |
| Hot-Swappable | Yes |
| Mounting Type | Backplane (Quantum rack) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W × H × D) | 103.9 × 40.3 × 250 mm |
| 重量 | 0.3 kg |
| Certifications | CE, UL, CSA, FM Class I Division 2, RoHS |
Product Applications
The Schneider 140ACO13000C is used in a wide array / industrial applications where analog control outputs are needed. Key usage scenarios include:
-
Oil & Gas Operations – Controlling valve actuators, pumps, and flow regulators.
-
Water & Wastewater Treatment – Driving chemical dosing systems, actuated gates, and VFDs.
-
Pharmaceutical Manufacturing – Maintaining precision in flow and temperature control loops.
-
Food and Beverage Automation – Ensuring accurate product mixing and process dosing.
-
Chemical Processing Plants – Outputting control signals to analog valves and sensors.
-
HVAC Systems in Large Facilities – Managing temperature and pressure via analog actuators.
Product Advantages
-
High Precision Output – 12-bit resolution and 0.1% accuracy for consistent performance.
-
Flexible Output Configuration – Selectable 0–20 mA or 4–20 mA outputs based on process needs.
-
Hot-Swappable Design – Enables module replacement without system shutdown, minimizing downtime.
-
Advanced Diagnostics – LED indicators and open wire detection ensure immediate issue identification.
-
Reliable Isolation – Channel-to-bus isolation enhances safety and prevents electrical interference.
-
Seamless Integration – Perfectly fits into the Modicon Quantum series for scalable DCS and PLC architecture.
-
Industrial-Grade Durability – Withstands harsh environments with wide temperature and humidity tolerance.
常见问题 (FAQ)
-
What type / analog signal does the 140ACO13000C output?
It outputs current signals in either 0–20 mA or 4–20 mA formats, configurable per channel. -
How many output channels are available on this module?
The module has 8 independent analog output channels. -
Is this module hot-swappable?
Yes, you can replace it while the system is powered without causing downtime. -
What resolution does the module provide?
It provides a 12-bit resolution for precise analog signal control. -
Can this module detect open wire faults?
Yes, it features built-in diagnostics including open wire detection. -
Is the 140ACO13000C suitable for hazardous environments?
Yes, it complies with FM Class I Division 2 certification for use in hazardous locations. -
How is this module installed?
It mounts directly onto a Modicon Quantum backplane (rack). -
Does it support channel-to-channel isolation?
It supports channel-to-bus isolation, providing electrical protection. -
What is the physical size and weight / the module?
It measures 103.9 × 40.3 × 250 mm and weighs 0.3 kg. -
Which systems is this module compatible with?
It is designed for use with Schneider’s Modicon Quantum PLC platform.
Related 型号s (Same Series or Similar Functionality)
| 型号 | 描述 | Signal Type | Channels | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| 140ACO02000 | Analog Output Module (2 ch) | Current | 2 | 40 × 162 × 130 | 0.42 |
| 140ACO13000 | Analog Output Module (8 ch) | Current | 8 | 40 × 162 × 130 | 0.44 |
| 140DAI55300 | Digital/Analog Combo Module | Mixed | 16 DI / 8 AO | 60 × 162 × 130 | 0.60 |
| 140AOC03000 | Analog Output Module (3 ch) | Current | 3 | 40 × 162 × 130 | 0.43 |
| 140ACI03000 | Analog Current Input Module | Current | 3 | 40 × 162 × 130 | 0.45 |
| 140AII33000 | Analog Input Module (8 ch) | Voltage | 8 | 40 × 162 × 130 | 0.45 |
Popular Schneider 型号s in Industrial Automation
| 型号 | Function | Platform | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| BMXP342020 | CPU Processor Module | Modicon M340 | 80 × 140 × 70 | 0.48 |
| TM241CE40T | Logic Controller w/ Ethernet | Modicon M241 | 150 × 100 × 75 | 0.55 |
| BMXAMO0410 | Analog Output Module (4 ch) | Modicon M340 | 60 × 140 × 80 | 0.50 |
| TM3AI8 | Analog Input Expansion Module | Modicon TM3 | 35 × 90 × 70 | 0.20 |
| TSXDEY16D2K | Digital Input Module (16 ch) | Modicon Premium | 40 × 160 × 130 | 0.40 |
| BMXNOE0100 | Ethernet Communication Module | Modicon M340 | 50 × 140 × 80 | 0.45 |
