产品介绍

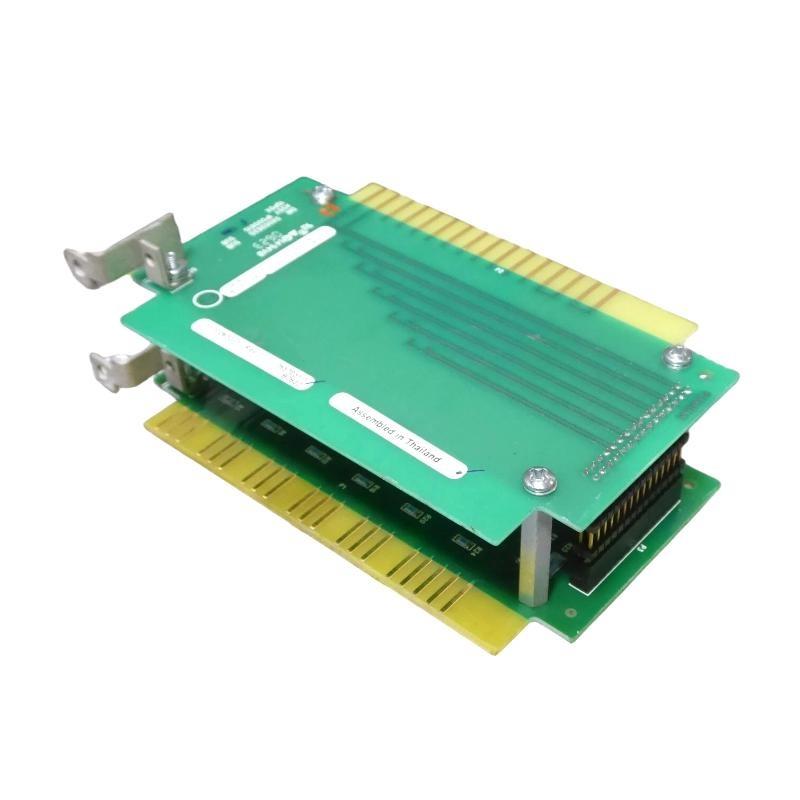

The Ovation 5X00261G01 Control Card is a vital component within the Ovation Distributed Control System (DCS), specifically designed to manage core control tasks and data handling functions. It operates as an intelligent interface between the controller module and the connected I/O subsystems, executing control strategies, signal conditioning, and system communications.
The 5X00261G01 enhances the processing capacity / the DCS by managing complex control loops and providing deterministic response times. Its rugged industrial design, combined with built-in fault diagnostics and redundancy support, ensures uninterrupted process control in mission-critical environments such as power generation, water treatment, petrochemical plants, and large-scale industrial automation systems.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | 5X00261G01 |
| Module Type | Control Card |
| Function | Executes control algorithms, manages system signals, and interfaces with I/O |
| CPU | High-speed microprocessor optimized for control tasks |
| Memory | 1 GB RAM, 256 MB Flash storage |
| Communication Interfaces | Ovation backplane, Ethernet, optional Modbus |
| 支持ed I/O | Digital and analog I/O via system rack |
| Processing Speed | Deterministic real-time execution with sub-millisecond response |
| Redundancy | 支持s dual-card redundant configuration |
| Protection Features | Over-current protection, watchdog timer, system reset |
| Diagnostics | Built-in self-test, error logging, LED indicators |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 215 x 125 x 40 mm |
| 重量 | 0.68 kg |
| Mounting | Rack-mounted in Ovation chassis |
| Certification | CE, UL listed, industrial automation grade |
Applications
The 5X00261G01 Control Card is widely deployed in automation systems requiring fast, reliable, and redundant process control:
-
Power Generation Plants – Manages turbine, boiler, and balance-/-plant control loops.
-
Water & Wastewater Treatment – Controls filtration, pumping, and chemical dosing processes.
-
Oil & Gas Industry – Provides stable control for refining, pipeline management, and compressor stations.
-
Petrochemical Industry – Executes control strategies for reactors, distillation 件s, and safety interlocks.
-
Industrial Manufacturing – Handles logic and continuous control in production lines.
-
Renewable Energy – 支持s wind, solar, and hydroelectric plant process automation.
Advantages
The Ovation 5X00261G01 provides a range / advantages to system integrators and operators:
-
Deterministic Control – Guarantees real-time response for mission-critical applications.
-
Scalable Architecture – Easily integrates additional cards for system expansion.
-
Fault-Tolerant Operation – Redundancy support minimizes downtime in case / hardware failure.
-
Enhanced Diagnostics – Onboard monitoring and self-tests simplify maintenance.
-
High Compatibility – Fully compatible with Ovation racks and backplane communications.
-
Robust Reliability – Designed to withstand industrial operating environments.
-
Flexible Communication – 支持s multiple interfaces for easy plant integration.
常见问题 (FAQ)
-
How does the 5X00261G01 interface with the Ovation system?
It communicates via the Ovation backplane and integrates with system controllers and I/O modules. -
What is the typical processing response time / this control card?
It supports deterministic execution with sub-millisecond cycle times. -
Does the 5X00261G01 support redundant operation?
Yes, it can be configured in dual redundant mode to ensure continuous system availability. -
What type / memory is included in the card?
It is equipped with 1 GB RAM for processing and 256 MB flash for firmware and configuration storage. -
What protection mechanisms are built into the module?
It includes over-current protection, watchdog timer monitoring, and automatic system reset. -
Is the control card capable / handling both analog and digital I/O?
Yes, it supports a wide range / digital and analog I/O modules within the Ovation system. -
How is diagnostic information provided to operators?
The card /fers built-in self-tests, error logging, and LED indicators for quick status feedback. -
Can the module be hot-swapped during operation?
Yes, it is designed for hot-swappable replacement to minimize downtime. -
Which communication protocols are supported?
Standard interfaces include Ethernet and optional Modbus for plant integration. -
Is this module backward-compatible with legacy Ovation racks?
Yes, it is designed for backward compatibility, allowing smooth upgrades in older systems.
Related Ovation Series 型号s
| 型号 Number | Module Type | 描述 |
|---|---|---|
| 5X00260G01 | Control Card | Standard control card for 西屋 |
| 5X00262G01 | Control Card | Enhanced processing version with additional memory |
| 5X00263G01 | Control Card | Redundancy-optimized model for high availability |
| 5X00264G01 | Control Card | Communication-focused variant with extended interfaces |
| 5X00265G01 | Control Card | Advanced diagnostics and monitoring version |
| 5X00266G01 | Control Card | High-performance control card for large-scale applications |
Popular Ovation 型号s (Same 品牌)
| 型号 Number | Module Type | 描述 |
|---|---|---|
| 5X00488G01 | I/O Module | 支持s mixed analog and digital signals |
| 5X00489G02 | Communication Module | Provides Ethernet and Modbus connectivity |
| 5X00490G09 | System Power Module | Supplies regulated system power |
| 5X00491G01 | Controller Module | Central CPU module for 西屋 |
| 5X00492G02 | Signal 状态ing Module | Ensures precision in analog signal processing |
| 5X00493G01 | Safety Module | Designed for interlock and shutdown control |
