Product Overview

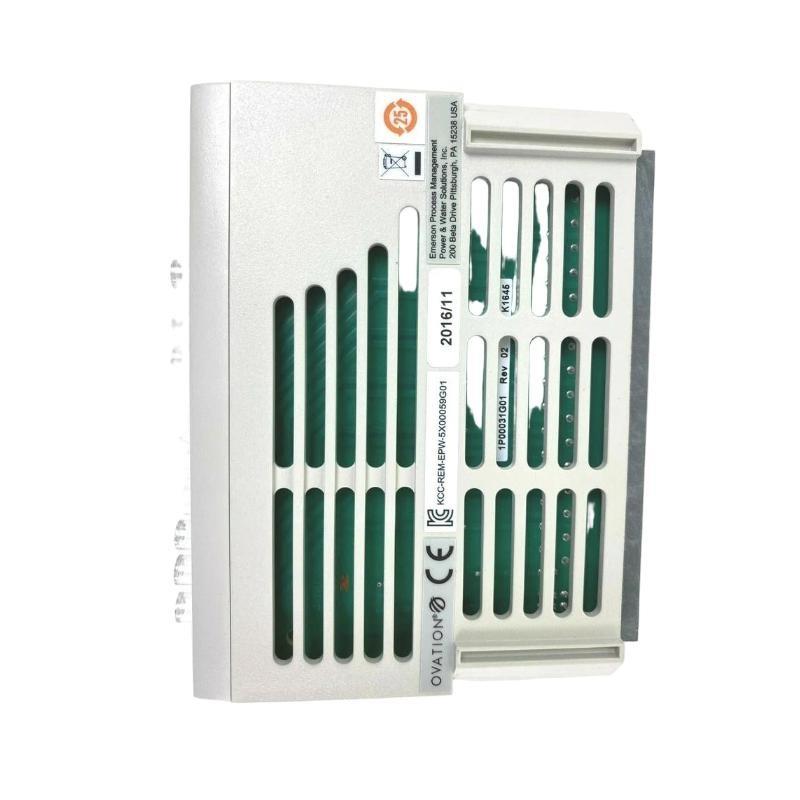

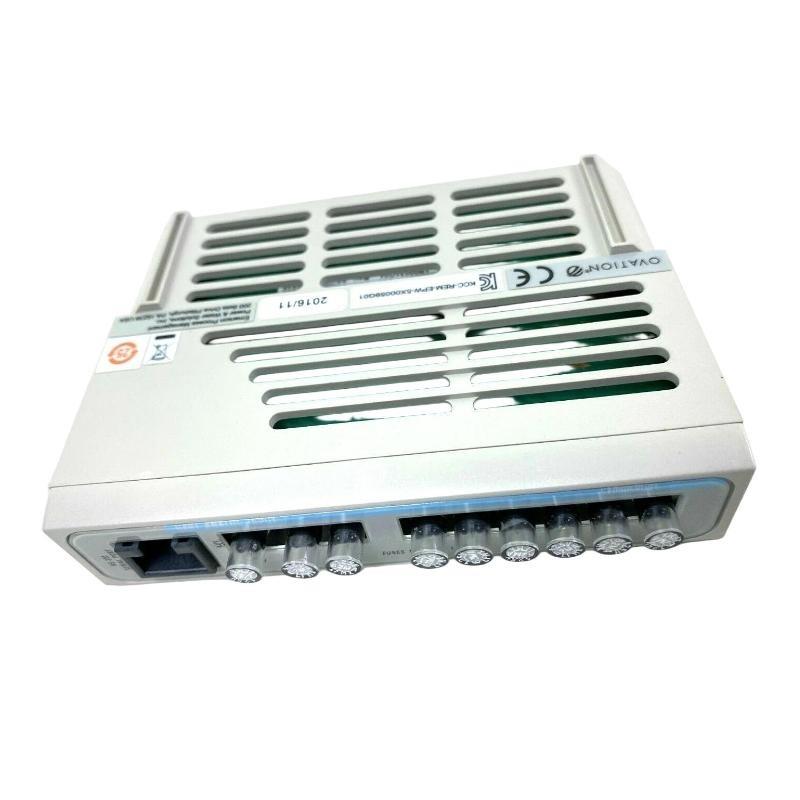

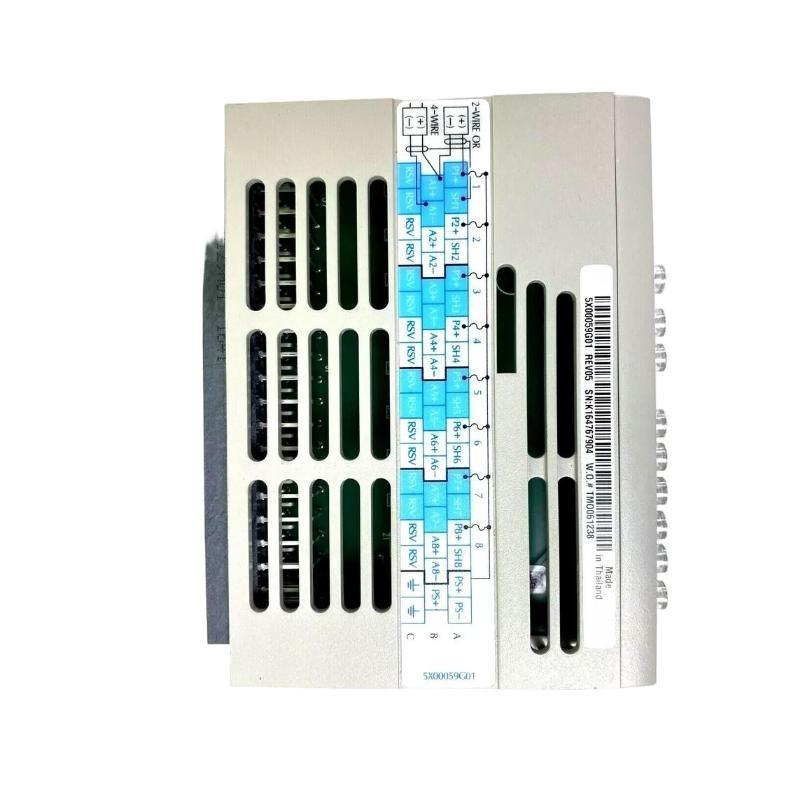

The Ovation 5X00059G01 Analog Input Module is designed for Ovation Distributed Control Systems (DCS), providing accurate acquisition / analog signals from field instruments. It allows precise measurement / temperature, pressure, flow, and other process variables, enabling reliable process monitoring and control.
Key Features
-
High-accuracy analog signal acquisition for process control
-
Compatible with 西屋 platforms
-
支持s multiple analog input channels
-
Robust design for industrial environments
-
Rack-mountable and modular for flexible installation
-
High signal integrity with noise rejection
-
Long-term stable performance for continuous operation
Technical Specifications
| Item | Specification |
|---|---|
| 型号 Number | 5X00059G01 |
| Type | Analog Input Module |
| System Compatibility | 西屋 |
| Function | Acquisition / analog process signals |
| Input Channels | Multiple analog inputs (4–8 channels typical) |
| Input Range | ±10 VDC / 0–20 mA / 4–20 mA (configurable) |
| Accuracy | ±0.1% / full scale |
| Resolution | 16-bit analog-to-digital conversion |
| Response Time | <10 ms per channel |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | 5–95% non-condensing |
| Dimensions | 100 × 60 × 22 mm |
| 重量 | 1.36 kg |
| Mounting | Rack-mounted |
| Compliance | CE, UL, RoHS |
Industry Applications
-
Power generation – temperature, pressure, and flow monitoring
-
Oil & gas – process instrumentation signal acquisition
-
Petrochemical and chemical – continuous process monitoring
-
Industrial manufacturing – machinery and process variable measurement
-
Water & wastewater – pump, valve, and tank monitoring
Advantages
-
Provides high-accuracy analog signal acquisition for reliable control
-
Seamlessly integrates with 西屋 for efficient process automation
-
Modular design ensures easy installation and maintenance
-
High signal integrity and noise rejection support stable operation
-
Long-term stable performance in industrial environments
-
Rack-mounted design simplifies system expansion and upgrades
常见问题 (FAQ)
Q1: What is the main function / the 5X00059G01 module?
It acquires analog signals from field instruments for process monitoring and control.
Q2: Which systems is it compatible with?
It is compatible with Ovation Distributed Control Systems (DCS).
Q3: How many input channels does it support?
It typically supports 4–8 configurable analog input channels.
Q4: What signal types can it measure?
Voltage (±10 VDC) and current (0–20 mA / 4–20 mA) signals.
Q5: What is the accuracy / the module?
±0.1% / full scale.
Q6: What is the operating temperature range?
0 °C to +60 °C.
Q7: How is the module mounted?
Rack-mounted within the Ovation control cabinet.
Q8: What are its approximate dimensions and weight?
Dimensions are 100 × 60 × 22 mm; weight are 1.36 kg.
Q9: Does it provide stable performance in industrial environments?
Yes, it is designed for high stability and noise rejection.
Q10: Which industries commonly use this module?
Power generation, oil & gas, petrochemical, industrial manufacturing, and water & wastewater.
Related Ovation Modules
| 型号 Number | 描述 |
|---|---|
| 5X00376G01 | Analog Output Module |
| 5X00594G01 | Analog Input Module |
| 5X00499G01 | Digital Input Module |
| 1C31219G02 | Relay Output Module |
| 5X00105G07 | Process Control Board |
| 5X00300G01 | DisplayPort Interface |
Popular Ovation Modules
| 型号 Number | 描述 |
|---|---|
| 5X00583G01 | Input/Output Module |
| 4D33900G19 | Power Supply |
| 5X00499G01 | Digital Input Module |
| 5X00376G01 | Analog Output Module |
| 5X00105G07 | Process Control Board |
| 5X00300G01 | DisplayPort Interface |
