产品介绍

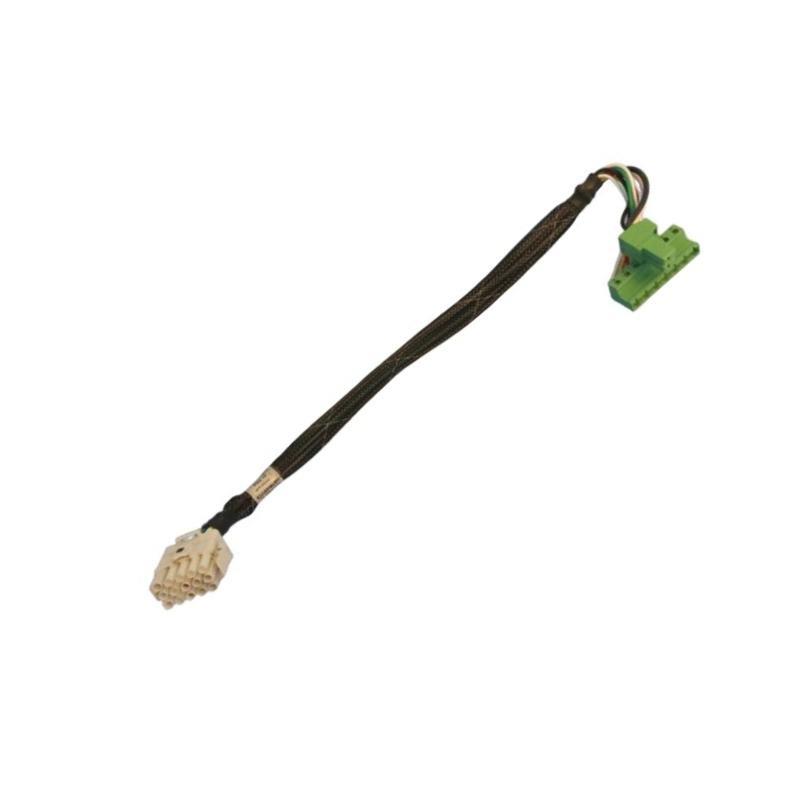

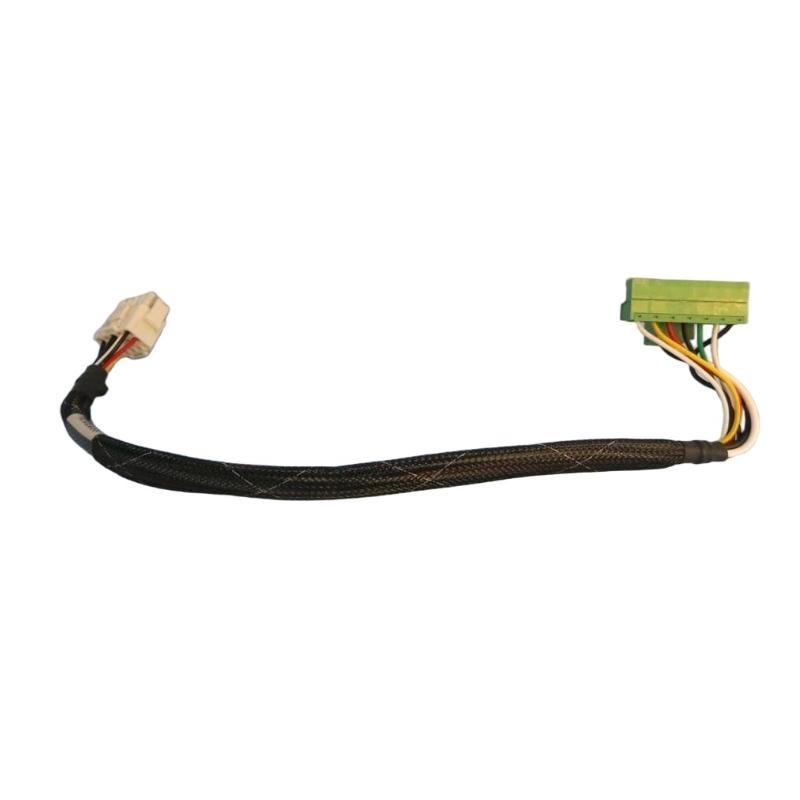

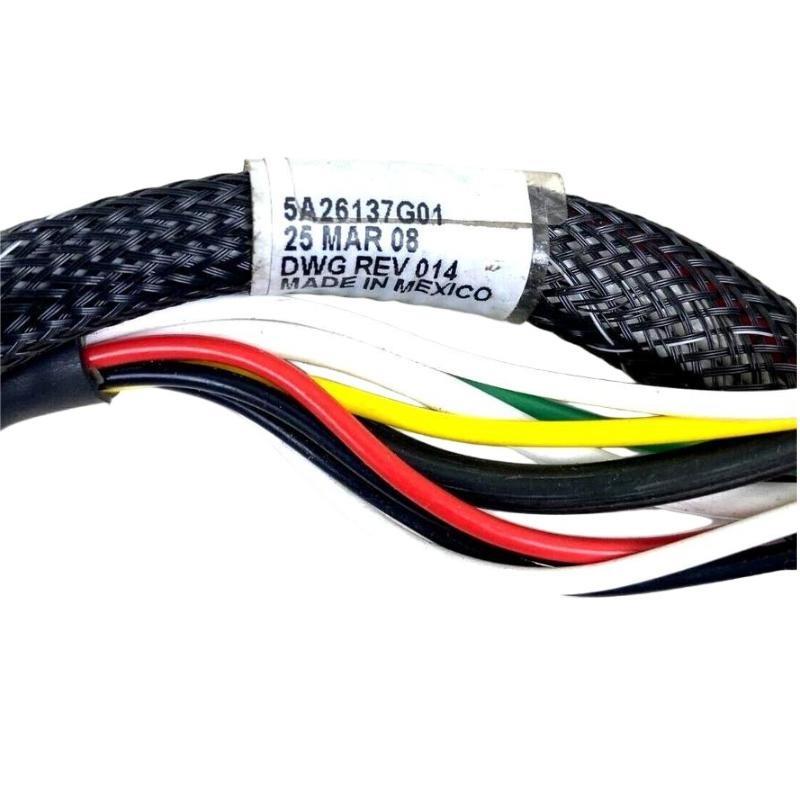

The Ovation 5A26137G01 Distribution Cable is a high-quality industrial-grade cable specifically designed for reliable signal and power transmission within Emerson’s Ovation control systems. Engineered to support high-performance automation networks, this cable ensures secure communication between system modules and field devices in mission-critical environments.
With rugged construction and excellent electrical properties, the 5A26137G01 is built to withstand the harsh conditions typically found in process automation, power generation, and industrial control facilities. Whether used in a new installation or as part / a system upgrade, this distribution cable provides the reliability and efficiency demanded by modern industrial systems.
产品规格
| Specification | Details |
|---|---|
| 型号 | 5A26137G01 |
| Type | Distribution Cable |
| Cable Type | Shielded Multi-Conductor |
| Number / Conductors | 4 pairs (8 wires total) |
| Conductor Size | 18 AWG |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Outer Jacket | Flame-retardant PVC |
| Shielding | Foil with drain wire |
| Voltage Rating | 300 V |
| Temperature Range | -20°C to +90°C |
| Flame Rating | UL VW-1, CSA FT4 |
| Oil & Chemical Resistance | Yes |
| Bend Radius (minimum) | 6x cable diameter |
| Cable Length | 10 inches |
| 重量 | 0.195 kg |
| Compliance | RoHS, UL Listed, CSA Approved |
Product Applications
The Ovation 5A26137G01 Distribution Cable serves as a critical interconnect component in Ovation control systems and is used in a wide range / applications:
-
Power Plants
Used to distribute control signals and low-voltage power between Ovation controllers and field equipment. -
Process Control Facilities
Facilitates reliable communication in chemical, petrochemical, and water treatment plants. -
Industrial Automation Systems
Ensures dependable transmission between PLCs, I/O modules, and sensors. -
Substations
Connects SCADA systems and protective relays in electrical substations. -
OEM Equipment Integration
Used by equipment manufacturers to ensure compatibility with Ovation-based automation platforms. -
Distributed Control Systems (DCS)
Functions as a signal backbone within 西屋 installations.
Product Advantages
The Ovation 5A26137G01 Distribution Cable provides several benefits that make it a trusted solution in demanding environments:
-
Shielded Construction
Foil shielding reduces EMI (Electromagnetic Interference), ensuring signal integrity in high-noise environments. -
Flame-Resistant Design
Meets UL VW-1 and CSA FT4 flame test ratings, providing enhanced safety in industrial applications. -
Flexible and Durable
Withstands repeated flexing without performance loss, making it ideal for both static and dynamic applications. -
High Temperature Tolerance
Rated for continuous operation from -20°C to +90°C, suited for harsh climate zones. -
RoHS and UL Compliance
Meets international safety and environmental standards. -
Customizable Lengths
Can be tailored to system needs, reducing waste and installation complexity. -
Easy Installation
With a manageable bend radius and durable outer jacket, it is simple to route and secure within panels or conduit systems.
FAQ (常见问题)
-
What is the primary function / the 5A26137G01 Distribution Cable?
-
It serves to transmit control signals and low-voltage power between Ovation system components.
-
-
Is the cable shielded?
-
Yes, it includes foil shielding with a drain wire to minimize electromagnetic interference.
-
-
Can this cable be used outdoors?
-
It is primarily rated for indoor use, but may be used in protected outdoor enclosures depending on local conditions.
-
-
What kind / connectors are compatible with this cable?
-
Standard terminal blocks or Ovation-specific connectors designed for 18 AWG conductors.
-
-
Is this cable flame-retardant?
-
Yes, it is rated UL VW-1 and CSA FT4 for flame resistance.
-
-
Can I order the cable in custom lengths?
-
Absolutely. Though standard lengths are 100 meters, custom cuts are available on request.
-
-
What is the insulation material used?
-
The insulation is made / durable, heat-resistant PVC.
-
-
Is the cable resistant to oil and chemicals?
-
Yes, the outer jacket is oil- and chemical-resistant for industrial environments.
-
-
What color is the cable jacket?
-
The cable jacket is black.
-
-
Does the cable comply with RoHS standards?
-
Yes, it is fully RoHS-compliant and environmentally safe.
Related 型号s
| 型号 | Cable Type | Conductor Size | Length Options | Shielding | Use Case |
|---|---|---|---|---|---|
| Ovation 5A26137G02 | Shielded Distribution | 18 AWG | Up to 150 meters | Yes | Extended-length installations |
| Ovation 5A26138G01 | Communication Cable | 22 AWG | 100 meters | Yes | Controller-network interface |
| Ovation 5A26135G01 | Control Cable | 16 AWG | 50–200 meters | Yes | High-current signal systems |
| Ovation 5A26200G01 | Twisted Pair Cable | 18 AWG | 100 meters | Yes | Signal synchronization |
| Ovation 5A26136G01 | Power/Signal Cable | 14 AWG | 100 meters | Yes | Dual-purpose connections |
| Ovation 5A26150G01 | Analog Signal Cable | 20 AWG | 75 meters | Yes | Field sensor integration |
Popular 型号s from the Same 品牌 (Ovation)
| 型号 | Type | Function | Application Area |
|---|---|---|---|
| Ovation 1X00024H01 | Power Supply Module | 24V DC power output | Control cabinets, DCS |
| Ovation 5X00167G01 | I/O Module | Digital Input | Field device interface |
| Ovation 1C31194G01 | Analog Input Module | Signal conversion | Process monitoring |
| Ovation 1C31116G01 | Controller Module | Real-time process control | DCS cores |
| Ovation 5X00357G01 | Communication Interface | Protocol gateway | System networking |
| Ovation 1X00035H01 | Battery Backup Module | UPS for control systems | Power loss prevention |
