产品介绍

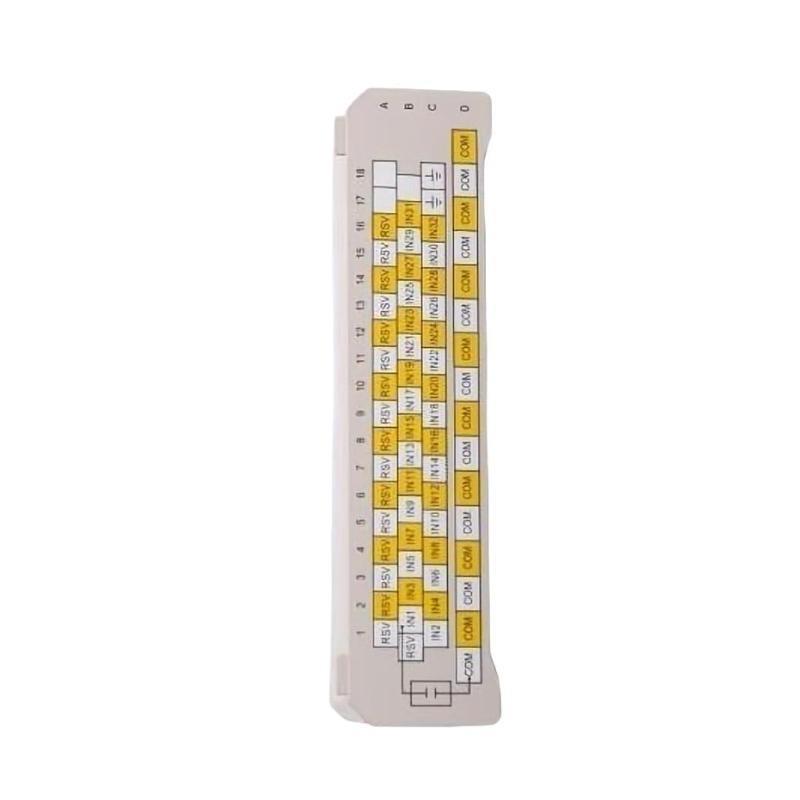

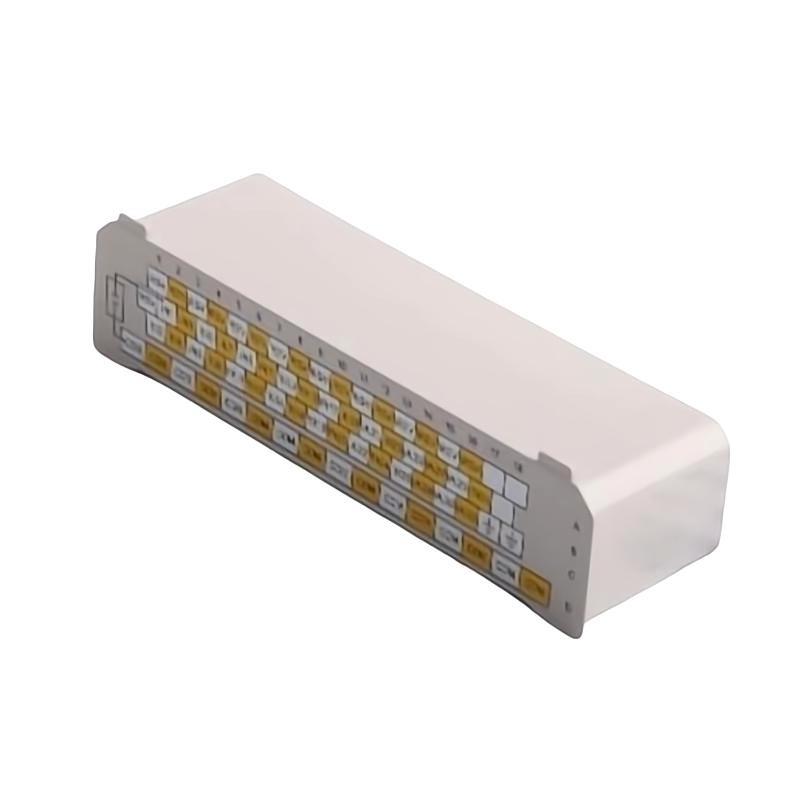

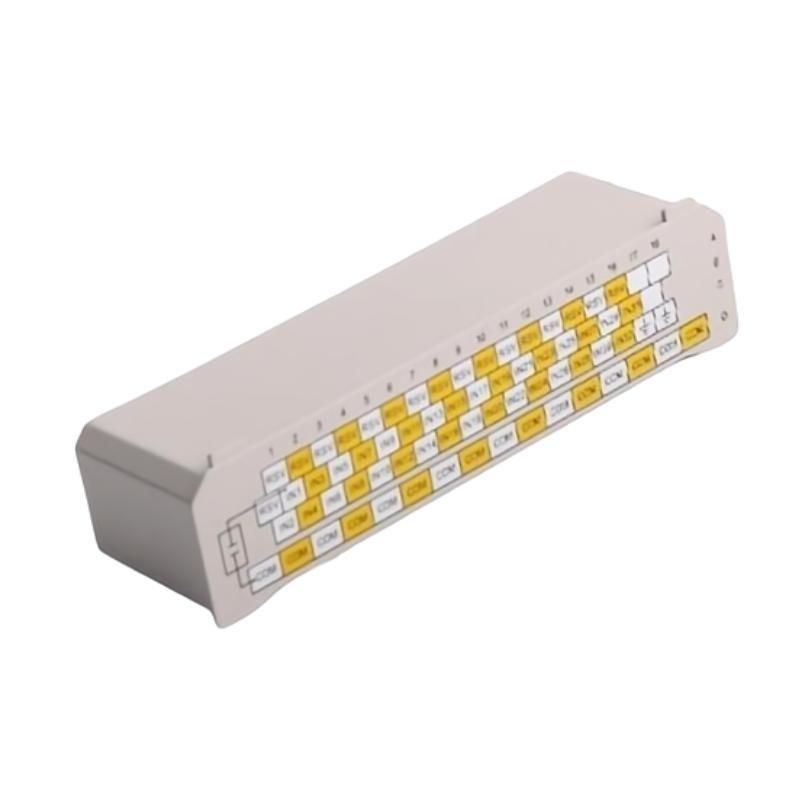

The Ovation 1X00884H01 PMOD Cavity Insert is a specialized component designed for use in Emerson Ovation Distributed Control System (DCS) PMOD assemblies. This cavity insert is specifically intended for 32-channel Events Input 联系我们 Input modules, providing secure mounting, electrical isolation, and consistent signal routing. Its precision construction ensures proper alignment / contacts, reduces electrical interference, and enhances overall reliability / the Ovation system. Engineered for demanding industrial environments, it is suitable for power generation, water treatment, and complex process automation applications where precise event detection and high-speed digital signal processing are required.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 Number | 1X00884H01 |
| Product Type | PMOD Cavity Insert |
| Function | 32-Channel Events Input 联系我们 Input |
| Material | High-strength industrial-grade composite |
| Electrical Properties | High dielectric strength, low leakage current |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Mechanical Strength | High impact and vibration resistance |
| Mounting | Snap-fit or screw-secured within PMOD frame |
| Compatibility | Ovation PMOD and 32-channel Events Input modules |
| Certifications | CE, UL, RoHS compliant |
| Dimensions (W × H × D) | 100 × 40 × 25 mm |
| 重量 | 0.05 kg |
Applications
-
Power Generation: Interfaces with turbine and generator events detection systems, ensuring reliable high-speed signal input.
-
Water & Wastewater Treatment: Provides accurate event input monitoring for pumps, valves, and sensors.
-
Petrochemical Plants: Handles multiple contact inputs in high-vibration and high-temperature areas.
-
Industrial Automation: Facilitates collection / digital events from manufacturing and production line equipment.
-
Renewable Energy Facilities: Integrates with solar and wind turbine monitoring systems for critical event detection.
-
Infrastructure Monitoring: 支持s digital input acquisition in transportation and utility control systems.
Advantages
-
High-Density Input 支持: 支持s 32 channels in a single cavity insert, optimizing rack space.
-
Reliable Electrical Isolation: Reduces interference between channels and protects system electronics.
-
Precision Engineering: Ensures secure placement / contacts for accurate event input detection.
-
Robust Material: Resistant to vibration, impact, and harsh environmental conditions.
-
Easy Installation: Snap-fit or screw-secured design allows for quick module replacement or maintenance.
-
System Compatibility: Optimized for Ovation PMOD modules, ensuring seamless integration.
-
Regulatory Compliance: Meets CE, UL, and RoHS standards for industrial safety and environmental compliance.
FAQ
-
What type / signals does the 1X00884H01 PMOD Cavity Insert handle?
It is designed to handle 32-channel digital events input contact signals from field devices. -
Is this cavity insert compatible with all Ovation PMOD modules?
It is specifically designed for 32-channel Events Input PMOD assemblies but may fit compatible Ovation PMOD layouts. -
What material is used to manufacture the insert, and why is it suitable?
It is made / a high-strength industrial composite, providing electrical insulation, thermal stability, and mechanical durability. -
How does the insert contribute to signal integrity?
It maintains precise contact alignment and electrical isolation between channels, reducing cross-talk and interference. -
What operating temperature range is supported by this cavity insert?
It operates reliably from –20 °C to +70 °C, suitable for standard industrial environments. -
How is the cavity insert mounted within the PMOD frame?
The insert uses a snap-fit mechanism and can also be secured with screws for additional stability. -
Does the insert require any special maintenance?
No special maintenance is required; routine inspections are sufficient to ensure proper operation. -
Can the insert withstand high-vibration environments?
Yes, the material and construction are designed to resist vibration and mechanical shocks typical in industrial settings. -
Is the insert electrically safe for high-density PMOD modules?
Yes, it provides high dielectric strength and low leakage current, ensuring safety for all channels. -
Does the cavity insert support rapid module replacement in the field?
Yes, its design allows quick removal and installation without affecting other PMOD components.
Recommended Related 型号s (Same Series or Similar)
| 型号 | 描述 |
|---|---|
| 1X00188H01 | PMOD Cavity Insert for alternative PMOD configurations |
| 1X00883H01 | High-strength Cavity Insert for 16-channel input modules |
| 1X00885H02 | Extended PMOD Insert for specialized input/output racks |
| 1X00880H01 | Thermal-resistant cavity insert for high-temperature PMODs |
| 1X00890H01 | Precision-fit cavity insert for compact PMOD layouts |
| 1X00892H01 | Anti-vibration PMOD insert for mobile or transport applications |
Popular Ovation 型号s
| 型号 | 描述 |
|---|---|
| 1C31123G01 | Digital Output Module for field device actuation |
| 5X00701G02 | Analog Output Module for precise process control |
| 5X00357G02 | 16-Channel Enhanced Events Input Module for high-speed input capture |
| 1X00024H03 | Redundant 24 VDC Power Supply Module |
| 1D54582G01 | High-efficiency Ovation Power Supply |
| 1X00046H02 | Copper-to-Fiber Media Converter for long-distance network integration |
