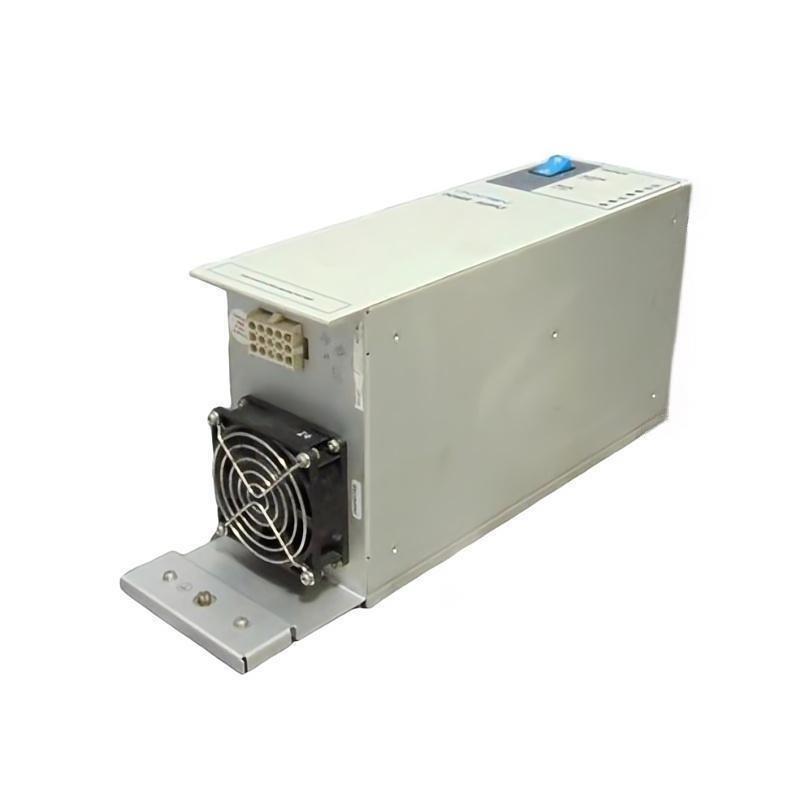

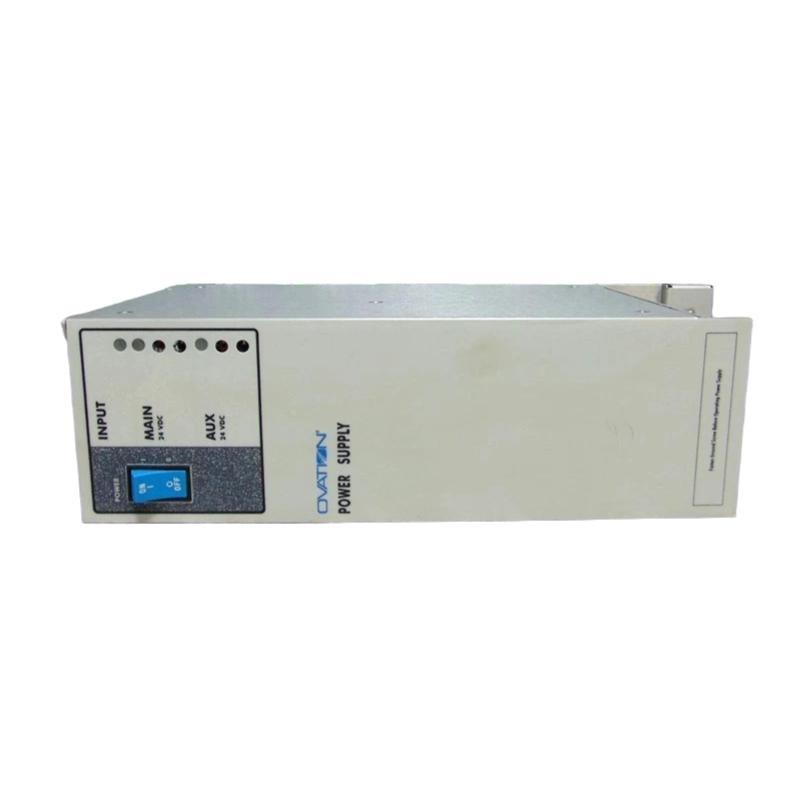

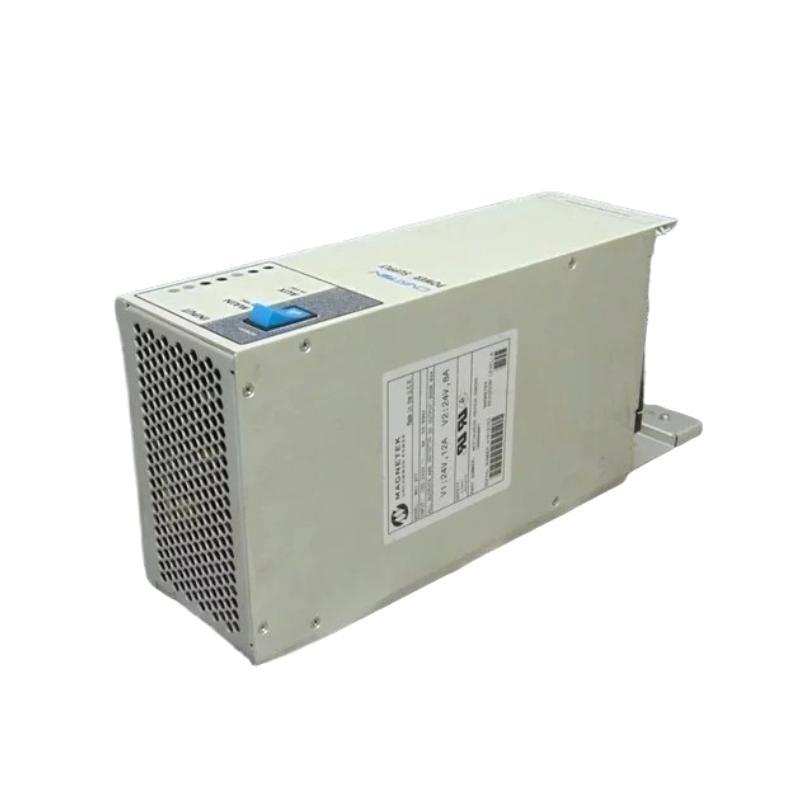

The Ovation 1X00097H01 Power Supply is a high-reliability, industrial-grade power supply designed for integration within Emerson’s Ovation Distributed Control System (DCS). This power supply provides stable and precise DC voltage to ensure the proper operation / Ovation I/O modules, controllers, and field devices. Engineered for demanding industrial environments, the 1X00097H01 delivers exceptional voltage regulation, low ripple, and robust protection against electrical disturbances, making it suitable for critical applications in power generation, petrochemical, and process industries. Its modular and compact design allows for easy installation, maintenance, and integration into Ovation control panels, guaranteeing continuous and dependable system operation.
产品规格
| Parameter | Details |
|---|---|
| 型号 Number | 1X00097H01 |
| Function | DC Power Supply |
| Output Voltage | 24 VDC nominal |
| Output Current | 5 A maximum |
| Input Voltage Range | 100–240 VAC, 50/60 Hz |
| Power Rating | 120 W nominal |
| Voltage Regulation | ±1% maximum |
| Ripple & Noise | <50 mV peak-to-peak |
| Protection Features | Overvoltage, overload, short-circuit protection |
| Operating Temperature Range | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Temperature Range | –40 °C to +85 °C (–40 °F to +185 °F) |
| Mounting Type | DIN rail or panel mount |
| Dimensions (L × W × H) | 130 × 50 × 160 mm |
| 重量 | 0.6 kg |
| Compliance/Certifications | CE, UL, RoHS |
Applications
The 1X00097H01 power supply is ideal for industrial process and automation applications, including:
-
Supplying DC power to Ovation I/O modules and controllers
-
Ensuring stable operation / field devices such as sensors, actuators, and relays
-
Powering instrumentation and control equipment in power plants
-
支持ing automation systems in petrochemical, chemical, and manufacturing facilities
-
Integration in distributed control systems requiring uninterrupted, regulated power
Advantages
-
Reliable Performance – Maintains stable output under varying input voltage and load conditions.
-
High Efficiency – Low power loss ensures energy-efficient operation.
-
Robust Protection – Built-in overvoltage, overload, and short-circuit protection ensures device and system safety.
-
Compact and Modular Design – Allows easy installation on DIN rails or panels in control cabinets.
-
Wide Input Range – Compatible with international AC supply voltages (100–240 VAC).
-
Low Ripple and Noise – Ensures precise operation / sensitive Ovation system modules.
FAQ
-
What is the nominal output voltage / the 1X00097H01 power supply?
The nominal output is 24 VDC, providing stable power for Ovation modules and field devices. -
What is the maximum output current?
It can supply up to 5 A, suitable for multiple Ovation modules or connected devices. -
What AC input voltage range does it support?
The 件 operates with 100–240 VAC, 50/60 Hz, accommodating common industrial power sources. -
Does it include protection against faults?
Yes, it has built-in overvoltage, overload, and short-circuit protection for safe operation. -
Can it be mounted on a DIN rail or panel?
Yes, it supports both DIN rail and panel mounting for flexible installation. -
What is the voltage regulation accuracy?
±1% across its rated load, ensuring consistent DC output for reliable control performance. -
What is the ripple and noise level?
Less than 50 mV peak-to-peak, providing clean power for sensitive Ovation devices. -
Is it suitable for industrial environments?
Yes, it operates from –20 °C to +70 °C, ideal for indoor control panel installations. -
Can it power multiple modules at once?
Yes, as long as the combined current does not exceed 5 A. -
Is it compliant with safety and environmental standards?
Yes, it meets CE and UL standards and is RoHS compliant.
Related 型号s (Same Series)
| 型号 Number | Key Feature |
|---|---|
| 1X00097H02 | Higher current output version (10 A) |
| 1X00097H03 | Redundant power supply configuration |
| 1X00097H04 | Extended input voltage range for international use |
| 1X00097H05 | Enhanced surge protection for industrial environments |
| 1X00097H06 | Compact design for space-constrained panels |
| 1X00097H07 | Dual output channels for independent loads |
