产品介绍

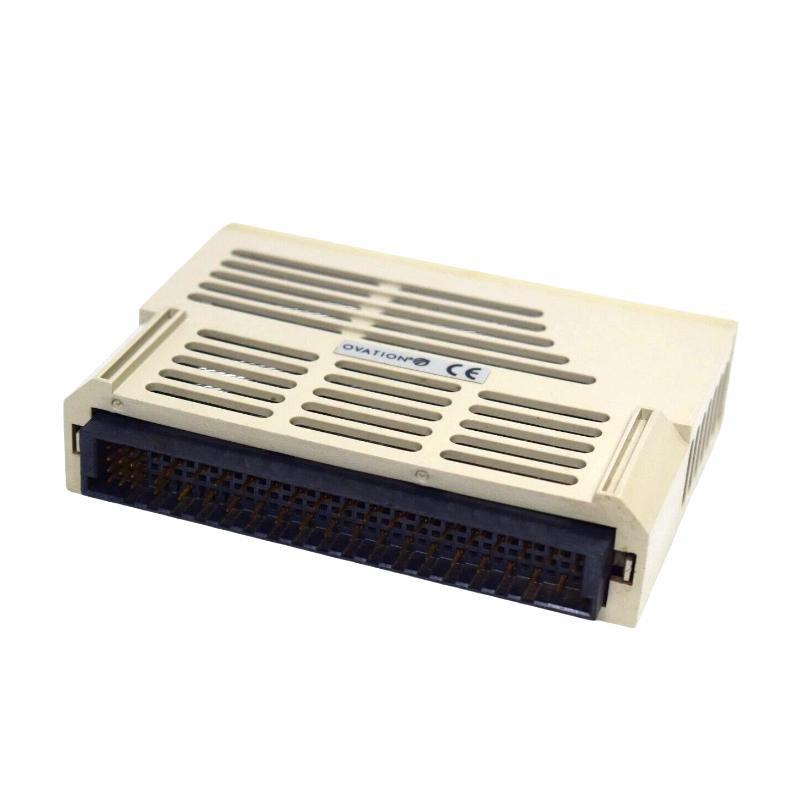

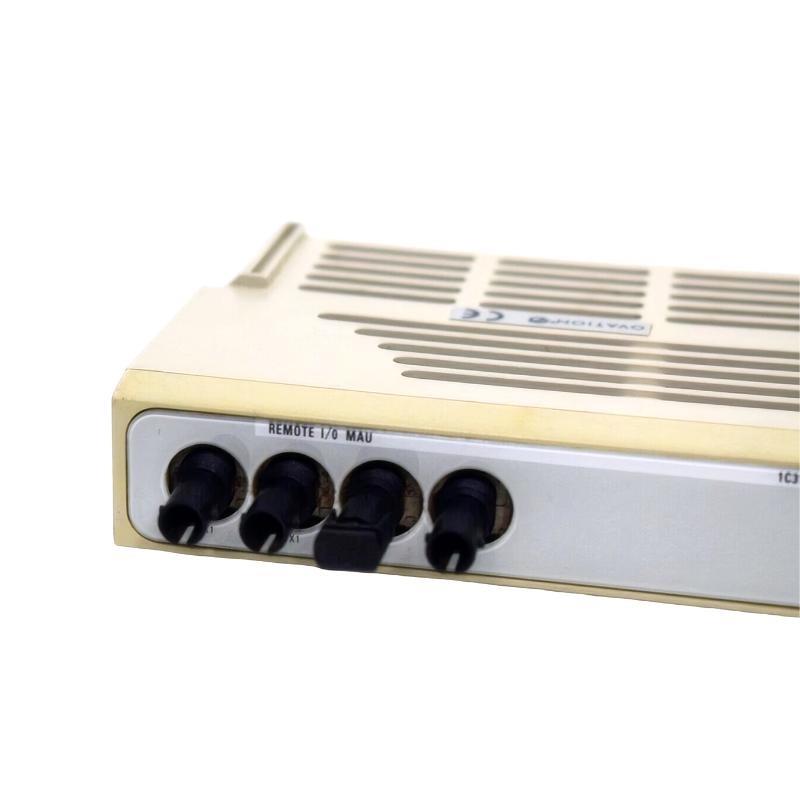

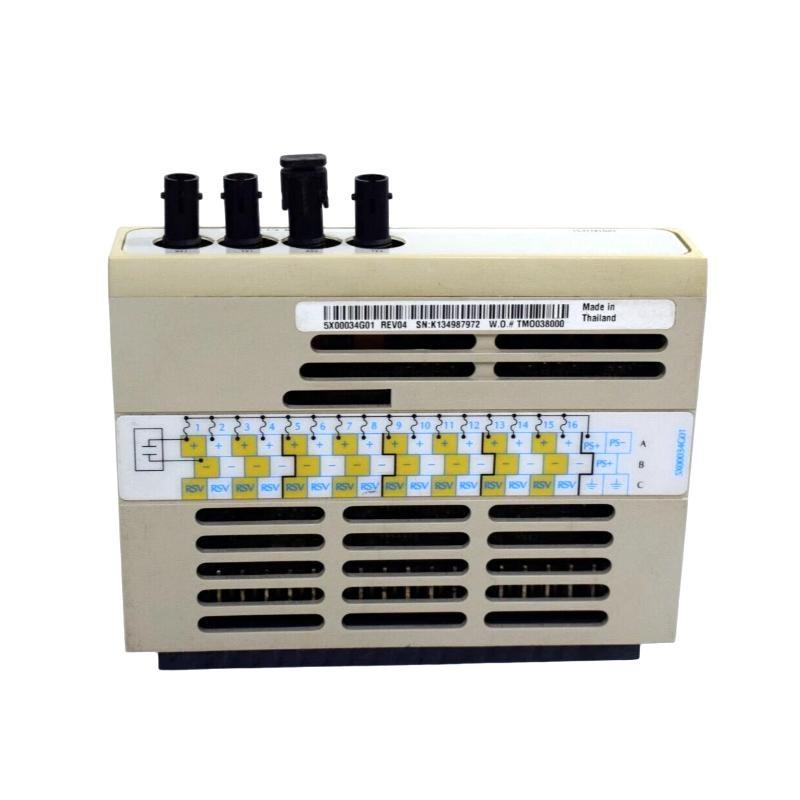

The Ovation 1C31181G03 Remote I/O Module is an integral part / Emerson’s Ovation distributed control system (DCS) architecture. Designed to extend control and monitoring capabilities beyond the central processing 件, this remote I/O module plays a critical role in high-availability industrial automation environments such as power generation, water treatment, and process industries.
By enabling decentralized data acquisition and control logic execution, the 1C31181G03 /fers both flexibility and robustness. This module ensures seamless communication with the Ovation controller and provides real-time feedback from field devices such as sensors, actuators, and switches. Its design focuses on reliability, modularity, and easy integration within remote I/O cabinets.
产品规格
| Parameter | Details |
|---|---|
| 型号 Number | 1C31181G03 |
| 品牌 | Emerson |
| Product Type | Remote I/O Module |
| System Compatibility | Emerson 西屋 |
| Functionality | Remote data acquisition and output control |
| Mounting Type | Rack-mounted |
| Input Type | Analog/Digital (configurable) |
| Output Type | Analog/Digital (configurable) |
| Communication Interface | High-speed serial bus (Ovation Net) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Power Supply | 24 VDC (typical) |
| Dimensions | 260 x 120 x 50 mm |
| 重量 | 0.75 kg |
| Enclosure | Industrial-grade plastic/metal composite housing |
| Hot Swappable | Yes |
| Redundancy 支持 | Yes |
Applications
The 1C31181G03 Remote I/O Module is widely adopted in various industrial and utility sectors due to its reliability and flexible deployment options:
-
Power Generation Plants: Used in both conventional and renewable energy systems for remote signal acquisition.
-
Water & Wastewater Facilities: Interfaces with field devices like pumps, valves, and level sensors for reliable control.
-
Oil & Gas Sector: Ideal for use in SCADA systems and distributed control points.
-
Chemical and Petrochemical Plants: Ensures safe process control in harsh industrial conditions.
-
Pharmaceutical Industry: 支持s GAMP-compliant data logging and control architecture.
-
HVAC & Environmental Systems: Integrates temperature, humidity, and airflow sensors in building automation.
Product Advantages
-
Seamless Integration: Fully compatible with the 西屋 environment without additional configuration burden.
-
Modular Design: 支持s scalable I/O channel expansion depending on system requirements.
-
High Reliability: Industrial-grade components /fer consistent performance even in harsh conditions.
-
Hot-Swappable: Modules can be replaced without system downtime, improving maintainability.
-
Redundancy Options: Ensures zero data loss and improved system uptime through communication and power redundancy.
-
Flexible Signal 支持: Handles both digital and analog input/output channels.
-
Advanced Diagnostics: Integrated diagnostic tools help in proactive maintenance and fault localization.
-
Field-Proven Technology: Trusted by utilities and industries worldwide for mission-critical applications.
常见问题 (FAQ)
-
How many I/O channels does the 1C31181G03 support?
The module supports multiple configurable I/O channels depending on system configuration. Exact channel count depends on the type and function selected (analog or digital). -
Can I install the 1C31181G03 while the system is online?
Yes, the module is hot-swappable, which means you can insert or remove it without shutting down the system. -
Is any special configuration s/tware required for commissioning this module?
Yes, configuration must be done using Emerson’s Ovation Engineering Tools, which support module setup, diagnostics, and firmware updates. -
What is the maximum communication cable length between this module and the controller?
Depending on the protocol and medium (e.g., copper or fiber), typical ranges vary from 100 meters (for copper) up to 2 kilometers (for fiber optic configurations). -
Does the module have onboard diagnostic LEDs?
Yes, it includes status LEDs that indicate power status, communication health, and channel-specific faults for rapid troubleshooting. -
What protections are built into the module?
It includes overvoltage, reverse polarity, and short-circuit protection to safeguard internal circuits and connected field devices. -
How does this module handle communication loss with the controller?
In case / communication failure, the module can enter a preconfigured fail-safe mode to ensure process stability until communication is restored. -
Can the module operate in hazardous (classified) environments?
The standard 1C31181G03 is not intrinsically safe, but it can be installed in certified enclosures with appropriate barriers for hazardous areas. -
What are the power requirements and tolerances?
It typically operates at 24 VDC and can tolerate fluctuations within ±10% without impacting performance. -
How do firmware updates work for this module?
Firmware updates are managed through the Ovation s/tware suite and can be applied remotely via the engineering workstation during maintenance windows.
Related 型号s from the Same Series
| 型号 Number | 描述 | I/O Type | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| 1C31181G01 | Remote I/O Module (standard variant) | Digital I/O | 260 x 120 x 50 | 0.70 |
| 1C31181G02 | Remote I/O with enhanced diagnostics | Analog/Digital | 260 x 120 x 50 | 0.72 |
| 1C31181G04 | I/O Module with fiber optic interface | Digital I/O | 260 x 120 x 55 | 0.78 |
| 1C31129G03 | Analog Input I/O Module | Analog Input | 250 x 120 x 50 | 0.73 |
| 1C31129G05 | Analog Output I/O Module | Analog Output | 250 x 120 x 50 | 0.74 |
| 1C31194G01 | Digital Input I/O Module (high density) | Digital Input | 260 x 125 x 50 | 0.76 |
Popular Emerson 型号s
| 型号 Number | Product Name | Application | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| 1C31116G02 | Power Supply Module | Power Distribution | 300 x 150 x 60 | 1.20 |
| 5X00419G01 | Controller Processor | Ovation Controller Core | 270 x 120 x 50 | 1.00 |
| 1C31125G02 | Communication Interface Module | Field Device Networking | 260 x 120 x 50 | 0.80 |
| 1B30023H01 | Temperature Input Module | Process Monitoring | 250 x 115 x 45 | 0.78 |
| 1C31234G01 | Digital Output Module | Actuator/Relay Control | 260 x 120 x 50 | 0.72 |
| 1C31192G01 | Analog Multiplexer Module | Signal 状态ing | 250 x 120 x 50 | 0.76 |
