产品介绍

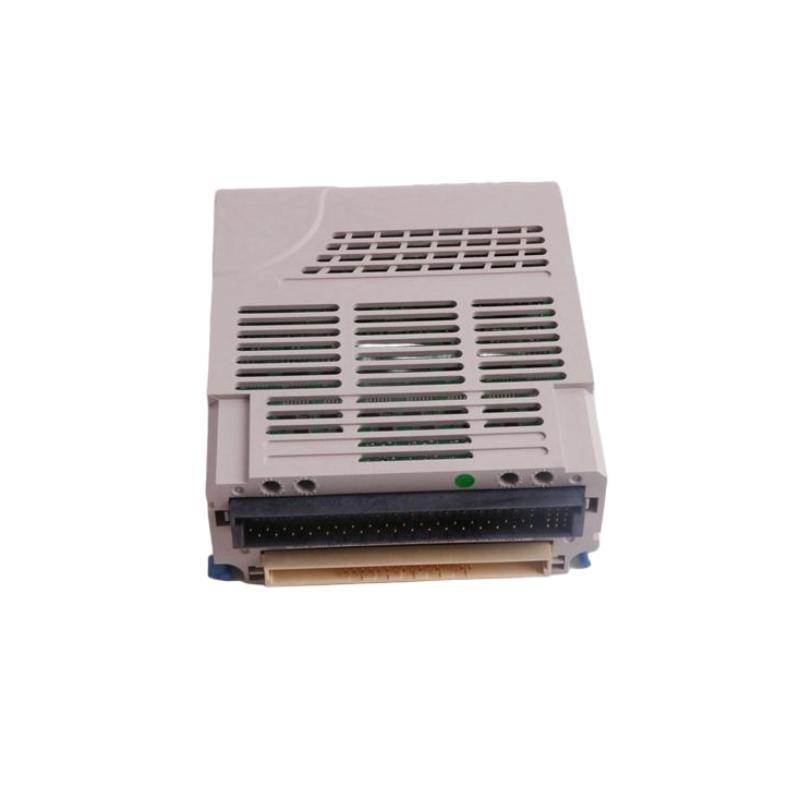

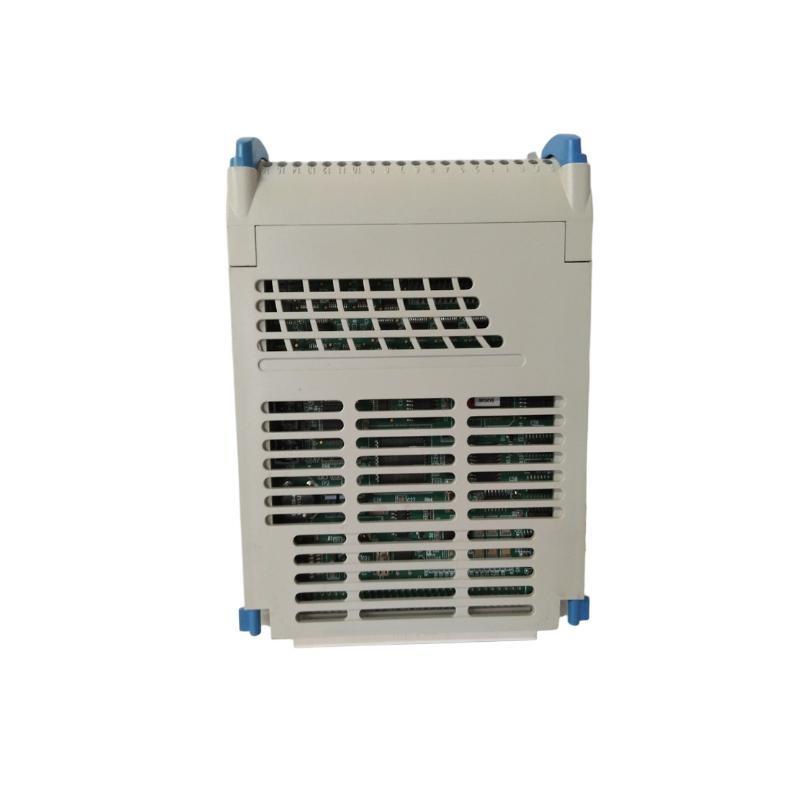

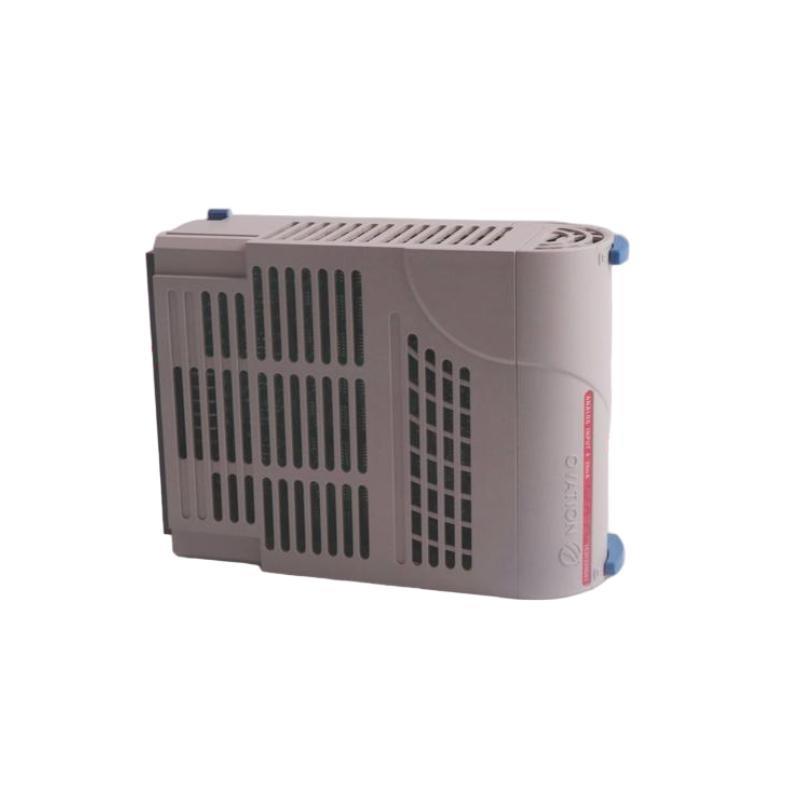

The Ovation 1C31157G03 Event Sequence Module is a vital automation component within Emerson’s Ovation Distributed Control System (DCS), engineered to manage and execute complex event-driven sequences with precision and reliability. Designed for use in critical process industries, this module enables operators and engineers to automate multi-step sequences based on timed events, logical conditions, and process inputs.
The 1C31157G03 /fers enhanced processing capabilities and robust integration with the 西屋 platform, supporting the needs / modern industrial automation systems. By automating sequences, it improves operational efficiency, reduces manual errors, and enhances system safety, making it a cornerstone in industries such as power generation, oil and gas, water treatment, and chemical processing.
Its flexible programming and seamless interface with Ovation’s operator stations allow for real-time monitoring, control, and modification / event sequences, ensuring adaptability to evolving process requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 1C31157G03 |
| 制造商 | Emerson Electric Co. |
| Product Type | Event Sequence Module |
| Function | Programmable event sequence control |
| Number / Sequences | Up to 64 programmable sequences |
| Input Signals | Compatible digital inputs for 西屋 |
| Output Signals | Relay outputs and digital control outputs |
| Communication Interface | Proprietary 西屋 communication bus |
| Power Supply | 24 VDC Nominal |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting | Rack-mounted within Ovation chassis |
| Dimensions (H × W × D) | 121 x 54 x 140 mm |
| 重量 | 0.3 kg |
| Certifications | CE, UL, ISO 9001 compliant |
Product Applications
The Ovation 1C31157G03 Event Sequence Module is utilized in a variety / process industries where precise automation / event sequences is critical, including:
-
Power Generation – Automation / turbine start-up/shutdown, boiler sequencing, and load management.
-
Oil & Gas Industry – Control / compressor sequences, batch processes, and flare stack operations.
-
Water and Wastewater Treatment – Coordination / pumping, chemical dosing, and filtration cycles.
-
Chemical Manufacturing – Managing reaction sequences, safety interlocks, and mixing processes.
-
Pulp and Paper Mills – Sequencing for pulping, bleaching, and drying stages.
-
General Industrial Automation – Control / repetitive and safety-related sequences.
Product Advantages
-
Advanced Sequence Control: Capable / managing up to 64 programmable event sequences.
-
Seamless Ovation Integration: Full compatibility with Ovation Distributed Control System.
-
Improved Processing Performance: Enhanced speed and reliability over previous models.
-
User-Friendly Programming: Easy to configure and modify via Ovation operator interfaces.
-
Robust and Reliable Design: Suitable for continuous operation in harsh industrial environments.
-
Reduced Manual Intervention: Automation / sequences reduces operator workload and human error.
常见问题 (FAQ)
-
What is the primary function / the Ovation 1C31157G03 module?
It executes programmable event-driven sequences within the 西屋 environment. -
How many sequences can this module handle?
It supports up to 64 programmable sequences. -
What kind / outputs does the module provide?
Relay outputs and digital control outputs. -
Is it compatible with older 西屋 versions?
It is designed to be compatible with standard 西屋 systems; confirm compatibility with Emerson if needed. -
What is the operating temperature range?
0°C to 60°C (32°F to 140°F). -
Can event sequences be modified after deployment?
Yes, sequences can be updated and modified as required. -
How is the module mounted?
It is rack-mounted inside an Ovation chassis. -
Which communication protocol does it use?
It communicates over the proprietary 西屋 bus. -
Is the module suitable for safety-related sequences?
It manages operational sequences; safety-critical sequences typically require dedicated safety modules. -
What certifications does this product hold?
CE, UL, and ISO 9001 certified.
Related 型号s from the Same Series or Function
| 型号 | 描述 | Function | Application |
|---|---|---|---|
| 1C31158G01 | Ovation Digital Input Module | Digital input signal acquisition | Field digital signals |
| 1C31159G01 | Ovation Analog Input Module | Analog input signal acquisition | Measurement / process variables |
| 1C31160G01 | Ovation Relay Output Module | Relay control outputs | Actuator and alarm control |
| 1C31161G01 | Ovation Analog Output Module | Analog control signal outputs | Control / valves and devices |
| 1C31162G01 | Ovation Sequence Control Module | Sequence automation | Extended event sequence control |
| 1C31163G01 | Ovation Safety Interface Module | Safety system interface | Integration with safety instrumented systems |
Popular Emerson Ovation 型号s
| 型号 | Function | Series | Application |
|---|---|---|---|
| Ovation C3000 | Central Processing 单位 | Ovation | Core control processor |
| Ovation M7000 | Marquee Display Module | Ovation | Operator interface display |
| Ovation I/O Rack | Input/Output Rack Module | Ovation | Houses I/O modules |
| Ovation FGD Module | Flue Gas Desulfurization Control Module | Ovation | Environmental process control |
| Ovation PSC | Power System Controller | Ovation | Power generation control |
| 西屋 S/tware | Distributed Control System s/tware | Ovation | Overall system management |
