Product Overview

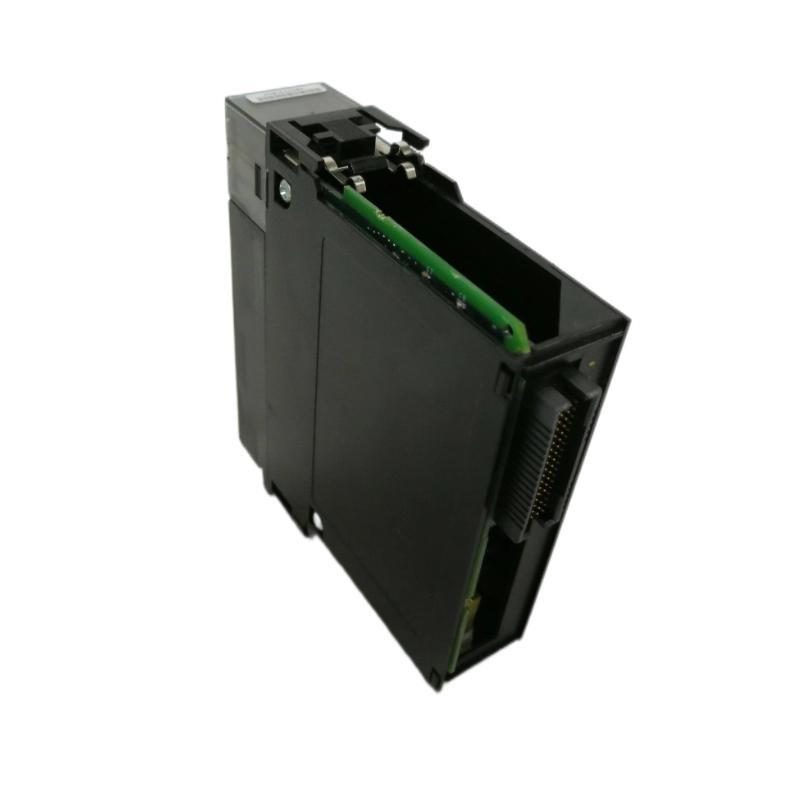

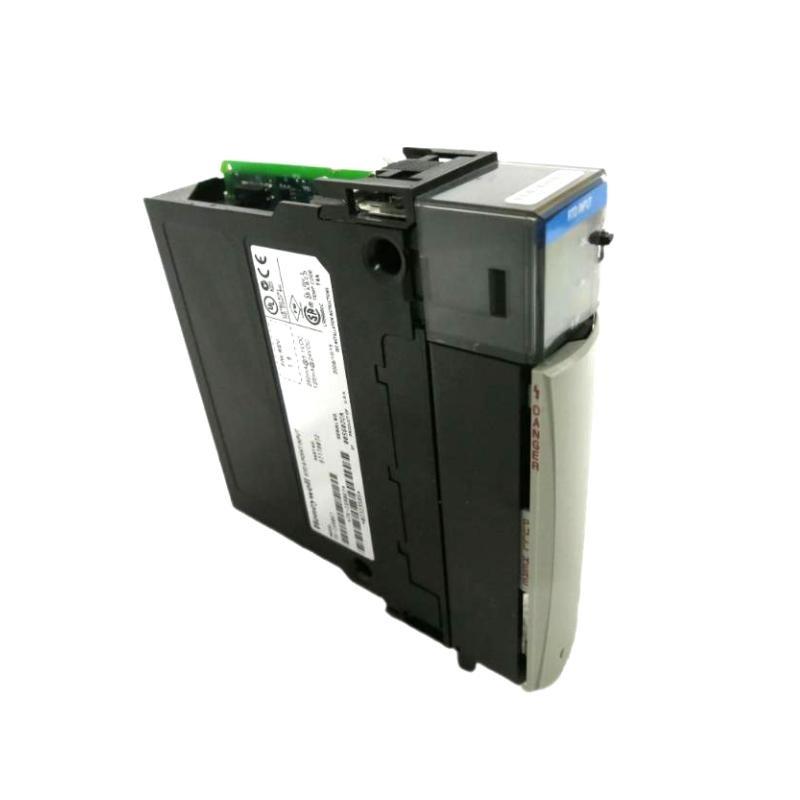

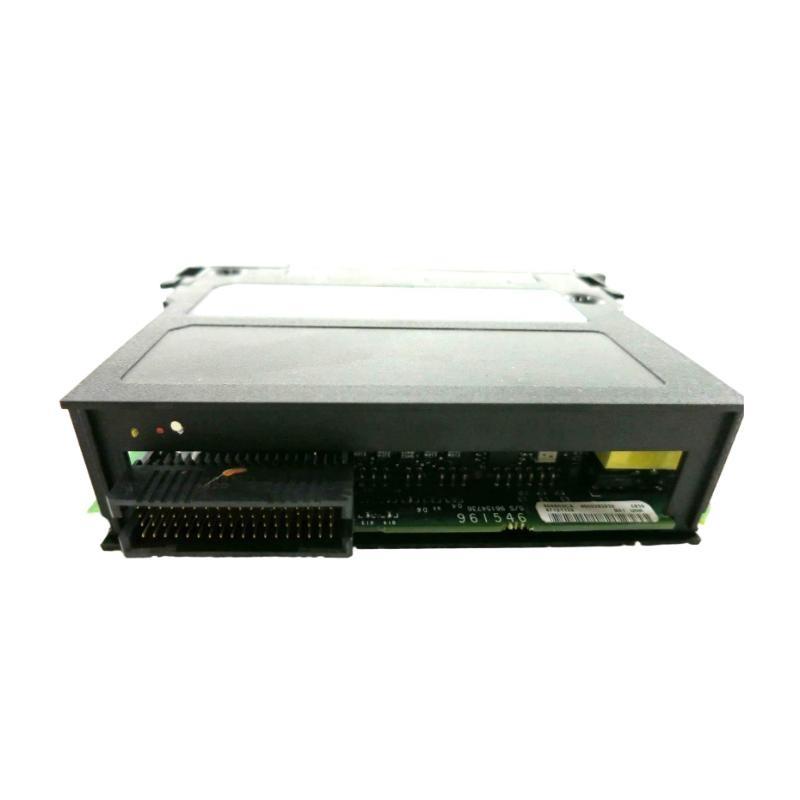

The Honeywell TK-IXR061 is a 6-channel RTD (Resistance Temperature Detector) input module designed for high-performance industrial temperature measurement. It supports various RTD types and provides precise, reliable data acquisition in harsh industrial environments. This module is part / the ControlEdge or C300 platform I/O family.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | RTD Input Module |
| Input Channels | 6 isolated RTD inputs |
| 支持ed Sensors | Pt100, Pt200, Pt500, Pt1000 (IEC 751) |
| Input Range | -200°C to +850°C (sensor dependent) |
| Input Type | 3-wire RTD |
| Resolution | 16-bit |
| Isolation | Channel-to-channel and channel-to-bus |
| Diagnostics | Open wire detection, self-check |
| Operating Temperature | 0°C to 60°C |
| Dimensions | 170 x 80 x 45 mm |
| 重量 | 0.798 kg |
Applications
-
Power plants for turbine temperature monitoring
-
Petrochemical plants for precise process control
-
Pharmaceutical environments requiring accurate thermal regulation
-
Food and beverage industries with strict temperature compliance
-
Water treatment systems
-
Steel manufacturing and industrial ovens
Product Advantages
-
High accuracy temperature measurements using RTDs
-
Channel-to-channel isolation improves safety and signal integrity
-
Integrated diagnostics for real-time fault detection
-
Compact design for space-constrained panels
-
Compatible with Honeywell’s C300 and ControlEdge systems
-
Easy integration with Experion PKS platform
常见问题 (FAQ)
Q1: What types / RTDs are supported by the TK-IXR061?
A1: It supports Pt100, Pt200, Pt500, and Pt1000 RTDs compliant with IEC 751.
Q2: How many channels does the TK-IXR061 provide?
A2: It /fers 6 independent RTD input channels.
Q3: What is the isolation level for the channels?
A3: Each channel is isolated from others and from the system bus for improved signal integrity and safety.
Q4: Can this module detect wire breakage or sensor faults?
A4: Yes, it features open wire detection and diagnostic functions.
Q5: What is the resolution / the input signal conversion?
A5: The module uses a 16-bit resolution A/D converter for precise measurements.
Q6: What system platforms are compatible with TK-IXR061?
A6: It is compatible with Honeywell ControlEdge and C300 I/O systems.
Q7: What wiring configuration is supported for RTDs?
A7: The module supports 3-wire RTD configurations for better accuracy.
Q8: What is the typical use / this module in industrial applications?
A8: It is typically used in process industries for accurate temperature monitoring and control.
Q9: Does the module support hot swapping?
A9: It depends on the chassis and system configuration, but generally supported with proper hardware.
Q10: What are the environmental specifications?
A10: It operates reliably in ambient temperatures from 0°C to 60°C.
Related 型号s (Same Series or Similar Function)
| 型号 | 描述 | Input Type | Channels | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| TK-IXL061 | Thermocouple Input Module | TC | 6 | 170 x 80 x 45 | 0.790 |
| TK-IAH161 | Analog Input Module (Non-Isolated) | Analog | 16 | 170 x 80 x 45 | 0.810 |
| TK-IAH061 | Analog Input Module (Isolated) | Analog | 6 | 170 x 80 x 45 | 0.800 |
| TK-HAI081 | HART AI Module | HART AI | 8 | 170 x 80 x 45 | 0.830 |
| TK-IXL062 | T/C Input Module (Coated) | TC | 6 | 170 x 80 x 45 | 0.795 |
| TK-MDP081 | Pulse Input Module | Pulse | 8 | 170 x 80 x 45 | 0.785 |
Popular Honeywell 型号s
| 型号 | 描述 | Type | Channels | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| 8C-PCNT02 | C300 Controller | CPU | N/A | 180 x 120 x 50 | 0.900 |
| 8C-PAONA1 | Analog Output Module | Analog Out | 8 | 170 x 80 x 45 | 0.780 |
| 8C-PAOHA1 | Analog Output HART Module | HART AO | 8 | 170 x 80 x 45 | 0.790 |
| 8C-TAIDA1 | Analog Input IOTA | Analog In | 8 | 170 x 80 x 45 | 0.800 |
| 8C-TAOXA1 | Analog Output IOTA | Analog Out | 8 | 170 x 80 x 45 | 0.810 |
| 900SP1-0200 | HC900 Expansion Processor Module | Processor | N/A | 190 x 110 x 45 | 0.850 |
