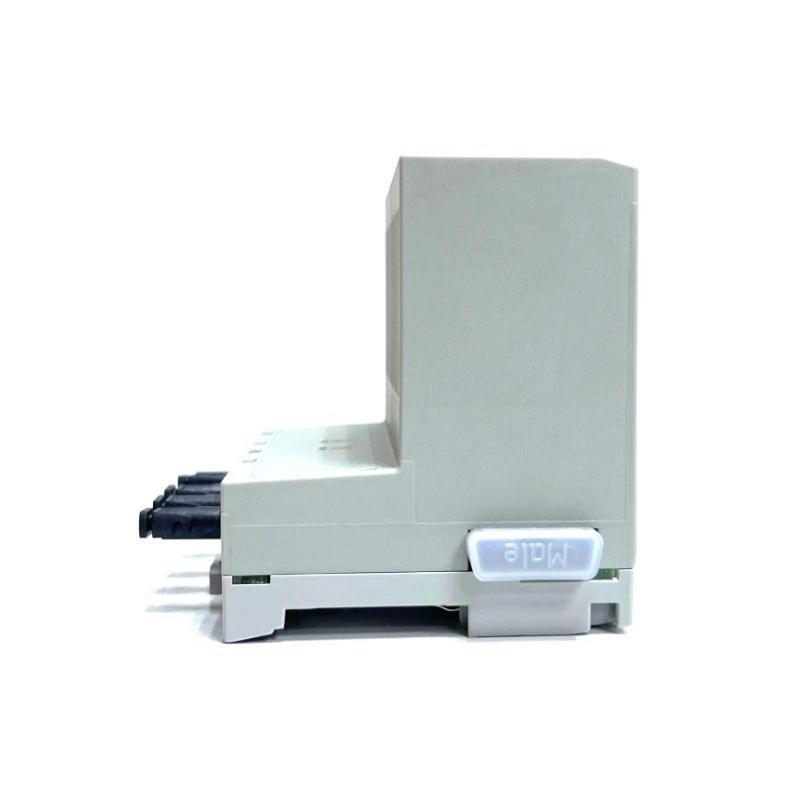

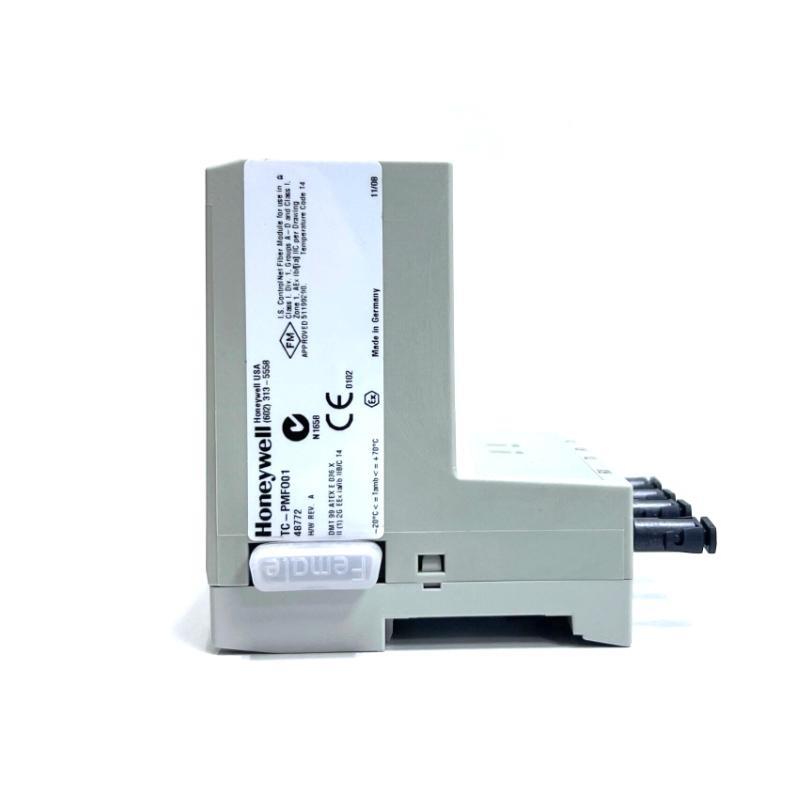

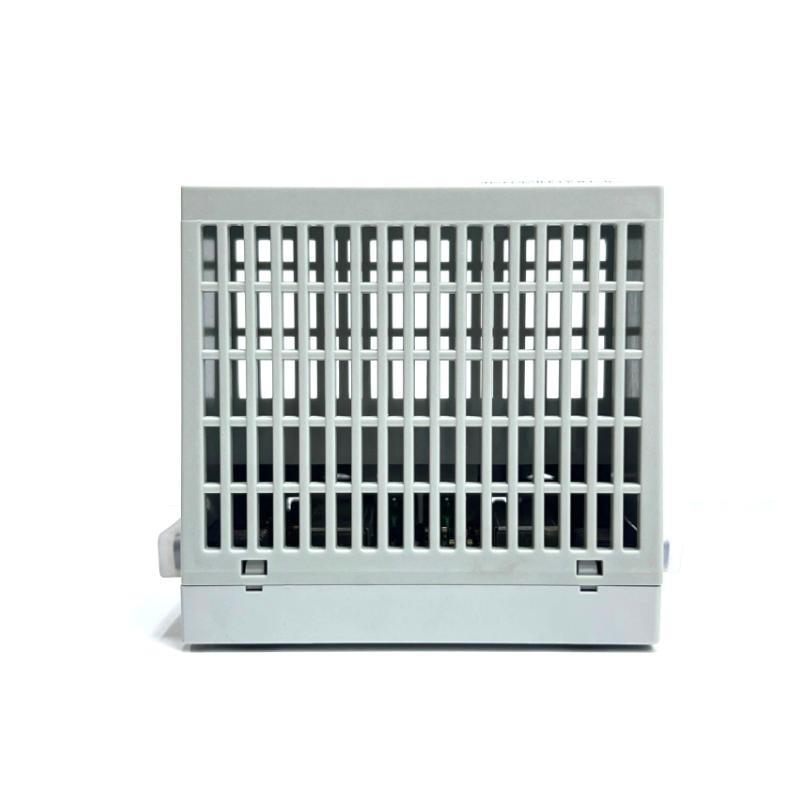

Honeywell TC-PMFO01 ControlNet Fiber Module
The Honeywell TC-PMFO01 is a fiber optic interface module for ControlNet networks. It enables reliable, noise-immune, and long-distance communication between Honeywell Experion PKS systems and remote I/O, ideal for harsh industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 94 x 94 x 87 mm |
| 重量 | 0.139 kg |
| Mounting | Chassis slot (single-wide) |
| Communication Protocol | ControlNet over Fiber Optic |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Shock Resistance | 5 g max., 30 ms |
| Vibration Resistance | 0.5 g, 10–60 Hz |
| Isolation Voltage | 250V tested |
| Power Dissipation | Approx. 3–5 W |
Applications
-
Extending ControlNet communication over fiber in high-EMI areas
-
Connecting remote I/O racks at longer distances
-
Providing redundant communication paths for critical systems
-
Use in process industries: power, refining, chemical, pharmaceutical
Advantages
-
High imm件y to electrical noise
-
支持s long cable runs beyond copper limitations
-
Seamless integration into Honeywell Series A chassis
-
Designed for industrial reliability and uptime
-
支持s redundant configurations
常见问题 (FAQ)
Q1: What does the TC-PMFO01 do?
A1: It provides a fiber optic interface for ControlNet communication in Experion/C200 systems.
Q2: Is hot-swapping supported?
A2: Yes, in ordinary (non-hazardous) locations it can be inserted and removed under power.
Q3: Which controllers are compatible?
A3: It works with Honeywell C200 and C200E controllers.
Q4: Can it be used in redundant networks?
A4: Yes, it supports redundant fiber ControlNet links.
Q5: What environments is it rated for?
A5: 0–60°C operation, -40–85°C storage, up to 95% RH.
Q6: How many chassis slots does it occupy?
A6: It takes one chassis slot (single-wide).
Q7: Does it come with conformal coating?
A7: 可用 in standard (TC-) and coated (TK-) versions.
Q8: Is a terminal block required?
A8: No separate terminal block is needed; it connects via the chassis backplane.
Q9: Does it work with copper ControlNet?
A9: No, it is designed for fiber optic media only.
Q10: Is it certified for hazardous areas?
A10: Yes, when properly installed in certified enclosures, it meets Class I, Div 2 standards.
Recommended Related or Similar 型号s
| 型号 | 描述 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| TC-CCR014 | ControlNet Dual Media Module | 94 x 94 x 87 | 0.142 |
| TC-CCN014 | ControlNet Single Media Module | 94 x 94 x 87 | 0.139 |
| TC-FTEB01 | Ethernet Network Module | 94 x 94 x 87 | 0.140 |
| TK-CCR014 | Coated ControlNet Dual Media | 94 x 94 x 87 | 0.142 |
| TK-CCN014 | Coated ControlNet Single Media | 94 x 94 x 87 | 0.139 |
| TK-FTEB01 | Coated Ethernet Module | 94 x 94 x 87 | 0.140 |
Popular Honeywell 型号s
| 型号 | 描述 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| C200 TK-PRS021 | Control Processor | 94 x 94 x 87 | 0.220 |
| C200 TK-PRR021 | Redundancy Module | 94 x 94 x 87 | 0.180 |
| TC-IAH061 | Analog Input Module (6 ch.) | 94 x 94 x 87 | 0.160 |
| TC-OAH061 | Analog Output Module (6 ch.) | 94 x 94 x 87 | 0.165 |
| TC-IDK161 | 120V AC Input Module (16 ch.) | 94 x 94 x 87 | 0.150 |
| TC-ODK161 | 120/220V AC Output Module (16 ch.) | 94 x 94 x 87 | 0.155 |
