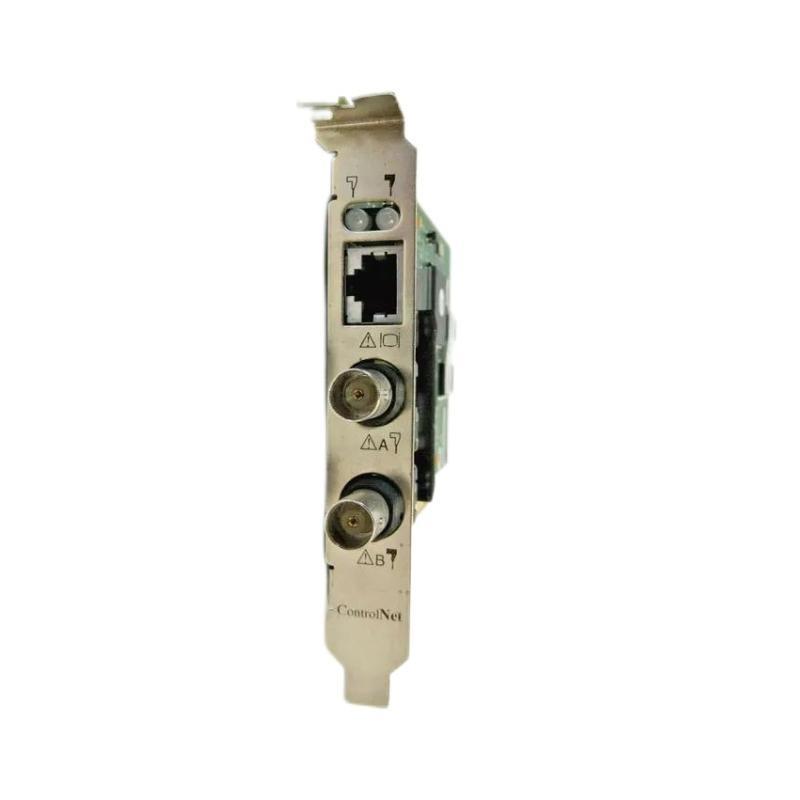

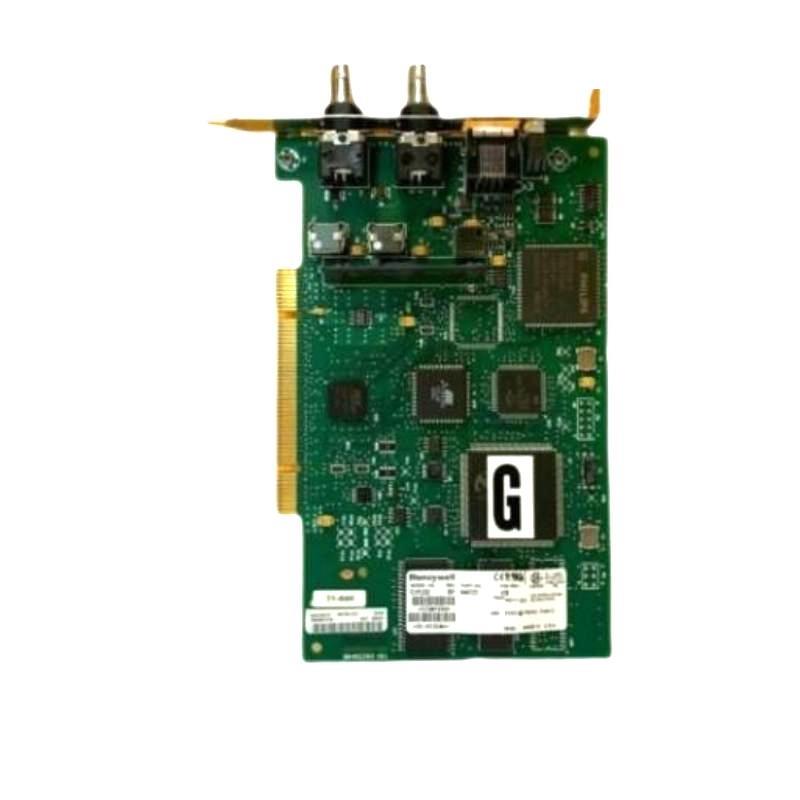

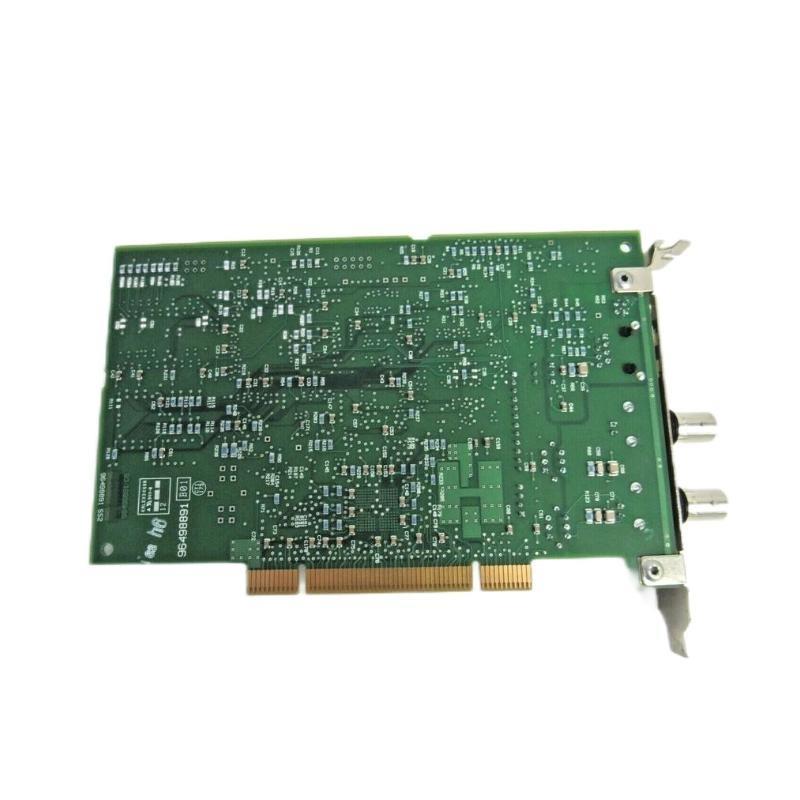

Product Overview
The Honeywell TC-PCIC02 is a PCI-based ControlNet Interface Module designed for high-speed, deterministic communications within Honeywell process control systems. It connects PC-based applications to the ControlNet network, /fering robust real-time control and high data throughput with minimal latency.
Technical Specifications
| Parameter | 描述 |
|---|---|
| 型号 Number | TC-PCIC02 |
| Interface Type | PCI Bus |
| Network Type | ControlNet |
| Network Media | Coaxial or Fiber (via external adapter) |
| Communication Speed | 5 Mbps |
| Protocol 支持 | ControlNet Protocol |
| Power Supply | Via PCI Bus |
| Dimensions | 120 x 20 x 100 mm |
| 重量 | 0.15 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting Type | Internal PCI slot |
| Certifications | CE, UL, CSA |
Applications
-
Integration / PCs with Honeywell Experion PKS or TDC 3000 systems
-
High-speed, deterministic control communication
-
SCADA or HMI systems requiring real-time access to ControlNet
-
Industrial automation networks in oil & gas, chemical, and power sectors
Product Advantages
-
Reliable high-speed ControlNet communications
-
Easy integration with Honeywell Experion/TDC platforms
-
Low-latency data transfer
-
Robust industrial-grade construction
-
PCI compatibility for standard computing platforms
-
Certified for industrial and safety environments
常见问题 (FAQ)
Q1: What is the main function / the TC-PCIC02 module?
A1: It provides a PCI interface for connecting a PC to a ControlNet network.
Q2: Which systems is TC-PCIC02 compatible with?
A2: It is commonly used with Honeywell Experion PKS and legacy TDC 3000 systems.
Q3: What communication speed does it support?
A3: It supports a data rate / 5 Mbps over ControlNet.
Q4: Is TC-PCIC02 hot-swappable?
A4: No, it must be installed with the PC powered /f.
Q5: Can it be used in redundant networks?
A5: Yes, when paired with the proper ControlNet infrastructure.
Q6: What kind / connector does it use?
A6: It interfaces via PCI, with ControlNet coaxial or fiber connections via external adapters.
Q7: Does the TC-PCIC02 support s/tware redundancy?
A7: Redundancy is supported through system-level architecture, not by the module itself.
Q8: Is special s/tware required?
A8: Yes, Honeywell drivers and configuration tools are required.
Q9: What is its role in an Experion system?
A9: It serves as a communication bridge between a PC and the ControlNet segment / the Experion system.
Q10: How is it different from TC-PCIC01?
A10: TC-PCIC02 is an updated version with improved support and performance for newer systems.
Related or Similar Honeywell 型号s
| 型号 | 描述 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| TC-PCIC01 | ControlNet Interface Module (older version) | 120 x 20 x 100 | 0.15 |
| TC-PBFO01 | ControlNet Repeater Adapter | 120 x 30 x 100 | 0.20 |
| TC-PGCN11 | ControlNet Gateway Redundant Media | 130 x 25 x 105 | 0.18 |
| TC-FCCN01 | ControlNet Adapter | 110 x 25 x 90 | 0.17 |
| TC-FCCR01 | Dual Media ControlNet Adapter | 120 x 25 x 100 | 0.19 |
| TC-CCR012 | ControlNet Redundant Media Interface | 120 x 20 x 100 | 0.15 |
Popular Honeywell 型号s
| 型号 | 描述 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| CC-PCNT01 | C300 Controller Module | 170 x 50 x 180 | 0.65 |
| 8C-PCNT01 | C300 Controller (Series 8) | 170 x 50 x 180 | 0.60 |
| FC-IO-0001 | I/O Expansion Module | 120 x 30 x 100 | 0.20 |
| CC-TDIL01 | Digital Input Module | 120 x 20 x 100 | 0.15 |
| CC-TAIX01 | Analog Input IOTA | 120 x 20 x 100 | 0.14 |
| CC-TAOX01 | Analog Output IOTA | 120 x 20 x 100 | 0.14 |
