产品介绍

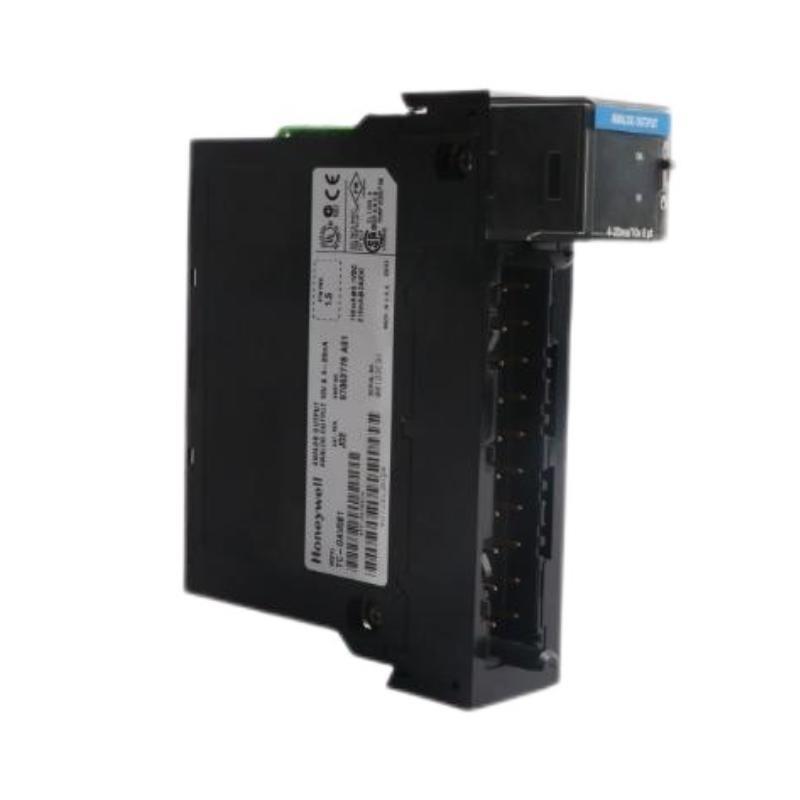

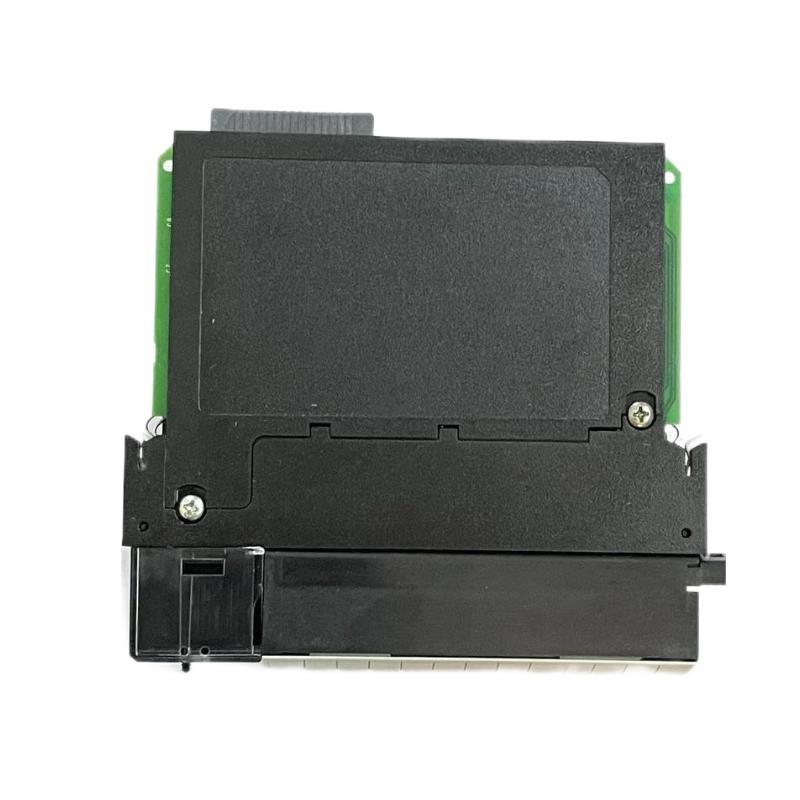

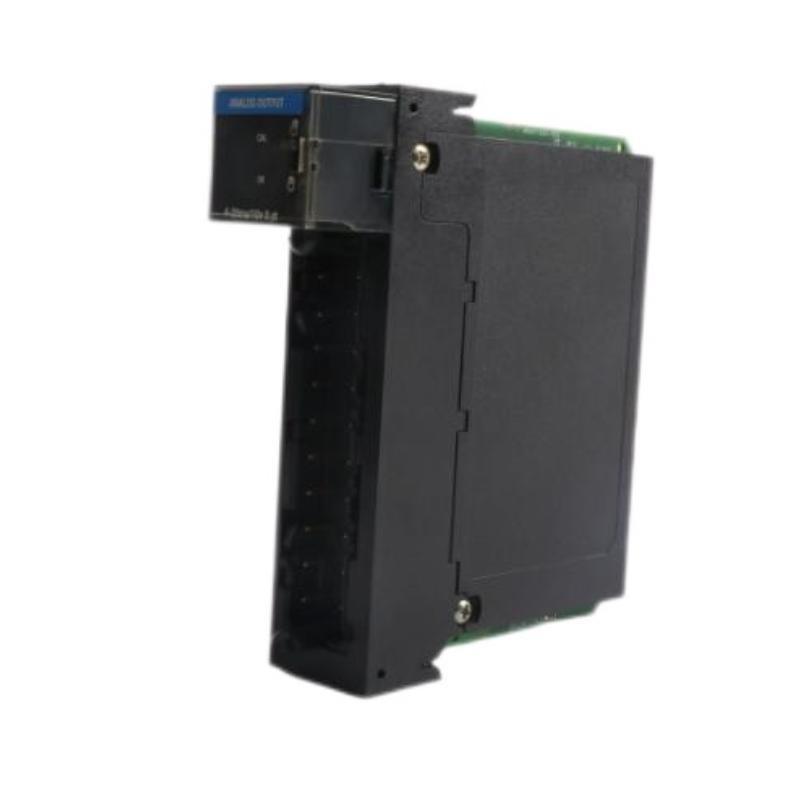

The Honeywell TC-OAV081 (97062774 A01) is a high-performance Analog Output Module designed for the Experion PKS and C300 controller platforms. It is primarily used in process control systems to deliver precise analog signals to actuators, valves, and other field devices. This module supports 8 analog output channels and is engineered to /fer high accuracy, robust diagnostics, and seamless integration with Honeywell’s automation environment. The TC-OAV081 is built with Honeywell’s stringent standards to ensure long-term reliability and operational efficiency in critical industrial applications.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 Number | TC-OAV081 |
| 零件号 | 97062774 A01 |
| 制造商 | Honeywell |
| Number / Output Channels | 8 Analog Outputs |
| Output Signal Range | 4–20 mA (current loop) |
| Accuracy | ±0.05% / full scale |
| Resolution | 12-bit |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Diagnostic Capabilities | Open/short circuit detection, loop monitoring |
| Operating Voltage | 24 VDC (nominal) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 35 x 140 x 145 mm |
| 重量 | 0.24kg |
| Mounting Type | DIN Rail |
| Compatibility | Honeywell C300, Experion PKS |
| Certifications | CE, UL, CSA, RoHS |
Product Applications
The Honeywell TC-OAV081 module is widely used in the following applications:
-
Industrial Automation Systems: Providing analog control signals to field devices.
-
Oil & Gas Facilities: Controlling pressure valves and actuators.
-
Chemical Processing Plants: Delivering precise control for blending and dosing systems.
-
Power Generation: Regulating turbines, governors, and auxiliary systems.
-
Pharmaceutical Manufacturing: Ensuring accurate control in batch processing environments.
-
Water & Wastewater Treatment: Actuating flow valves and chemical injectors.
Product Advantages
-
High Channel Density: 8 analog outputs in a compact form factor save panel space.
-
Precision Control: 12-bit resolution and high accuracy ensure signal fidelity.
-
Advanced Diagnostics: Detects open loops, shorts, and irregular current flows.
-
Robust Isolation: Channel and system-level isolation enhance reliability and safety.
-
Integrated with Honeywell Systems: Full compatibility with Experion PKS and C300 reduces integration complexity.
-
Reliable in Harsh Environments: Wide operating temperature range and industrial-grade build ensure durability.
-
Reduced Downtime: Hot-swappable and supports online diagnostics to minimize disruptions.
-
Compliance-Ready: Meets major global standards and certifications.
常见问题 (FAQ)
Q1: What is the primary function / the TC-OAV081 module?
A1: It serves as an analog output module, delivering 4–20 mA signals to field devices such as valves and actuators.
Q2: How many output channels does this module support?
A2: The TC-OAV081 /fers 8 independent analog output channels.
Q3: Is this module compatible with the Honeywell C300 controller?
A3: Yes, it is fully compatible with Honeywell’s C300 controller and the Experion PKS system.
Q4: What type / isolation does this module provide?
A4: It provides both channel-to-channel and channel-to-system isolation to enhance safety and reduce interference.
Q5: Can the TC-OAV081 detect open or short circuits?
A5: Yes, it features built-in diagnostics to detect such conditions and alert operators.
Q6: What kind / signal output is supported?
A6: It supports 4–20 mA analog current loop output.
Q7: Is the module hot-swappable?
A7: Yes, it supports hot-swapping without disrupting the control system.
Q8: What environment is the module suitable for?
A8: It is designed for use in industrial environments with temperatures from -40°C to +70°C.
Q9: Does the module support loop-powered field devices?
A9: Yes, it is capable / driving loop-powered devices within its output range.
Q10: What certifications does the TC-OAV081 hold?
A10: It is certified under CE, UL, CSA, and RoHS for global compliance.
Recommended Related 型号s (Same Series/Function)
| 型号 | 描述 | Channels | Output Type | Compatibility |
|---|---|---|---|---|
| TC-OAV061 | 6-Channel Analog Output Module | 6 | 4–20 mA | C300, Experion PKS |
| TC-OAV161 | 16-Channel Analog Output Module | 16 | 4–20 mA | C300, Experion PKS |
| TC-OAV021 | 2-Channel Analog Output Module | 2 | 4–20 mA | C300, Experion PKS |
| TC-PAO081 | Advanced Analog Output, 8 Channels | 8 | 4–20 mA | C300, Experion PKS |
| TC-PAO061 | 6-Channel Precision Analog Output | 6 | 4–20 mA | C300, Experion PKS |
| TC-OAC081 | 8-Channel Analog Combo Output Module | 8 | 0–10 V / mA | C300, Experion PKS |
