Product Overview

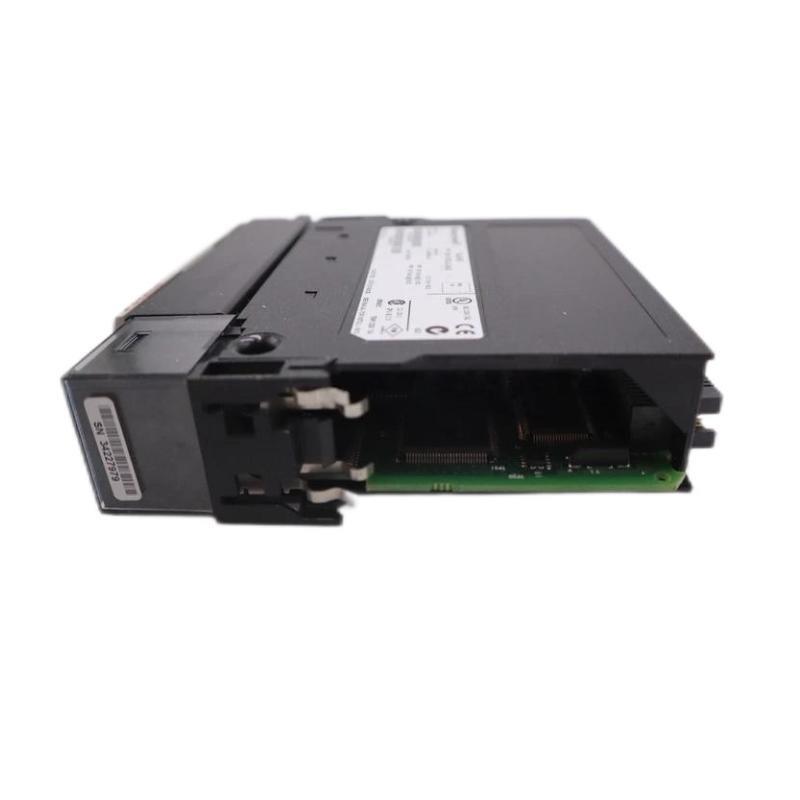

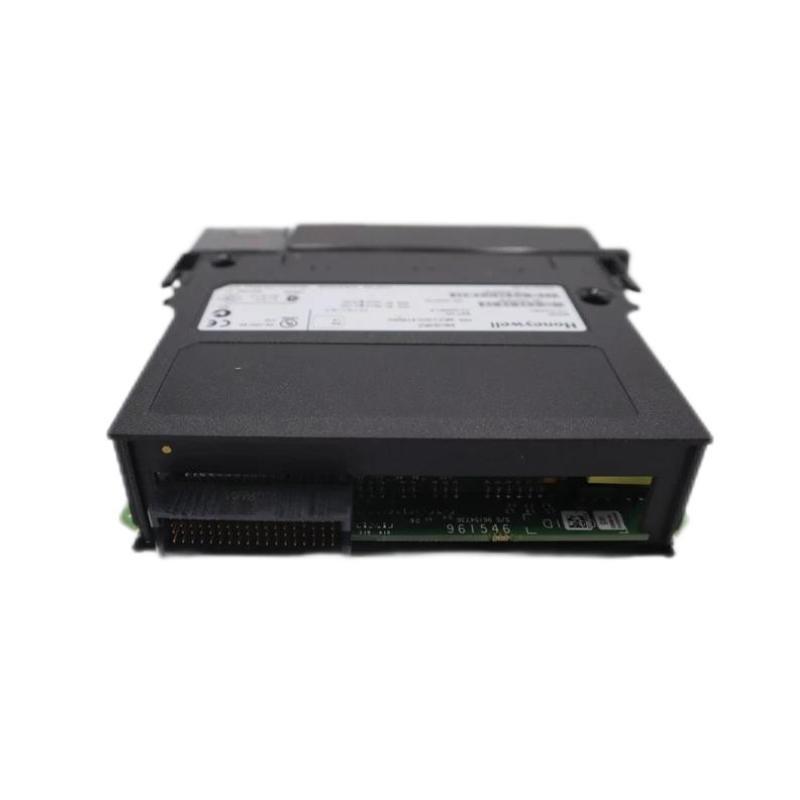

The Honeywell TC-IAH061 is a High Level Analog Input Module designed for the Experion LS platform, providing precise and reliable measurement / high-level analog signals in industrial process control environments. This module converts analog inputs from field devices such as transmitters and sensors into digital signals that can be processed by the control system for monitoring and automation purposes.
The TC-IAH061 module supports a wide range / input types and is engineered to deliver high accuracy, stability, and noise imm件y. Its robust design ensures dependable performance even in harsh industrial conditions, making it a critical component in the Honeywell Experion LS distributed control system (DCS).
Key Features
-
High level analog input signal processing for accurate data acquisition.
-
支持s multiple input ranges including voltage and current signals.
-
Compatible with Experion LS distributed control systems.
-
High accuracy and stability for precise process control.
-
Advanced noise filtering and signal conditioning.
-
支持s hot-swappable installation to minimize downtime.
-
Diagnostic capabilities for fault detection and troubleshooting.
-
Robust design suitable for industrial environments.
-
Compact size for efficient rack mounting.
-
Complies with industrial standards and certifications.
Technical Specifications
| Parameter | 描述 |
|---|---|

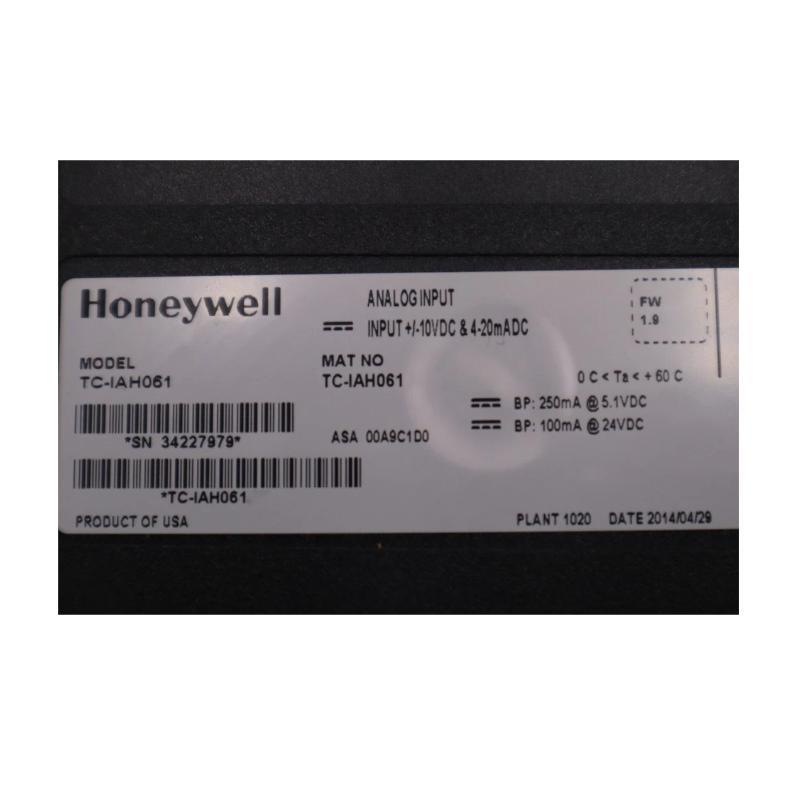

| 型号 | TC-IAH061 |
| Module Type | High Level Analog Input Module |
| 支持ed Input Signals | Voltage: 0-10 V, 1-5 V, ±10 V, ±5 V |
| Current: 0-20 mA, 4-20 mA | |
| Input Channels | Typically 8 channels |
| Input Impedance | > 100 kΩ for voltage inputs |
| Accuracy | ±0.1% / full scale |
| Resolution | 16-bit A/D conversion |
| Response Time | ≤ 100 ms |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-condensing |
| Power Supply | Provided by base rack |
| Dimensions | 90 × 130 × 25 mm |
| 重量 | 0.5 kg |
| Communication Interface | Proprietary bus compatible with Experion LS |
| Certifications | CE, UL, FM Approved |
Industry Applications
-
Oil & Gas: Monitoring / pressure, temperature, and flow via analog sensors.
-
Chemical Processing: Precise measurement / process variables for control and safety.
-
Power Generation: Monitoring critical analog signals from turbines and boilers.
-
Water & Wastewater: Measuring chemical dosing and flow control signals.
-
Pharmaceutical Manufacturing: High-accuracy analog inputs for batch and process control.
-
Food & Beverage: Reliable analog data acquisition for quality control and process automation.
Product Advantages
-
High Precision: Enables accurate measurement critical for effective process control.
-
Versatile Input 支持: Accommodates a variety / analog signal types and ranges.
-
Robust and Reliable: Designed to withstand industrial environmental challenges.
-
Ease / Maintenance: Hot-swappable design minimizes downtime during servicing.
-
Diagnostic Features: Built-in diagnostics improve fault detection and reduce troubleshooting time.
-
Compact Form Factor: 保存s valuable space within control racks.
-
Seamless Integration: Fully compatible with Honeywell Experion LS systems for simplified deployment.
-
Noise Imm件y: Advanced filtering ensures signal integrity in electrically noisy environments.
-
Compliance: Meets industry safety and quality standards.
-
Enhanced System Performance: 支持s stable and consistent process monitoring and control.
常见问题 (FAQ)
-
What input signals does the TC-IAH061 support?
It supports voltage inputs (0-10 V, 1-5 V, ±10 V, ±5 V) and current inputs (0-20 mA, 4-20 mA). -
How many channels are available on this module?
Typically, it supports 8 analog input channels. -
What is the accuracy / the module?
The accuracy is ±0.1% / full scale. -
Is the module hot-swappable?
Yes, it can be replaced without shutting down the control system. -
What is the operating temperature range?
It operates reliably between 0°C and +60°C. -
How does the module communicate with the control system?
It uses a proprietary communication bus compatible with Experion LS systems. -
What diagnostic features are included?
The module includes fault detection and status monitoring to aid troubleshooting. -
What is the module’s resolution?
It features 16-bit analog-to-digital conversion for precise measurement. -
Is the module suitable for harsh industrial environments?
Yes, it is designed to withstand typical industrial temperature and humidity ranges. -
Which Honeywell systems is it compatible with?
It is designed specifically for the Honeywell Experion LS distributed control system.
Related 型号s
| 型号 | 描述 |
|---|---|
| TC-OAI161 | Experion LS Analog Output Module |
| TC-IDJ161 | Experion LS Digital Input Module |
| TC-IDO161 | Experion LS Digital Output Module |
| TC-IAH021 | Low Level Analog Input Module |
| TC-TBM171 | Temperature Input Module |
| TC-TDO171 | Temperature Output Module |
Popular Honeywell 型号s
| 型号 | 描述 |
|---|---|
| FC-PDIO01 51454927-176 | Safety Digital I/O Module |
| FC-PSU-240516 136-011194D | Power Supply 单位 |
| FC-QPP-0001 | Quad Processor Cluster Module |
| FS-TSGAS-1624 | Safety Fire Detector Input FTA |
| TK-IOLI01 51403427-175 | Experion LS I/O Link Interface Module |
| FS-USI-0001 | Universal Safety Interface Module |
