产品介绍

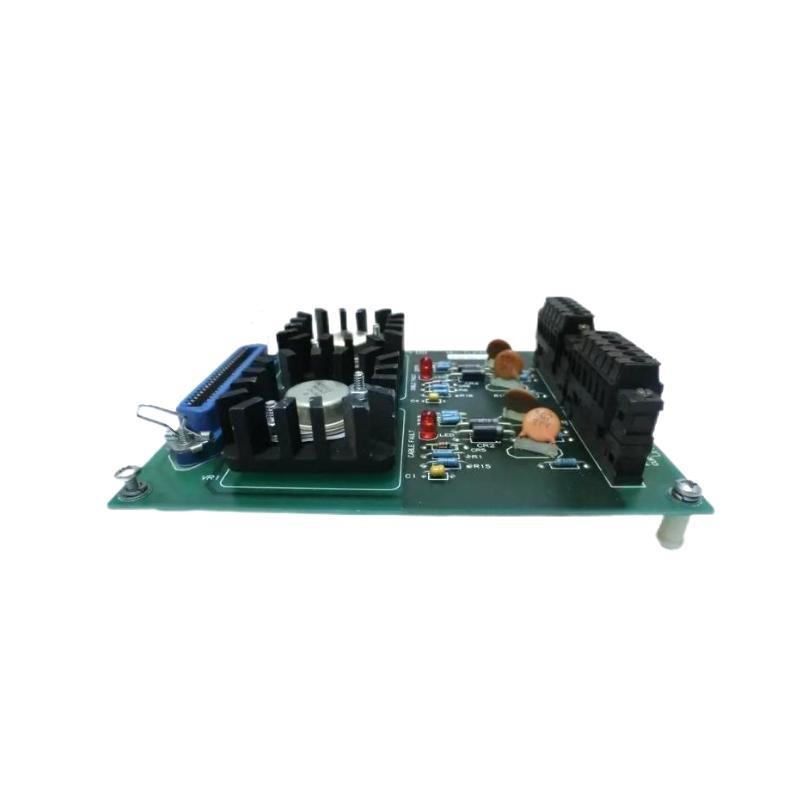

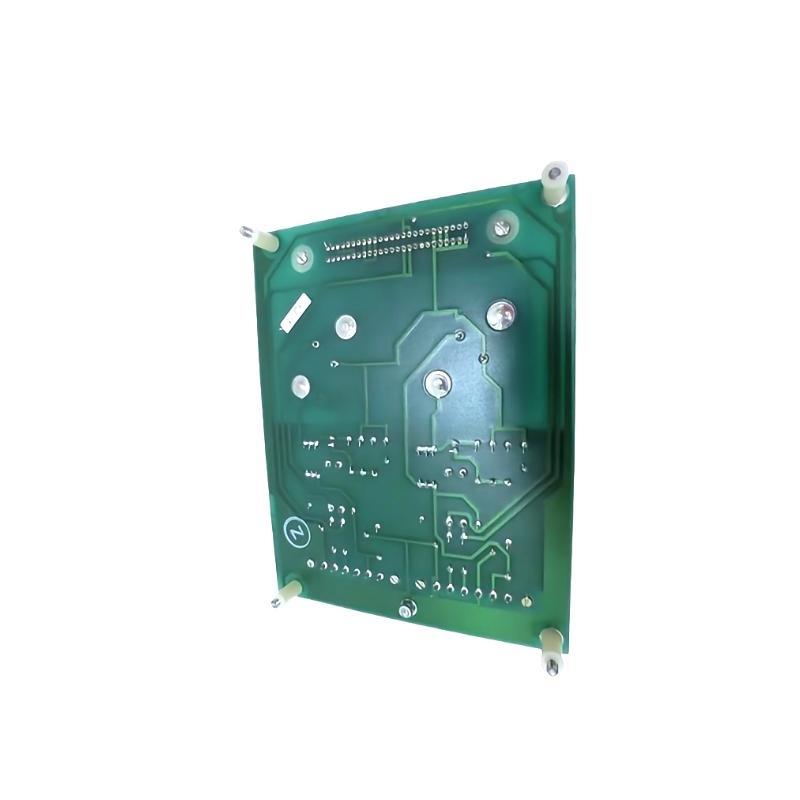

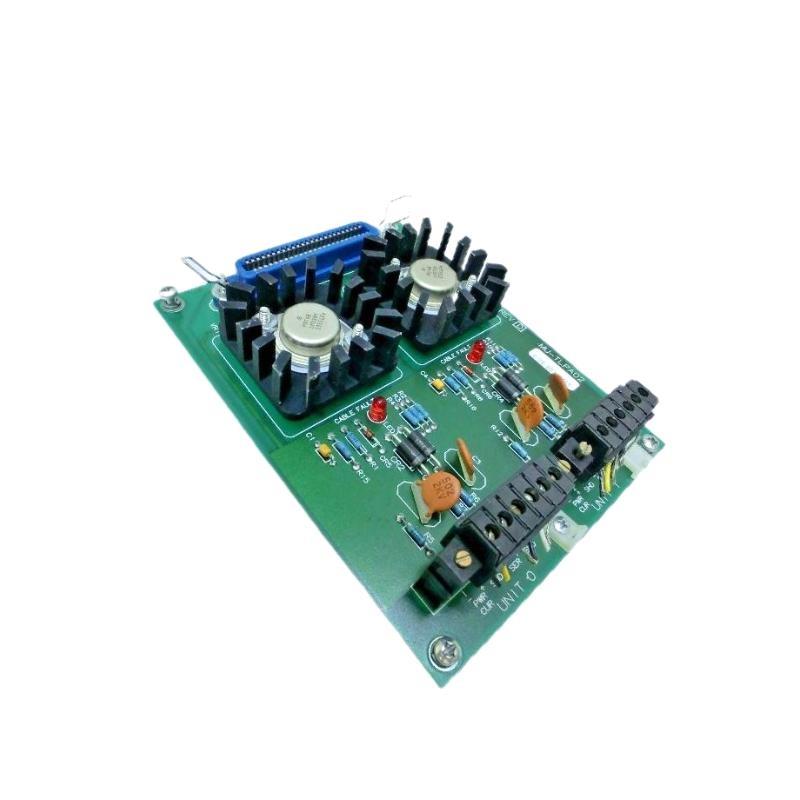

The Honeywell MU-TLPA02 51309204-125 Power Adapter is a highly dependable and precision-engineered module designed specifically for use within Honeywell’s TDC 3000 and Experion Process Knowledge System (PKS) platforms. As part / the Universal I/O system architecture, this power adapter ensures clean, uninterrupted power distribution to connected control and I/O modules.
This model /fers high energy efficiency, compact design, and superior operational stability. It is built to endure the demanding conditions / industrial environments, including extreme temperatures, vibration, and high electromagnetic interference. The MU-TLPA02 51309204-125 is an ideal power solution in process automation and distributed control systems, where reliability and uptime are non-negotiable.
Backed by Honeywell’s extensive experience in process control technology, this 件 is widely installed in mission-critical sectors such as oil and gas, petrochemical plants, pharmaceuticals, power generation, and large-scale manufacturing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | MU-TLPA02 Power Adapter |
| 零件号 | 51309204-125 |
| Input Voltage | 24 VDC nominal |
| Output Voltage | 5 VDC and/or 12 VDC (based on load) |
| Output Power Rating | 75W typical |
| Output Regulation | ±1% |
| Ripple & Noise | ≤ 50 mVp-p |
| Input Current | ≤ 4 A |
| Efficiency | ≥ 85% |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Cooling Method | Passive convection |
| Mounting Method | Rack-mount / DIN rail |
| System Compatibility | TDC 3000 / Experion PKS |
| Certifications | UL, CE, CSA, RoHS |
| Enclosure Material | Aluminum alloy, industrial grade |
| Dimensions (L x W x H) | 130 x 75 x 40 mm |
| 重量 | 0.358 kg |
Product Applications
The MU-TLPA02 51309204-125 is specifically designed for powering mission-critical control modules within Honeywell automation platforms. It finds application in several high-dependability environments:
-
Distributed Control Systems (DCS) – Delivers stable power to I/O modules in process industries.
-
Oil & Gas Refineries – Maintains uninterrupted operation / essential systems such as metering, separation, and safety interlocks.
-
Pharmaceutical Plants – Ensures clean, regulated power for highly sensitive instrumentation used in batch production and environmental monitoring.
-
Power Generation Facilities – 支持s turbine, generator, and plant safety control modules with steady DC power.
-
Chemical Processing 单位s – Powers control 件s managing volatile processes requiring stable electrical input.
-
Food and Beverage Processing – Provides consistent energy for cleanroom and automated packaging systems.
Product Advantages
-
Industrial-Grade Reliability
Designed for 24/7 operation in harsh industrial settings, /fering consistent performance without frequent maintenance or replacement. -
High Electrical Efficiency
Ensures minimal power loss during conversion, contributing to system energy savings. -
Compact and Modular Design
The slim and lightweight form factor allows for high-density installation within cabinets or control panels. -
Ease / Integration
Fully compatible with Honeywell’s legacy and current-generation DCS platforms, minimizing integration challenges. -
Built-In Protection Mechanisms
Features over-voltage, over-current, and short-circuit protection to safeguard connected systems. -
Certified and Compliant
Conforms to major international safety and environmental compliance standards. -
Passive Cooling Architecture
Operates silently and reliably without fan-based cooling systems, reducing mechanical wear and noise. -
Extended Service Life
Engineered with durable components to provide a service life / 10 years or more under standard conditions. -
Minimal Maintenance
Maintenance-free design minimizes downtime and lowers operational costs over time. -
Global 支持
支持ed by Honeywell’s global network for spares, support, and lifecycle extension services.
常见问题 (FAQ)
-
Q: What is the main use / the MU-TLPA02 51309204-125?
A: It supplies regulated DC power to control and I/O modules in Honeywell’s TDC 3000 and Experion systems. -
Q: Is it compatible with older Honeywell systems?
A: Yes, it is backward compatible with legacy TDC 3000 systems. -
Q: Does the module support redundant power setups?
A: Yes, it can be installed in redundant configurations to increase system uptime. -
Q: How do I install the MU-TLPA02 module?
A: It can be rack-mounted or DIN rail-mounted, depending on your control cabinet design. -
Q: What safety protections are included?
A: The module includes protection against short circuits, over-voltage, and over-current. -
Q: Does the 件 require active cooling?
A: No, it utilizes passive convection cooling and operates without a fan. -
Q: Can I replace this module while the system is powered on?
A: No, it is recommended to shut down the system before removal or installation. -
Q: What is the expected lifespan / the adapter?
A: Over 10 years in normal operation conditions. -
Q: What kind / support is available for this model?
A: Honeywell provides global technical support, documentation, and spare parts for this model. -
Q: What if the module fails — can it be repaired?
A: It is typically replaced with a new 件 to maintain system reliability.
Related 型号s (Same Series or Functionality)
| 型号 | 描述 | Output Voltage | Application Area |
|---|---|---|---|
| MU-TLPA02 51304467-100 | Power Adapter for TDC3000 Systems | 5V/12V | General-purpose I/O power |
| MU-TPIX02 | Pulse Input Module | N/A | Pulse signal acquisition |
| MU-PAIH03 | Analog Input Module | N/A | Process sensor input |
| MU-PAOH03 | Analog Output Module | N/A | Control signal output |
| MU-TDOD02 | Digital Output Module | N/A | Actuator control |
| MU-TAIH02 | High-Isolation Analog Input Module | N/A | Sensitive analog applications |
Popular 型号s from Honeywell (Same 品牌)
| 型号 | 描述 | Use Case | Platform |
|---|---|---|---|
| CC-TDIL01 | Digital Input Module | Signal acquisition from field | Experion PKS / TDC3000 |
| CC-PDOB01 | Digital Output Module | Binary output to actuators | Experion PKS / TDC3000 |
| CC-TAOX01 | Analog Output Module | Control signal delivery | Experion PKS |
| CC-TAIX01 | Analog Input Module | Temperature and flow monitoring | Experion PKS |
| 51410069-175 | Central Processor Module | Core logic and process control | Experion PKS |
| 51199929-100 | Power Supply Module | System power support | TDC 3000 |
