产品介绍

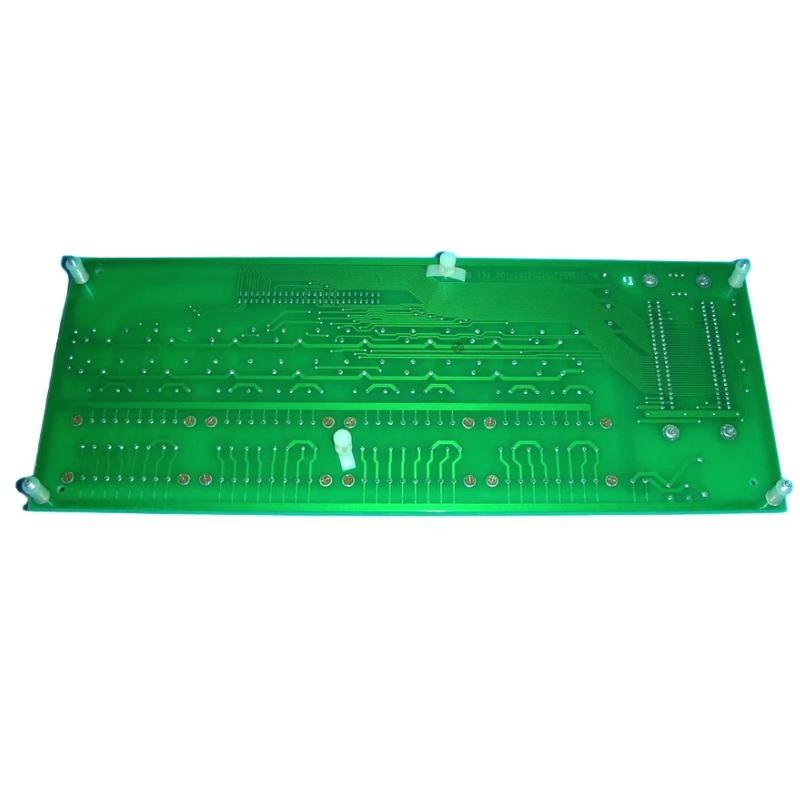

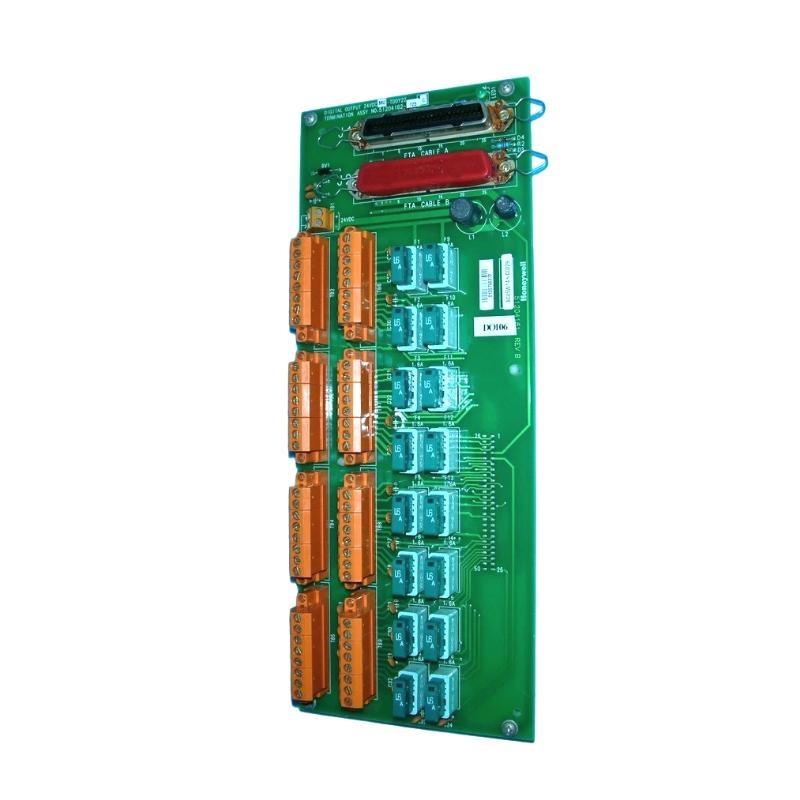

Honeywell’s MU-TDOY22 51204162-125 Digital Output Field Termination Assembly is an industrial-grade output interface module designed to provide reliable signal termination for distributed control systems (DCS). A key component / Honeywell’s TDC 3000 and Experion Process Knowledge System (PKS), it enables seamless connectivity between control hardware and field devices. 支持ing multiple digital output channels, it ensures accurate transmission / control commands to actuators, solenoid valves, relays, and other output devices in process automation environments.
The MU-TDOY22 is designed for durability and precision and optimized for high-performance industrial applications where stable signal transmission and robust isolation are critical. It is designed to handle demanding process control tasks in the oil and gas, petrochemical, power generation, and manufacturing industries. Manufactured to Honeywell’s stringent quality standards, the module ensures long-term reliability, minimal maintenance costs, and compatibility with existing system architectures.
产品规格
| Parameter | Value |
|---|---|
| 型号 | MU-TDOY22 |
| 零件号 | 51204162-125 |
| 品牌 | Honeywell |
| Function | Digital Output Field Termination Assembly |
| Number / Channels | 32 digital output channels |
| Output Voltage | 24V DC / 48V DC (depending on system design) |
| Output Current per Channel | 0.5A (typical) |
| Isolation Voltage | 1500V AC between field and logic |
| Logic Interface | TTL / DCS control signals |
| Response Time | < 1 ms |
| Protection Features | Overcurrent, Short-circuit, Reverse polarity |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | Panel or rack-mounted |
| Dimensions (W x H x D) | 260 x 180 x 65 mm |
| 重量 | 1.1 kg |
| Compliance | CE, UL, RoHS, IEC standards |
Applications
-
Distributed Control Systems (DCS): Interfaces with Honeywell TDC 3000 and Experion PKS systems to provide reliable digital output termination.
-
Process Automation: Controls actuators, solenoids, and relays in critical industrial processes.
-
Power Generation: Ensures stable output control in turbine and generator management systems.
-
Oil & Gas and Petrochemical Plants: Provides reliable output signaling in hazardous and high-demand environments.
-
Manufacturing Automation: 支持s industrial machinery control systems for efficient production lines.
-
Water and Wastewater Treatment: Handles output control for pumps, valves, and process actuators in utility systems.
Product Advantages
-
High Channel Density: 支持s up to 32 digital outputs in a compact assembly, optimizing panel space.
-
Robust Isolation: Provides 1500V AC isolation between field wiring and control logic to protect sensitive equipment.
-
Fast Response: Ensures near real-time output signal transmission for precise control operations.
-
Integrated Protection: Built-in overcurrent and short-circuit protection enhances system reliability.
-
Easy Integration: Fully compatible with Honeywell TDC 3000 and Experion PKS architectures.
-
Durable Industrial Design: Built to withstand harsh operating environments and extended duty cycles.
-
Low Maintenance: Engineered for long-term reliability with minimal service requirements.
-
Global Compliance: Certified to meet international industrial safety and quality standards.
FAQ
-
How many digital output channels does the MU-TDOY22 support?
It supports 32 independent digital output channels for high-density field termination. -
What is the maximum output current per channel?
Each channel can typically supply up to 0.5A / output current, depending on the system design. -
Is the MU-TDOY22 compatible with both TDC 3000 and Experion PKS systems?
Yes, it is designed to seamlessly integrate with both 霍尼韦尔 platforms. -
What is the isolation voltage between field wiring and control logic?
The module provides 1500V AC isolation to ensure system safety and anti-interference capabilities. -
Does the MU-TDOY22 /fer any built-in protection features?
Yes, it includes overcurrent, short circuit, and reverse polarity protection. -
What is the typical response time for output signal switching?
Response times are typically less than 1 millisecond, ensuring precise control action. -
Can this module operate in high electrical noise environments?
Yes, it has a noise-immune design and is suitable for industrial EMI environments. -
Does the field output require a separate power supply?
Yes, it uses an external 24V or 48V DC field power supply depending on the configuration. -
Is the MU-TDOY22 hot-swappable within the system chassis?
In most configurations, it is hot-swappable without affecting system performance. -
Can it interface with non-Honeywell control systems?
Yes, it can be adapted to other DCS or PLC systems as long as the wiring is correct and the signals are matched.
Related models from the same series
| 型号 | Function | Channel | Voltage range | Main Features |
|---|---|---|---|---|
| MU-TDIY22 51204162-100 | Digital Input FTA | 32 DI | 24V DC | High-density input termination |
| MU-TDOY21 51204162-120 | Digital Output FTA | 16 Do | 24V DC | Standard digital output interface |
| MU-AIY22 51204162-130 | Analog Input FTA | 16 Artificial Intelligence | ±10V/4-20mA | High-precision analog input terminals |
| MU-AOY22 51204162-135 | Analog output FTA | 8 AO | ±10V/4-20mA | Precision analog output terminals |
| MU-GAIH22 51204162-140 | Isolated analog input FTA | 16 Artificial Intelligence | ±10V/4-20mA | Electrical isolation / analog inputs |
| MU-TDOD22 51204162-150 | Digital Output FTA | 32 Do | 48 V DC | High current digital output components |
Popular Honeywell 型号s
| 型号 | Function | Channel | Voltage range | Application Focus |
|---|---|---|---|---|
| CC-PDIL01 | Digital input modules | 32 OF | 24V DC | Process Automation DCS Integration |
| CC-TAOX01 | Analog output module | 8 TO | ±10V/4-20mA | Precision analog control |
| CC-PDOB01 | Digital output modules | 16 Do | 24V DC | Field actuator control |
| MU-TDIY21 51204162-110 | Digital Input FTA | 16 OF | 24V DC | Standard input terminal |
| MU-AIY21 51204162-115 | Analog Input FTA | 8. Artificial Intelligence | ±10V/4-20mA | Compact analog input interface |
| CC-PDOR01 | Relay output module | 16 RO | 24V DC | Relay control / field devices |
