产品介绍

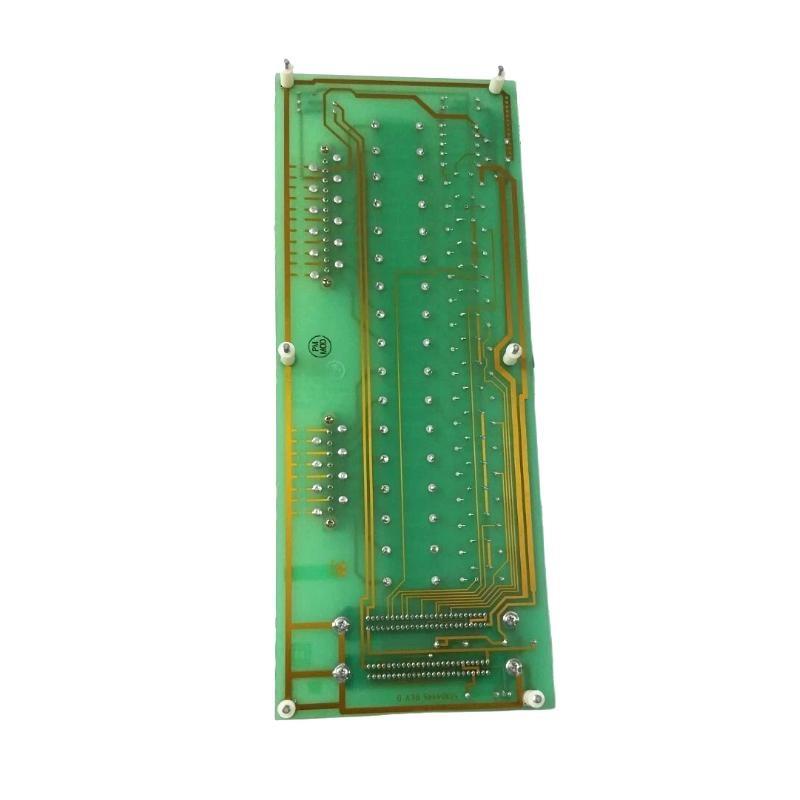

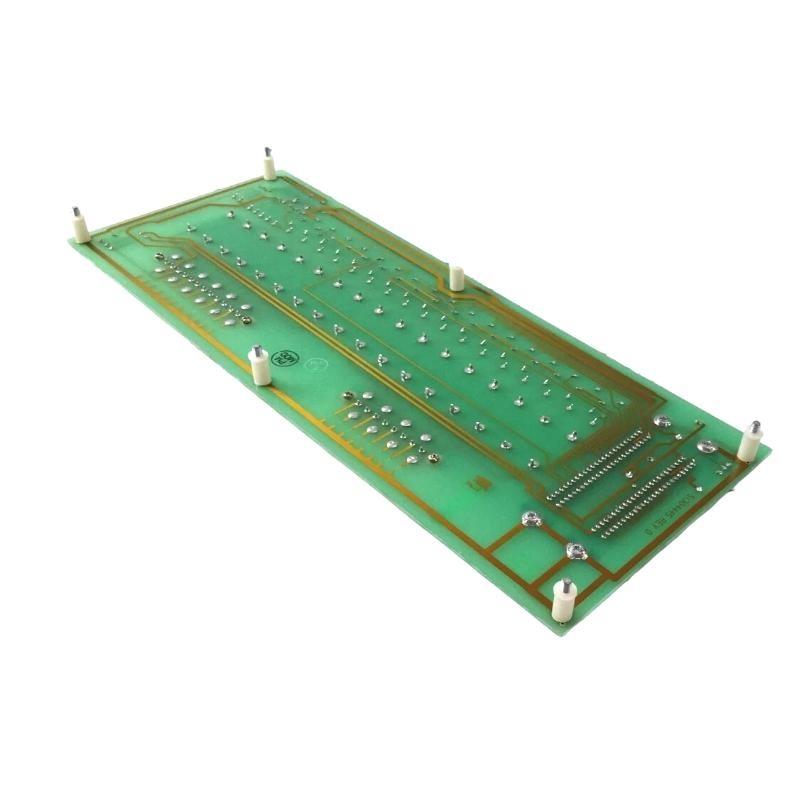

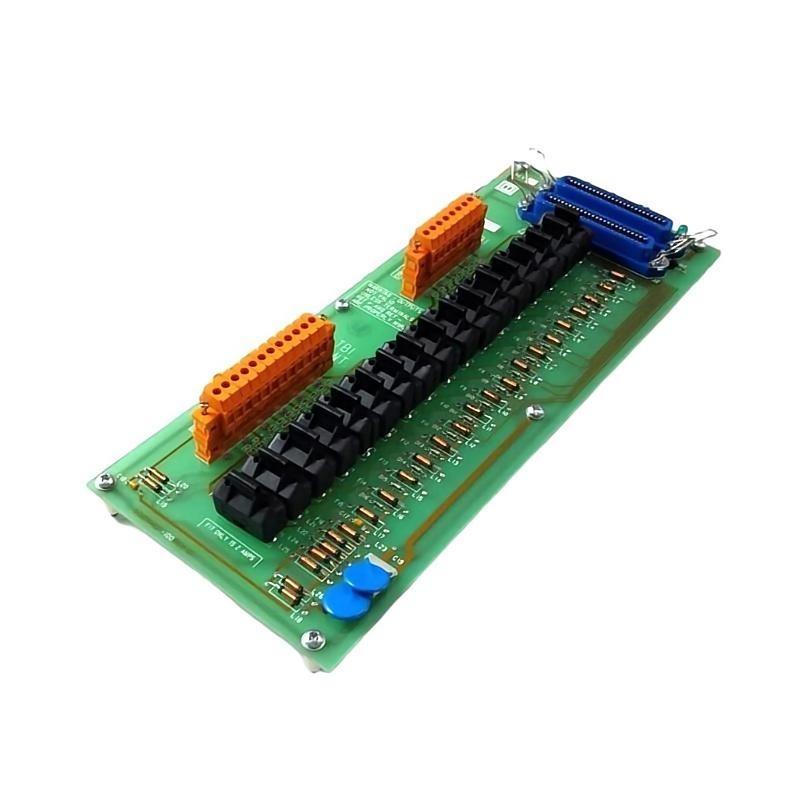

Honeywell’s MU-TDON12 51304446-100 digital output field termination assembly is designed to provide a reliable interface between Honeywell’s distributed control system (DCS) and discrete field devices requiring precise digital output control. This assembly reliably transmits digital signals to actuators, relays, solenoid valves, and other critical output devices in industrial environments.
Designed for seamless integration with Honeywell’s Experion PKS and TDC 3000 systems, the MU-TDON12 provides high-integrity signal isolation, integrated surge protection, and real-time diagnostics to ensure safe, accurate, and consistent control signal transmission under harsh conditions.
产品规格
| scope | value |
|---|---|
| model | MU-TDON12 51304446-100 |
| 制造商 | Honeywell |
| Product Type | Digital Output Field Termination Assembly |
| System compatibility | Honeywell Experion PKS/TDC 3000 |
| Output Channel | 16 isolated digital output channels |
| Output voltage | 24 VDC (nominal, site dependent) |
| Output current per channel | Up to 0.5 A |
| isolation | Electrical isolation and optical isolation between channels and system bus |
| surge protection | Integrated transient voltage suppression |
| diagnosis | Channel status LED indicator |
| Power Supply Voltage | 24 VDC |
| Connector Type | Plug-in terminal blocks |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Safety Certifications | CE, UL, CSA |
| Dimensions (W × H × D) | 210 × 125 × 50 mm |
| 重量 | 0.48 kg |
Product Applications
-
Distributed Control Systems (DCS): Acts as the digital output interface between controllers and field devices.
-
Industrial Automation: Drives solenoids, relays, and motor starters in manufacturing and processing plants.
-
Safety Systems: Provides dependable output signals for emergency shutdown and safety interlocks.
-
Power Generation: Controls turbine auxiliaries, circuit breakers, and relays for stable operation.
-
Oil & Gas Industry: 支持s critical automation in pump control, valve actuation, and safety systems.
-
Chemical & Pharmaceutical: Facilitates batch control and discrete device operation in complex processes.
-
Manufacturing: Powers machinery, packaging lines, and conveyors for production efficiency.
Product Advantages
-
Compact Channel Configuration: 16-channel digital output suitable for medium-density control needs.
-
Built-in Surge Protection: Protects connected equipment from voltage spikes and transients.
-
Robust Isolation: Electrical and optical isolation improves signal integrity and system safety.
-
Visual Diagnostics: LED indicators for each channel allow quick troubleshooting and status verification.
-
Full Honeywell System Compatibility: Designed to integrate seamlessly with Experion PKS and TDC 3000 platforms.
-
Durable Construction: Withstands industrial stresses such as vibration, temperature fluctuations, and humidity.
-
Easy Installation: Plug-in terminal blocks reduce installation time and complexity.
-
Low Maintenance: Engineered for reliability, minimizing downtime and service needs.
FAQ
-
How many digital output channels are available on the MU-TDON12?
The assembly provides 16 isolated digital output channels. -
What types / isolation are used in this module?
Both electrical and optical isolation are implemented to safeguard signals and prevent interference. -
What is the maximum output current per channel?
Each channel supports up to 0.5 A / output current. -
Does the MU-TDON12 include surge protection?
Yes, it has integrated transient voltage suppression to protect field equipment. -
Is this assembly compatible with redundant DCS architectures?
Yes, it supports redundancy when used within compatible Honeywell control systems. -
What is the nominal voltage output / the MU-TDON12?
The nominal output voltage is 24 VDC, depending on the system and wiring configuration. -
Are there status indicators on this component?
Yes, the LED indicators provide real-time channel status to assist with diagnostics. -
What type / connector does the MU-TDON12 use?
This component uses plug-in terminal blocks to simplify wiring and maintenance. -
Does the MU-TDON12 comply with EMC requirements?
Yes, it complies with EN 61000-6-2 and EN 61000-6-4 standards for industrial environments. -
Which grounding method is recommended?
Dedicated shield grounding is recommended to maintain EMI suppression and system reliability.
Recommended related models (same series or with equivalent functions)
| model | describe | Main Features |
|---|---|---|
| MU-TDON11 51303959-100 | Digital Output Field Termination Assembly | 16-channel digital output with diagnostic function |
| MU-TDON13 51304650-100 | Digital Output Field Termination Assembly | 32-channel high-density output components |
| MU-TDOD12 51304423-100 | Digital Output Field Termination Assembly | 32-channel digital output with surge protection |
| MU-TDOA13 51304648-100 | Digital Output Field Termination Assembly | 16-channel version with LED indicator |
| MU-TDOA12 51304586-100 | Digital Output Field Termination Assembly | Compact 8-channel digital output |
| MU-TDIA12 51304584-100 | Digital Input Field Termination Assembly | 16-channel digital input interface |
Recommended popular Honeywell models
| model | describe | Main Applications |
|---|---|---|
| CC-PDIL01 | Pulse input module | High-precision digital pulse signal acquisition |
| CC-TDIL01 | Digital input modules | Discrete 24 VDC input signal monitoring |
| CC-PAIH01 | Analog input modules | High-precision analog signal acquisition |
| CC-PAOH01 | Analog output module | Analog output control / actuators |
| CC-PCNT01 | Controller Processor Module | The core processing 件 / 霍尼韦尔 |
| CC-PAON01 | Digital output modules | Stable and reliable discrete output control |
