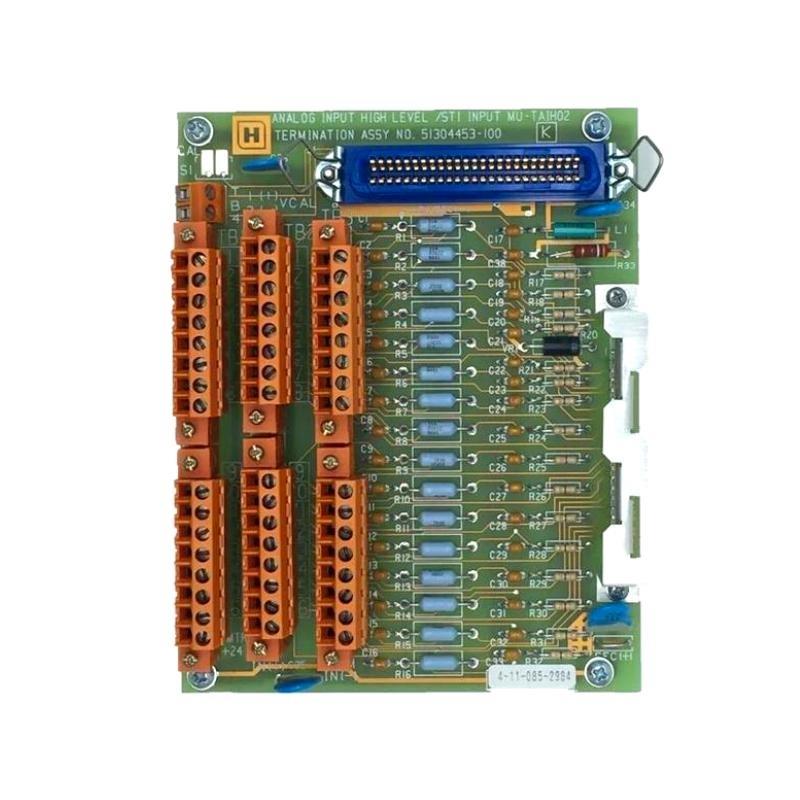

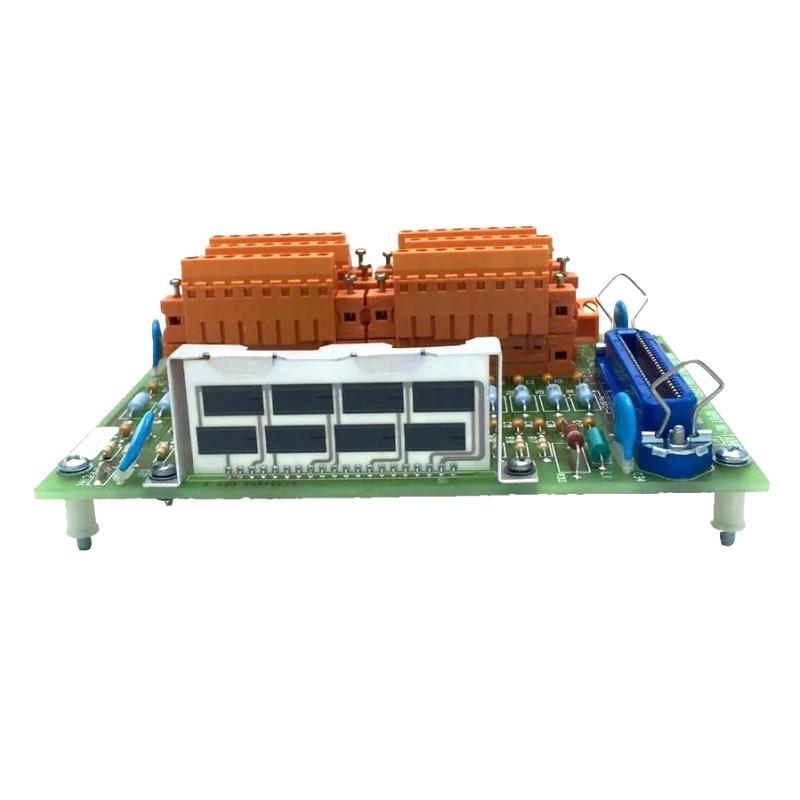

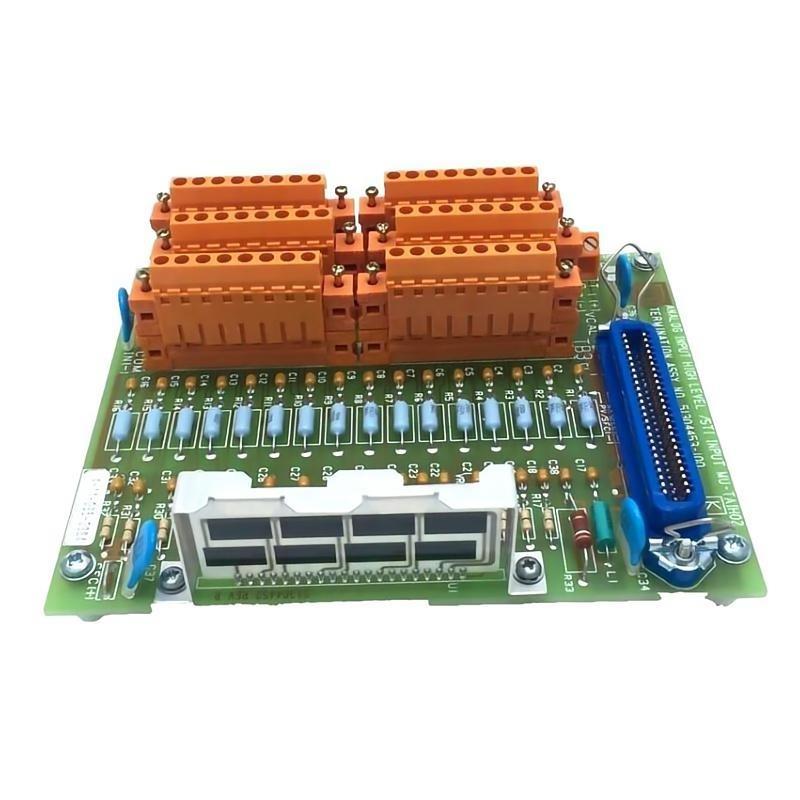

The Honeywell MU-TAIHD2 High Input Analog / STI Input Terminal Assembly is a critical field wiring interface module designed to connect high-density analog input signals to the Honeywell TDC 3000 and TPS (TotalPlant Solution) Distributed Control Systems. This terminal assembly serves as a physical interface between field devices (such as transmitters and sensors) and the corresponding analog input modules in the system’s control backplane.
Specifically built to support Signal Termination Interface (STI) configurations, the MU-TAIHD2 ensures secure, organized, and efficient wiring / multiple high-level analog signals, /fering exceptional channel density, signal integrity, and diagnostic capabilities. This model is particularly suitable for environments requiring numerous analog signal connections, and where maintenance-friendly design and long-term reliability are critical.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 Number | MU-TAIHD2 |
| Product Type | High-Density Analog Input / STI Input Terminal Assembly |
| System Compatibility | Honeywell TDC 3000 / TPS / Experion Systems |
| Associated I/O Modules | MU-PAIH02, MU-PAIH03, and compatible analog input modules |
| Number / Channels | 32 Analog Input channels |
| Signal Type | 4–20 mA, 1–5 V, and other high-level analog signals |
| Wiring Type | Screw clamp terminals (field side), ribbon connector (system side) |
| Terminal Type | Detachable terminal blocks for easy maintenance |
| Connection to I/O Module | Ribbon cable or direct plug-in to IOTA backplane |
| Shielding | Yes – 支持s shielded cable termination |
| Status Indicators | None (passive assembly) |
| Power Requirement | Passive – No external power required |
| Mounting Style | DIN rail or panel-mounted in control cabinets |
| Ingress Protection | IP20 when mounted inside cabinet |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Material | Industrial-grade flame-retardant thermoplastic housing |
| Compliance | CE, UL, RoHS |
| Dimensions (H × W × D) | 150 × 305 × 80 mm |
| 重量 | 1.2 kg |
Product Applications
-
Refineries and Petrochemical Facilities: Interfacing a high number / analog transmitters with process control systems.
-
Power Generation Plants: For connecting turbine sensors, temperature transmitters, and environmental analyzers.
-
Pharmaceutical Manufacturing: To manage temperature, pressure, and flow data from precision sensors.
-
Food & Beverage Automation: For batching, blending, and CIP process monitoring using analog devices.
-
Water and Wastewater Treatment: Integrating signals from pressure transducers, pH meters, and ultrasonic level sensors.
-
Steel and Mining Operations: Terminating sensor signals in centralized DCS cabinets under heavy load conditions.
Product Advantages
-
High-Density Channel Configuration: 支持s up to 32 analog input terminations in a compact footprint, reducing cabinet space usage.
-
Simplified Maintenance: Detachable terminal blocks and labeled wiring minimize downtime during troubleshooting or replacement.
-
Shielded Cabling 支持: Ground terminals enable proper cable shielding to maintain signal integrity in electrically noisy environments.
-
System Compatibility: Fully compatible with multiple Honeywell analog input modules, ensuring flexibility and system continuity.
-
Tool-Free Field Replacement: Enables quick swapping / terminal blocks without disturbing system-side ribbon connections.
-
Passive Reliability: No active components, reducing risk / failure and improving long-term reliability.
-
DIN Rail or Panel Mount: Flexible mounting options for various control room cabinet designs.
FAQ
-
How many analog input channels does the MU-TAIHD2 support?
It supports 32 independent analog input channels. -
Is the MU-TAIHD2 compatible with the MU-PAIH03 analog input module?
Yes, it is designed to interface directly with high-density analog input modules such as the MU-PAIH03. -
Does the terminal assembly require external power?
No, it is a passive component and does not require any external power supply. -
Can shielded cables be terminated on this terminal assembly?
Yes, it supports shield termination to maintain signal quality in noisy industrial environments. -
Is the terminal block detachable for maintenance?
Yes, the MU-TAIHD2 features detachable terminal blocks for convenient field maintenance and wiring checks. -
What type / signal conditioning does the MU-TAIHD2 perform?
None. It is a passive termination module and does not perform any signal conditioning or amplification. -
Can this assembly be used with HART-enabled signals?
Yes, as long as the paired analog input module supports HART communication, the terminal assembly passes the signal transparently. -
Is there galvanic isolation between channels?
No, isolation is handled by the connected analog input module, not the terminal assembly. -
What is the typical wiring method used with MU-TAIHD2?
Field devices connect via screw clamp terminals, while the assembly connects to I/O modules via ribbon cable. -
Does the MU-TAIHD2 support hot-swapping / connections?
The terminal blocks can be safely removed or inserted during maintenance when the system is in a safe state, but care must be taken to avoid signal disruption.
Related 型号s from the Same Series or 分类
| 型号 Number | 描述 | Channels | Type | Notes |
|---|---|---|---|---|
| MU-TAIH02 | Analog Input Terminal Assembly | 16 | Analog Input | Standard-density version |
| MU-PAIH02 | High-Level Analog Input Module | 16 | Analog Input Module | Pairs with MU-TAIHD2 |
| MU-PAIH03 | High-Density Analog Input Module | 32 | Analog Input Module | Optimal match for MU-TAIHD2 |
| MU-TAMR03 | Analog Manager Redundant Processor | N/A | Controller Module | Collects and processes analog input data |
| MU-TAOHD2 | High-Density Analog Output Terminal Assembly | 32 | Analog Output Termination | Output counterpart to MU-TAIHD2 |
| MU-TDIO02 | Digital Input/Output Terminal Assembly | 32 | DI/DO Termination | Used for discrete signal interfacing |
Popular Honeywell 型号s in Automation Systems
| 型号 Number | 描述 | System Compatibility | Function |
|---|---|---|---|
| CC-PAIH01 | Analog Input Module | Experion PKS | 16-channel AI with HART support |
| CC-PAOH01 | Analog Output Module | Experion PKS | 16-channel AO for control signals |
| MC-TAMR03 | AM Redundant Controller | TDC 3000 | Redundant process control |
| CC-TDIL01 | Digital Input Module | ControlEdge / Experion | 24VDC isolated DI module |
| 51402573-150 | Interface Module | TDC 3000 | Processor to I/O interface |
| MU-PAIN02 | Isolated Analog Input Module | TDC 3000 | Enhanced signal protection |
