产品介绍

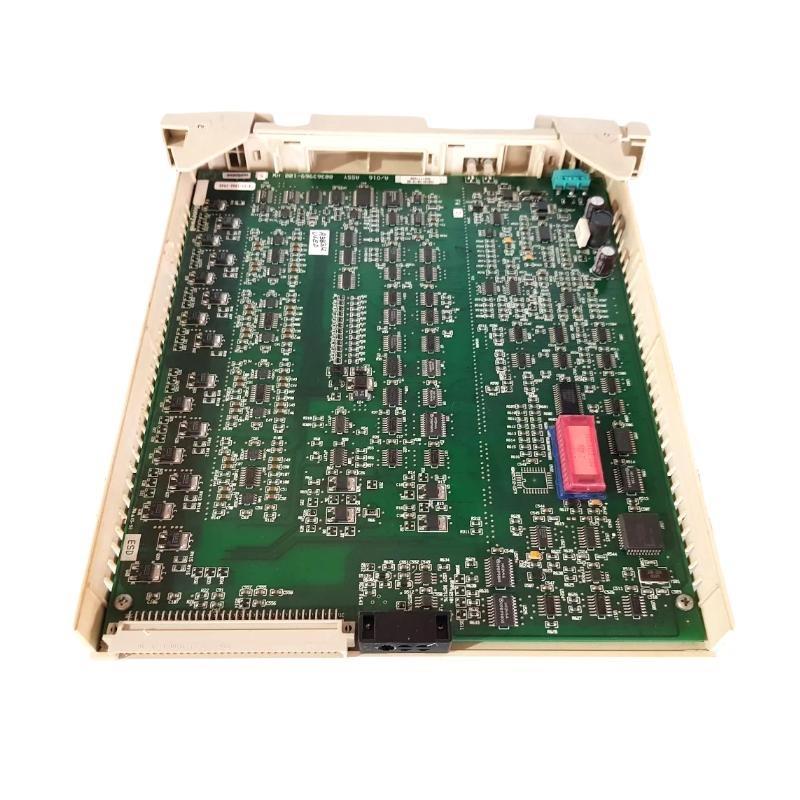

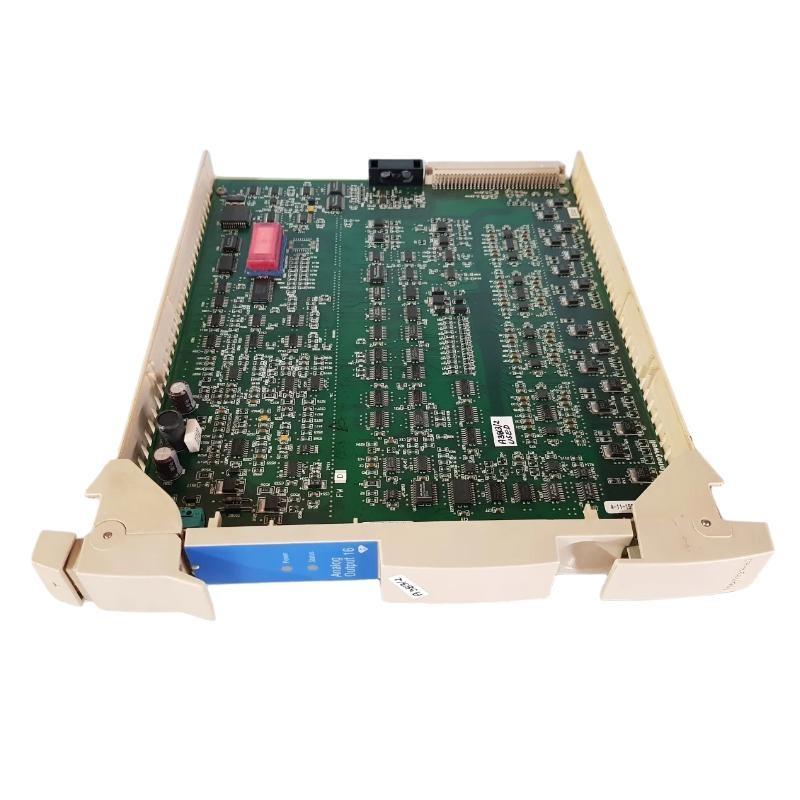

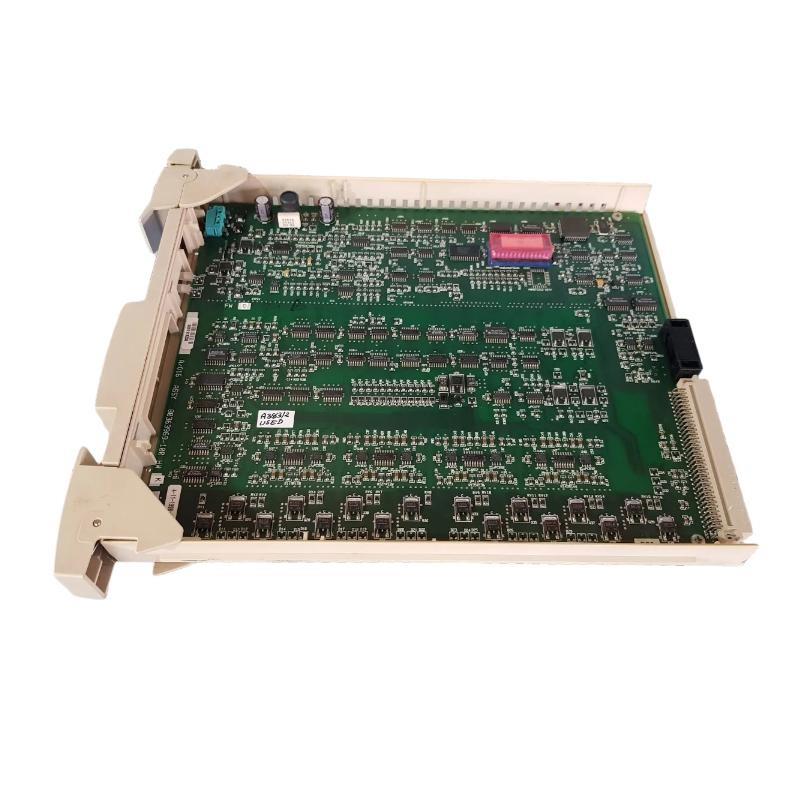

The Honeywell MU-PAOY22 80363969-100 is a high-performance Analog Output Processor Board engineered to handle critical analog signal processing tasks in Honeywell’s Experion PKS and TDC 3000 control systems. Designed for robust industrial environments, this board delivers precision analog output control to a wide variety / field devices such as control valves, actuators, and transmitters.
The MU-PAOY22 serves as a crucial interface between the controller and final control elements, managing the conversion / digital commands into stable analog output signals. It is ideal for applications where high availability, fault tolerance, and precision output are essential. Its compact and modular design allows for seamless integration and efficient maintenance within a Honeywell I/O framework.
产品规格
| Parameter | 描述 |
|---|---|
| 型号 | MU-PAOY22 |
| 零件号 | 80363969-100 |
| Module Type | Analog Output Processor Board |
| Function | Converts digital signals to analog outputs |
| Number / Output Channels | 8 or 16 channels (depending on system configuration) |
| Signal Type | 4–20 mA current loop |
| Output Resolution | 16-bit DAC |
| Output Accuracy | ±0.05% / full scale |
| Redundancy 支持 | Yes, dual-processor or dual-path redundancy |
| Switchover Time (Redundant) | <10 ms |
| Diagnostics | Built-in diagnostics with status indicators |
| Signal Isolation | Yes, galvanic isolation from system and other channels |
| Communication | Backplane I/O bus |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Power Supply | Supplied via system backplane |
| Mounting Type | Rack-mounted in I/O chassis |
| Dimensions (W × H × D) | 40 × 260 × 220 mm |
| 重量 | 1.4 kg |
| Certifications | CE, UL, CSA, FM |
| System Compatibility | Honeywell Experion PKS, TDC 3000 |
| Hot Swappable | Yes |
Product Applications
The MU-PAOY22 Analog Output Processor Board is engineered for use in a variety / critical control system applications, particularly where analog output accuracy and continuity are non-negotiable. Common industrial use cases include:
-
Oil & Gas Refining: Controls fuel flow, pressure relief valves, and process dampers.
-
Chemical Processing: Regulates dosing pumps, proportional valves, and mixers with high precision.
-
Power Generation: Sends analog signals to steam control valves, feedwater systems, and actuator drives.
-
Pharmaceutical Industry: Ensures highly accurate control in temperature-sensitive and flow-regulated processes.
-
Food & Beverage: Maintains consistent ingredient flow and environmental conditions during processing.
-
Water & Wastewater Treatment: Controls chemical injectors, pump speed controllers, and flow regulators.
Product Advantages
-
High Output Accuracy: Offers a 16-bit digital-to-analog conversion with ±0.05% accuracy for precision control.
-
Redundant Design: 支持s redundancy at the board and system level to ensure zero-loss output continuity.
-
Galvanic Isolation: Provides strong protection against ground loops and electrical interference.
-
Built-in Diagnostics: Continuously monitors signal integrity and health, simplifying maintenance and troubleshooting.
-
Fast Response Time: Enables real-time analog output adjustments critical in dynamic process environments.
-
Hot-Swappable Capability: Allows for in-operation replacement or upgrade without system shutdown.
-
Seamless Integration: Fully compatible with Honeywell control systems and standardized backplane architecture.
-
Field-Proven Reliability: Extensively used in hazardous and mission-critical applications worldwide.
常见问题 (FAQ)
-
What types / analog signals does the MU-PAOY22 output?
It outputs 4–20 mA current loop signals, compatible with most industrial actuators and control devices. -
Does the board support redundancy?
Yes, it supports redundant configurations including dual processor paths and switchover within 10 ms. -
Can this board be hot-swapped without stopping the process?
Yes, it supports hot-swapping for ease / maintenance and minimal downtime. -
What is the output resolution / the processor board?
The module uses a 16-bit DAC to provide highly accurate output resolution. -
Is there channel-to-channel electrical isolation?
While it /fers full isolation from the system and ground, isolation between channels depends on the chassis design. -
How are diagnostics communicated to the control system?
Via status LEDs and internal health check reports sent through the backplane bus to the control processor. -
Can the MU-PAOY22 be used in safety-critical applications?
Yes, when configured properly, it is suitable for use in SIL-rated systems requiring reliable analog output. -
How does the module handle signal degradation or failure?
It uses internal diagnostics to detect faults and automatically switch to a redundant path if configured. -
What happens to output signals during a system restart?
The processor board retains its last known state or defaults to a safe state as configured by the control logic. -
How many output channels can be configured simultaneously?
It can support either 8 or 16 analog output channels depending on system settings and installation.
Related 型号s (Same Series or Functionality)
| 型号 | 零件号 | Function | Channels | System Compatibility |
|---|---|---|---|---|
| MU-PAOH03 | 51304485-100 | High-Level Analog Output Module | 16 AO | Experion/TDC 3000 |
| MU-AOH03 | 51401495-100 | Analog Output Module | 16 AO | Experion PKS |
| MU-TAOX52 | 51304335-200 | Analog Output Redundancy Module | Redundant 支持 | Experion PKS |
| MU-TAOX02 | 51304453-100 | Analog Output Module | 16 AO | Experion PKS |
| MU-AIH03 | 51401491-100 | Analog Input Module | 16 AI | Experion PKS |
| MU-PAIH03 | 51304493-100 | High-Level Analog Input Module | 16 AI | Experion PKS |
Popular Honeywell 型号s
| 型号 | 零件号 | Function | Input/Output | System Compatibility |
|---|---|---|---|---|
| CC-TAIX01 | 51405038-175 | Analog Input Module | 16 AI | C300 Controller |
| CC-PAOH01 | 51405039-175 | Analog Output Module | 16 AO | C300 / Experion PKS |
| CC-TDIL01 | 51405040-175 | Digital Input/Output Module | 32 DI/DO | C300, Safety Manager |
| CC-PDIL01 | 51405039-175 | Digital Input Module | 32 DI | C300 Controller |
| FC-TPSU01 | 51309512-175 | Power Supply 单位 | – | Field Control Station |
| CC-PCNT01 | 51405046-100 | Pulse Counter Module | 8 Channel | C300 / Pulse Systems |
